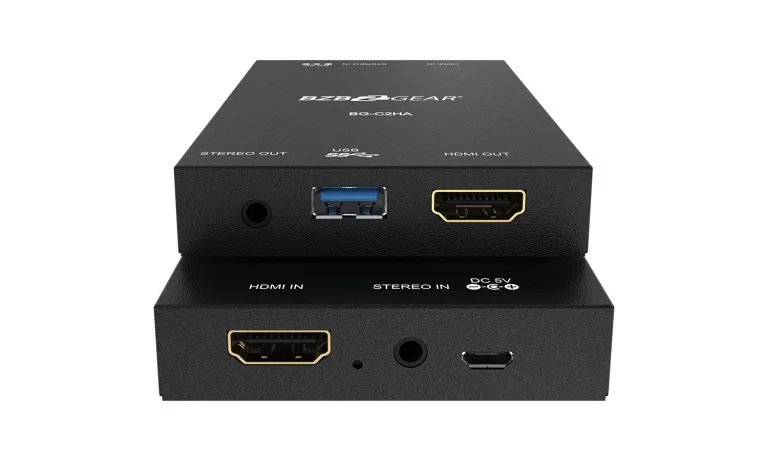

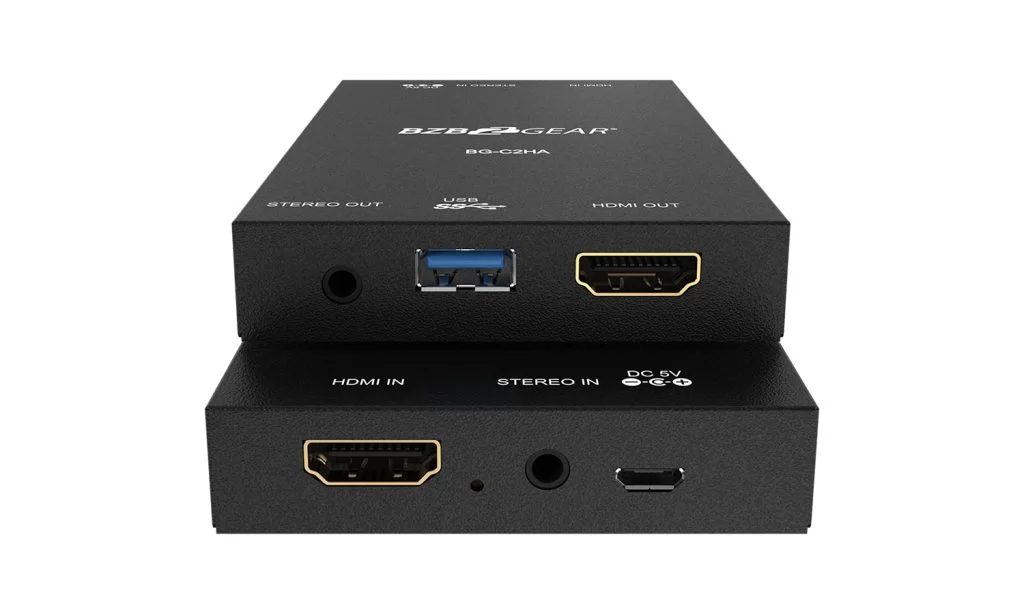

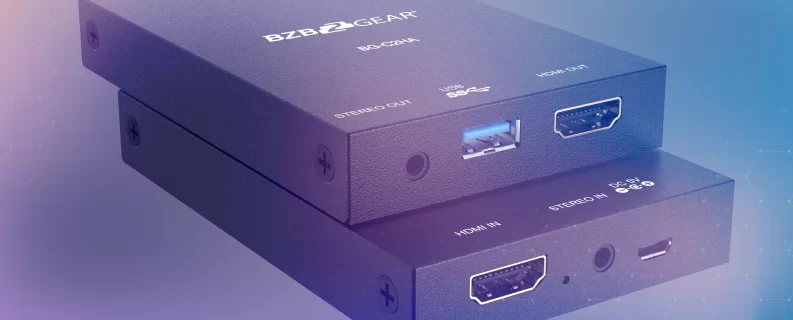

BG-C2HA
USB 3.0 Full HD Video Capture Device With HDMI 2.0a loopout & Audio

USB 3.0 Full HD Video Capture Device With HDMI 2.0a loopout & Audio

SKU: BG-C2HA

The BG-C2HA lets you easily capture a HDMI source and save it on your computer or storage device. It’s perfect for recording from computers, cameras, and A/V Equipment. It’s portable and simple to use, receiving audio and video at resolutions up to 4K@60Hz 4:4:4 HDR10 with a capturing resolution of 1080P@60Hz. It features a loop output allowing your display to remain uninterrupted. It also has the capability of embedding an external analog audio source into the HDMI signal, or de-embedding HDMI audio to feed an external device. The USB cable also supplies power to the unit, meaning no extra power cables to carry.

MSRP $319.00*

*Pricing is for US only. International pricing will vary.
Features
  • Supports UVC1.0
  • HDMI video and audio streams over USB 3.0
  • Supports video resolution up to 1080p 60Hz (Video stream over USB 3.0)
  • Supports HDMI input & loopout from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
  • Supports resolution downscaling from 4K2K to 1080P
  • Supports line-in mix with HDMI audio
  • Supports HDMI audio extraction
  • Auto-detection on video format to ensure plug-play operations
  • Recording Video Format: H.264 (Software Compression)
  • Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
  • Compatible with most 3rd party software such as OBS Studio and AMCap
  • Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG)
  • Low Lattency
  • System Requirements (Recommanded)
  • Windows® 7(SP1) / Windows 8.1 / Windows 10
  • PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
  • Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
  • 4GB RAM or higher
Specifications



Technical
USB Compliance3.0
Max. Data Rate350 Mbps
Max. Resolution1080p@60
Audio Support2ch 16bit PCM
ESD Protection8 KV - Contact Discharge
15KV - Air Discharge
Mechanical
Housing DesignMetal
Casing StylePortable
Power ConnectionMicro-USB Port
Power Supply5V DC, 2A
Power Consumption5 watts (Max)
Operating Humidity20-90% RH (no condensation)
Operation temperature0~40°C (32~104°F)
Product Weight135g (0.3 lb)
Package Weight270g (0.6 lb)
CertificationsCE, FCC, RoHS





Package Contents
① 1x BG-C2HA USB 3.0 Full HD Video Capture Device
② 1x USB 3.0 to A Cable (host to device)
③ 1x DC 5V Wall Adapter
④ 1x User Manual


Device Interface

See full description of the connections here


Diagram





Warranty: 2 years
