Overview

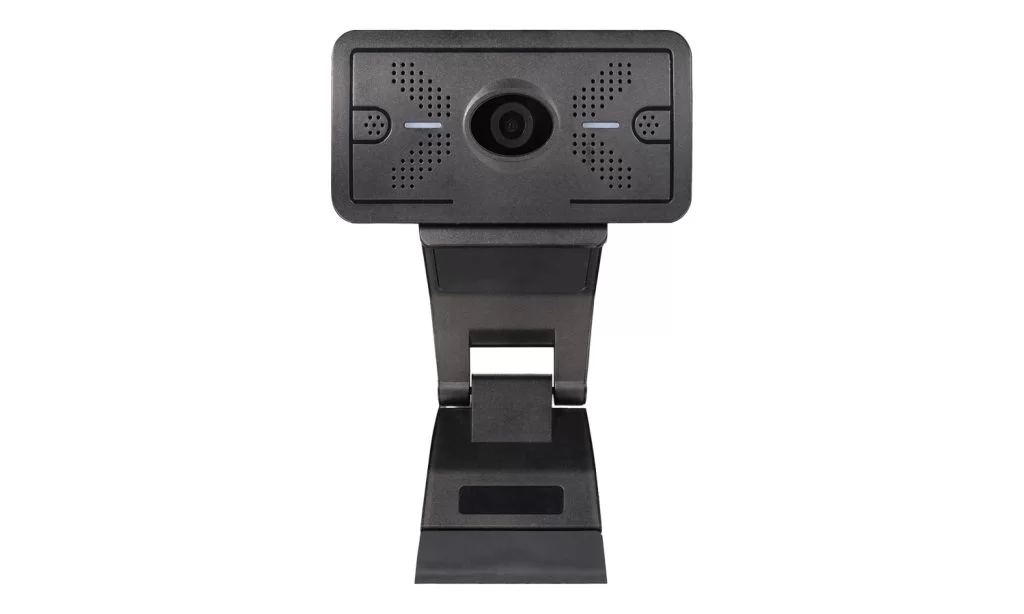

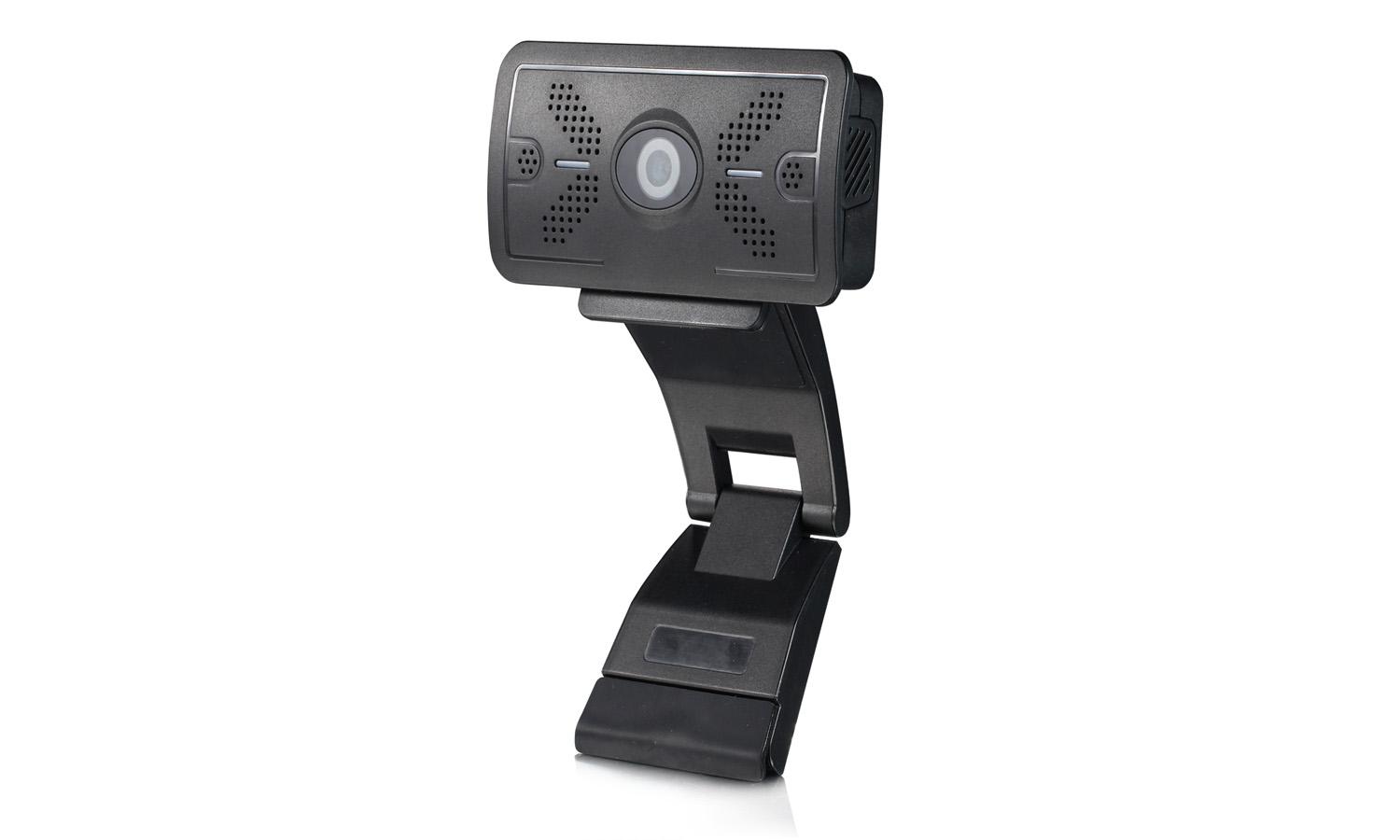

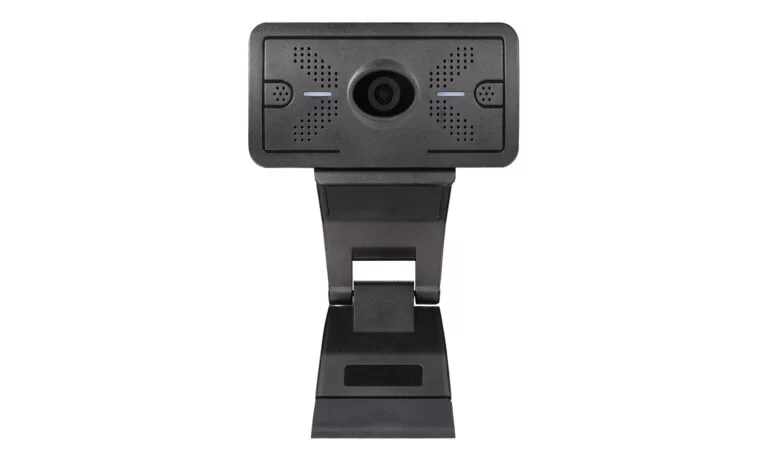

OverviewMake an impression on your next conference call with the BG-BWEB-W Wide-View USB Webcam! This high-quality camera and microphone provide a huge boost over your computer’s built-in units. Our clever integrated mounting system allows for the unit to be mounted to a TV or monitor, a wall bracket, or simply perched unobtrusively on your desk.
Attributes
Wide Field of View: The 113 degree wide viewing angle ensures nothing in your presentation gets missed.
Full HD: Built with a 1/2.8", 2.07MP high-quality CMOS sensor. Resolutions up to 1920x1080 with frame rate up to 30Hz to show lifelike full HD images.
Stereo sound: The integrated omnidirectional high sensitivity microphone’s pickup distance can reach up to 10 feet. Utilizes auto gain and auto noise reduction functions to provide clear and natural stereo sound.

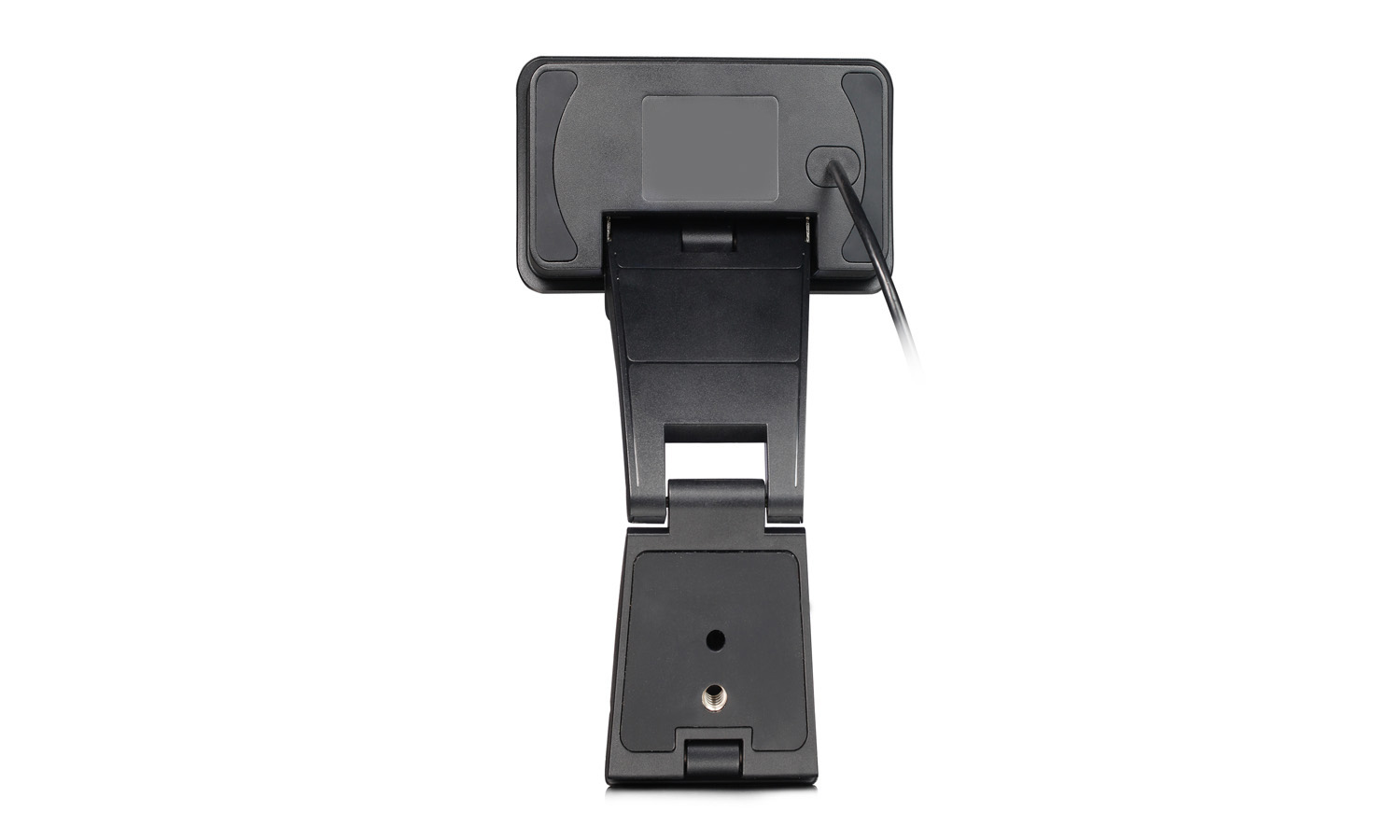

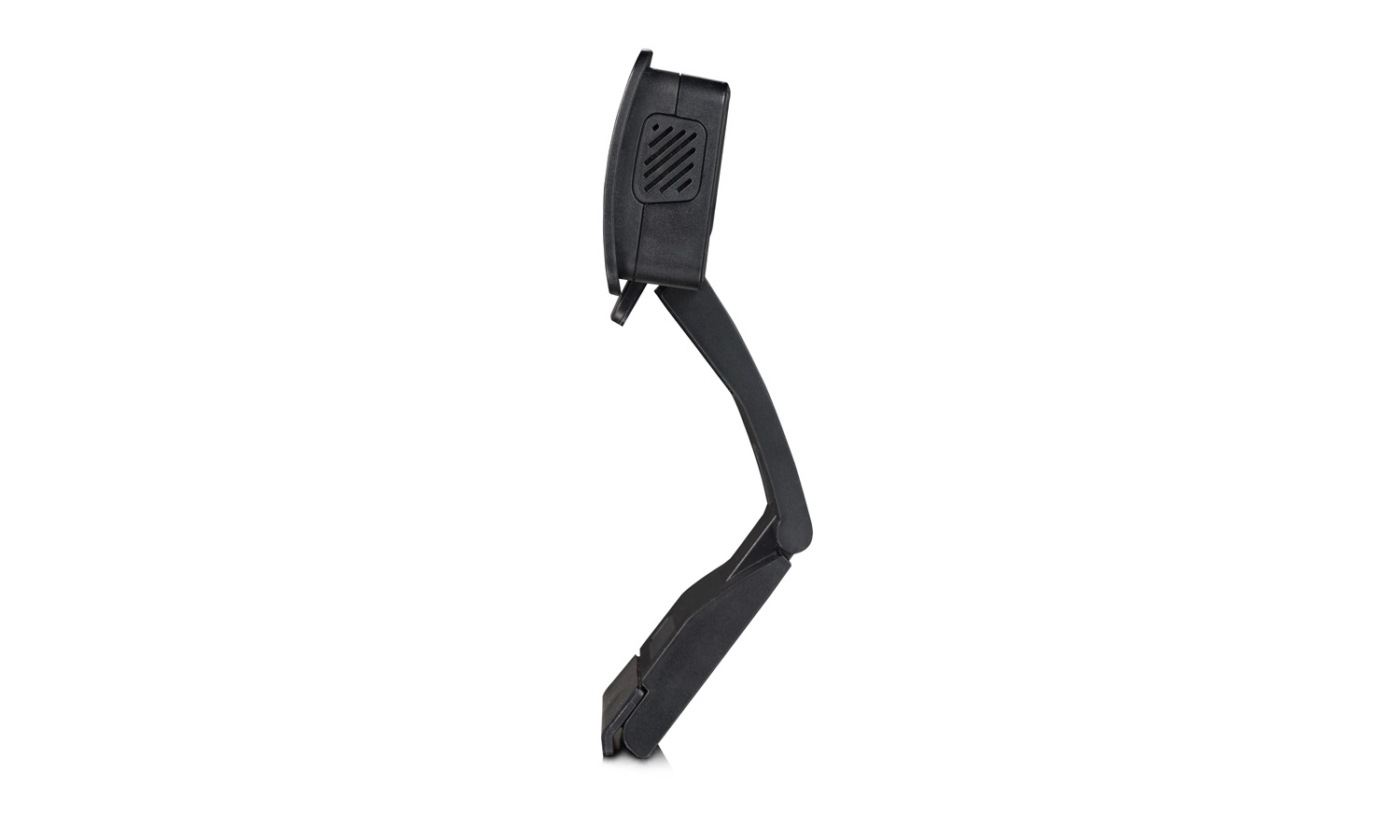

Flexible Installation Options: With the integrated mounting system it has the flexibility to be installed on a monitor, laptop, tripod, or directly on your desk.
Easy setup: Simply connect the included USB cable to your computer and enjoy crystal-clear image and sound!
Features
- 10X digital zoom helps you get the shot you need
- Low noise & high SNR
- Easily mount to monitor/desk
- H.264/H.265 and MJPEG video compression
- Built in Mic
- Advanced focus technology
- Supports AAC, MP3 and PCM audio encoding
- Easy USB 2.0 plug and play capability
- 113°(D) /120°(H)/ 57°(V) viewing angle
Videos
Tech Specifications
| Camera Parameters | |
| Sensor | 1/2.8" high quality HD CMOS sensor |
| Effective Pixels | 16:9 2.07MP |
| Video Format | 960x540 / 320x180 / 432x240 / 640x360 / 800x448 / 800x600 / 864x480 960X720 / 1024X576 / 1280X720 / 1600X896 / 1920X1080 / 272X144 / 368X208 / 384X216 / 480X272 / 624X352 / 912X512 / 424X240 / 640X480 / 320X240 / 160X120 / P30 |
| View Angle | BG-BWEB-W 113° (D) / 109°(H) / 57°(V) |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| Aperture | Fixed |
| Backlight contrast | On/off |
| Exposure | Exposure parameter could be adjusted; support auto exposure |
| Video Adjustment | Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation, etc. |
| SNR | >50dB |
| Input/Output Interface | |
| Video Interfaces | USB2.0 (power supply, upgrading available) |
| Video Compression Format | H.264, YUV, MJPEG |
| Audio Input Interface | Built in omnidirectional high sensitive digital pickup |
| Other Parameters | |
| Input Voltage | 5V |
| Input Current | 500mA (Max) |
| Power consumption | 2.5W |
| Store Temperature, Humidity | 14°F ~ 140°F / -10°C ~ +60°C, 20%~95% |
| Working Temperature, Humidity | 14°F ~ 122°F / -10°C ~ +50°C, 20%~80% |
| Dimension (WXHXD) | 4.4in x 2.6in x 3.7in [112mm x 65mm x 93mm] |
| Weight (appx.) | 0.55lbs [0.25kg] |
| Working Environment | Indoor Only |
Resources
PACKAGE CONTENTS
- 1x Camera
- 1x User Manual
