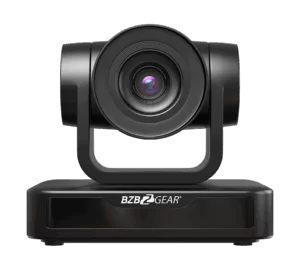

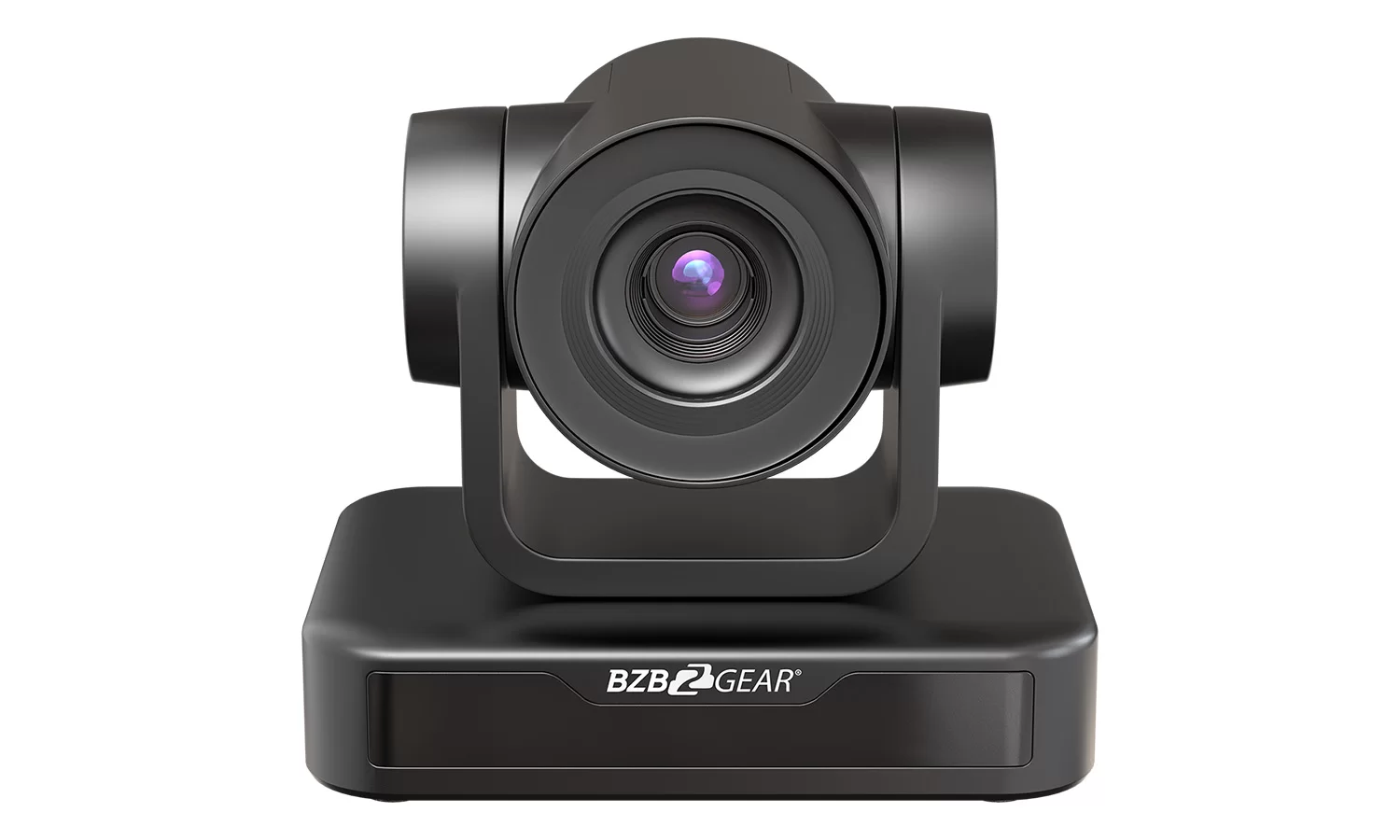

Essential 1080P Full HD 3X/10X USB 2.0/RS232 Huddle/Conference Room PTZ Camera

MSRP: $599.00$699.00
3x3x10x10x
Requests a Quote
Tag:

5
Overview

This high-quality pan tilt zoom (PTZ) camera is available in two configurations, the 3x optical zoom variant and the 10x optical zoom variant. The 3x optical zoom variant is ideal for smaller spaces, huddle rooms, and wide-angle shots. The 10x optical zoom version is a better fit for larger rooms where individual subjects are located further away but still need to fill the frame.

Connectivity and Performance

Both variants of the BG-BPTZ-XU support resolutions up to [email protected] This camera produces high quality imagery from its 1/2.8” high quality CMOS sensor. The 3x optical zoom variant has a field of view of up to 85°. The 10x optical zoom variant has a field of view of up to 66°. The BG-BPTZ-XU has quick and easy plug and play connectivity with USB 2.0 type A for any video conferencing software on your laptop or desktop PC, such as Skype, Zoom, Microsoft Teams, and Google Meet.

A step drive motor mechanism and precision motor drive controller ensure that the PTZ operation of the camera is smooth and quiet to avoid disruptions.

Supported video compression formats with this camera include H.264, H.265, and MJPEG.

Control

The two variants of the BG-BPTZ-XU have several control options available including IR remote, RS-232, RS-485 and UVC (USB). Up to 255 preset positions are available with 10 accessible via the IR remote. Connect this camera to a laptop or desktop to use it as a video source for video conferencing apps.

Both variants of the BG-BPTZ-XU camera can be mounted to a ceiling, wall, or tripod, increasing the potential for this camera to be installed in many environments.



Features
Zoom
Available in 3x/10x Optical zoom
Control
Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
USB2.0 (type A) Output
Fast and Simple setup
Full HD Image
1/2.8" high quality CMOS sensor with resolutions up to [email protected]
Superb Auto Focus
Latest auto focusing algorithms resulting in quick, accurate, and stable focus
Extremely Quiet PTZ
Step drive motor mechanism and precision motor drive controller ensure PTZ works smoothly with no noise
  • 1/2.8" high quality CMOS sensor
  • Superb high-definition image
  • Easy for anyone to operate
  • Up to 255 presets (10 presets for IR remote control)
  • Perfect for a multitude of applications
  • Advanced 2D/3D noise reduction technology
  • Works with Win7-10, Mac osx, and Linux
  • MJPG/H264/H265 video compression formats
  • Auto/manual/one push white balance


Specifications
Model Number BG-BPTZ-3XU BG-BPTZ-10XU
View Angle 34.1° ~ 85° 8.8° ~ 66°
F Value f=3.35mm ~ 10.05mm f=4.34mm ~ 41.66mm
AV F1.7 ~ 3.0 F1.85 – F2.43
Optical Zoom 3X 10X



Camera Parameters
Image Sensor 1/2.9 Inch High Quality CMOS Sensor
Effective Pixels 2.07MP, 16:9
Video Format 1920×[email protected] fps/25fps; 1280×[email protected]/25fps; 1024×[email protected]/25fps; 960×[email protected]/25fps; 800×[email protected]/25fps; 640×[email protected]/25fps; 320×[email protected]/25fps
Low Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D&3DDNR
White Balance Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/Manual/One Push
Electronic Shutter Auto/Manual
BLC On/Off
WDR OFF/Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Interface and Protocol
Video Output USB2.0. Type A
Video Compression H.265, H.264, MJPG
Control Port RS232 in & out, RS485
Control Protocol VISCA/Pelco-D/Pelco-P
Power Supply HEC3800 Outlet (DC12V)
USB characteristics
Support operating system Windows 7, Windows8, Windows10, Mac OS, Linux
Video Compression H.265, H.264, MJPG
USB communication protocol UVC
PTZ Parameter
Pan/Tile Rotation -170° ~ +170° / -30° ~ +30°
Pan/Tile Controller Speed 0.1 ~ 60°/Second, 0.1 ~ 30°/Second
Preset Speed Pan: 60°/Second, Tilt: 30°/Second
Preset Numbers 255 Presets (10 presets on IR Remote)
Other Parameter
Working Voltage 12V
Working current 0.25A(max)
Power Consumption 2.5W(max)
Storage Temperature -10°C ~ +60°C , 20% ~ 95%
Working Temperature -10°C ~ +50°C, 20% ~ 80%
Dimension 156.8mm×112.6mm×139.5mm
Weight 1KG
Usage Indoor Only
Package 12V/1.5A Power supply, Remote Controller, Manual, USB2.0 Cable
Accessories Optional Mount (Extra Cost)
MORE / LESS SPECS


Compatible with:

Product Overview

SKU Optical Zoom Field of View 3G-SDI HDMI USB MSRP*
BG-BPTZ-3XU 3X 85° $599.00
BG-BPTZ-10XU 10X 66° $699.00


Zoom Selection


Not sure which zoom you need? Our handy calculator will make your choice easy! Simply enter the distance (in feet) from the camera to the area you’re trying to record. It will give you the height and width (in feet) of the coverage area for each lens at full zoom and full wide. Find the one that best matches your intended shot and contact one of our friendly sales associates to place your order. Now go kick your feet up - you’ve earned it!

Optical Zoom Field of View Calculator


Distance from Camera Lens (ft)

Calculate

3x 10x
Zoomed In width
height
0
0
0
0
Zoomed Out width
height
0
0
0
0



Ideal fit for:
  • Conference Rooms
  • Remote Education and Healthcare
  • House of Worship
  • Small Businesses
  • Doctors
  • Pastors
Interface
1.
RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
2.
USB: Connect USB2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to [email protected]
3.
Power: Connect supplied 12V power adapter.
Videos


A PTZ Camera for Any Meeting Space Video Conference - BZBGEAR BG-BPTZ
Bring Your Own Device (BYOD) Solutions for Offices & Video Conferencing using BZBGEAR Equipment!
BG-BPTZ-10XU - 10X PTZ Full HD USB 2.0/RS232 Huddle Room Camera Series

×

×

×

×

×

×

×

×

×

×

×

×

×

×
×
×
×
Mounting Ideas
Click the image below to watch a video

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual
Diagram
Product Brochure



Package Contents
① 1x Camera
② 1x 12V/1.5A Power supply
③ 1x Remote Control
④ 1x USB2.0 Cable
⑤ 1x User Manual
