Long Range Digital/Analog Audio Extender Kit over Cat5e/6/7 up to 950ft (Stereo/TOSLINK/COAX)

ProGear
BG-AUD-TCS-4 BG-AUD-TCS-1 BG-AUD-TCS-2 BG-AUD-TCS-3 BG-AUD-TCS-5 BG-AUD-TCS-6 BG-AUD-TCS-7 BG-AUD-TCS-12 BG-AUD-TCS-9 BG-AUD-TCS-10 BG-AUD-TCS-11 BG-AUD-TCS-8
BG-AUD-TCS-4
BG-AUD-TCS-1
BG-AUD-TCS-2
BG-AUD-TCS-3
BG-AUD-TCS-5
BG-AUD-TCS-6
BG-AUD-TCS-7
BG-AUD-TCS-12
BG-AUD-TCS-9
BG-AUD-TCS-10
BG-AUD-TCS-11
BG-AUD-TCS-8
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

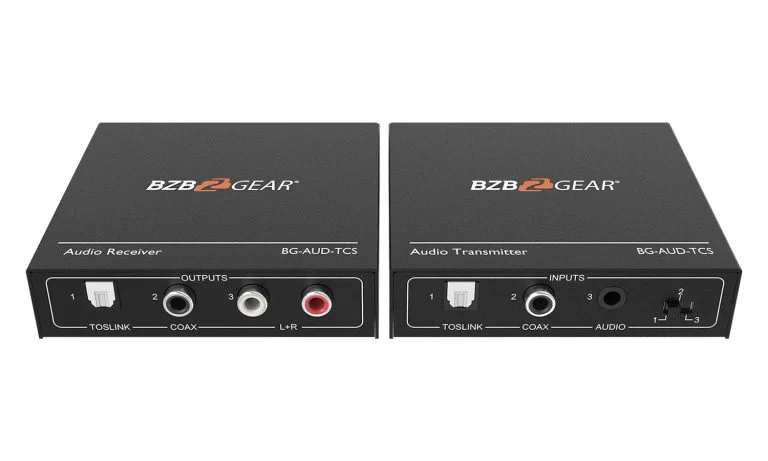

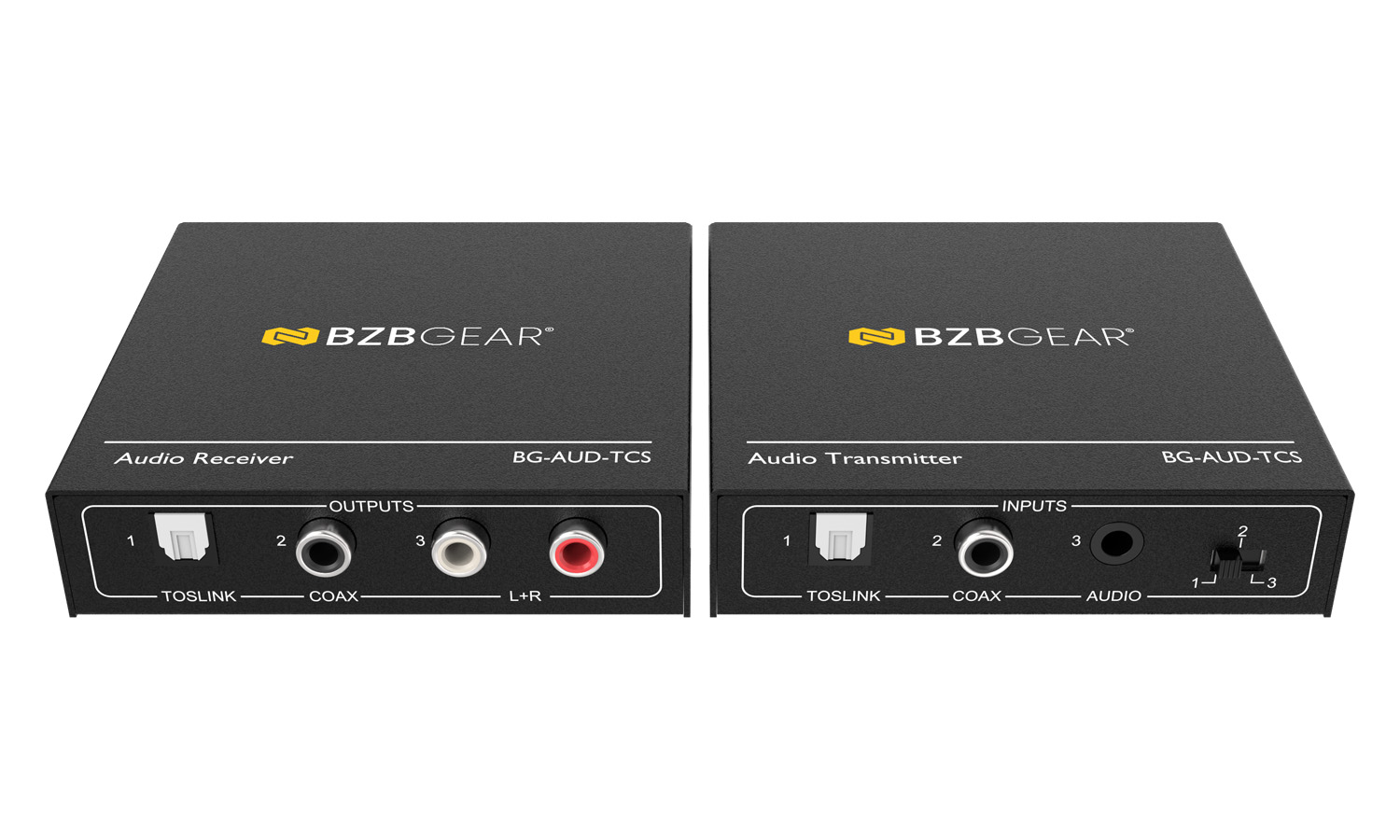

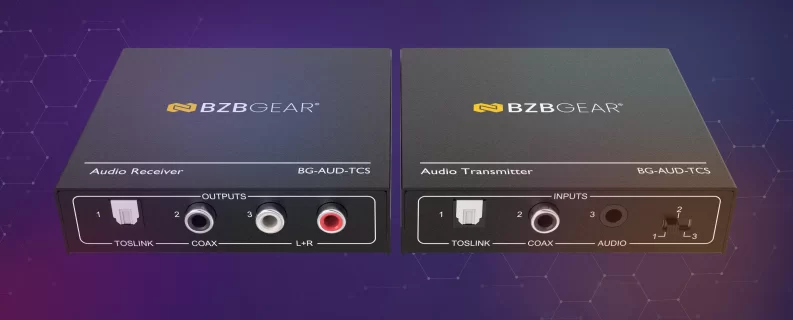

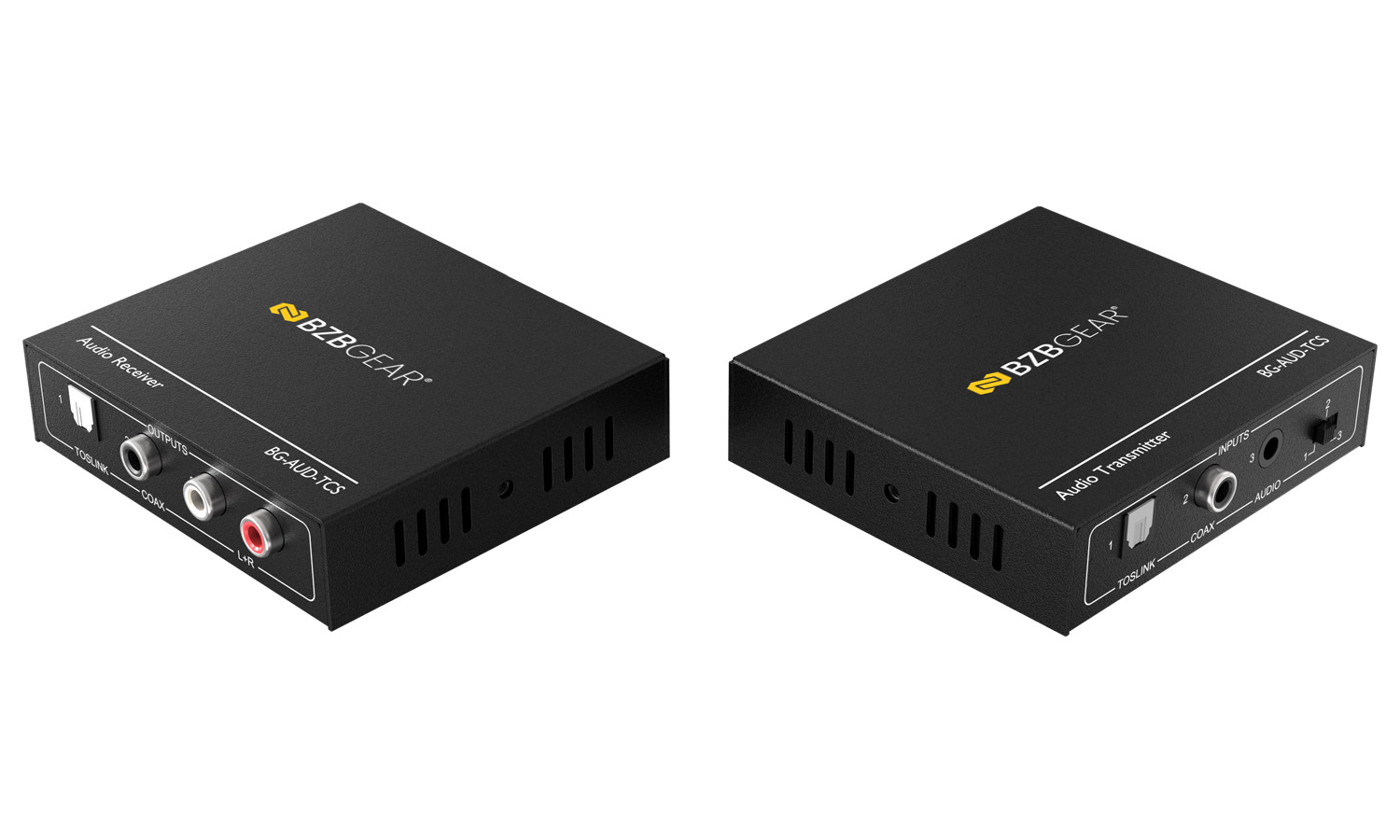

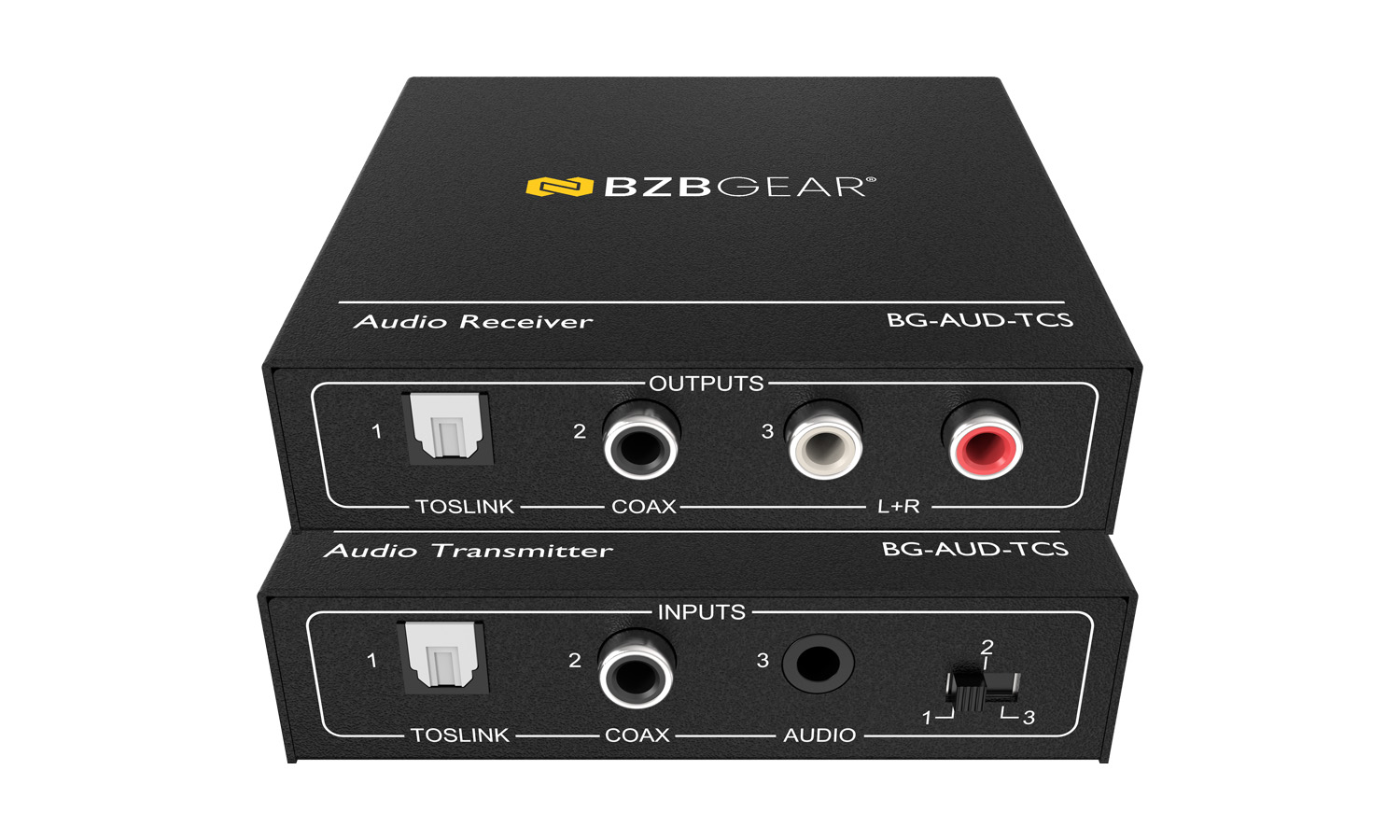

The BG-AUD-TCS is a compact audio extender designed to transmit audio signals up to 290 meters (950 feet) over a single category cable. It can transmit an analog stereo signal up to 170 meters (555 feet), and TOSLINK or digital coax signal up to 290 meters. The transmitter is equipped with 1-TOSLINK, 1-COAX, and 1-3.5mm stereo input. The front panel switch provides manual input selection. The power over cable function eliminates the need for a power supply at the receiver.

Features

  • material-symbols_safety-check
    Rugged Design
    Durable metal enclosure design for years of use
  • bi_toggle2-off
    Control
    Select which audio source is playing via the toggle switch
  • Wide-Angle 2
    Long Distance
    Send a digital audio signal up to 950ft
  • Power over Ethernet (PoE)
    PoC
    Power over Cable means you only need to power the receiver simplifying installation
  • wpf_audio-wave
    Audio Formats
    Supports major audio formats Dolby, DTS, and PCM
  • material-symbols_settings-input-component
    Multiple Inputs/Outputs
    Choose from TOSLINK, COAX, or Stereo 3.5mm/RCA for connections
  • Three selectable audio inputs via switch: TOSLINK/COAX/Stereo
  • Three simultaneous audio outputs: TOSLINK, COAX & RCA (L+R)
  • The transmitter is powered by the receivers 12VDC via power over Cat5e/6/7 technology

Videos

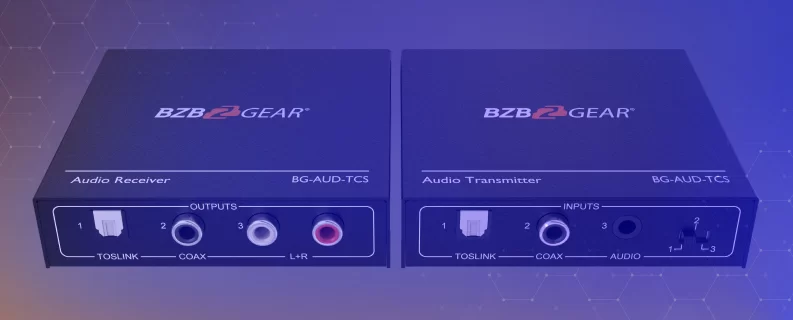

Amplify Any Room With The BG-AUD-TCS Audio Extender
Amplify Any Room With The BG-AUD-TCS Audio Extender

Tech Specifications

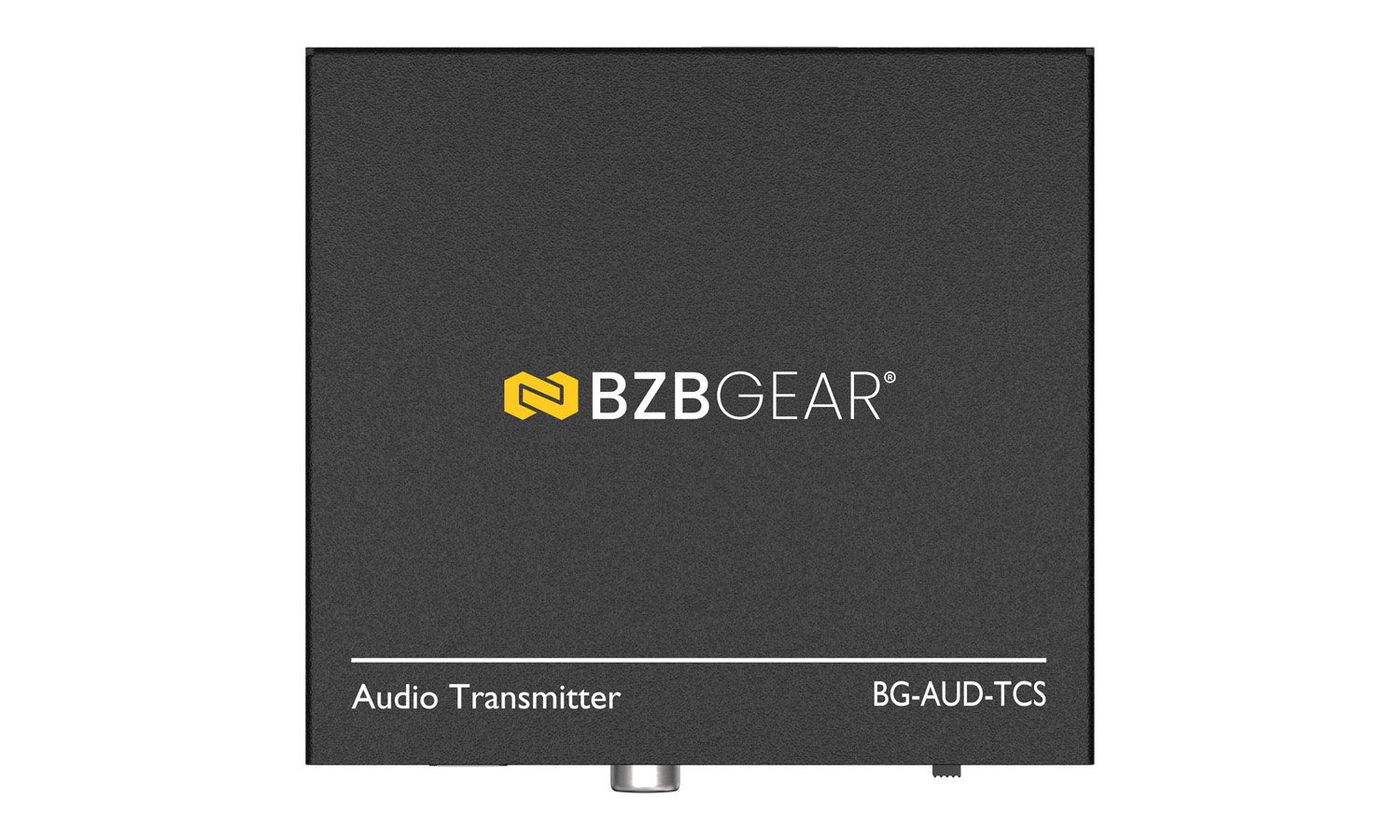

Transmitter Input: TOSLINK, COAX or AUDIO
Output: TP OUT

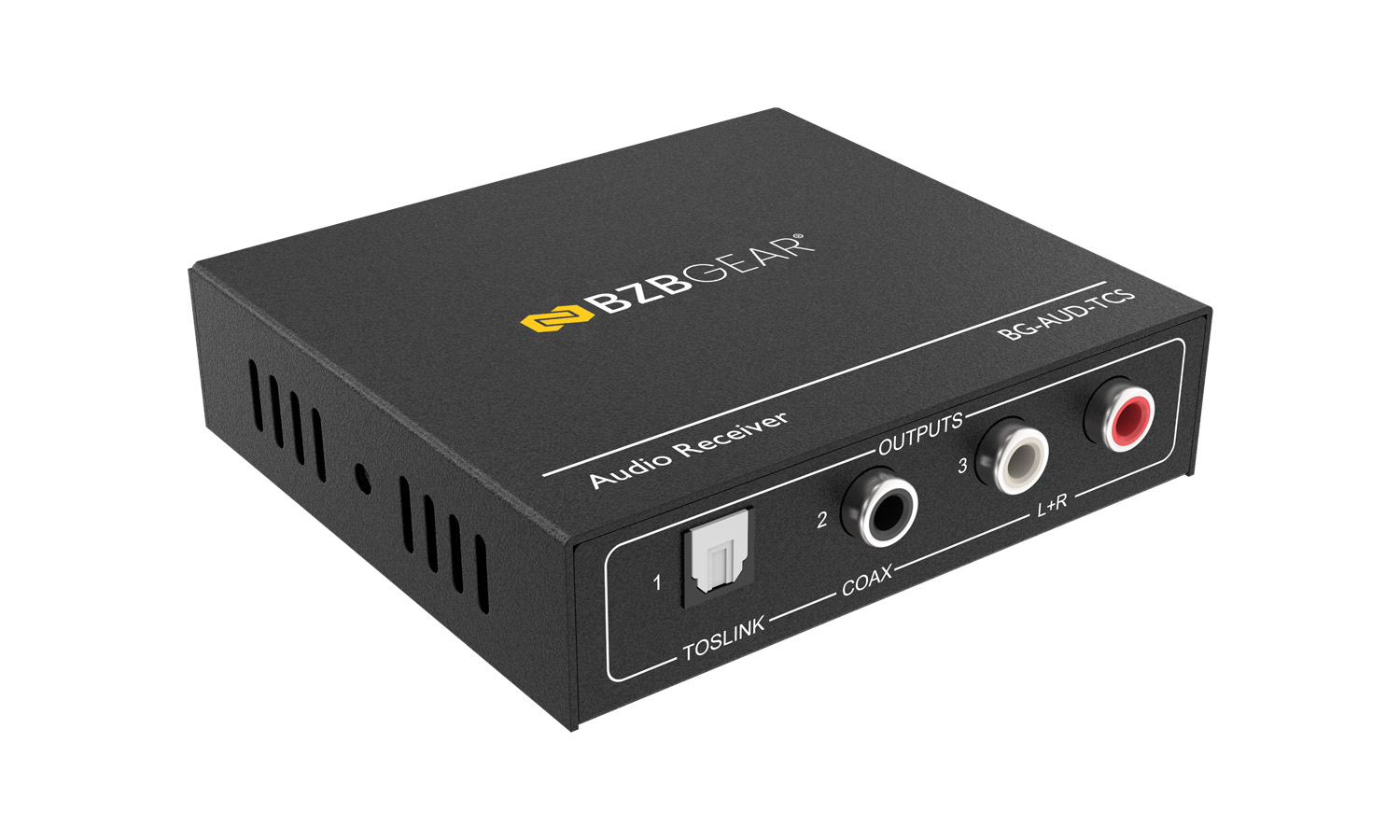

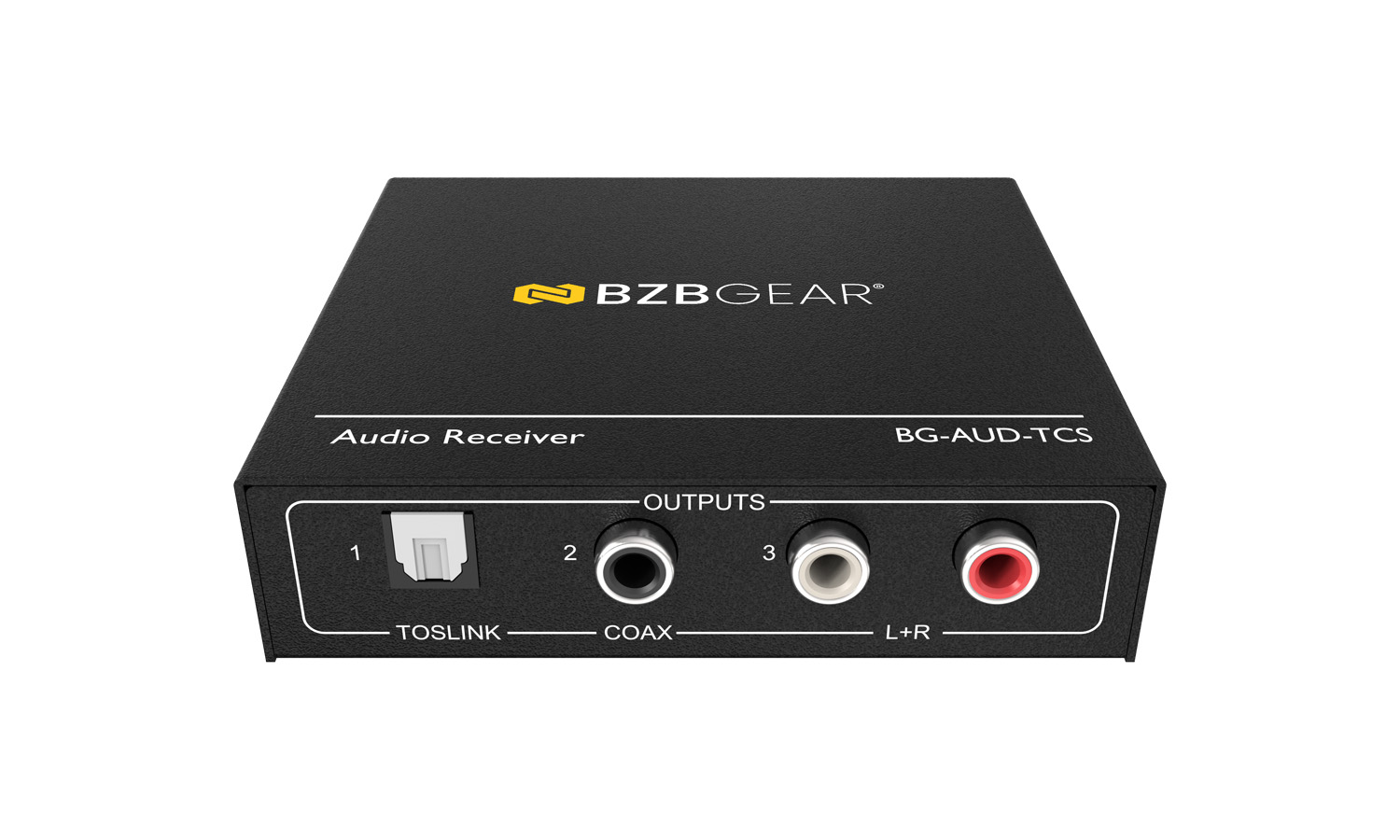

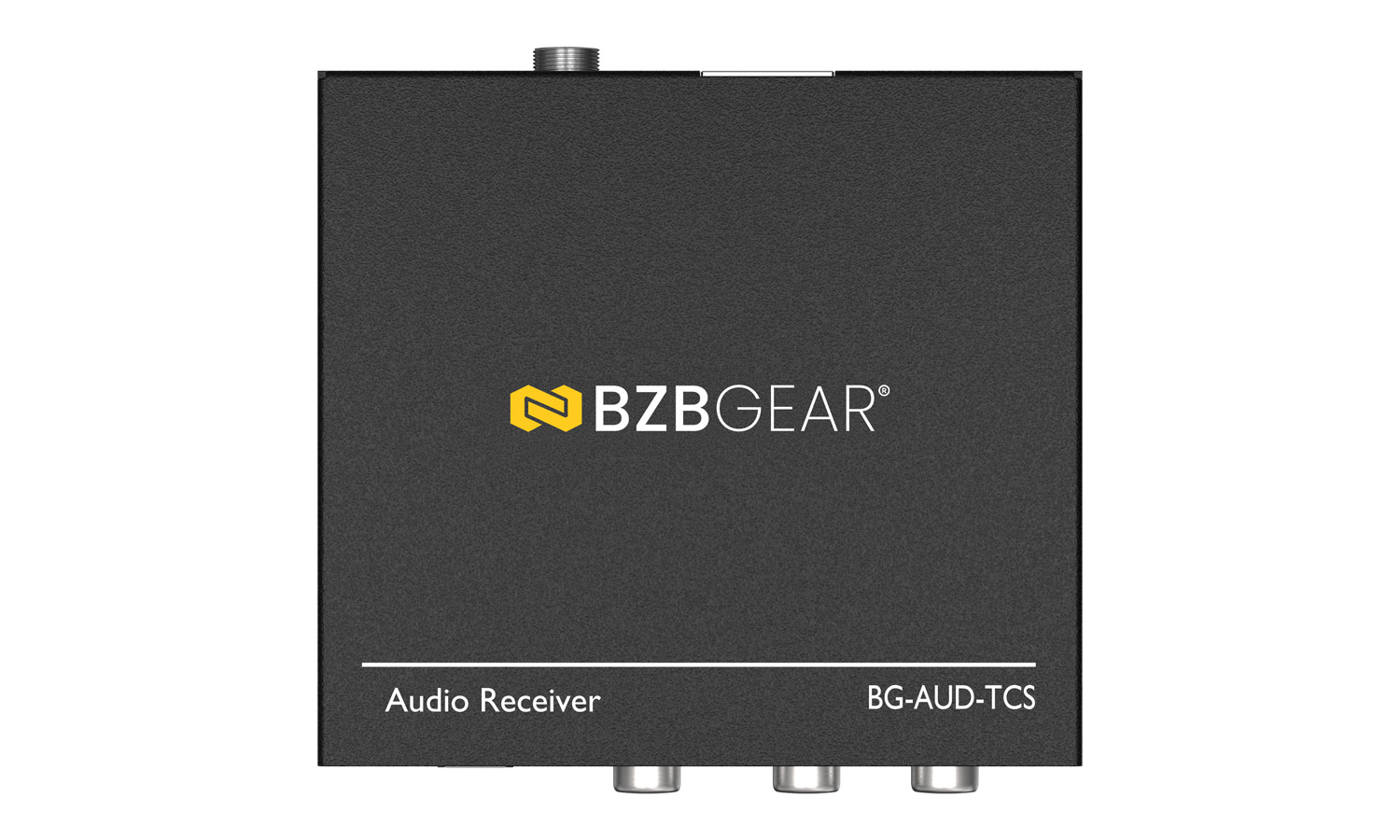

Receiver Input: TP IN
Output: TOSLINK, COAX & RCA (L+R)
General
Audio Format TOSLINK & COAX: PCM/Dolby/DTS; AUDIO: Stereo
Sound Channel TOSLINK & COAX: 2.0-7.1
Frequency Response 20 Hz to 20 kHz, ±3 dB
Sample Rate TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit
Transmission Distance Stereo: Up to 170m (CAT5e/6/7) TOSLINK/COAX: Up to 290m (CAT5e/6/7)
Power Supply Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC, 1A
Power Consumption 2.5W (Max)
Work Temperature 14°F ~ 131°F / -10°C ~ +55°C
Humidity 10% ~ 90%
Net Weight Transmitter: 0.24 lbs [110g]; Receiver: 0.26 lbs [119g]
Dimension (WxHxD) 3.5 x 3.1 x 0.85in [88 x 80 x 21.5mm]

PACKAGE CONTENTS

  • 1x Transmitter
  • 1x Receiver
  • 1x Power Adaptor (12VDC,1A)
  • 8x Screws
  • 8x Plastic Cushions
  • 1x User Manual

Interfaces

Interfaces image

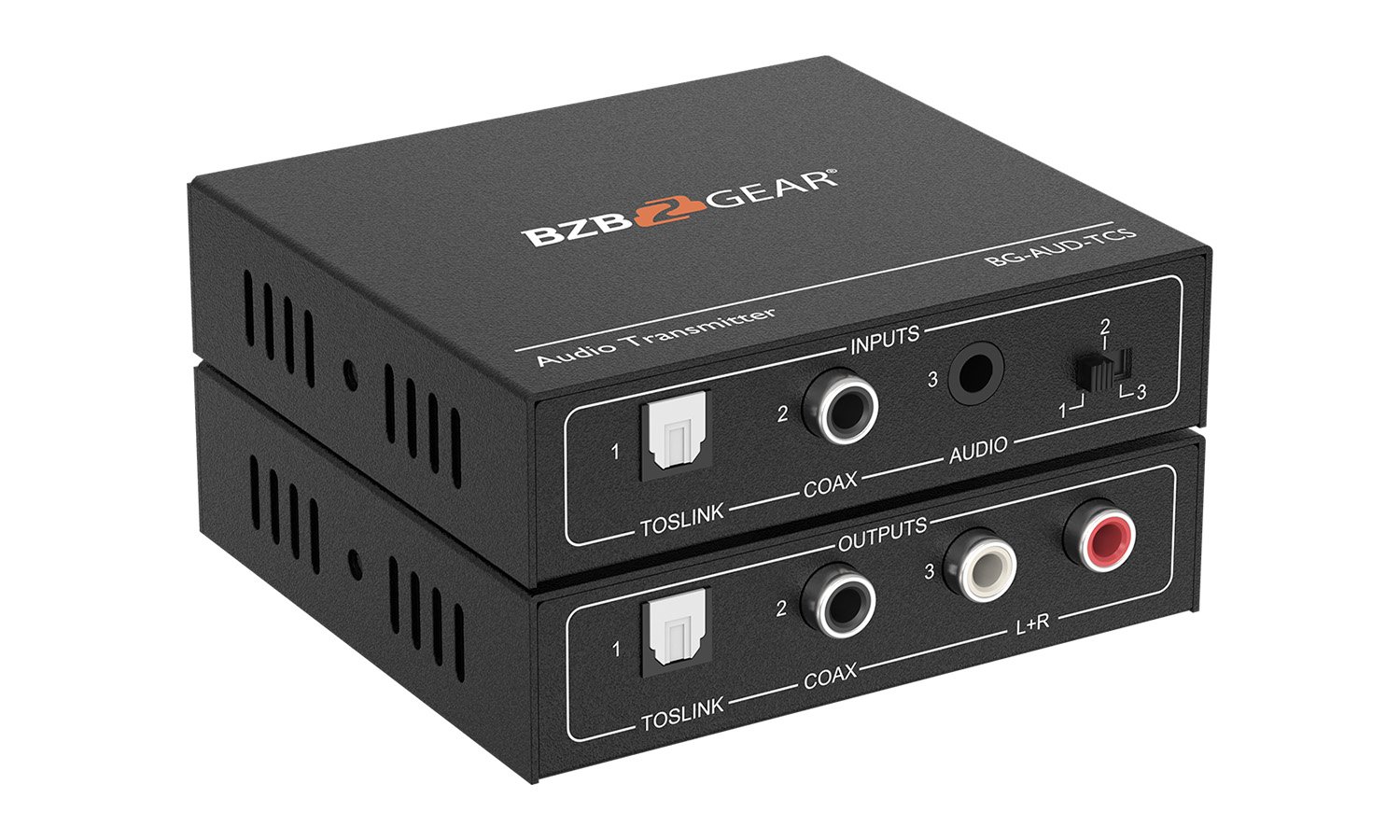

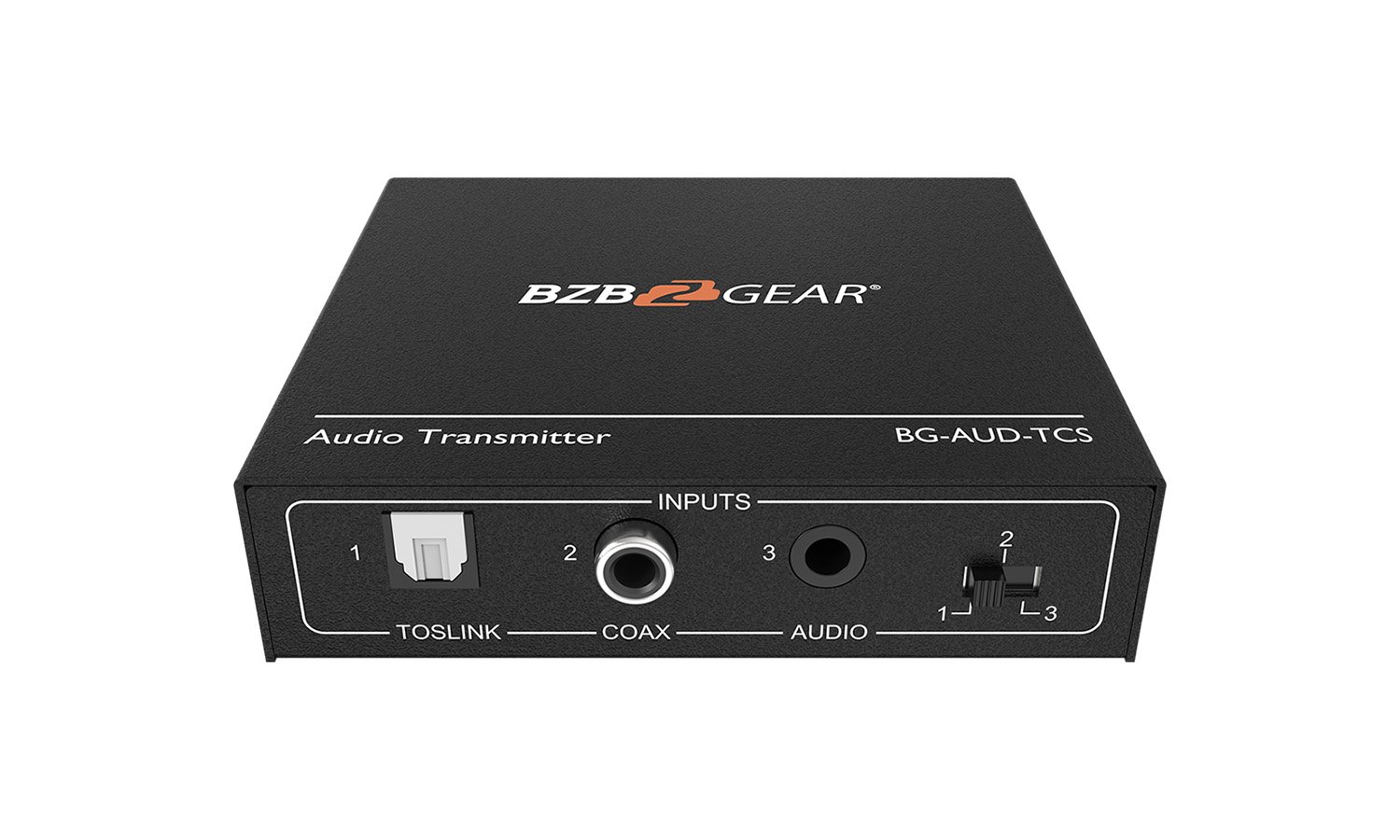

  1. TOSLINK: digital audio input port, connects to audio source.
  2. COAX: digital audio input port, connects to audio source.
  3. AUDIO: 3.5mm stereo mini audio input port, connects to audio source.
  4. DIP: DIP switcher for selecting audio input source.

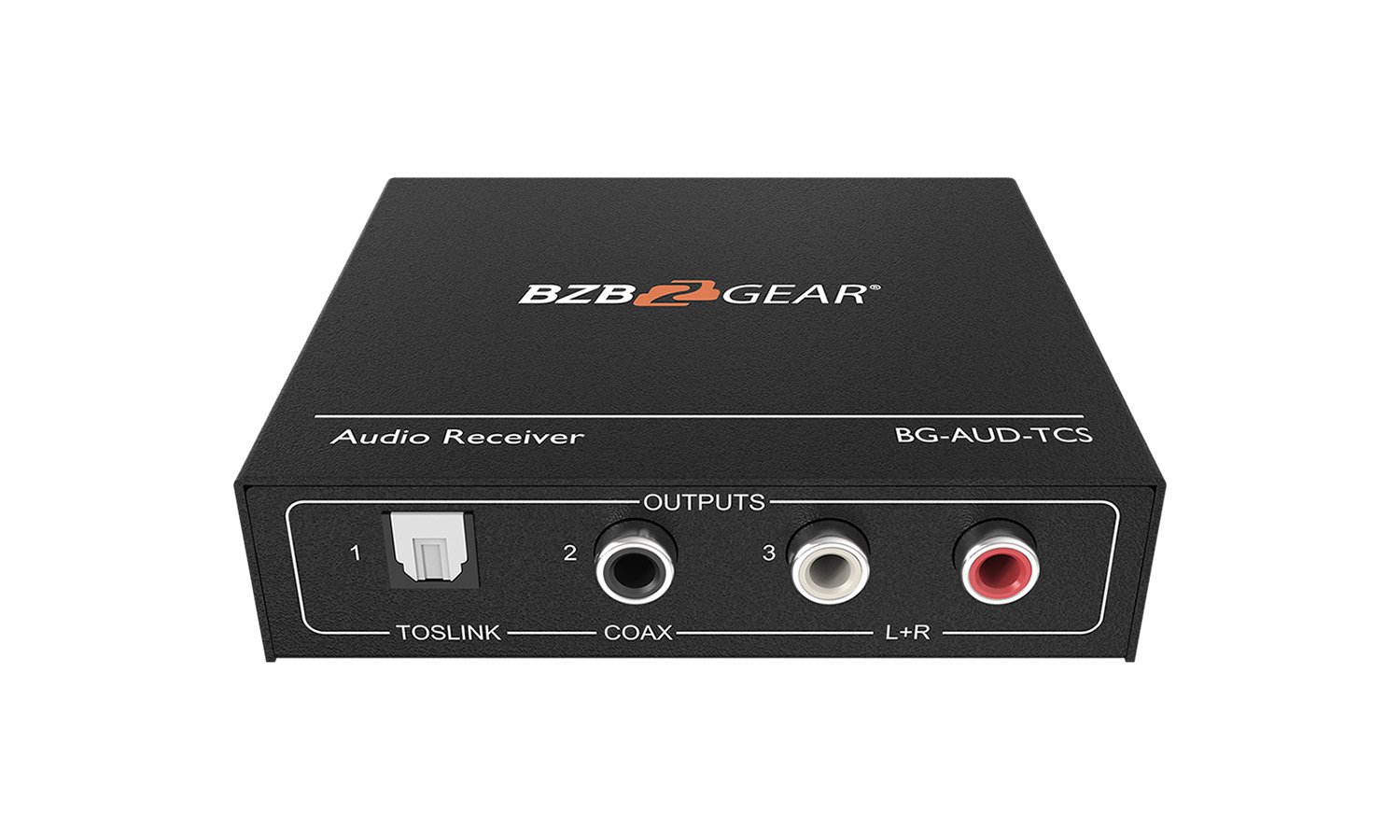

  5. TOSLINK: digital audio output port.
  6. COAX: digital audio output port.
  7. RCA L: Stereo RCA audio output ports (left).
  8. RCA R: Stereo RCA audio output ports (right).
  9. Firmware: Micro USB port for updating firmware.

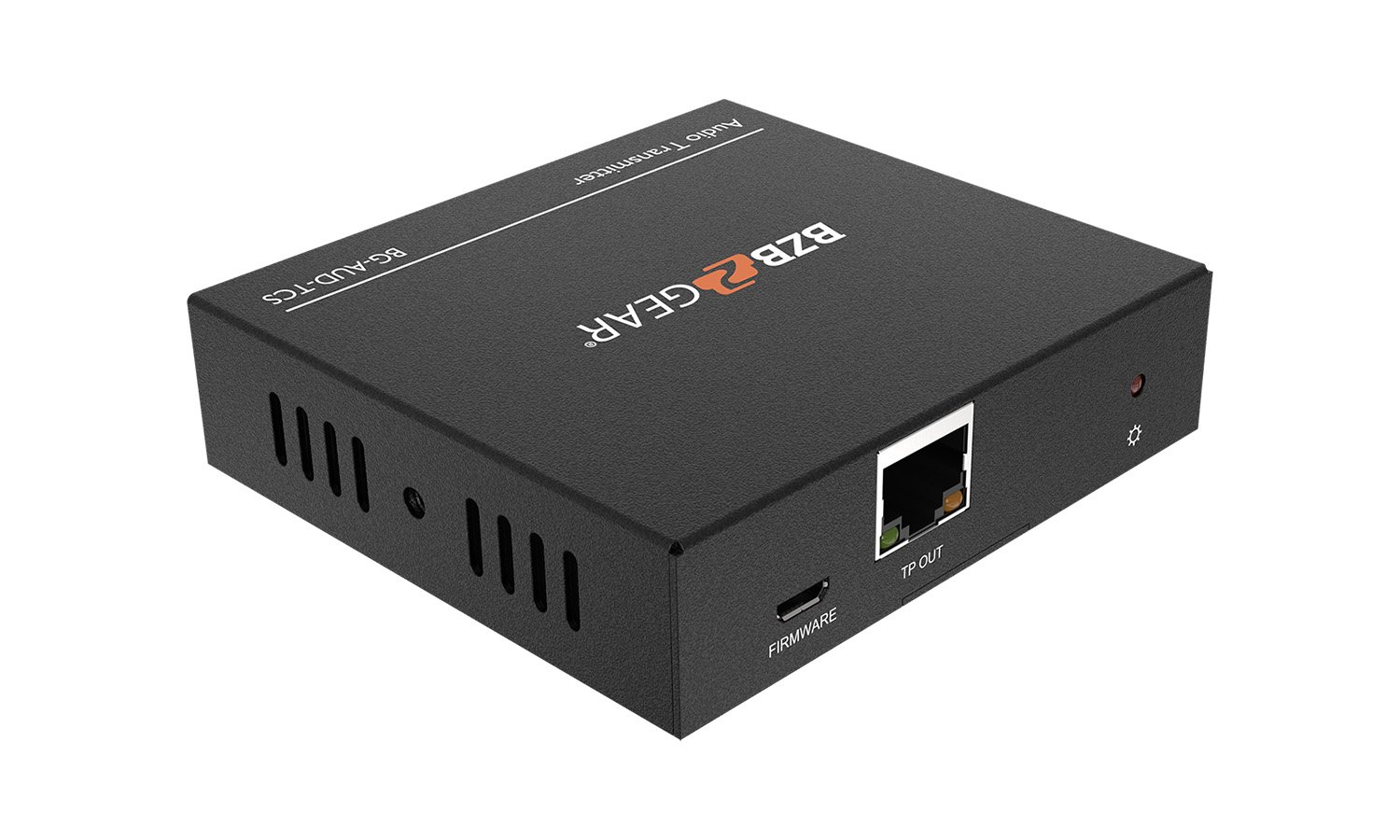

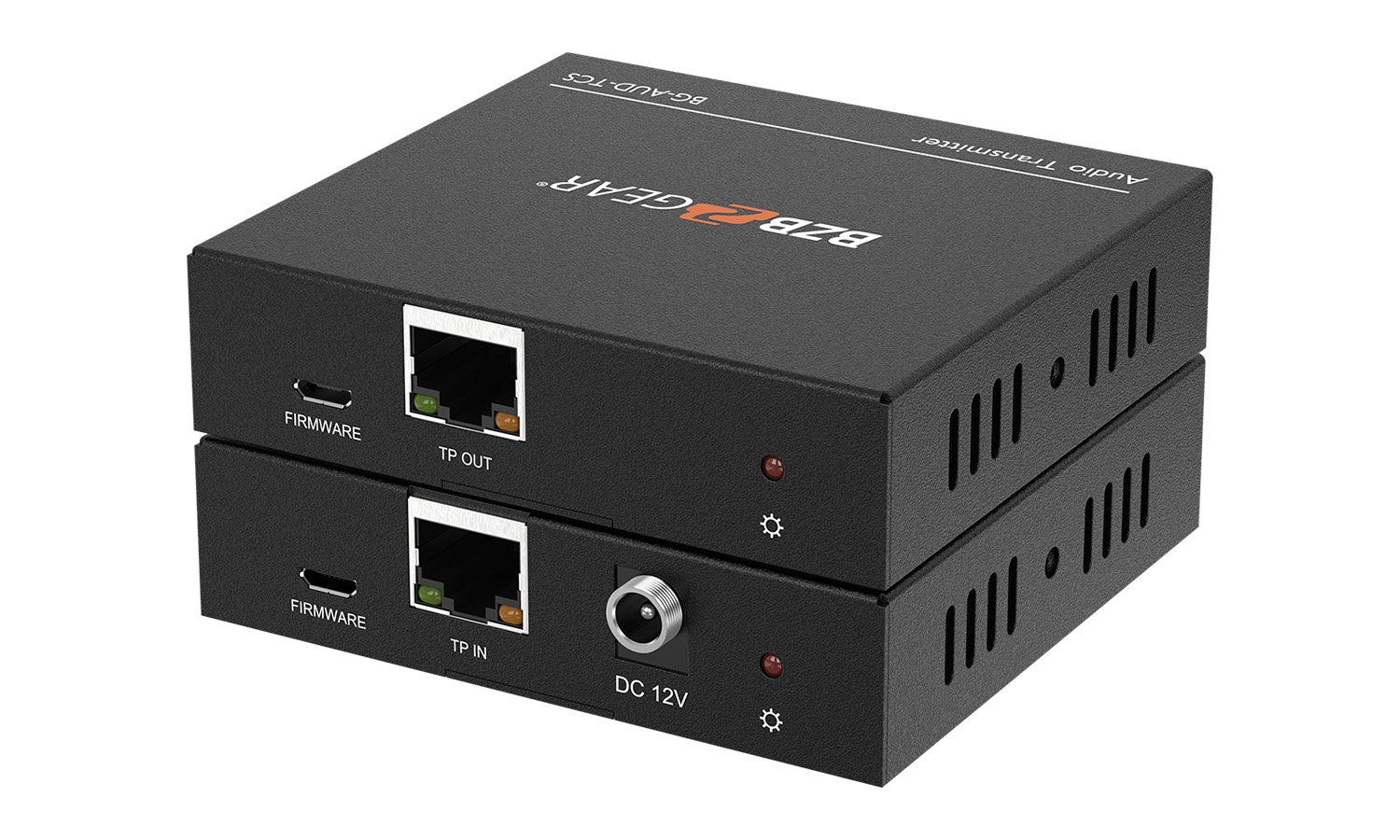

  10. TP OUT: RJ45 ports, connect to the “TP IN” port of Receiver.
  11. Power Led: Red power indicator.
  12. Firmware: Micro USB port for updating firmware.
  13. TP IN: RJ45 ports, connect to the “TP Out” port of Transmitter.
  14. DC 12V: DC 12V power, connects to power supply.
  15. Power Led: Red power indicator.
