The BG-8K-HS41A 48Gbps 4x1 HDMI Switcher is a high-performance solution designed to seamlessly switch between four HDMI source signals on a single HDMI display. Capable of supporting video resolutions up to 8K@60Hz 4:2:0, this switcher is equipped with cutting-edge features to enhance your audiovisual experience. Its advanced EDID management, CEC control, ARC/eARC support, and comprehensive audio de-embedding options make it an excellent choice for home entertainment, gaming, and more.
Featuring HDCP 2.3 compliance, the BG-8K-HS41A ensures compatibility with the latest copy protection standards for secure playback. It supports high bandwidth of 48Gbps FRL and 18Gbps TMDS, accommodating resolutions up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, and 4K@120Hz 4:4:4 12bit, adhering to HDMI 2.1 specifications. The switcher also includes HDMI 2.1 protocol support, featuring Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM).
In terms of HDR and audio capabilities, the BG-8K-HS41A supports various formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through. It also accommodates HDMI audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS. The switcher routes four HDMI inputs to a single HDMI output and supports HDMI input and TV eARC audio de-embedding to SPDIF and L/R outputs. It can also output audio to SONOS ARC & Beam or any eARC-compatible soundbar.
Additional features include CEC control, which allows for seamless control from the TV to the source device and volume adjustments from the TV to any eARC sound system. Advanced EDID management is also incorporated to ensure optimal compatibility and signal quality. For ongoing enhancements, firmware updates can be performed via the USB Type-C port. The BG-8K-HS41A is a versatile, high-performance switcher suitable for a wide range of professional and multimedia applications.
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit | |||
| Audio Latency | No Latency | |||
| Video Latency | No Latency | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |||
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH |
|||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
|
ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input | 4 × HDMI IN [Type A, 19-pin female] | |||
| Output | 1 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
|||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions (W x D x H) | 6.9in x 2.7in x 0.71in [176mm x 68mm x 18mm] | |||
| Weight | 0.69 lbs [315g] | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 2.5W (Max) | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI in / out) |
2m/6.6ft (Ultra HDMI 2.1) |
8m/26ft | 12m/39ft | 15m/49ft |
| The use of “Premium High Speed HDMI” cables is highly recommended. | ||||

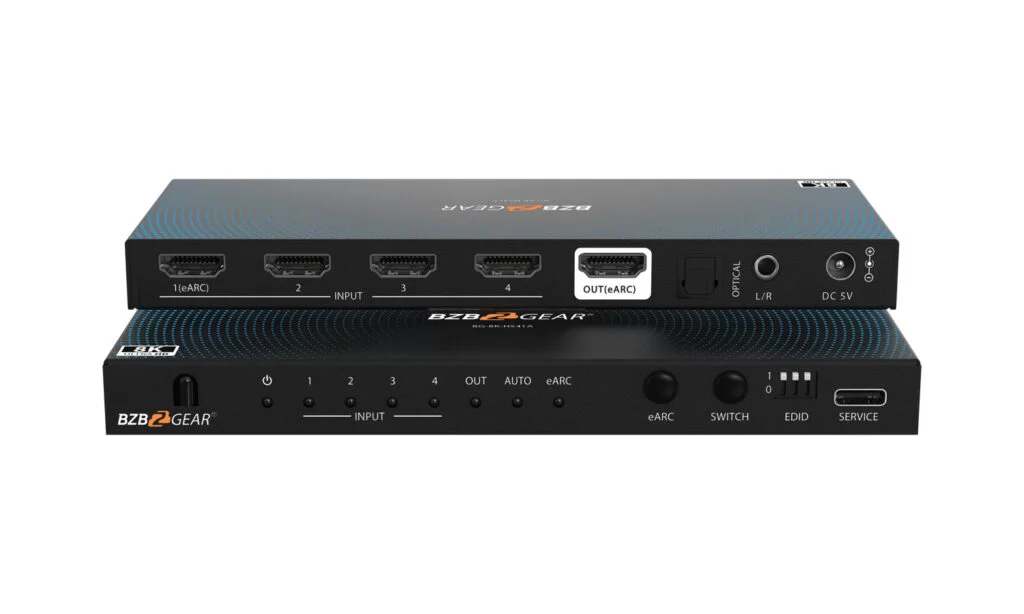

eARC switch: Press the button to turn on/off ARC/eARC function.
SWITCH button: Used to select a signal source for the OUT port. Short press this button to circularly switch the HDMI input signal to the OUT port. Long press for 3 seconds to turn on/off the auto-switching function.
EDID Dip switch: Use the DIP switch to set EDID.
SERVICE: Firmware update and debug port.
INPUT 1/2/3/4: HDMI input ports, connected to HDMI source devices such as DVD, PS4, or Set-top Box with HDMI cable.
OUT (eARC): HDMI output port, connect to HDMI display device such as HDTV or Projector with HDMI cable.
OPTICAL: Optical fiber audio output port.
L/R: Analog audio output port.
DC 5V: DC 5V/1A power input port.
