Overview

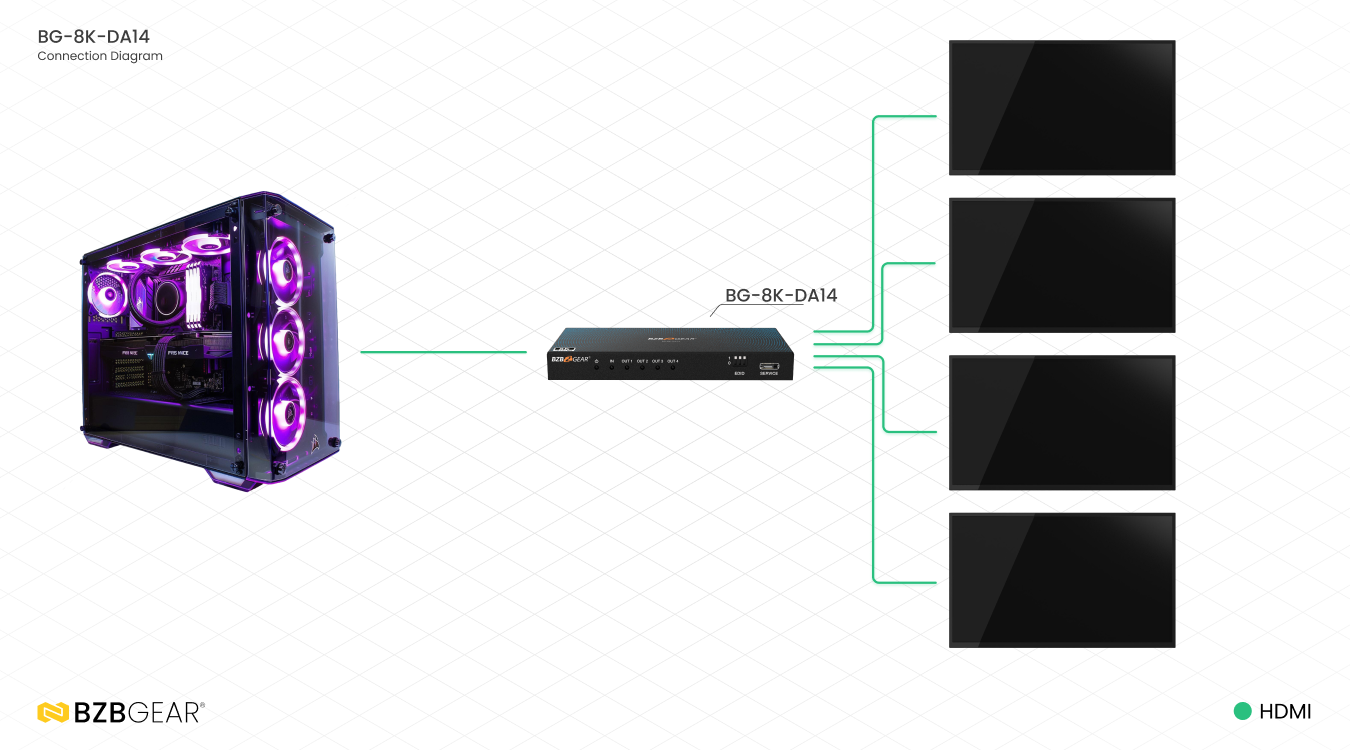

Experience unparalleled video distribution with our advanced BG-8K-DA14 1x4 HDMI Splitter, designed to deliver a single HDMI signal to four outputs simultaneously with impeccable precision and quality. Supporting video resolutions up to 8K at 60Hz (4:2:0, 12-bit) and data rates up to 48Gbps, this splitter ensures an exceptional viewing experience. Compliant with HDMI 2.1 and HDCP 2.3 standards, it offers seamless integration and enhanced performance for modern entertainment systems, including gaming consoles like Xbox and PS5, enabling stunning 4K at 120Hz on your TVs or compatible monitors.
Features-in-Depth
The BG-8K-DA14 1x4 HDMI Splitter is HDCP 2.3 compliant, ensuring secure content protection and seamless connectivity with the latest devices. It supports 48Gbps FRL and 18Gbps TMDS video bandwidth, providing ultra-high-speed data transmission for optimal performance. The splitter accommodates high-resolution video, supporting up to 8K at 60Hz (4:2:0, 12-bit) and 4K at 120Hz (4:4:4, 12-bit) as specified in HDMI 2.1. It also supports HDMI 2.1 protocols, including VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport), and SBTM (Source-Based Tone Mapping).
Additionally, the splitter is compatible with HDR formats, including HDR 10, HDR 10+, Dolby Vision, and HLG, ensuring vivid and lifelike visuals. It supports advanced audio pass-through for LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio formats, delivering immersive sound. The splitter features auto downscaling, which automatically scales 8K to 4K or 8K/4K to 1080P on all outputs, ensuring compatibility with various displays. It also includes HDR to SDR conversion, automatically converting HDR to SDR on all outputs for compatibility with older displays. With advanced EDID management, the integration process is simplified, enhancing compatibility with various devices. Its compact design offers easy and flexible installation, fitting seamlessly into any setup.
Features
-
HDCP 2.3 CompliantEnsures secure content protection, enabling seamless connectivity with the latest devices -
High-Resolution VideoSupports video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) as specified in HDMI 2.1 -
HDMI 2.1 ProtocolsSupports VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport), and SBTM (Source-Based Tone Mapping) -
Advanced AudioSupports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio formats for immersive sound -
Auto DownscalingAutomatically scales 8K to 4K or 8K/4K to 1080P on all outputs for compatibility with various displays -
Advanced EDID ManagementSimplifies the integration process and enhances compatibility with various devices
- HDR to SDR Conversion: Automatically converts HDR to SDR on all outputs, ensuring compatibility with older displays
- 48Gbps FRL and 18Gbps TMDS Video Bandwidth Support: Provides ultra-high-speed data transmission for optimal performance
- HDR Pass-Through: Compatible with HDR, HDR 10, HDR 10+, Dolby Vision, and HLG, providing vivid and lifelike visuals
- Compact Design: Offers easy and flexible installation, fitting seamlessly into any setup
Videos
Tech Specifications
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |||
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
|
ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input | 1 × HDMI IN [Type A, 19-pin female] | |||
| Output | 4 × HDMI OUT [Type A, 19-pin female] | |||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions (W x D x H) | 5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm] | |||
| Weight | 0.58 lbs [263g] | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 5.5W (Max) | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI in / out) |
3m/10ft (Ultra HDMI 2.1) |
8m/26ft | 12m/39ft | 15m/49ft |
| The use of “Premium High-Speed HDMI” cables is highly recommended. | ||||
Resources
PACKAGE CONTENTS
- 1x 48Gbps 1x4 Splitter
- 1x 5V/2A Multinational Power Supply
- 1x User Manual

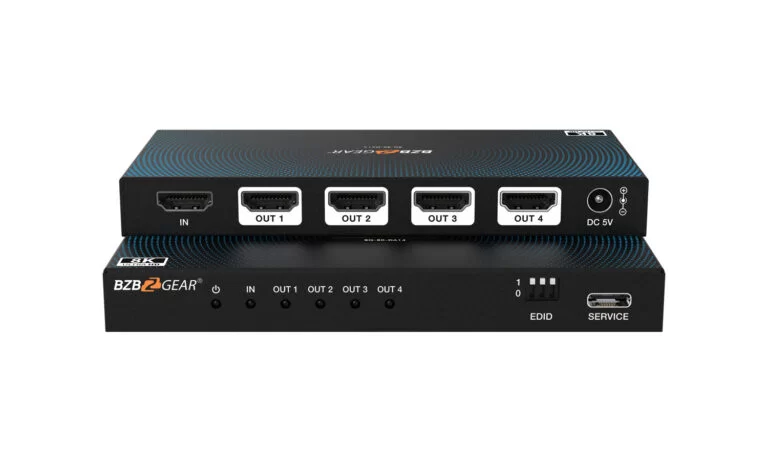

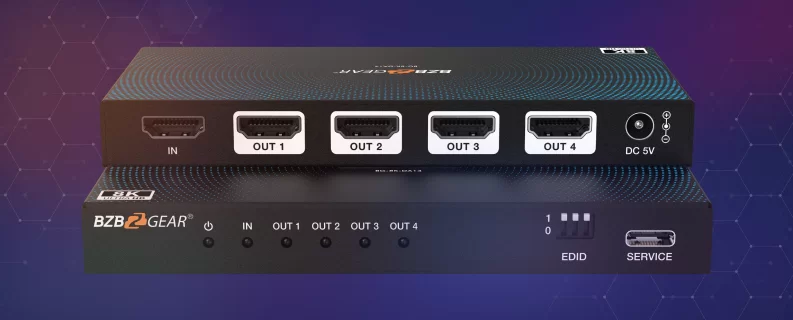

Interfaces
- Power LED: When the device is powered on, the red LED will be on.
- IN LED: When the HDMI IN port connects to an active source device, the green LED will be on.
- OUT LED (1~4): When the HDMI OUT 1/2/3/4 port connects to a display device and outputs signal, the corresponding green LED will be on.
- EDID DIP switch: Use the DIP switch to set EDID.
- SERVICE: Firmware update port.
- IN port: HDMI signal input port, connected to HDMI source device such as DVD or PS5 with an HDMI cable.
- OUT port (1~4): HDMI signal output port, connected to HDMI display device such as TV or Monitor with an HDMI cable.
- DC 5V: DC 5V/2A power input port.
