Overview

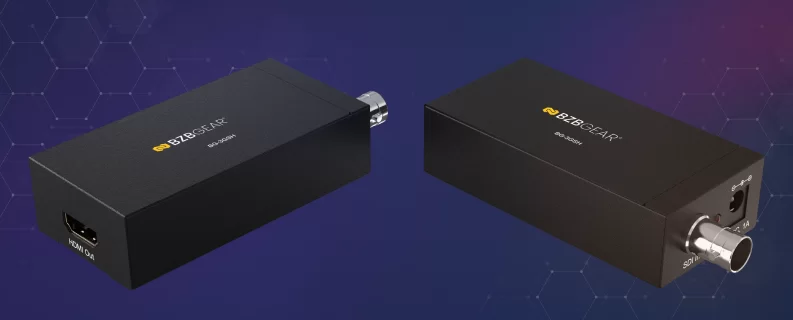

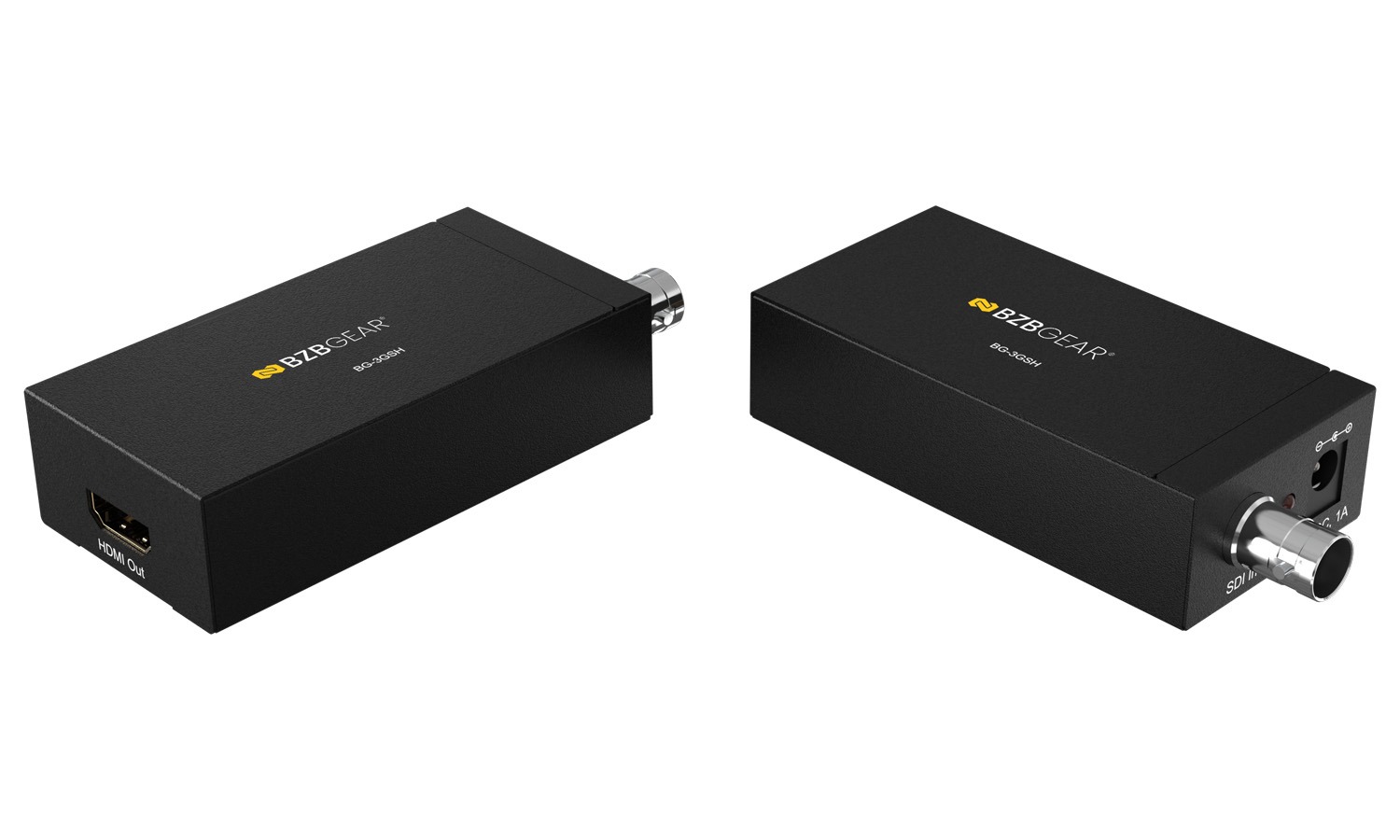

The BG-3GSH is a versatile signal converter designed to convert SD-SDI, HD-SDI, and 3G-SDI signals to the more commonly used HDMI interface. With a high bit rate of 2.970 Gbit/s, the unit supports transmission of video signals without any loss, ensuring a crystal-clear 1080p@60 image on HDMI displays. The BG-3GSH also supports SMPTE 425M, SMPTE 424M, SMPTE 292M, and SMPTE 259M-C standards, making it compatible with a wide range of video sources.
In addition to its signal conversion capabilities, the BG-3GSH also offers the ability to convert from SMPTE 425M Level B to Level A 1080p 50/59.94/60 4:2:2 10-bit, making it a powerful tool for professionals working with high-quality video content. The unit can accept 3G-SDI signals using long-range SDI cables, and convert it to display on consumer-grade HDMI displays.
Durability is also a key feature of the BG-3GSH. The unit is housed in a sturdy metal housing, providing protection against damage from everyday wear and tear, as well as ensuring reliable performance in demanding environments.
Features
-
1080p/60 SupportCrystal clear images with resolutions up to 1080p@60Hz -
PortableIdeal for any on-the-go kit -
Rigid DesignDurable metal structure built to withstand years of operation
- Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
- Connect with other units to extend your signal over long distances
- Easy to Use - Simple for anyone to learn
Videos
Tech Specifications
| Input Port | 1 x BNC (SDI/HD-SDI/3G-SDI) |
| Output Port | 1 x HDMI |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution |
480i, 576i, 720p@50/59.94,60, 720p@50/59.94,60, 1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V - 12V |
| ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
| Dimension | 3.1in x 1.6in x 0.98in [80mm x 41mm x 25mm] |
| Weight | 0.33 lbs [150g] |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
Resources
PACKAGE CONTENTS
- 1x BG-3GSH 3G SDI to HDMI Converter
- 1x 5V DC Power Supply Adaptor
- 1x User Manual

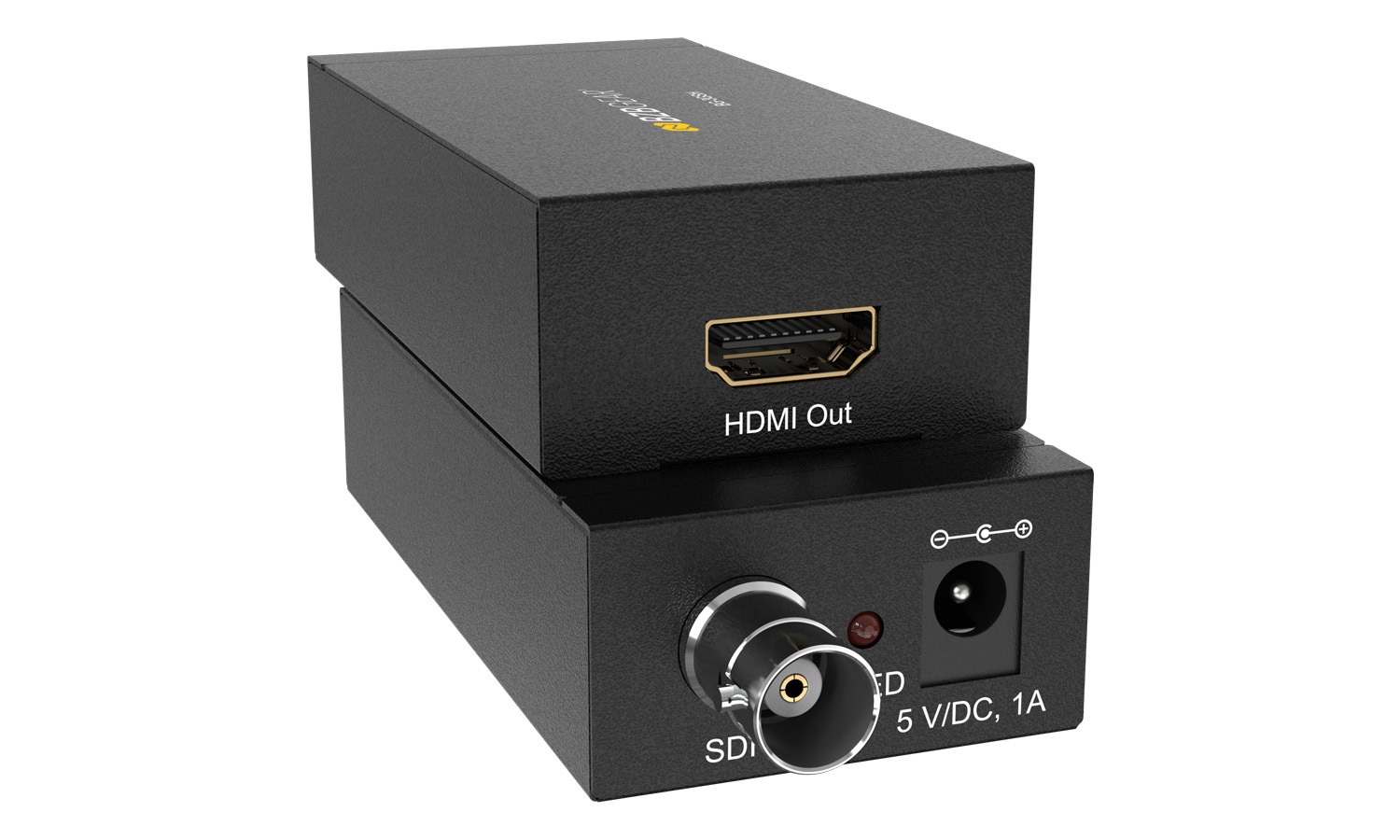

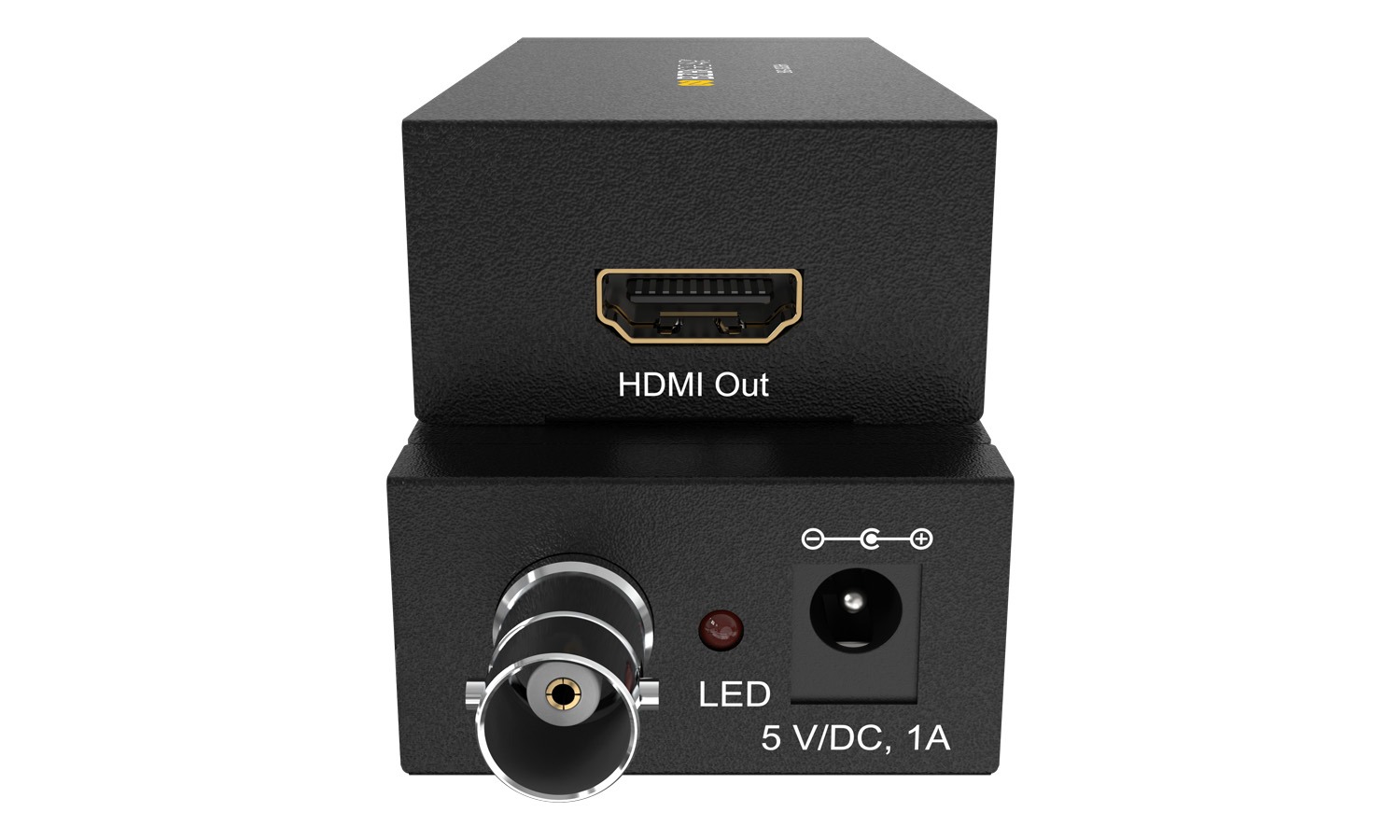

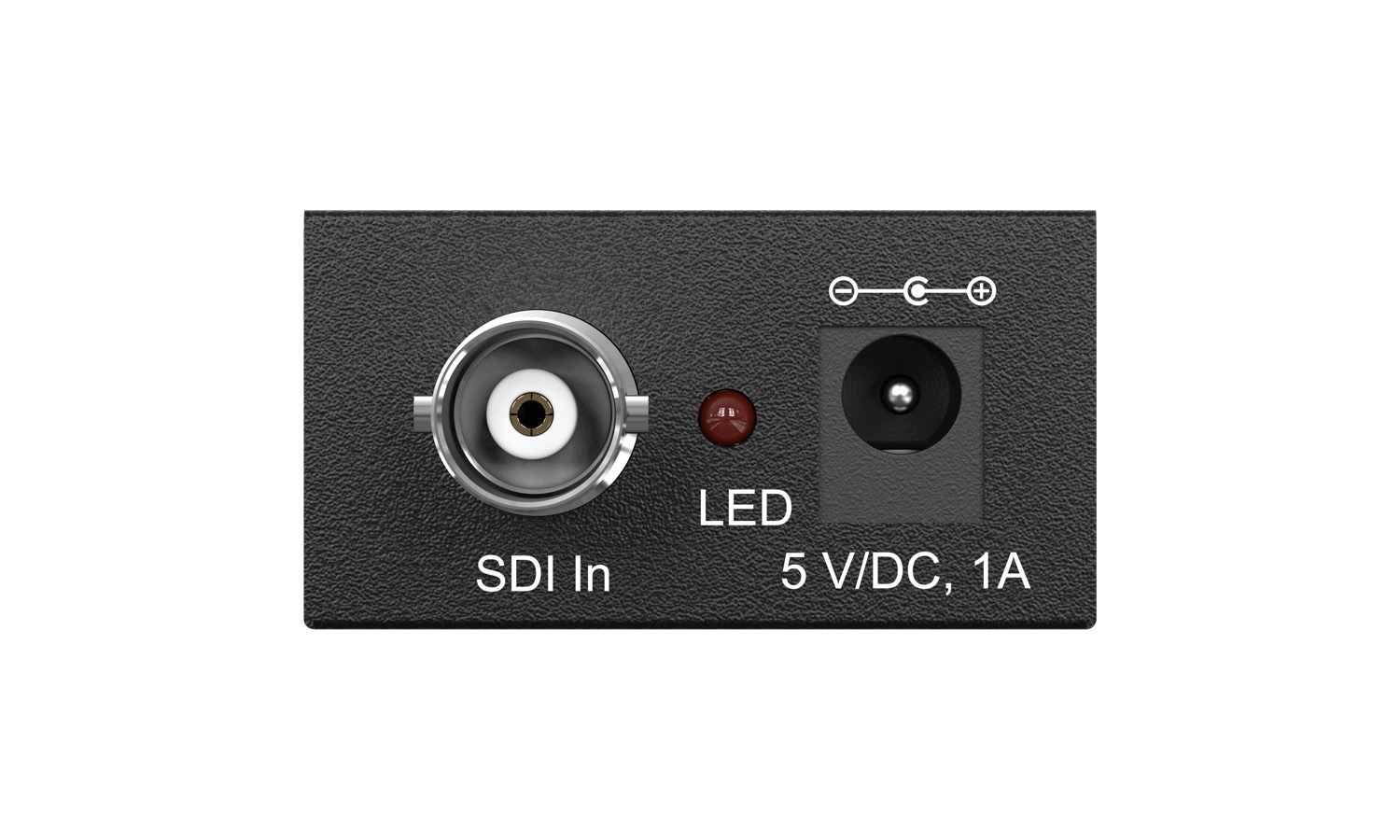

Interfaces

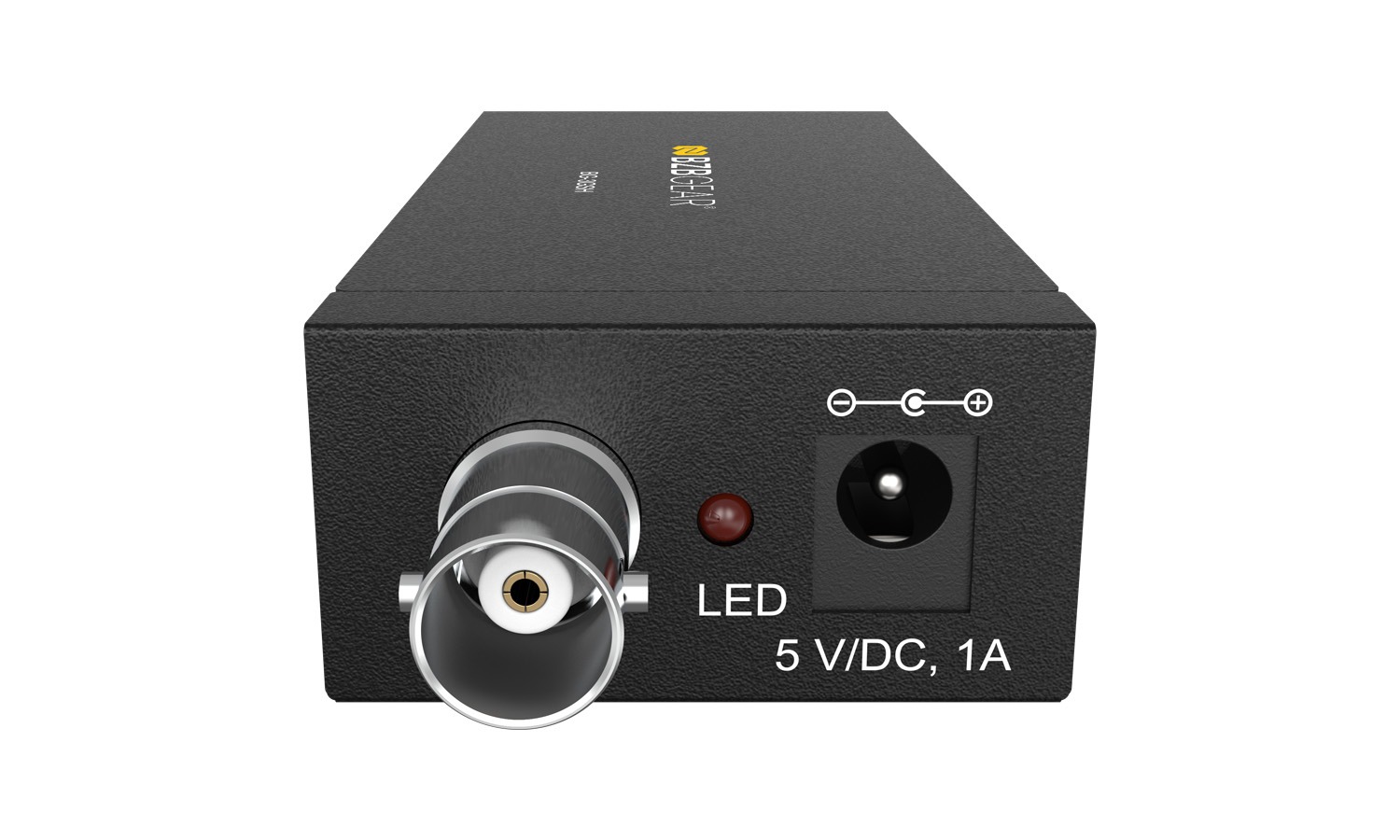

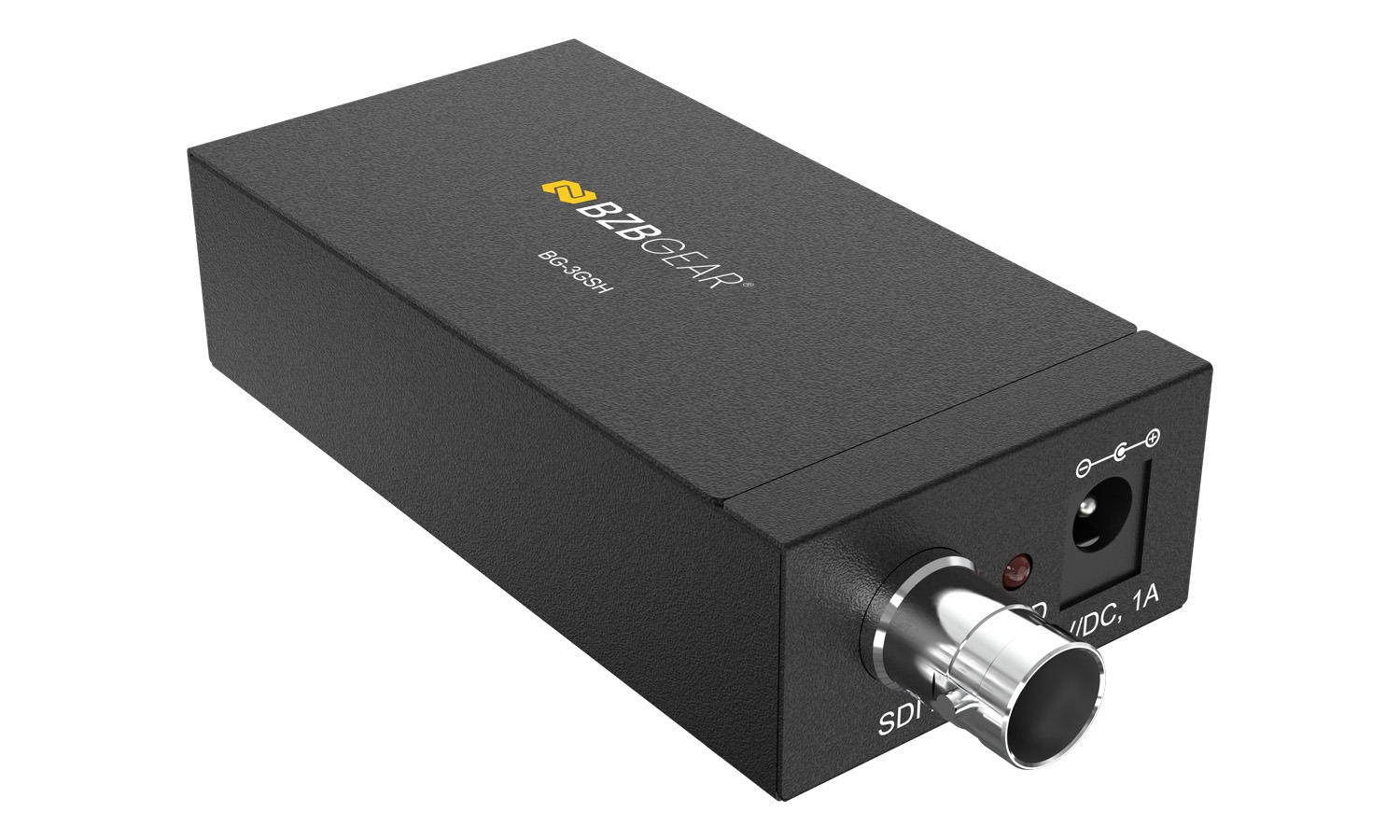

- SDI-IN: Connect the SDI source.
- POWER LED: LED illuminates red when the device is connected with the power supply.
- DC IN: Port for the 5V-12V DC power supply.

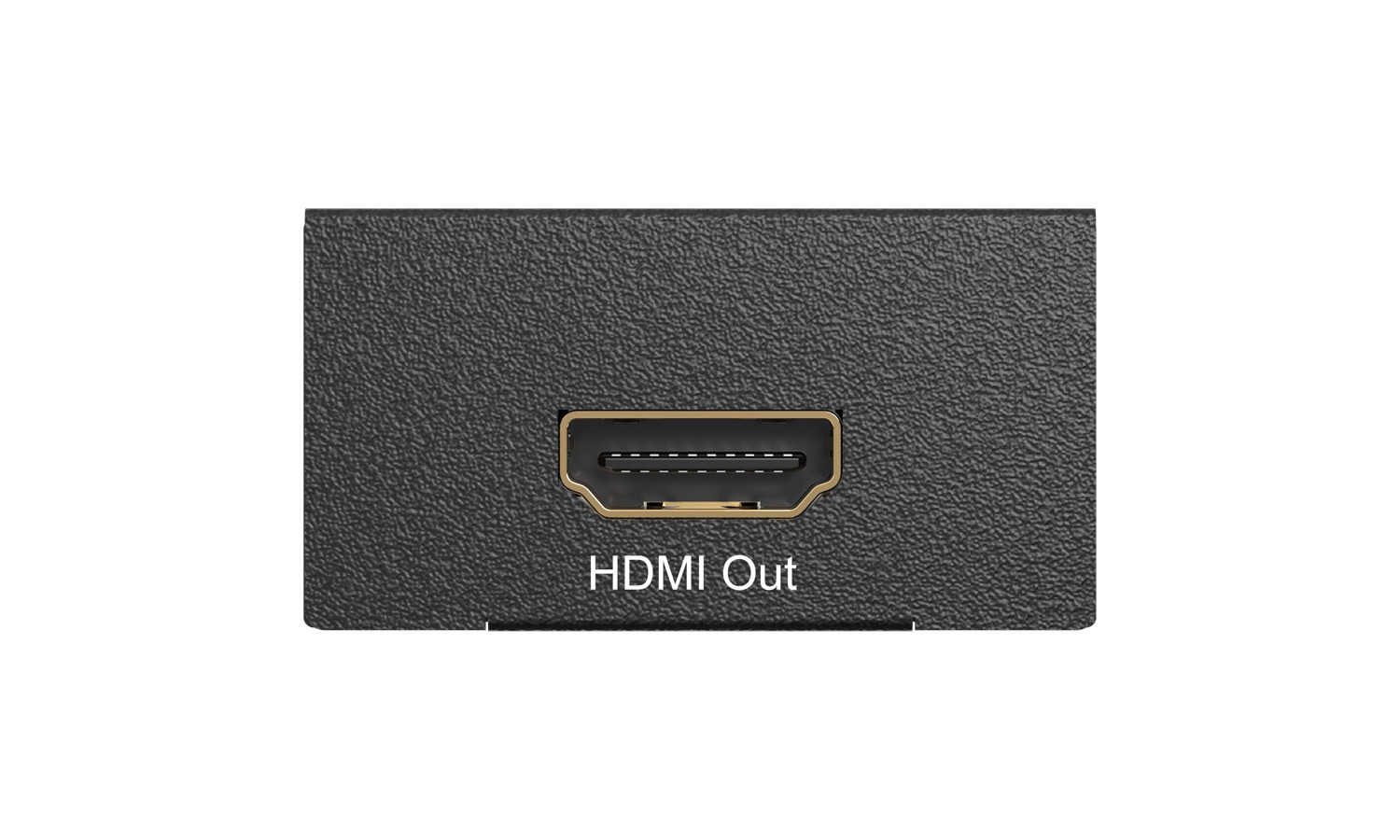

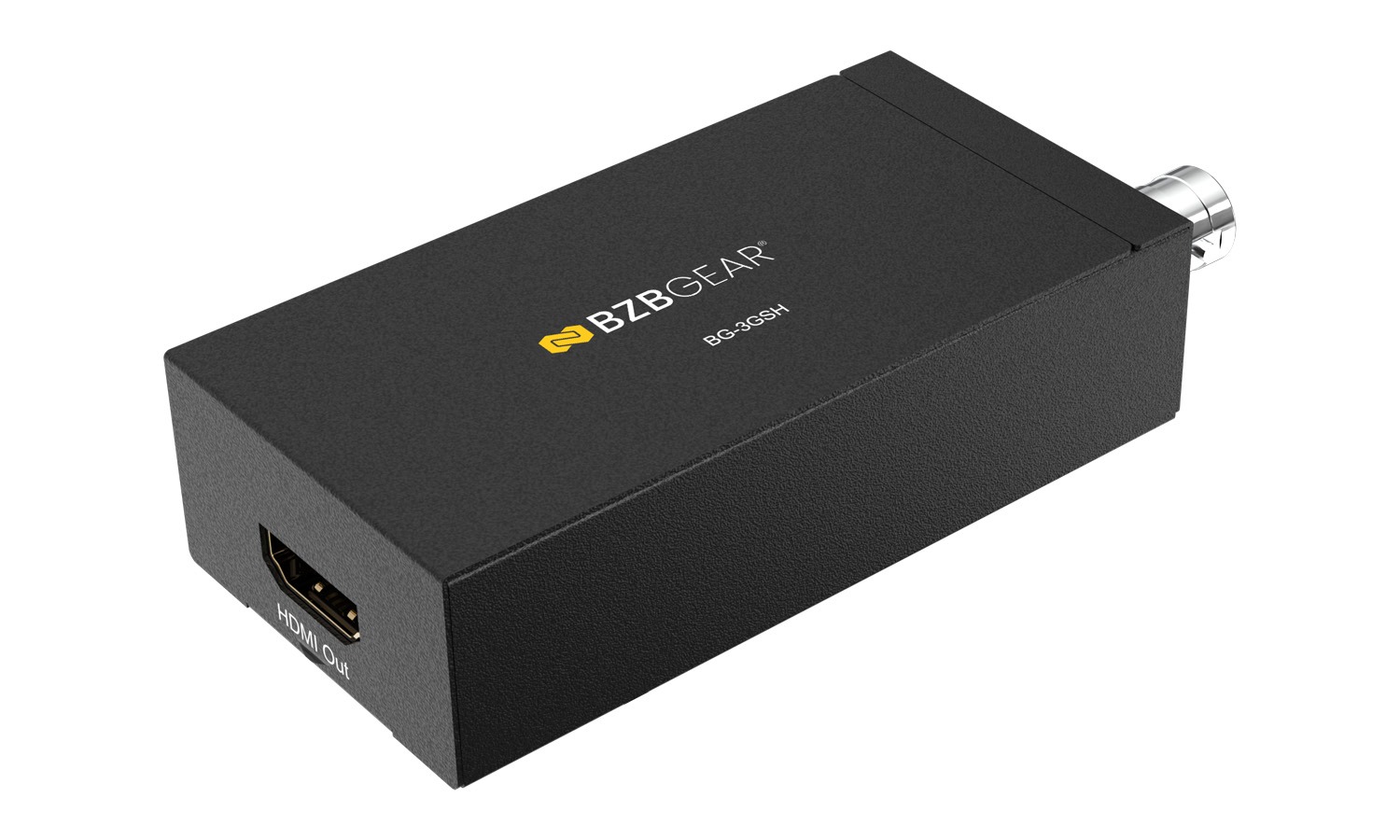

- HDMI OUT: Connect the HDMI display.
