Overview

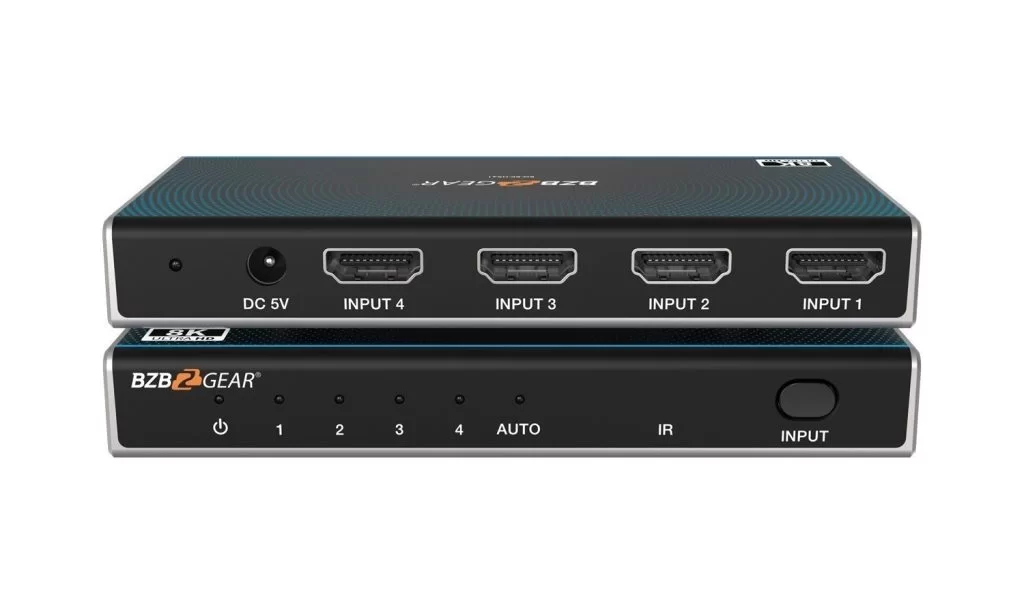

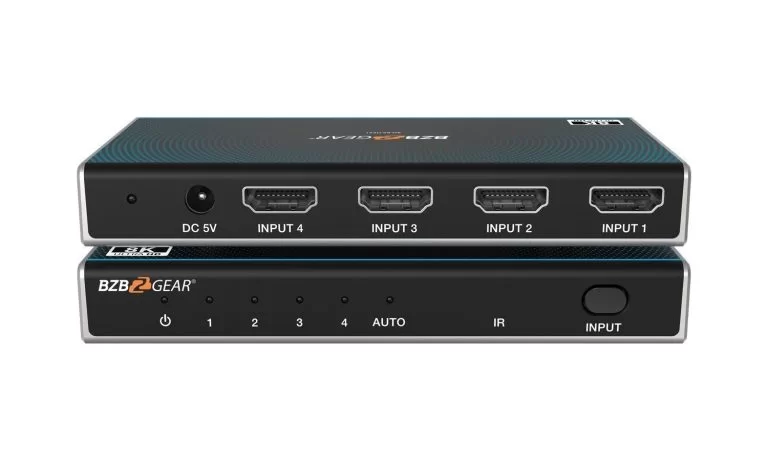

The 8K 4x1 HDMI 2.1 switcher is a versatile device that allows you to switch between four HDMI sources and display the selected input on a single HDMI display. It offers support for high-resolution video up to 8K at 60Hz with 4:4:4 chroma subsampling, providing crisp and detailed images with excellent color accuracy. Additionally, the switcher has a high video bandwidth of 48Gbps, which enables it to handle the large amounts of data required for high-quality 8K video.
This switcher is an ideal solution for those who want to be able to easily switch between multiple HDMI sources, such as a gaming console, Blu-ray player, or streaming device. Whether you're watching movies, playing games, or simply want to be able to easily access multiple sources of content, the 8K 4x1 HDMI 2.1 switcher can help ensure that you have access to the best possible video quality.
For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-HS41 can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 4x1 switcher’s support for 4K at 120Hz can help you get the most out of your favorite games.
Features
-
Secure ContentHDMI 2.1 and HDCP 2.3 compliant -
8K and 4K@120Hz8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, 8K@ 30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support -
Audio formatsLPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio -
4x1 switchingSwitch sources at the push of a button or enable automatic switching -
EDID managementSeamless scaling for the best results -
Compact designFor easy and flexible installation
- Support 48Gbps video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- VRR, FVA, ALLM
- Built-in Equalizer and Driver
Videos
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Connection | |
| Input | 4xHDMI IN [Type A, 19-pin female] |
| Output | 1xHDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Silkscreen Color | Black |
| Dimensions | 4.8” (W) x 2.6" (D) x 0.75” (H) [122mm (W) x 65mm (D) x 19mm (H)] |
| Weight | 0.19lbs [88g] |
| Power Supply | Input: AC 100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 3.4W (Max) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
Resources
PACKAGE CONTENTS
- 1x 8K HDMI 4x1 switcher
- 1x IR Remote
- 1x 5V/1A Power Supply
- 1x User Manual

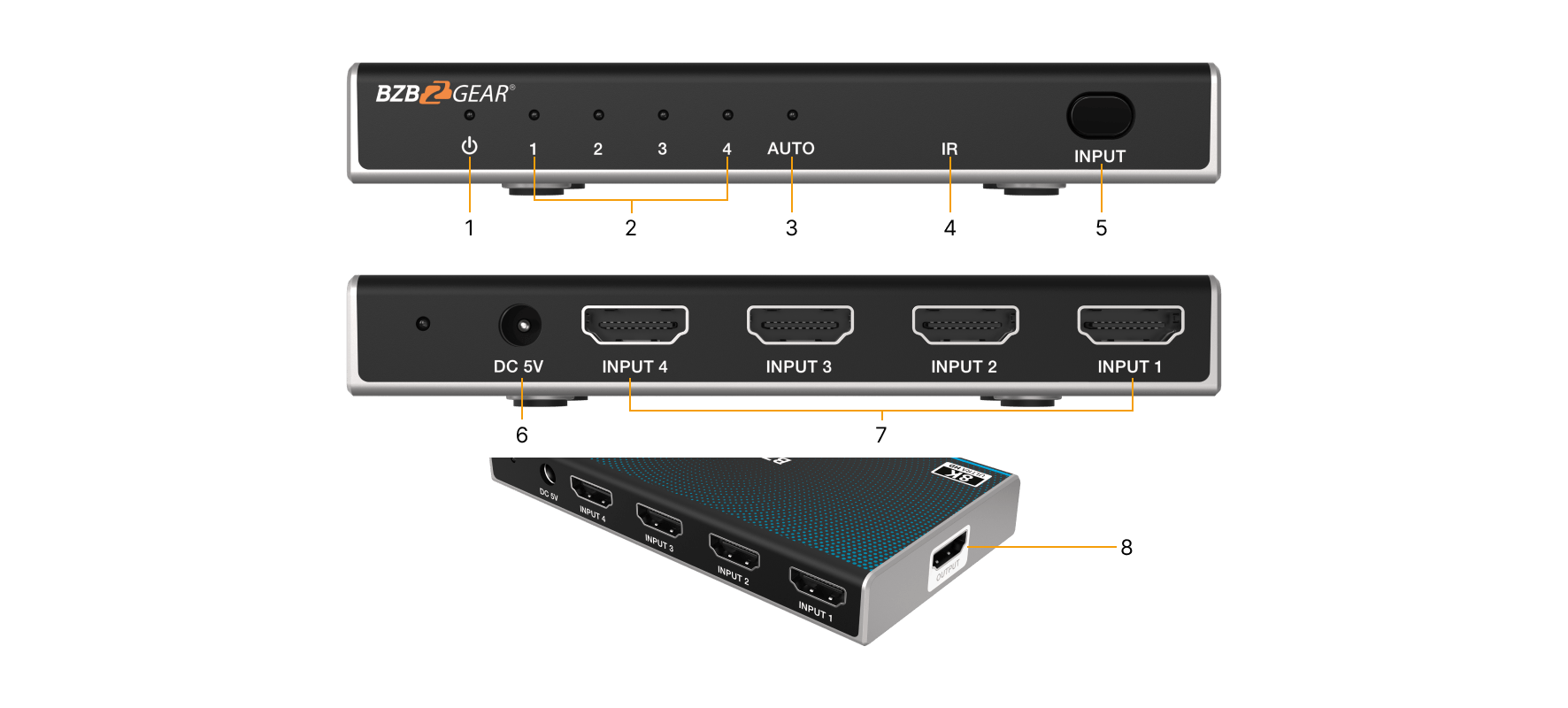

Interfaces
- POWER LED: When the device is powered on, the white power LED is on.
- INPUT LED (1~4): When the INPUT 1/2/3/4 port is selected as the signal source input channel, the corresponding white LED will be on.
- AUTO LED: When the auto switching mode is enabled, the corresponding white LED will be on.
- IR Window: IR input signal receiving window.
- INPUT button: Short press this button to circularly select signal source.
Long press this button for 3 seconds to enable the auto switching mode. - DC 5V: DC 5V/1A Power input port.
- INPUT port (1~4): HDMI signal input ports, connected to HDMI source device such as DVD or PS5 with an HDMI cable.
- OUTPUT port: HDMI signal output port, connected to HDMI display device such as TV or Monitor with an HDMI cable.
