Overview
The BG-IPGEAR-PRO-T/R is a high-performance HDMI over IP transmitter and receiver solution designed for scalable 4K UHD video distribution over standard Gigabit Ethernet networks. Supporting video resolutions up to 4K@60Hz, the system provides a flexible way to distribute HDMI video and audio throughout commercial, educational, government, and professional AV environments. With support for point-to-point, point-to-many, and multicast distribution, a single HDMI source can be routed to one or multiple displays across an IP network.
Designed for easy installation and system expansion, the IPGEAR-PRO system combines powerful AV distribution capabilities with integrated control and extension features. When paired with the BG-IPGEAR-PRO-C controller, connected devices can be automatically discovered and managed through a centralized interface, simplifying system configuration and operation. The system is also TAA compliant, making it suitable for government and other applications requiring compliant equipment.
Features In-Depth
The BG-IPGEAR-PRO-T/R consists of dedicated transmitter/encoder and receiver/decoder units that work together to transport HDMI video and audio over an Ethernet network. The transmitter converts the HDMI source into an IP-based signal for distribution across the network, while the receiver converts the network signal back to HDMI for connection to a display. The system supports 4K@60Hz UHD video and HDCP 2.2, providing reliable compatibility with modern high-resolution sources and displays. Power can be delivered through Power over Ethernet (PoE), helping simplify installation by reducing the need for separate power connections at each endpoint.
Beyond video distribution, the system provides extensive signal extension and control capabilities. Both transmitter and receiver units support audio embedding and de-embedding, bi-directional IR extension, and RS-232 extension, allowing AV, control, and audio signals to be transported as part of the networked system. Integrated USB 2.0 connectivity also enables KVM extension and remote management, allowing users to extend USB peripherals and interact with a remotely connected host device.
The scalable architecture allows additional transmitters and receivers to be added to the network as system requirements grow. Point-to-point and point-to-many configurations can be used for straightforward AV distribution, while multicast functionality allows a single source to be distributed to numerous endpoints without requiring a dedicated connection between every source and display. The system can also be configured for custom video wall applications, with management available through a user-friendly web interface or the free BZBGEAR Switch Control App. Compact 180 x 142 x 28 mm (7 x 5.5 x 3.2 in.) housings, optional surface-mount brackets, and support for custom rack mounting provide flexible installation options.
Features
-
![bi_badge-4k]()
4K@60Hz HDMI over IPDistribute high-quality 4K UHD HDMI video up to 60Hz over a standard IP network -
![fluent-mdl2_customize-toolbar]()
Scalable AV over IPAdd additional transmitters and receivers as your system expands for flexible, scalable deployment -
![Monitor]()
P2P, P2M & MulticastSupport multiple distribution configurations, including one source to one display, one source to multiple displays, and multicast distribution -
![KVM]()
Audio & KVM ExtensionExtend more than video with audio embedding/de-embedding, bi-directional IR, RS-232, and USB 2.0 KVM connectivity -
![mdi_check-network-outline]()
Centralized Network ManagementDevices can be automatically discovered and managed through a centralized control system, simplifying setup and operation -
![video-wall2-icon]()
Custom Video WallCreate and manage custom video wall configurations using the system's web interface or the free BZBGEAR Switch Control App
- Power over Ethernet (PoE)
- HDMI audio embedding and de-embedding
- Bi-directional IR extension
- RS-232 extension
- USB 2.0 hub for KVM extension and remote management
- Centralized device discovery and management with BG-IPGEAR-PRO-C
- Web GUI control and configuration
- TAA compliant
- Scalable network architecture
- Compact 180 x 142 x 28 mm (7 x 5.5 x 3.2 in.) form factor
- Surface-mount bracket support
- Custom rack-mount support
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Model Name | BG-IPGEAR-PRO-T |
| Technical | |
| Role of usage | Transmitter [TX] |
| HDMI compliance | HDMI |
| HDCP compliance | Yes |
| Video support | Up to 4K2K@60 (4:4:4 8bits) |
| Latency | 2 frames (33 ms) maximum |
| HDMI over UTP transmission [24-bit] | Ultra HD (4K2K60) - 120m (396ft) [CAT.X] |
| Audio support | Surround sound (up to 7.1ch) or stereo digital audio |
| Input TMDS signal | 1.2 Volts [peak-to-peak] |
| Input DDC signal | 5 Volts [peak-to-peak, TTL] |
| ESD protection | Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge] |
| IR pass-thru | Full-duplex bi-directional |
| RS-232 support | Yes |
| Input | 1x HDMI + 2x 3.5mm + 2x USB |
| Output | 1x RJ45 + 1x S/PDIF + 2x 3.5mm |
| In/ Out | 1x DIN9 |
| HDMI source control | Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders |
| IR remote control | Electro-optical characteristics: t = 25° / Carrier frequency: 20-60kHz |
| HDMI connector | Type A [19-pin female] |
| Min DIN connector | DIN-9 |
| RJ45 connector | WE/SS 8P8C with 2 LED indicators |
| 3.5mm connector | Analog audio / IR blaster & IR receiver |
| Mechanical | |
| Housing | Metal enclosure |
| Dimensions [L x W x H] | 7.6" x 5.2" x 1.1" [194 x 133 x 28 mm] |
| Weight | 1.5 lbs [663g] |
| Fixedness | Wall-mounting case with screws |
| Power supply | 5V DC / 48V POE |
| Power consumption | 6 Watts [max] |
| Operation temperature | 32~104°F / 0~40°C |
| Storage temperature | -4~140°F / -20~60°C |
| Relative humidity | 20~90% RH [no condensation] |
| Model Name | BG-IPGEAR-PRO-R |
| Technical | |
| Role of usage | Receiver [RX] |
| HDMI compliance | HDMI |
| HDCP compliance | Yes |
| Video support | Up to 4K2K@60 (4:4:4 8bits) |
| Latency | 2 frames (33 ms) maximum |
| HDMI over UTP transmission [24-bit] | Ultra HD (4K2K60) - 120m (396ft) [CAT.X] |
| Audio support | Surround sound (up to 7.1ch) or stereo digital audio |
| Input TMDS signal | 1.2 Volts [peak-to-peak] |
| Input DDC signal | 5 Volts [peak-to-peak, TTL] |
| ESD protection | Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge] |
| IR pass-thru | Full-duplex bi-directional |
| RS-232 support | Yes |
| Input | 1x RJ45 + 1x HDMI + S/PDIF |
| Output | 2x 3.5mm + 5x USB |
| In/ Out | 1x DIN9 |
| HDMI source control | Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders |
| IR remote control | Electro-optical characteristics: t = 25° / Carrier frequency: 20-60kHz |
| HDMI connector | Type A [19-pin female] |
| Min DIN connector | DIN-9 |
| RJ45 connector | WE/SS 8P8C with 2 LED indicators |
| 3.5mm connector | Analog audio / IR blaster & IR receiver |
| Mechanical | |
| Housing | Metal enclosure |
| Dimensions [L x W x H] | 7.6" x 5.2" x 1.1" [194 x 133 x 28 mm] |
| Weight | 1.4 lbs [644g] |
| Fixedness | Wall-mounting case with screws |
| Power supply | 5V DC / 48V POE |
| Power consumption | 7 Watts [max] |
| Operation temperature | 32~104°F / 0~40°C |
| Storage temperature | -4~140°F / -20~60°C |
| Relative humidity | 20~90% RH [no condensation] |
Resources
PACKAGE CONTENTS
- 1x BG-IPGEAR-PRO-T or 1x BG-IPGEAR-PRO-R
- 1x IR blaster cable or 1x IR receiver cable
- 1x User Manual
Interfaces
Transmitter
- Link Indicator: [Blink] When the unit connects a Cat-5/5e/6 cable.
[Solid] When the transmitting unit connects to a HDMI source and is linked to the receiving unit. - System Indicator: [Blink] When the unit is connected with a power supply unit.
[Solid] Device is ready. - Info indicator: When the user clicks the LED button in the software, the LED light will blink for 30 seconds.
- IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of 1R blaster.
- IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of the IR receiver.
- ID (Dip Switch): Video channel selection.
- Ethernet: RJ-45: Gigabit Ethernet port.
- Power: Connect to 5V DC power supply.
- S/PDIF Output: Optical audio output from BG-IPGEAR-PRO-R.
- Stereo In: 3.5mm stereo audio input.
- Stereo Out: 3.5mm stereo audio output.
- HDMI Input: Connects to an HDMI source device with an HDMI cable.
- HOST: Connect to a Type-B to a remote host computer you wish to control from the BG-IPGEAR-PRO-R.
- RS-232: Connect to PC serial port with a DB-9 male-male cable.

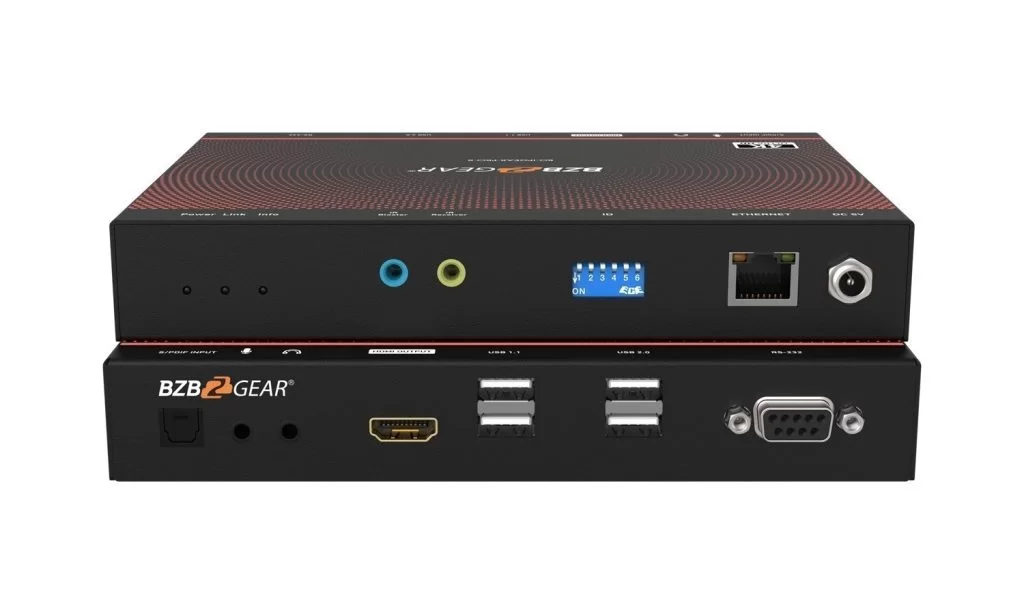

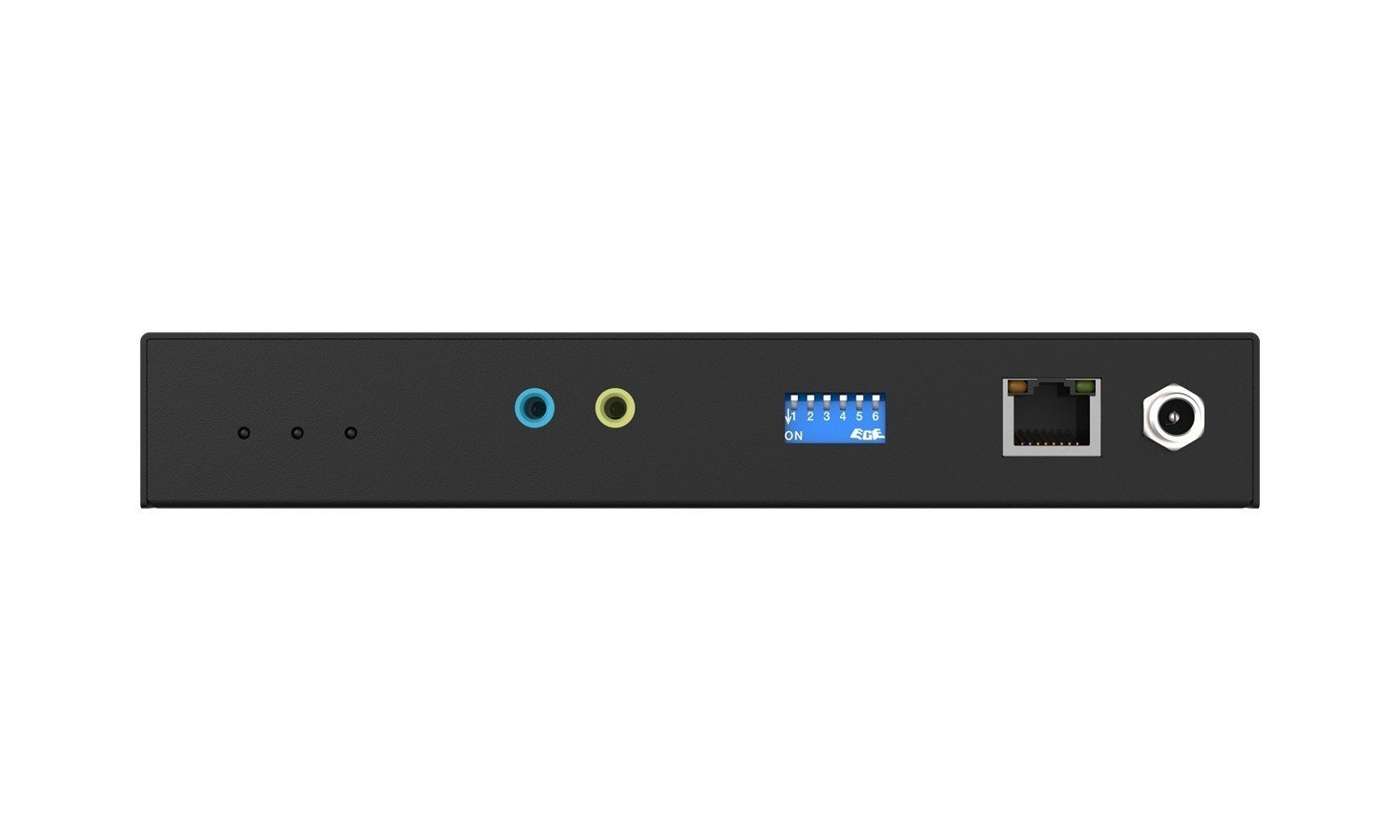

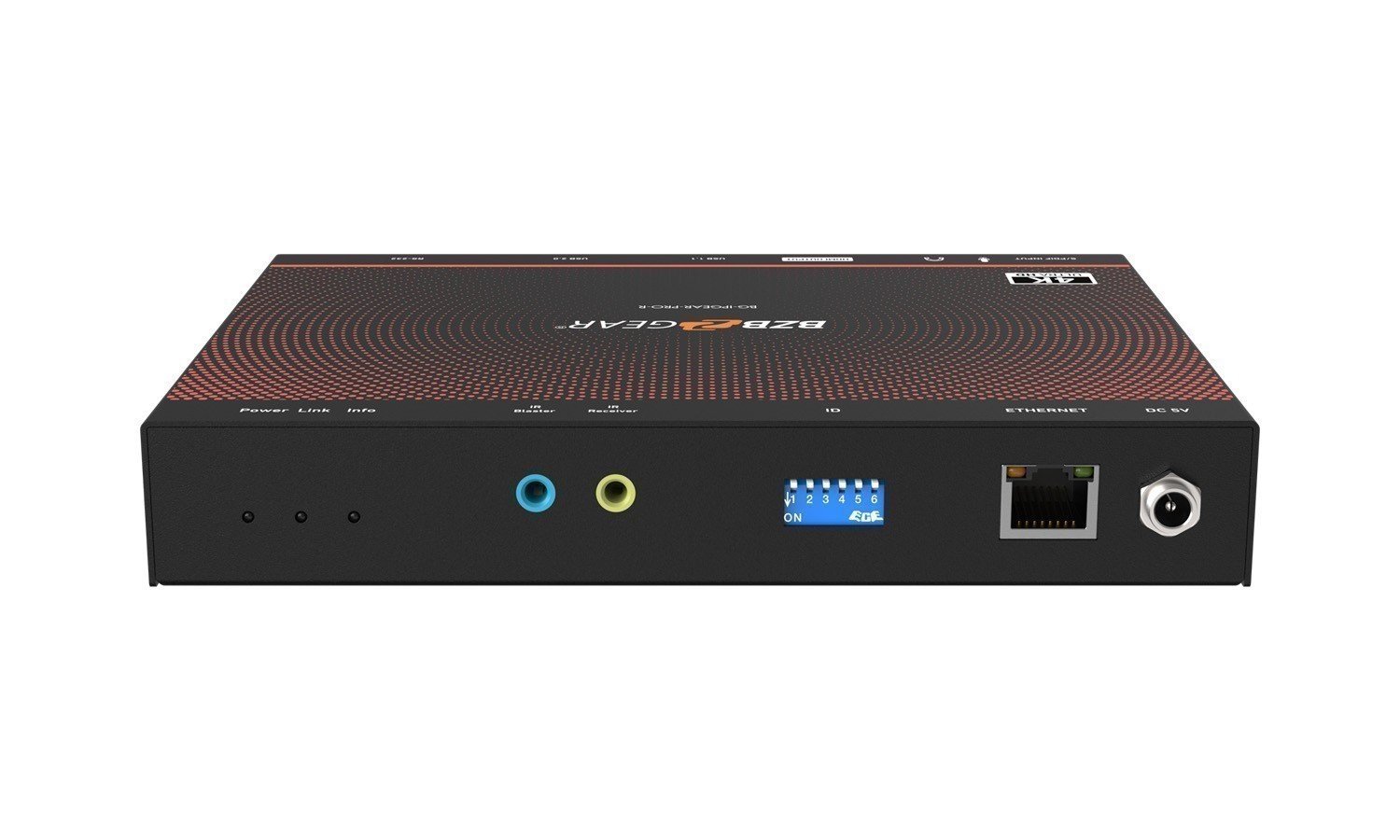

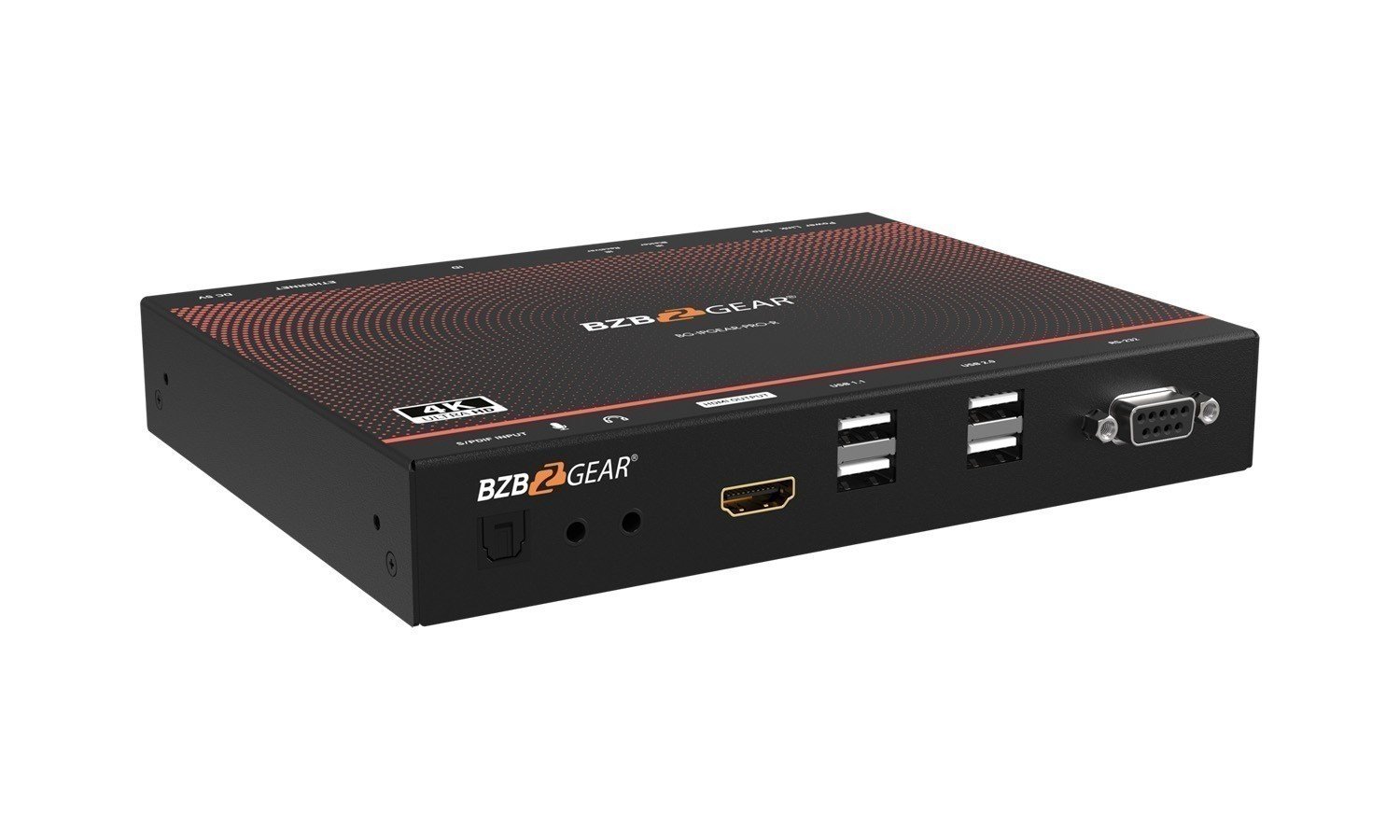

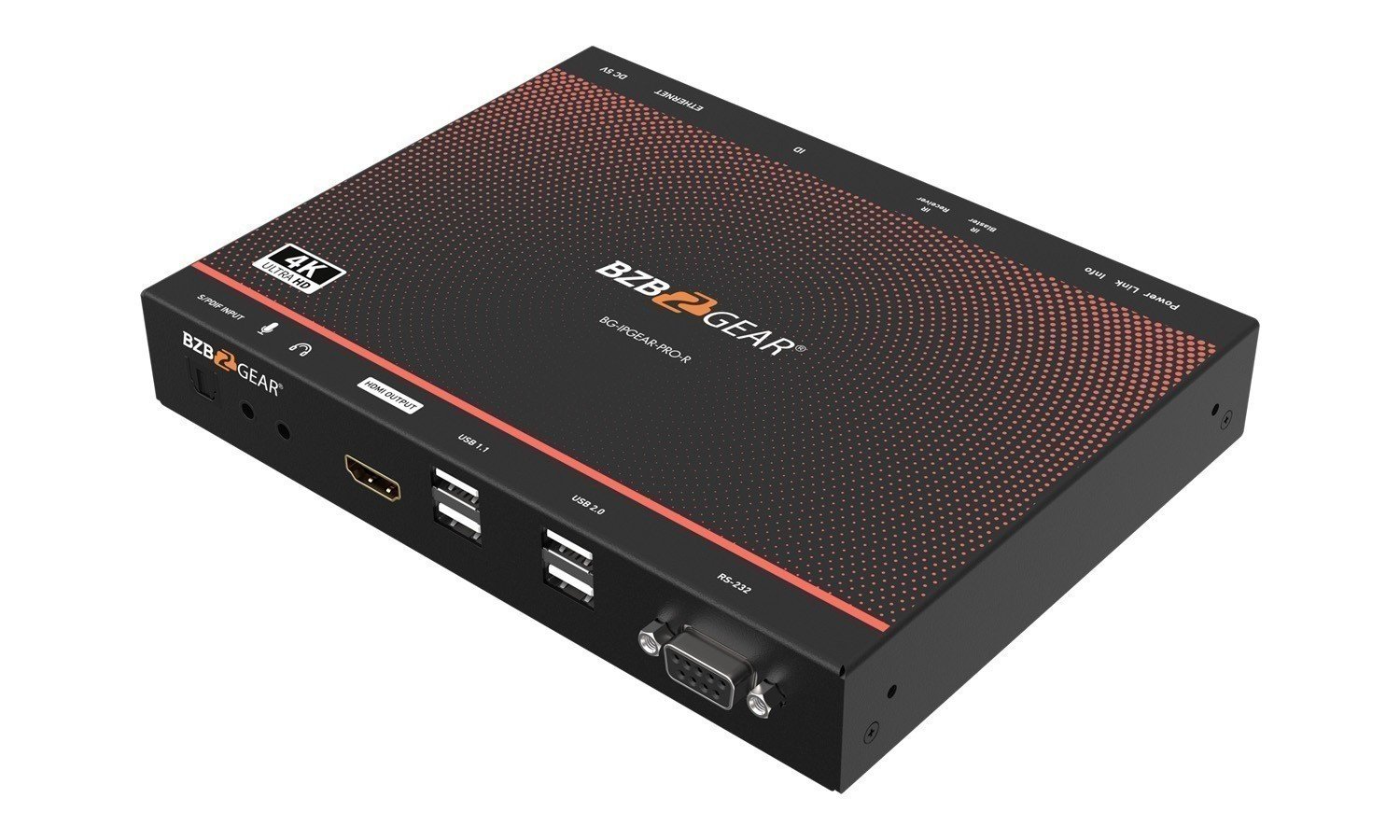

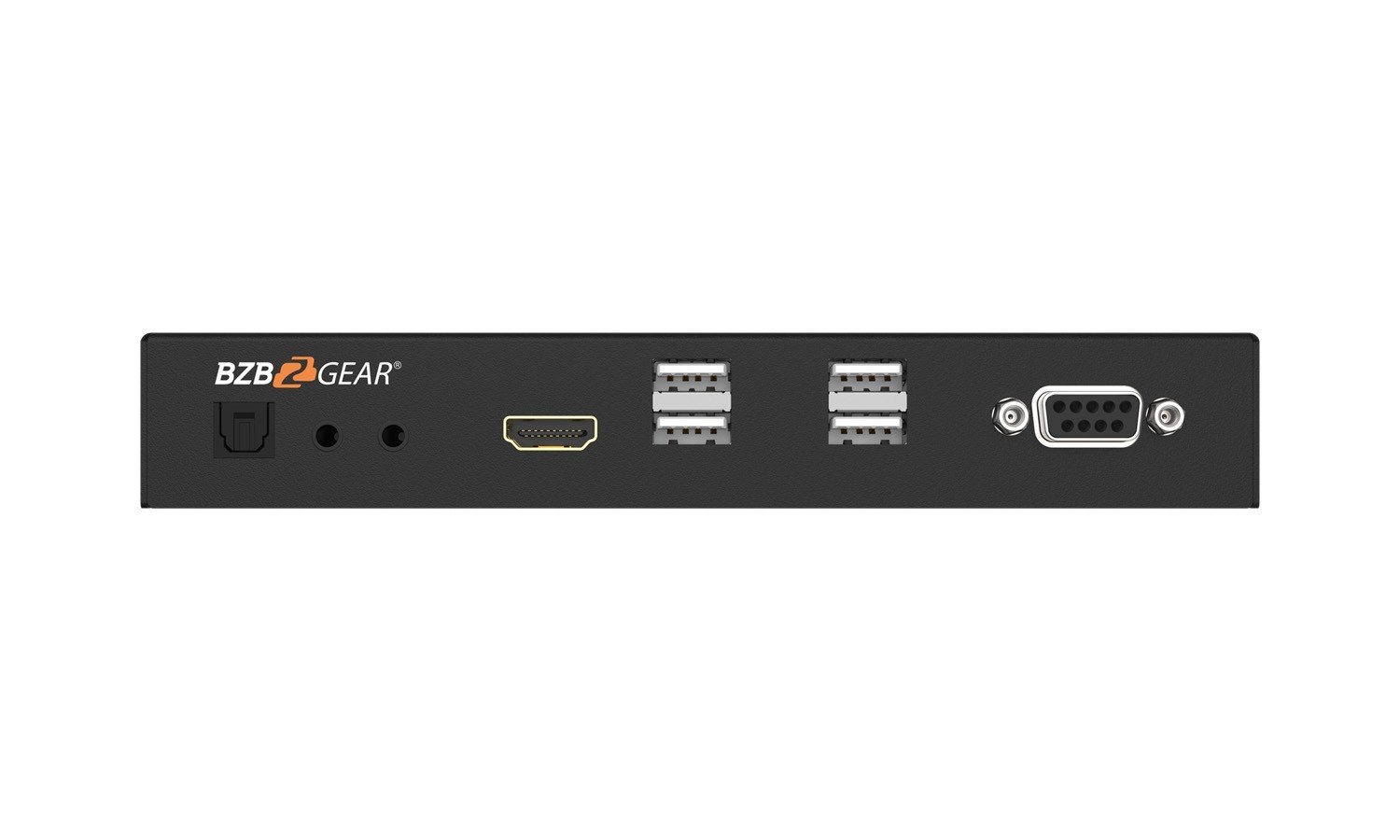

Receiver
- Link Indicator: [Blink] When the unit connects a Cat-5/5e/6 cable.
[Solid] When the transmitting unit connects to a HDMI source and is linked to the receiving unit. - System Indicator: [Blink] When the unit is connected with a power supply unit.
[Solid] Device is ready. - Info indicator: When the user clicks the LED button in the software, the LED light will blink for 30 seconds.
- IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster.
- IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of the IR receiver.
- ID (Dip Switch): Video channel selection.
- Ethernet: RJ-45: Gigabit Ethernet port.
- Power: Connect to 5V DC power supply.
- S/PDIF Input: Optical audio input.
- Stereo In: 3.5mm stereo audio input.
- Stereo Out: 3.5mm stereo audio output.
- HDMI Output: Connects to an HDMI display with an HDMI cable.
- USB 1.1: Connect to upstream USB host.
- USB 2.0: Connect to a USB flash drive or other USB devices.
- RS-232: Connect to PC serial port with a DB-9 male-male cable.
