Overview
The BG-DA-18G2 HDMI splitter lets you distribute an HDMI signal to 8 separate outputs. It supports the latest HDMI 2.0 18Gbps specification, including HDR for vivid visuals. You can enjoy stunning 4K UHD resolution at 60Hz with 4:4:4 color depth, as well as all common video resolutions. This splitter also supports all HDMI audio formats, such as Dolby TrueHD, Atmos, and DTS-HD Master Audio, for superior sound quality. With advanced EDID management and HDCP 2.2 compliance, you can expect seamless compatibility with your devices. The BG-DA-18G2 is ideally used for home theater, entertainment room, lecture room, hall presentation, showroom, demo room, and public commercial display.
EDID Management
To use dip switches for EDID management, locate the dip switch or block on the device, determine the switch configuration for the desired EDID data, set the switches according to the configuration, power cycle the device, and verify the new EDID configuration. Consult the device manual or product specifications for specific instructions.
Features
-
![material-symbols_settings-input-component]()
1X8 Switching1x HDMI input and 8x HDMI outputs -
![bi_hdmi]()
HDMI 2.018Gbps specification including HDR -
![bi_badge-4k]()
4K@60HzUp to 4K UHD 60Hz 4:4:4 -
![bi_soundwave]()
Audio FormatsAll known HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission -
![ep_connection]()
EDID managementSeamless scaling for the best results -
![material-symbols_shield-lock-outline]()
HDCP CompliantHDCP 2.2 compliancy ensures copyright protection
- All industry standard video resolutions including VGA-WUXGA and 480i-4K
Videos
Tech Specifications
| Video Bandwidth | 300MHz/6Gbps per Color |
| Input Ports | 1x HDMI Type A, 19-pin, female 1x Mini USB (Firmware upgrade) |
| Output Ports | 8x HDMI Type A, 19-pin, female |
| Resolutions | Up to 4K@50/60Hz 4:4:4, Full 3D Pass-through |
| HDMI Cable Distance | 5m for 1080p@60Hz, 3m for 4K@60Hz 4:4:4 |
| Power Supply | 12V/2A DC |
| ESD Protection | Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) |
| Dimensions | 11”(W) x 4.3"(D) x 0.51”(H) [273mm(W) x 109mm(D) x 13mm(H)] |
| Weight | 1.6lbs [705g] |
| Chassis Material | Aluminum |
| Chassis Color | Black |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
Resources
PACKAGE CONTENTS
- 1x 1X8 HDMI Splitter
- 1x 12V/2A DC Power Supply
- 1x Mounting kit

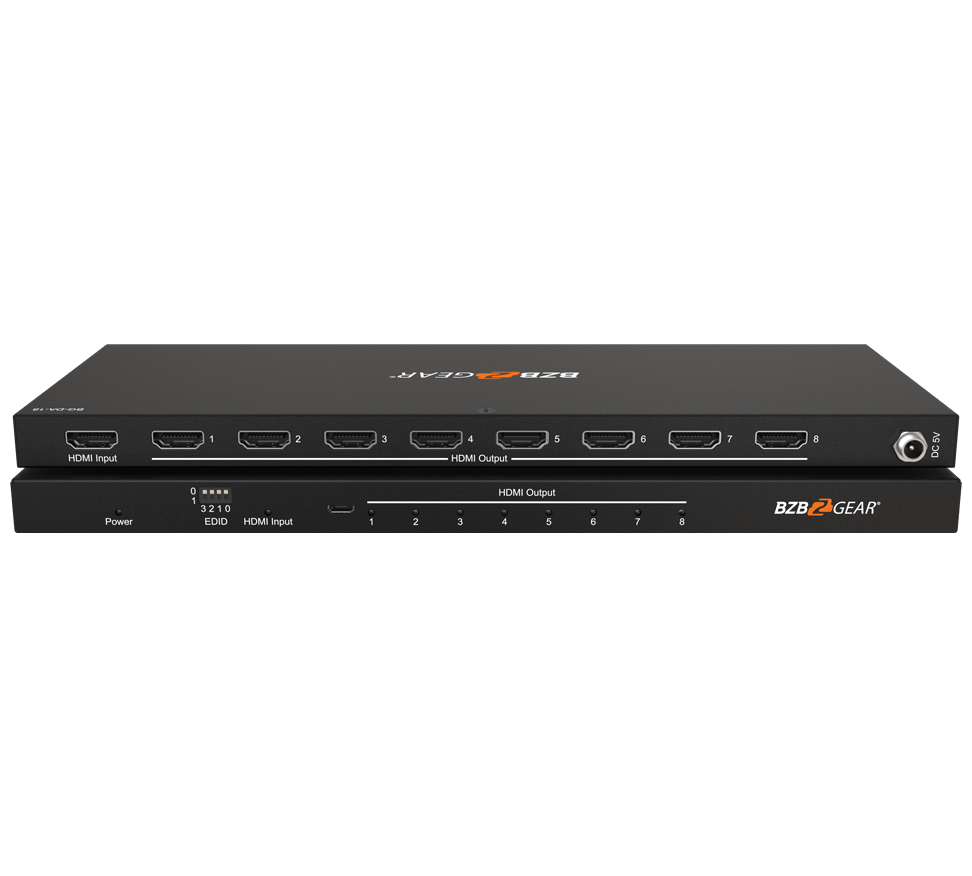

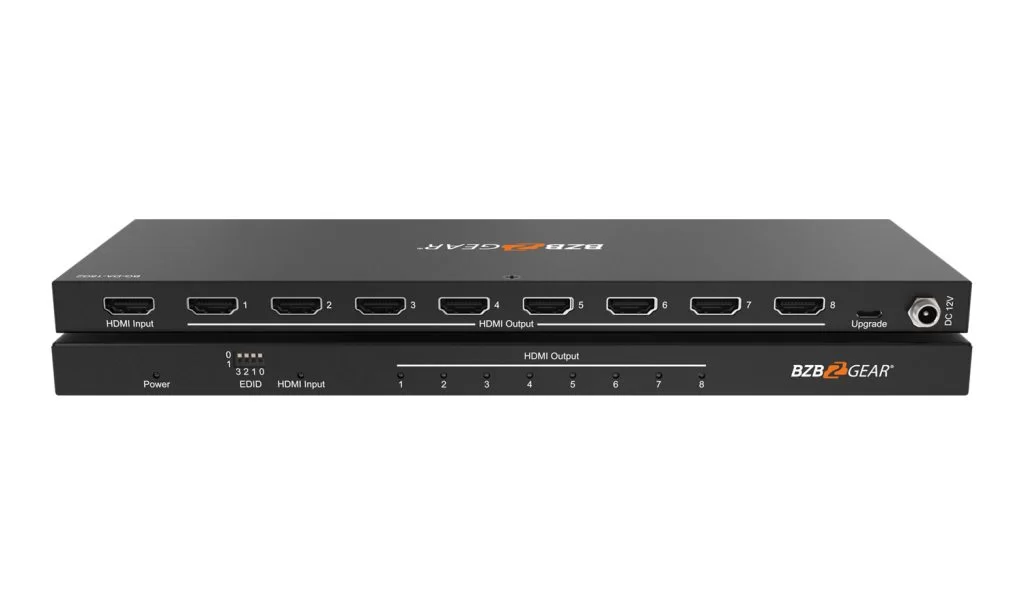

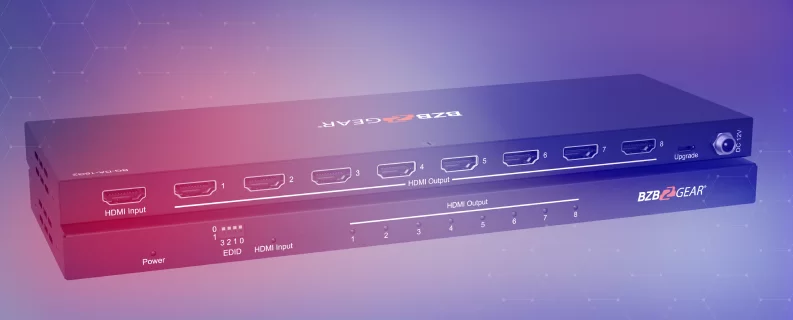

Interfaces
- Power LED Indicator: Illuminates when the unit is powered on.
- EDID Dip Switch: Manage the EDID settings of the unit (see EDID Dip Switch Settings for more information).
- Input LED Indicator: Illuminated when an HDMI input signal is detected.
- Output LED Indicators: The LED illuminates when the corresponding output detects a connected HDMI display.
- HDMI Input: Connect to a signal source such as a Blu-ray player or set-top-box.
- HDMI Output 1-8: Connect to an HDMI display device such as a TV or projector.
- F/W Upgrade Port: Connect a micro USB cable to upgrade the device firmware.
- DC 12V: Locking power supply, connect to the provided power adapter.
