How Do You Test HDMI 2.1?

HDMI 2.1 has raised the bar for professional AV testing. With bandwidth up to 48 Gbps and support for formats such as 8K60 and 4K120, traditional signal testers are no longer sufficient. Proper validation now requires advanced HDMI 2.1 test pattern generators and analyzers capable of verifying not only video resolution, but also HDR formats, HDCP compliance, audio integrity, EDID behavior, and real-world signal stability.

In this guide, we break down how HDMI 2.1 testing works, what tools are used in the field, and how professionals verify performance in real-world installations.

Understanding HDMI 2.1 Testing Requirements

Testing HDMI 2.1 is fundamentally about verifying whether an entire signal chain can reliably handle ultra-high bandwidth data without degradation, handshake issues, or compatibility failures.

Key parameters that must be validated include:

• Resolution and refresh rates: 8K60, 4K120, and legacy formats like 4K60 and 1080p
• Color depth and chroma subsampling: 4:4:4, 4:2:2, and 4:2:0 up to 10-bit and 12-bit
• HDR formats: HDR10, Dolby Vision, and other dynamic range standards
• HDCP compliance: HDCP 1.4 and 2.3 authentication and encryption stability
• Audio formats: Multi channel LPCM, Dolby Atmos, DTS:X, and PCM validation
• EDID communication: Proper handshake between source and display devices

Without proper testing, even certified HDMI 2.1 hardware can fail in real-world deployments due to cable limitations, EDID conflicts, or input&output incompatibilities.

Compact HDMI 2.1 Testers for Field Verification

For installers and integrators working on-site, portable test tools are essential for quick troubleshooting and verification.

Portable Signal Generation and Analysis

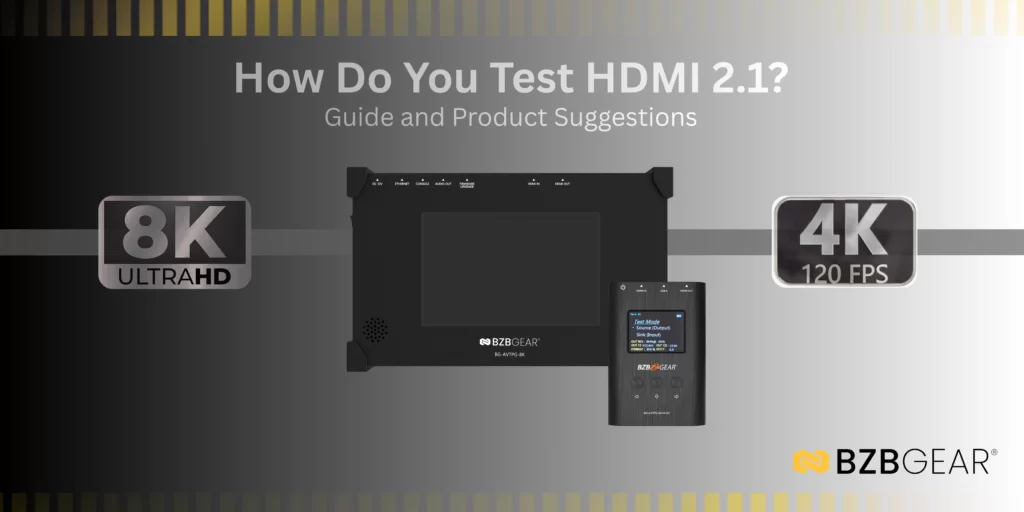

Devices like the BG-AVTPG-MINI-G2 are designed for fast deployment in the field. These compact testers combine signal generation and signal detection in a single handheld unit, making them ideal for verifying system integrity during installation.

Typical capabilities include:

• Support for ultra-high resolutions up to 8K60 (4:2:0 10-bit) and 8K30 (4:4:4)
• Full 4K120 support for gaming, esports, and high frame rate video systems
• Built in HDMI signal detection with resolution, frame rate, and HDCP reporting
• Adjustable color depth for display performance evaluation
• Dual mode operation (signal generator + sink analyzer)
• HDMI 2.1 input/output support with 48Gbps bandwidth handling
• Rechargeable battery operation (up to ~3 hours for field use)

These compact tools are especially valuable for:

• Quick verification of HDMI cable integrity
• On-site troubleshooting of display handshake issues
• Basic EDID and HDCP confirmation
• Field calibration and commissioning

Their portability makes them ideal for AV technicians working across multiple locations or fast paced installation environments.

Advanced HDMI 2.1 Testing and Analysis Platforms

While compact testers are ideal for field use, complex AV environments require deeper diagnostic capability. This is where advanced HDMI 2.1 test platforms become essential.

The BG-AVPTG-8K represents a full-scale HDMI 2.1 validation system designed for engineers, system integrators, and advanced troubleshooting scenarios.

Full-Scale HDMI 2.1 Validation Features

This class of device goes far beyond basic signal generation, offering complete system level analysis tools such as:

• Native support for 8K60 and 4K120 HDMI 2.1 signals
• Advanced waveform and signal analysis tools
• EDID read, edit, and emulation functions
• Multi mode HDCP testing and compatibility validation
• Audio test generation (tone and multi channel configuration)
• Latency and AV sync measurement tools
• Real time signal parameter monitoring (resolution, timing, frame rate, audio format, HDCP status)
• Touchscreen interface with Web GUI remote control
• KVM support for keyboard and mouse based operation

Generator + Analyzer in One Platform

What makes advanced HDMI 2.1 testers particularly powerful is their dual functionality:

Signal Generator Side:

• Custom test patterns for display calibration
• HDR and color space control
• Motion and stress test patterns
• Audio signal configuration tools

Signal Analyzer Side:

• Real time EDID inspection and debugging
• HDCP authentication monitoring
• Signal integrity and timing analysis
• Latency and AV sync measurement
• Audio format verification

This combination allows engineers to simulate real-world conditions while simultaneously analyzing how every device in the chain responds.
