BG-BPTZ-20XHUHR

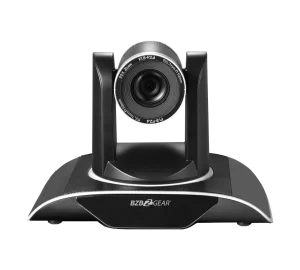

20X PTZ Zoom Full HD USB 2.0/3.0 HDMI RS232 Live Streaming Camera Series

20X PTZ Zoom Full HD USB 2.0/3.0 HDMI RS232 Live Streaming Camera Series

SKU: BG-BPTZ-20XHUHR

This camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.





  • Superb High-definition Image. The camera employs 1/2.8 inch 2.07 megapixel high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
  • Various Optical Zoom Lens.
  • Leading Auto Focus Technology. Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
  • Low Noise and High SNR. Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
  • Audio Input Interface (for future development). Support 8000, 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
  • Wide-range, Quiet and Quick Pan/Tilt Mechanism. By adopting step driving motor mechanism, this camera works extremely quiet and moves smoothly.
  • Multiple Audio/Video compression. Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
  • Multiple Network Protocol Support. NDI (additional option), ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
  • Wide Application. Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
  • Low-power sleep function. Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.

Camera Parameters
Optical Zoom20X f=55.7~110mm
Sensor1/2.8 inch high quality HD CMOS sensor
Effective Pixels16: 9  2.07 megapixel
Video Format

1) USB3.0: 1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30

2) USB3.0 compatible with USB2.0: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30

View Angle3.3°(tele) – 54.7°(wide)
AVF1.8 ~ F2.4
Digital Zoom10X
Minimum Illumination0.5 Lux (F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto/Manual/One Push/3000K/4000K/5000K/6500K
FocusAuto/Manual
ApertureAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video AdjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR>55dB
Input/Output Interface

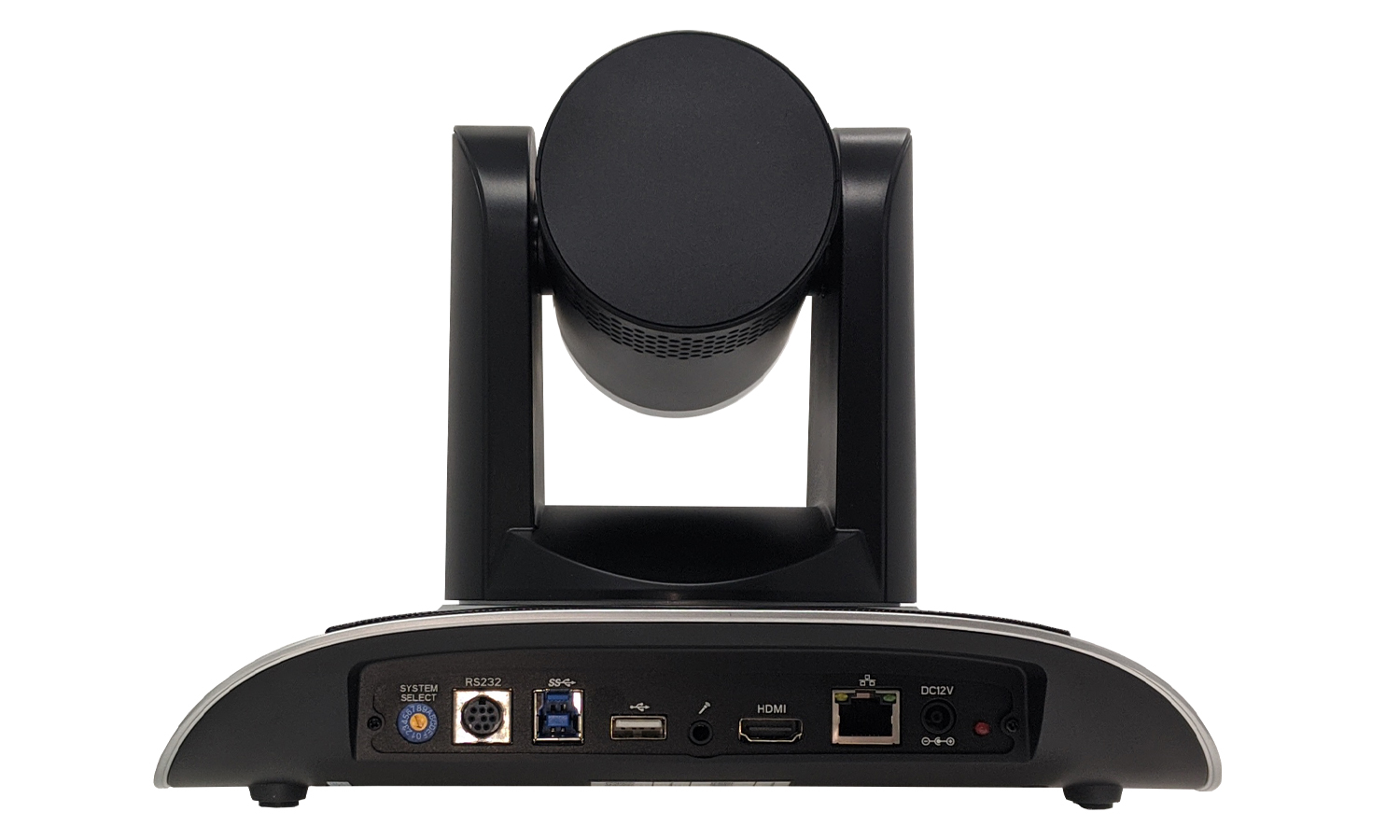

Video Interfaces

USB3.0, USB2.0, HDMI, LAN, RS232 (IN), A-IN

Image Code StreamDual stream output
Video Compression FormatH.264, H.265
Control Signal InterfaceRS-232 Ring through RS232 output
Control ProtocolVISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input InterfaceDouble track 3.5mm linear input;
Audio Compression FormatAAC/MP3/PCM Audio compression
HD IP Interface100M IP port (100BASE-TX); 5G WiFi (optional),

Support Visca protocol control through IP port.

Network ProtocolRTSP/RTMP, ONVIF, GB/T28181
Power InterfaceHEC3800 outlet (DC12V)
PTZ Parameters
Pan Rotation±170°
Tilt Rotation-30°~+90°
Pan Control Speed0.1 -100°/sec
Tilt Control Speed0.1-45°/sec
Preset SpeedPan: 100°/sec, Tilt: 45°/sec
Preset Number255 presets (10 presets by remote controller)
Other Parameters
Supply AdapterAC110V - AC220V to DC12V/1.5A
Input VoltageDC12V±10%
Input Current1A (Max)
Consumption12W (Max)
Store Temperature-10°C~+50°C
Store Humidity20% – 95%
Working Temperature-10°C~+50°C
Working Humidity20%–80%
Dimension258mmX172mmX168mm
Weight1.54KG
Remote Operation (IP)Remote Upgrade, Reboot and Reset





① Camera
② Power supply
③ RS232 control cable
④ Remote Control
⑤ Bracket (optional)
⑥ Operation manual


Video


Warranty: 3 years

Buy this 20X PTZ Zoom Full HD USB 2.0/3.0 HDMI RS232 Live Streaming Camera Series


MSRP $1,199.00*

*Pricing is for US only. International pricing will vary.

MSRP $1199.00

Description

This camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

Additional information

Weight2 lbs
Dimensions9 × 6 × 2 in
