LUXUL AV-Series 24-Port Gb PoE+ L2 L3 Managed Switch with 4 SFP+

Discontinued
Configure the Perfect Solution
Get Started

Overview

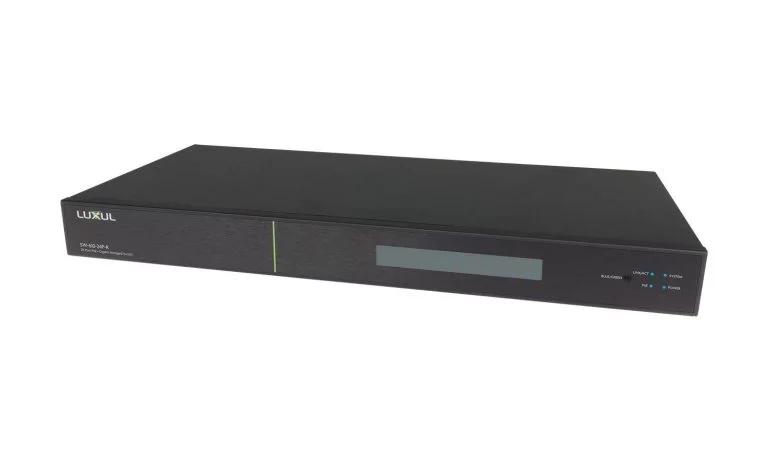

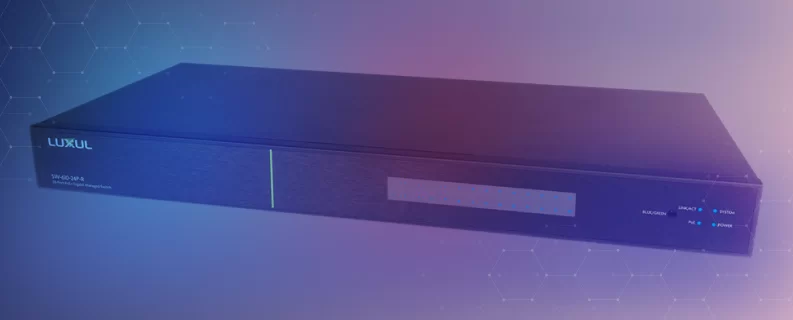

The LUX-SW-610-24P-R-PC is a 24-Port Gb PoE+ L2 L3 managed network switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) and a total PoE power budget of 370W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This rack mountable L2/L3 switch with 128Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface, allowing easy and comprehensive administration. For public applications, it’s equipped with variable speed fans for quiet operation. Additionally, this network switch is ProWatch Integrated for support of remote monitoring and management.

Features

  • PoE Self-Healing with auto-recovery and power scheduling
  • 24 PoE+ Gigabit Ports
  • 370 Watt total PoE budget
  • Rear-facing ports
  • 4 SFP+ Ports
  • Aggregable up to 40Gbps
  • Rack Mountable
  • Group Manager -Single pane user interface for easy administration of multiple 510 and 610 series switches

Tech Specifications

Dimensions & Measurements
Height 1.8 in (4.4 cm)
Length 17.4 in (44.2 cm)
Operating Temperature 32° to 122°F (0° to 50°C)
PoE Power Budget 370W
Product Weight 8.4 lbs (3.8 kg)
Switching Capacity 128 GBPS
Width 8.3 in (21.1 cm)
Characteristics & Features
Connection Type Wired
Layer Support L2
L3
Number of Ports 24
PoE Self Healing Per Port Basis
Port Location Rear
Power Cord US Cord
ProWatch Type ProWatch Integrated
SPF Port Type 4 x 10 Gigabit
Switch Type Managed
PoE+
VLAN Compliance 802.1Q
Certifications & Warranties
Certifications
  • CB Report
  • CE
  • CE-EMC
  • CE-LVD
  • FCC
  • IC
  • NDAA 889
  • RCM
  • RoHS
  • TAA
  • UKCA
  • VCCI

PACKAGE CONTENTS

  • 24PoE+ RearPort Gb Switch w 4 SFP+
  • Power and Console Cables
  • Rack Ears and Set of Four (4) Adhesive Feet
  • Quick Install Guide & Regulatory Documentation
