LUXUL AV-Series 12-Port/8 PoE+ Gigabit Managed Switch
Discontinued
Configure the Perfect Solution
Get Started
Overview

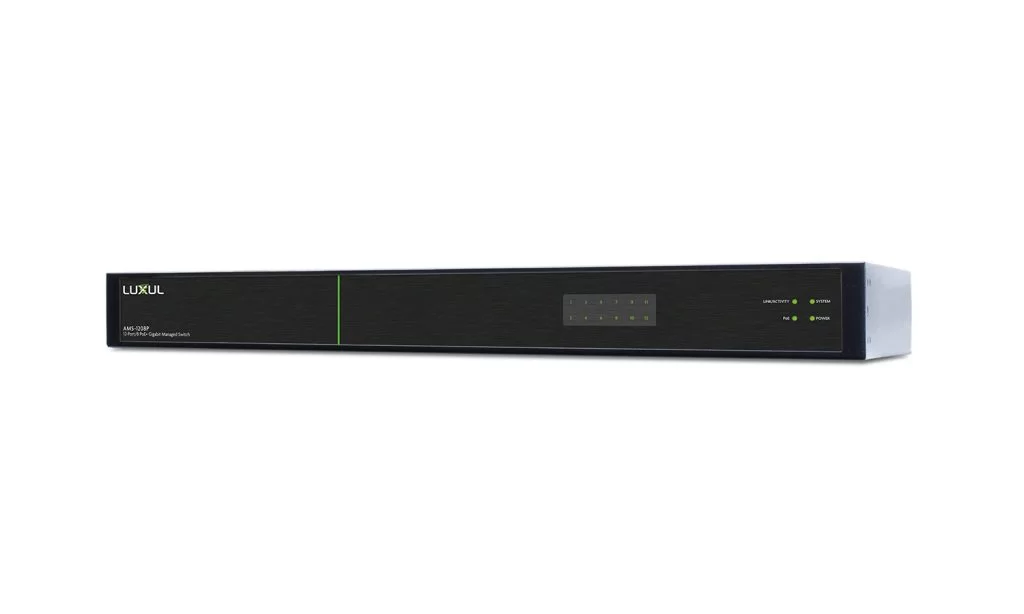

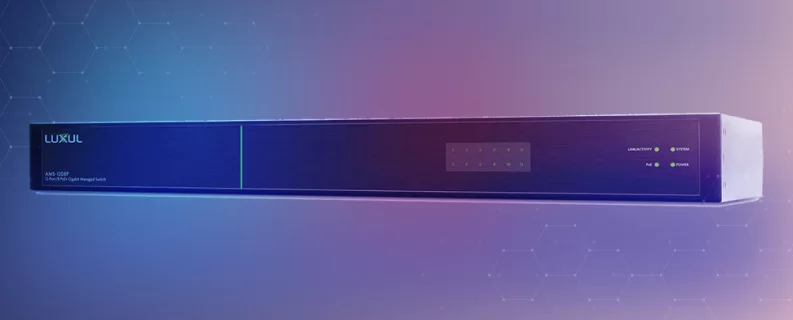

The LUX-AMS-1208P-PC is an AV series 12-Port/8 PoE+ Gigabit managed network switch. It features plug-and-play installation with intuitive management, plus user selectable green or blue front facing LEDs for quick and easy installation right out of the box. This rack mountable network switch is guaranteed to last long with the PoE self-healing with auto-recovery and power scheduling. It is an excellent choice for expanding networks when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The switch includes 8 PoE+ ports, with a total power budget of 130 Watts. It also features 2 Gigabit RJ-45 and 2 Gigabit SFP ports for easy network expansion. The AMS-1208P helps networks with support for Layer 3 static routing between VLANs, while also featuring simple-to-use management, and VLAN and security capabilities to provide additional benefits to your home or office network.
Features
- PoE Self-Healing with auto-recovery and power scheduling
- 10, Gigabit RJ45 Ports
- 2, Gigabit SFP ports
- 8 Ports Support 802.3af/at PoE+ with 130 Watt Power Budget
- 24Gbps Switching Capacity
- Layer 3 Static Routing
- 802.1Q VLAN (with Trunking) and QoS Support
- Plug-and-Play Installation with Intuitive Management
- Simple Power Management of PoE-Enabled Devices
- User Selectable Green or Blue Front facing LEDs
- Fanless for Silent Operations
- Standard 19” Rack-Mount
- The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)
Tech Specifications
| Dimensions & Measurements | |
| Height | 1.8 in (4.4 cm) |
| Length | 17.3 in (43.9 cm) |
| Max Power Consumption | 168W |
| PoE Power Budget | 130W |
| Product Weight | 6.2 lbs (2.8 kg) |
| Switching Capacity | 28 GBPS |
| Width | 8.3 in (21 cm) |
| Characteristics & Features | |
| Connection Type | Wired |
| Ethernet Port Type | 2 Uplink 8 PoE |
| Jumbo Frame Support | 10056 |
| Layer Support | L2 L3 |
| Multicast | IGMP v1/2/3 Quierer Snooping |
| Number of Fiber SFP Ports | 2 |
| Number of Ports | 8 |
| PoE Self Healing | Per Port Basis |
| Port Location | Rear |
| Power Cord | US Cord |
| ProWatch Type | ProWatch Integrated |
| Spanning Tree | MSTP STP. RSTP |
| SPF Port Type | 2 x 1 Gigabit |
| Switch Type | Managed PoE+ |
| VLAN Compliance | 802.1Q |
| VLAN ID | 4094 |
| Certifications & Warranties | |
| Certifications |
|
PACKAGE CONTENTS
- 12-port/8 PoE+ Gigabit Managed Switch
- Power Cord
- Rack Mount Kit
- Quick Install Guide
