LUXUL AV-Series 26-Port Gigabit L2/L3 Managed Switch

Configure the Perfect Solution
Get Started

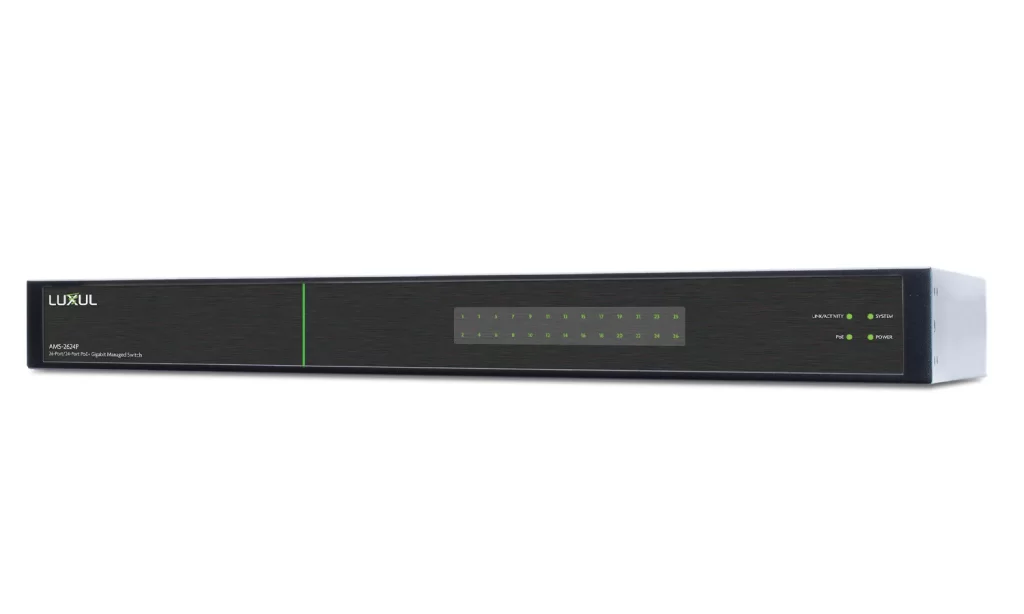

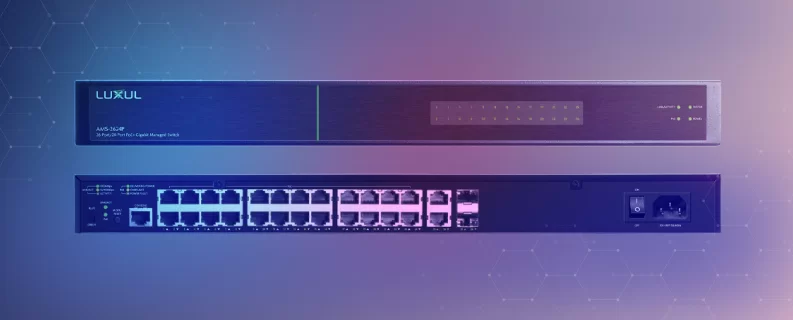

The Luxul AV-Series 26-port/24 PoE+ Gigabit Managed Switch features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems.

It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The 26-port Gigabit switch includes 24 PoE+ ports, allowing you to use standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices. It also features advanced management, and VLAN and security capabilities to provide benefit to your home or office network


  • PoE Self-Healing with auto-recovery and power scheduling
  • 24 Gigabit RJ45 Ports
  • 2 Gigabit RJ-45 uplink ports with 2 shared SFP ports (combo ports)
  • 24 Ports Support 802.3af/at PoE+ with 250 Watt Power Budget
  • 52Gbps Switching Capacity (Non-Blocking and Full-Duplex)
  • 802.1Q VLAN (with Trunking) and QoS Support
  • Port Based Authentication
  • Intuitive Management
  • User Selectable Green or Blue Front facing LEDs
  • Variable Speed Fans for Quiet Operation
  • Standard 19” Rack-Mount
  • The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)

Tech Specifications

Dimensions & Measurements
Height 1.75 in (4.44 cm)
Length 17.3 in (43.94 cm)
Max Power Consumption 337W
PoE Power Budget 250W
Product Weight 9 lbs (4.08 kg)
Switching Capacity 52 GBPS
Width 8.25 in (20.96 cm)
Characteristics & Features
Ethernet Port Type
  • 24PoE
  • 2 Uplink
Jumbo Frame Support 10056
Layer Support
  • L2
  • L3
  • IGMP v1/2/3
  • Quierer
  • Snooping
Number of Fiber SFP Ports 2
Number of Ports 24
PoE Self Healing Per Port Basis
Port Location Rear
Power Cord US Cord
ProWatch Type ProWatch Integrated
Spanning Tree
  • MSTP
SPF Port Type 2 x 1 Gigabit
Switch Type
  • Managed
  • PoE+
VLAN Compliance 802.1Q
VLAN ID 4094
Certifications & Warranties
  • CB Report
  • CE
  • CE-EMC
  • CE-LVD
  • FCC
  • IC
  • RCM
  • RoHS
  • TAA
