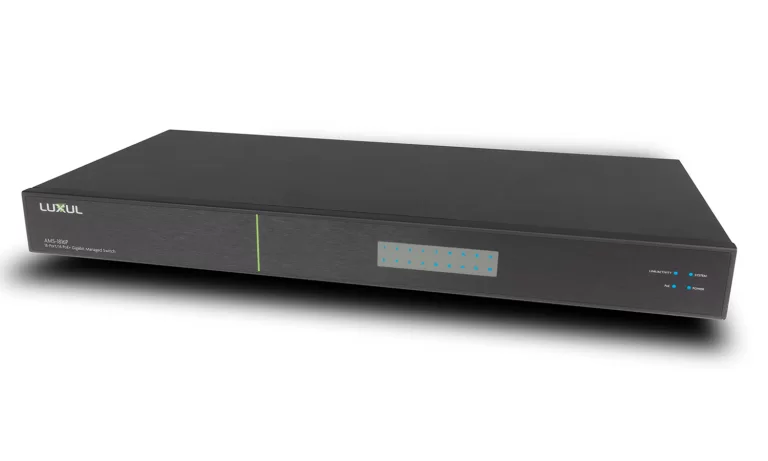

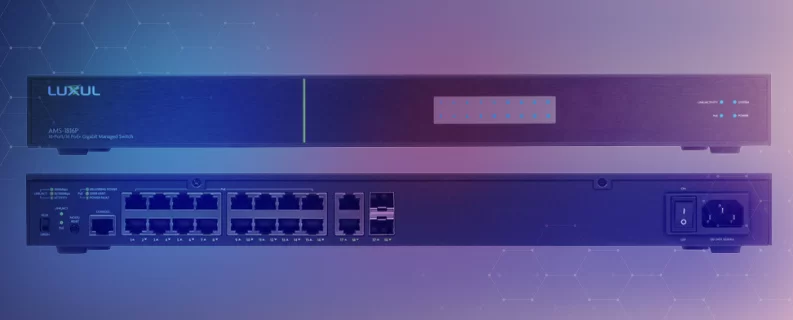

Model: LUX-AMS-1816P-PC

LUXUL AV Series 18-Port Gigabit PoE+ L2/L3 Managed Switch Preconfigured for BG VOP Series

MSRP: $1,199.00

MSRP $1199

Overview

The LUX-AMS-1816P-PC is an 18-port Gigabit swtich that easily functions on its own or provides cost effective expandability via its two Gigabit SFP uplink ports to other Luxul switches in your AV rack. The 16 PoE+ ports provide a robust 185W power budget and simple power management to automation touch panels, security cameras, and other PoE powered devices.

The compact rack-mountable design, selectable green/blue front facing LEDs, and variable speed fans ensure aesthetic and quiet operation. The LUX-AMS-1816P-PC provides simple installation with powerfully intuitive management, including L2/L3 switching, 802.1Q VLAN support with trunking, and QoS prioritization support.



Features
  • PoE Self-Healing with auto-recovery and power scheduling
  • 16 Gigabit 802.3af/at PoE+ ports (185W power budget)
  • Two Gigabit SFP ports
  • Full layer 2/3 support
  • 802.1Q VLAN (with trunking) and QoS support
  • User selected green and blue front facing LEDs
  • Variable speed fans for quiet operation
  • Plug-and-play installation with intuitive managment
  • Simple power managment of PoE enabled devices
  • Compact design in standard 19"" rack-mount enclosure
  • Three-year limited warranty


Specifications
Dimensions & Measurements
Height 1.75 in (4.44 cm)
Length 17.3 in (43.94 cm)
Max Power Consumption 250W
PoE Power Budget 185W
Product Weight 9 lbs (4.08 kg)
Switching Capacity 36 GBPS
Width 8.25 in (20.96 cm)
Characteristics & Features
Ethernet Port Type
  • 16 PoE
  • 2 Uplink
Jumbo Frame Support 10056
Layer Support
  • L2
  • L3
Multicast
  • IGMP v1/2/3
  • Quierer
  • Snooping
Number of Fiber SFP Ports 2
Number of Ports 16
PoE Self Healing Per Port Basis
Port Location Rear
Power Cord US Cord
ProWatch Type ProWatch Integrated
Spanning Tree
  • MSTP
  • STP. RSTP
SPF Port Type 2 x 1 Gigabit
Switch Type
  • Managed
  • PoE+
VLAN Compliance 802.1Q
VLAN ID 4094
Certifications & Warranties
Certifications
  • CB Report
  • CE
  • CE-EMC
  • CE-LVD
  • FCC
  • IC
  • RCM
  • RoHS
  • TAA
MORE / LESS SPECS

Videos

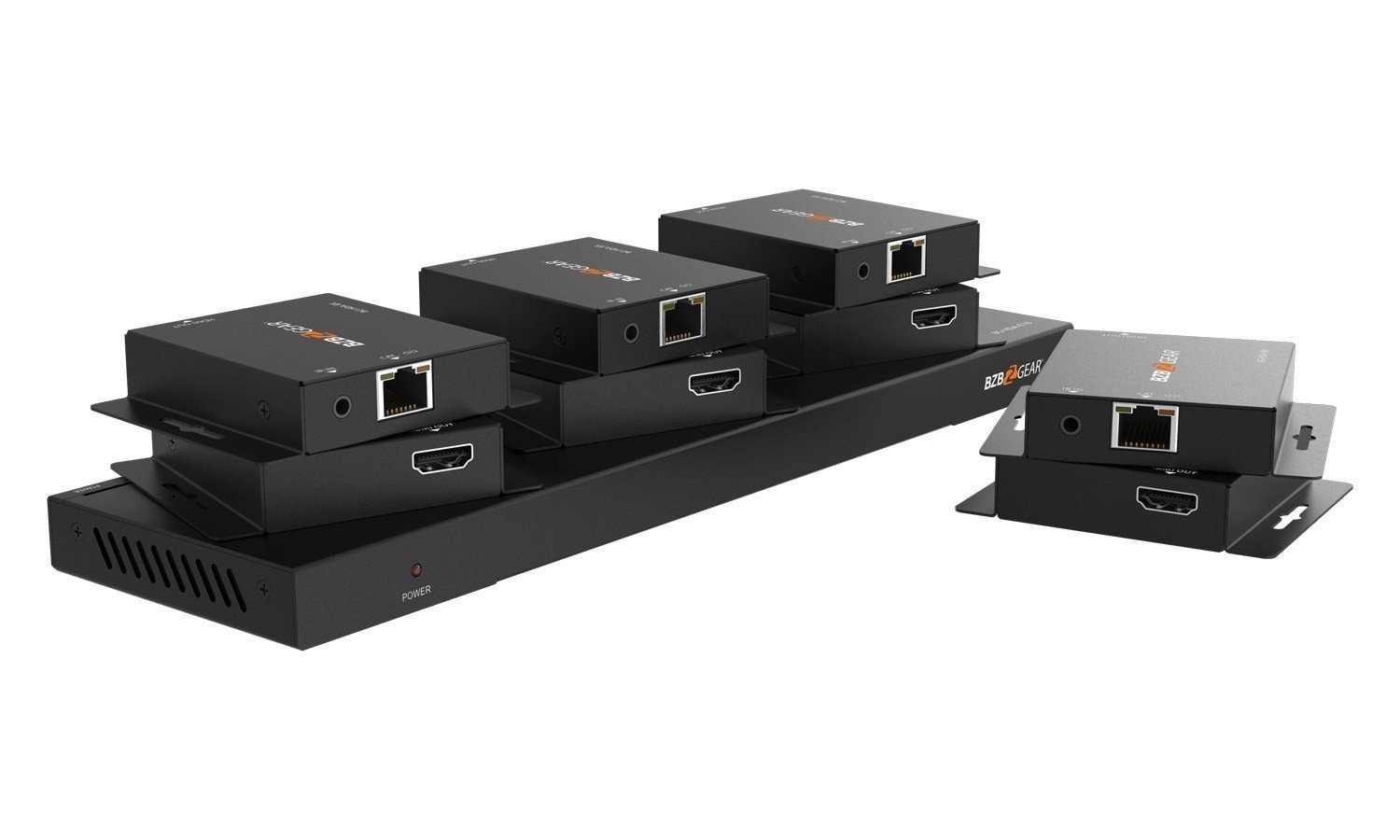

Complete AV over IP System Setup - BZBGEAR IPGEAR-4K + Luxul Gigabit Managed Switch

×

×

×

×

×

×

×

×

×

×

×

×

×

×
