Compact high-quality USB Conferencing Microphone

ProGear
Overview Specifications Interfaces Resources Package contents



Overview

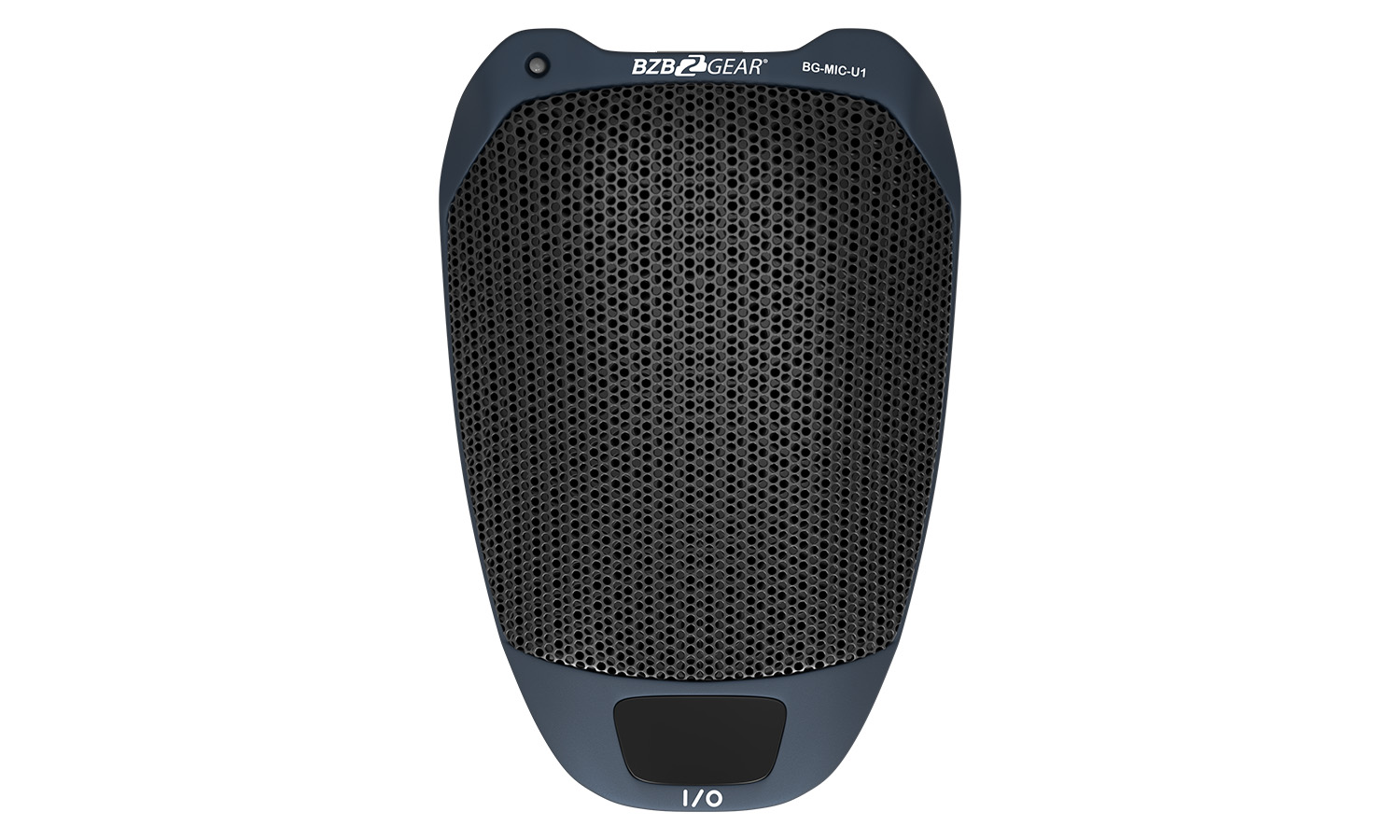

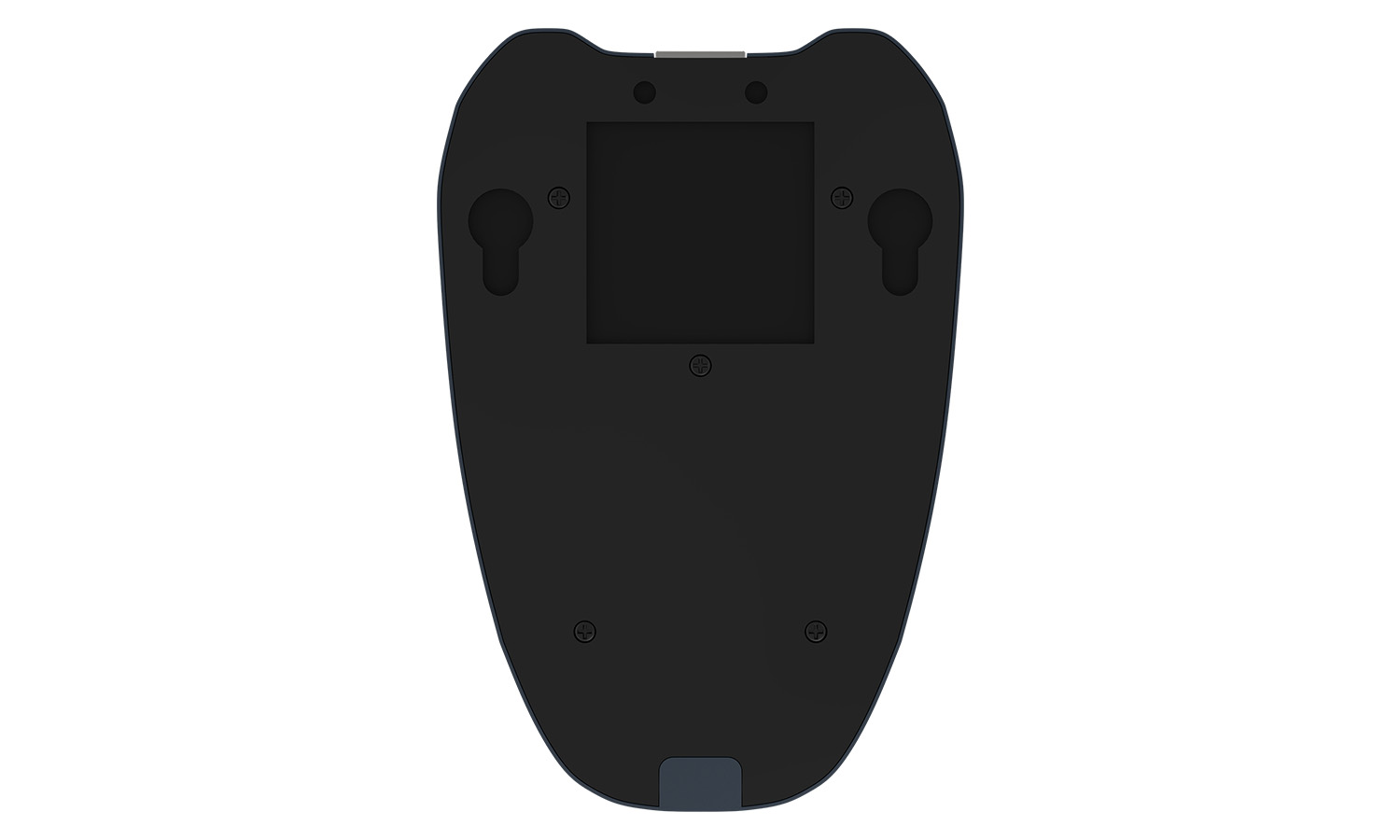

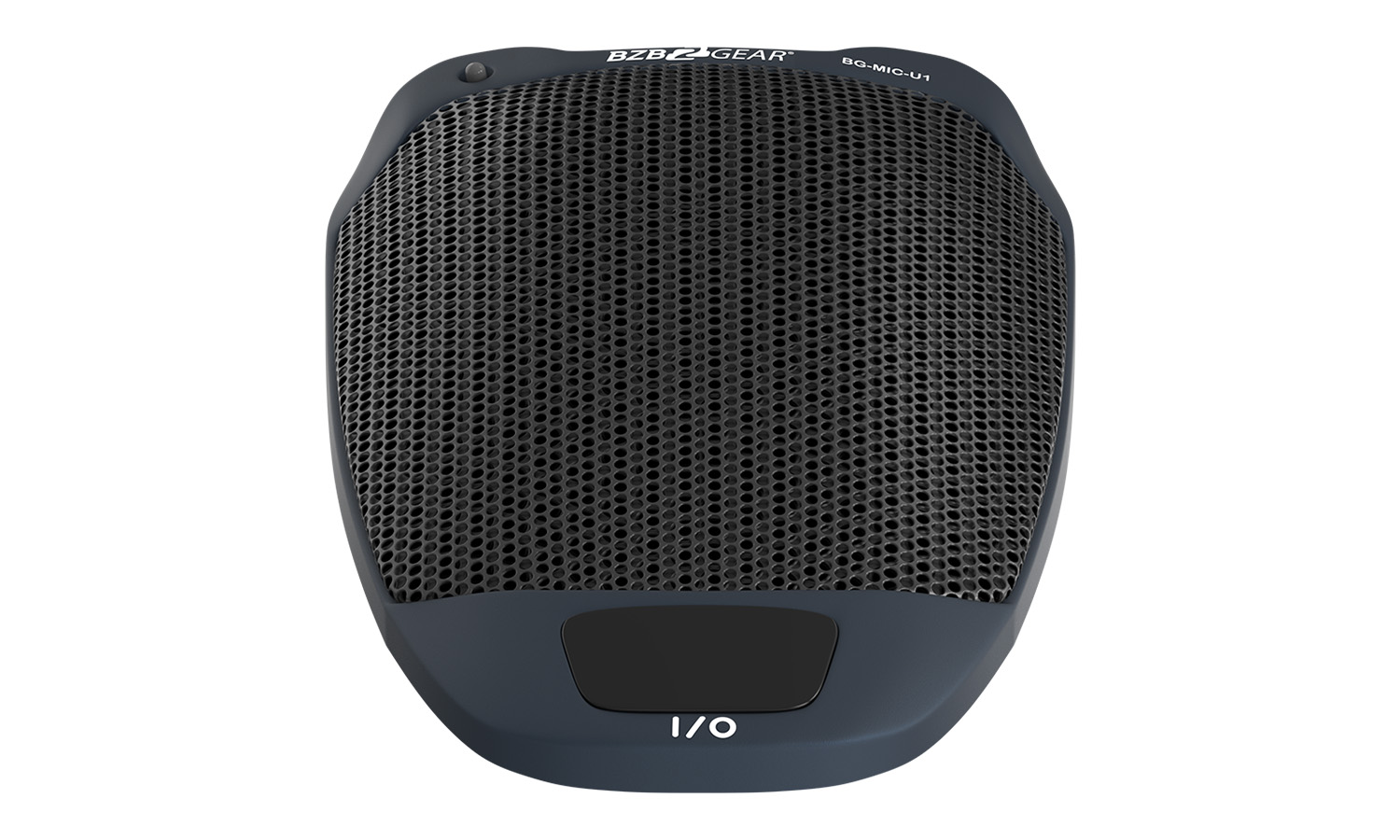

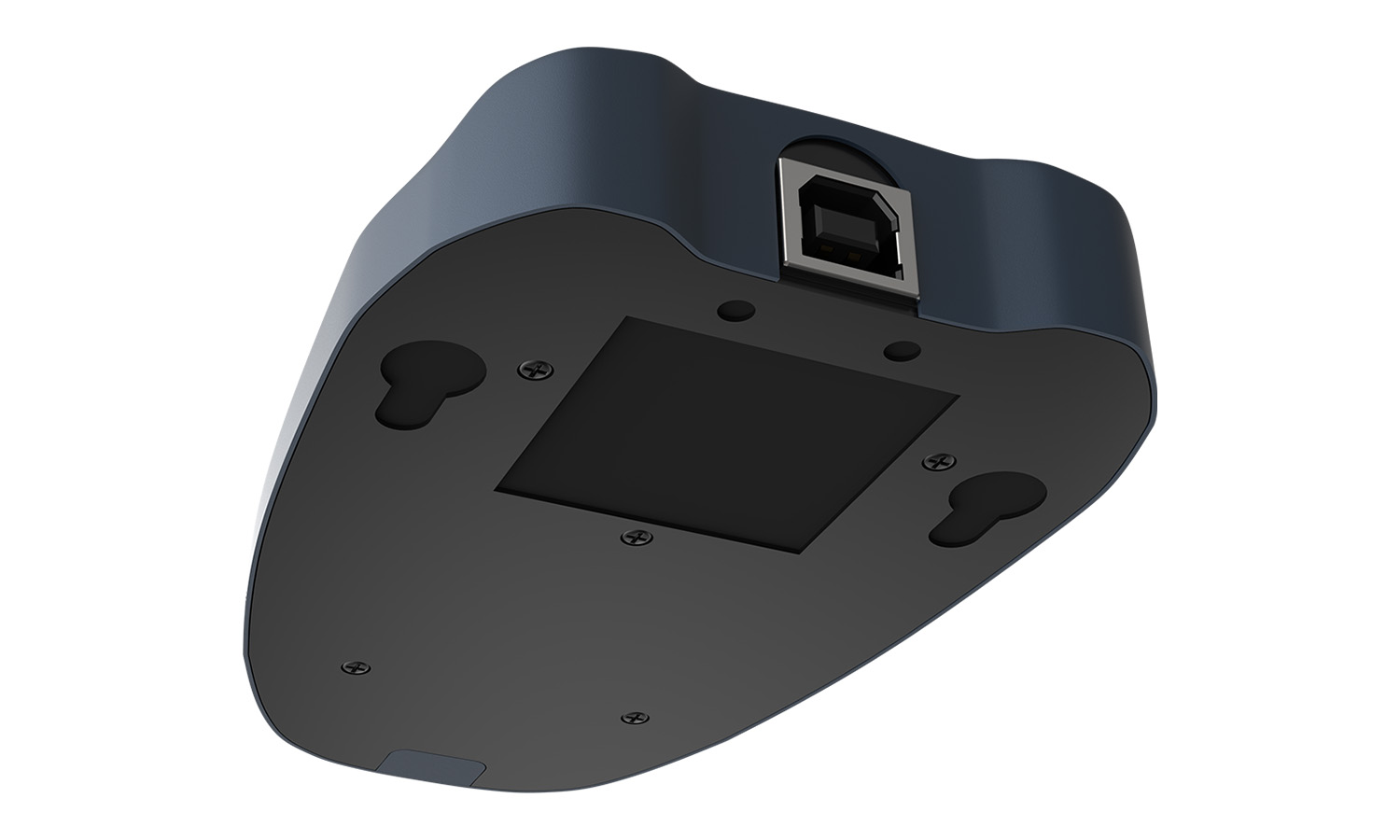

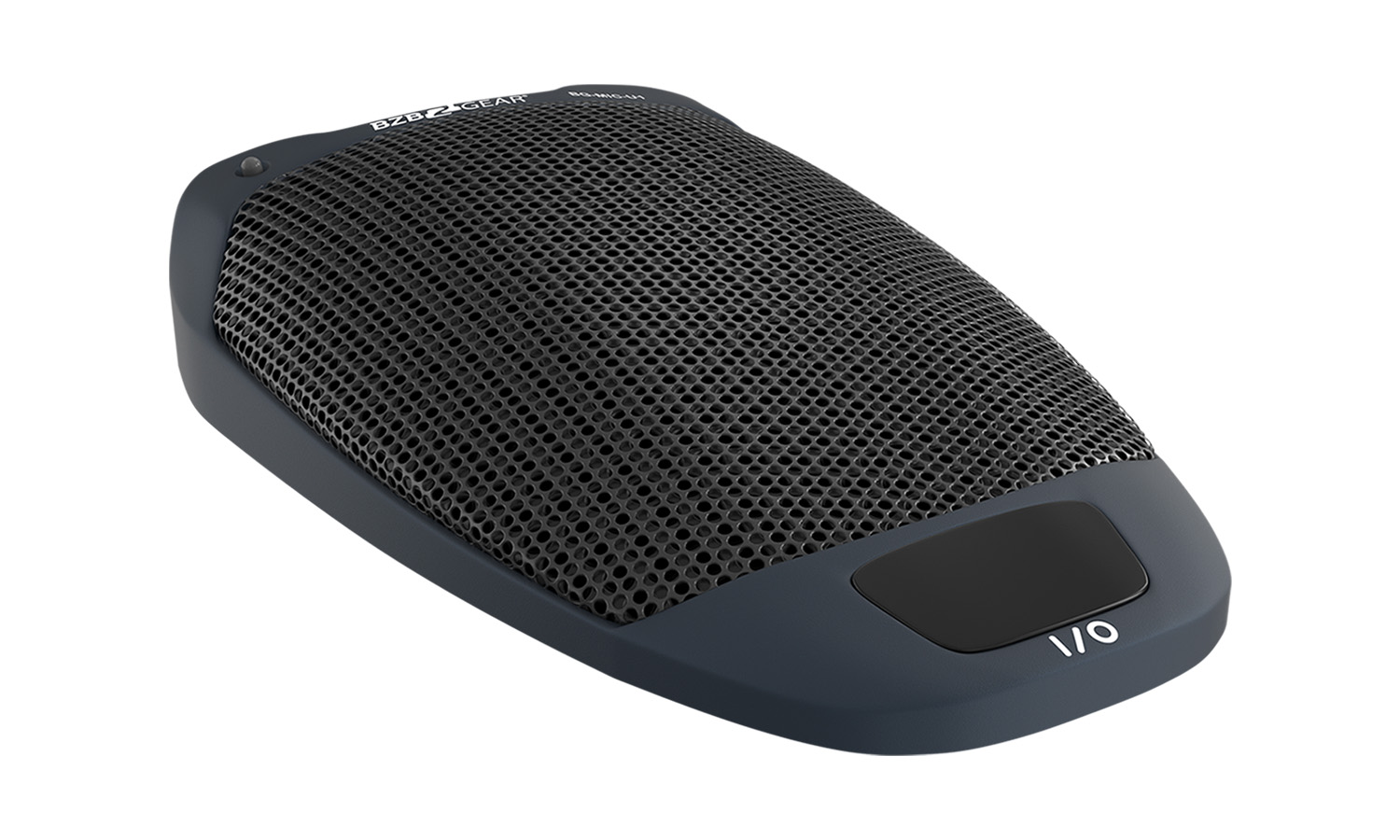

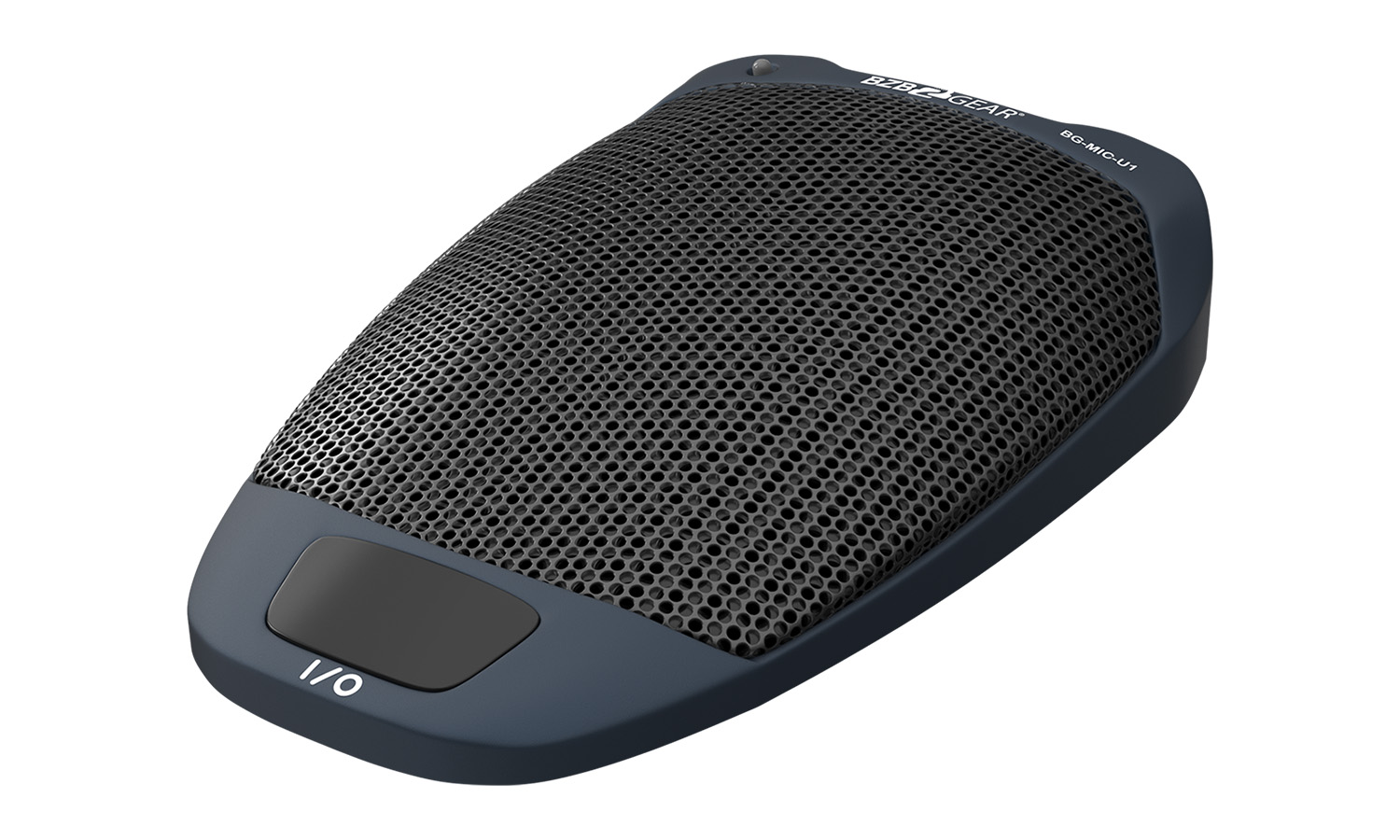

The BG-MIC-U1 is a USB conferencing microphone. It features a dual color LED indicator, a push ON/OFF switch and an electret cardioid condenser capsule. The internal shock mount minimizes mechanical noise for crystal-clear sound reproduction. Integrated mounting holes allow for wall or ceiling placement for a clean installation. Simply connect with a USB type B to USB type A cable for plug and play operation.

Features

  • The boundary microphone is designed for conference, house of worship, and theater applications
  • Internal shock mount minimizes mechanical noise
  • The BG-MIC-U1 features dual color LED indicator, membrane ON / OFF switch and back electric cardioid condenser capsule

Videos

BZBGEAR Bluetooth and USB Speakerphones for Any Business Conference
BZBGEAR Bluetooth and USB Speakerphones for Any Business Conference

Tech Specifications

Capsule Type Electret Condenser
USB Connector B type, Digital audio interface Indicator
Indicator USB (Mic OFF) - Green
Mic ON - Red
Switch Push control: ON/OFF
Sensitivity (at 1000Hz) -53 ± 3 dB * (2.23mV) 0dB = 1V / μbar
Max. SPL For 1% T.H.D. 125dB
Frequency Response 30~12,000 Hz
Directional Pattern Half-Cardioid
Power consumption 0.4W
Dimension 2.9"(W) x 0.94"(H) x 4.3"(L) [73mm(W) x 24mm(H) x 110mm(L)]
Weight 0.17 lbs [75g]
DAC 32, 44.1, 48KHz
ADC 8, 11.025, 16, 22.05, 32, 44.1, 48KHz
Bit Depth 16-Bit
USB Type USB 1.1 / USB 2.0 / USB 3.0

Resources

Documents
Download Manual
Download Brochure

PACKAGE CONTENTS

  • 1x BG-MIC-U1 Microphone
  • 1x USB Type B Cable (host to device)
  • 1x User Manual
  • 1х Quick Start Guide

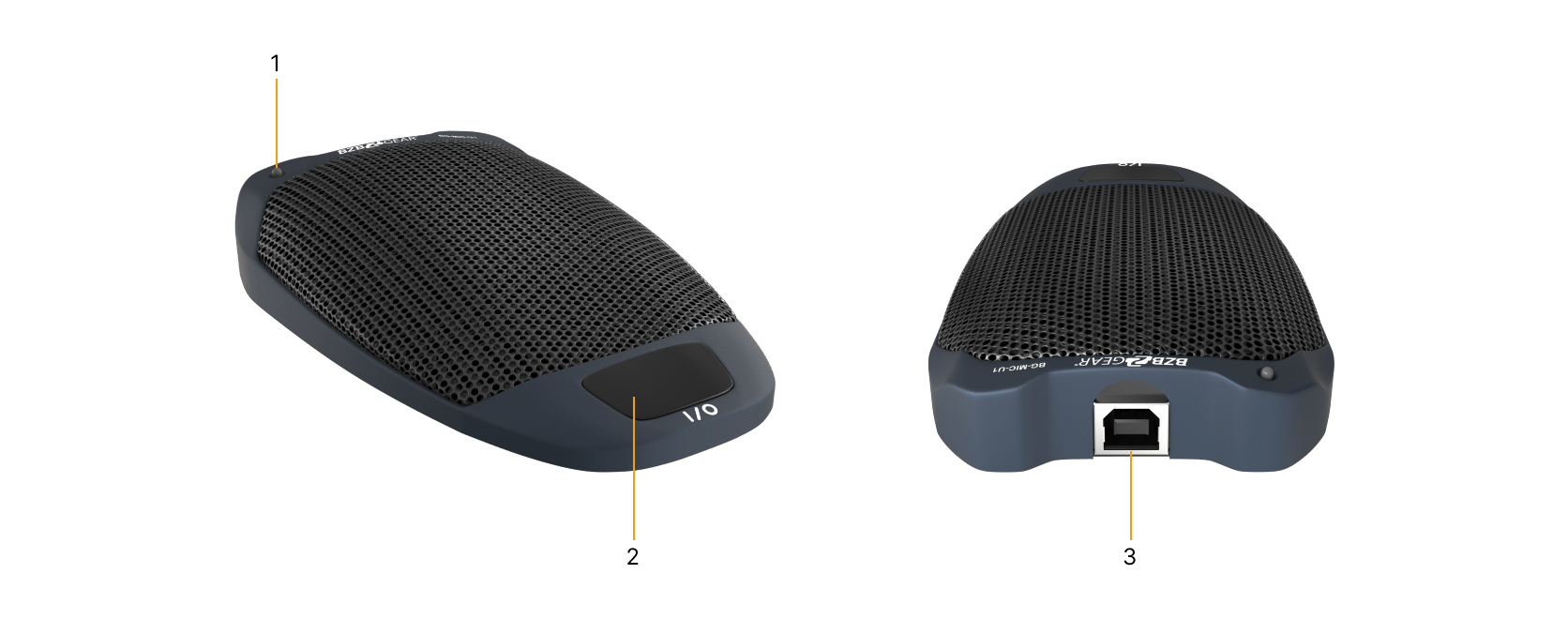

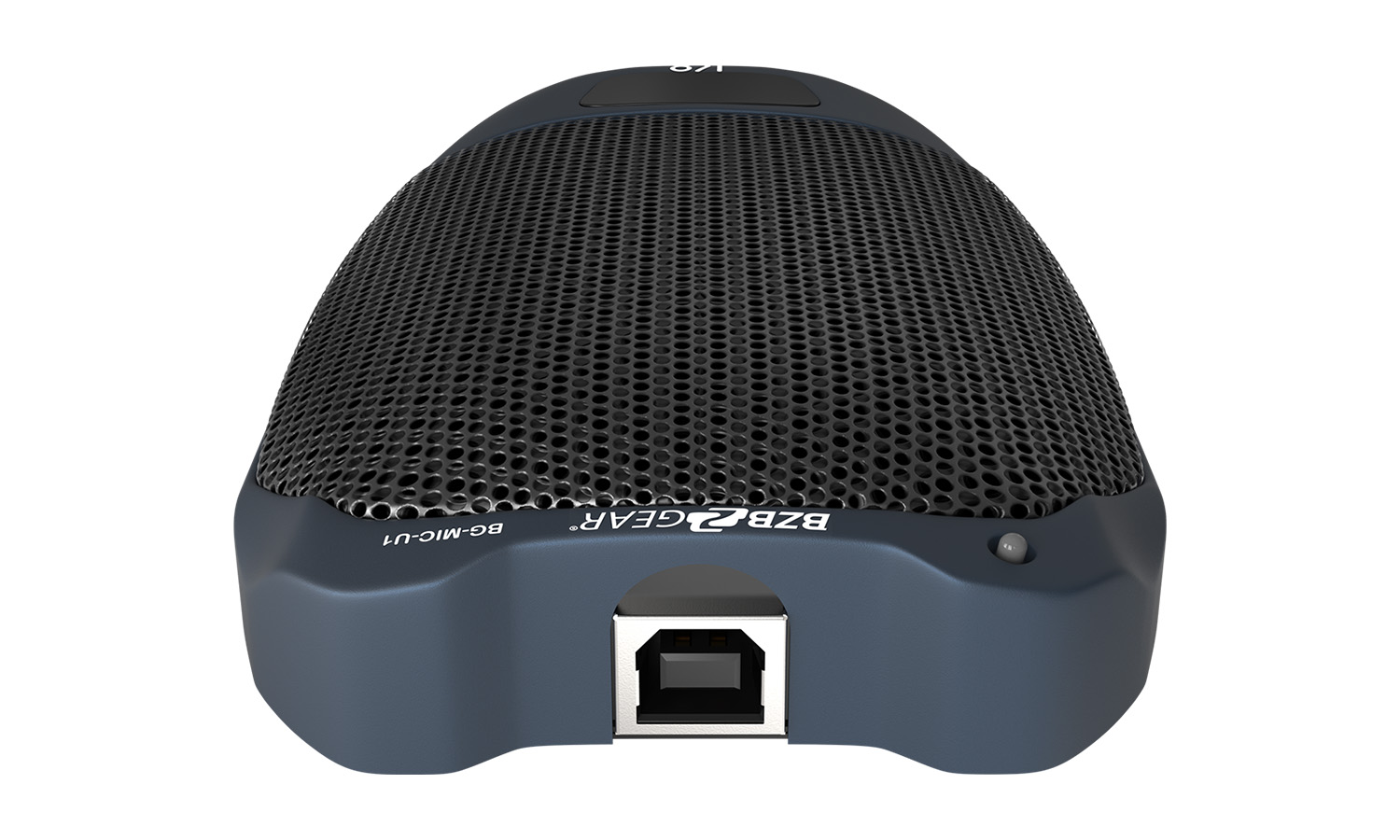

Interfaces

  1. Power On/Off LED Indicator - Illuminates when mic is powered on.
  2. On/Off Switch.

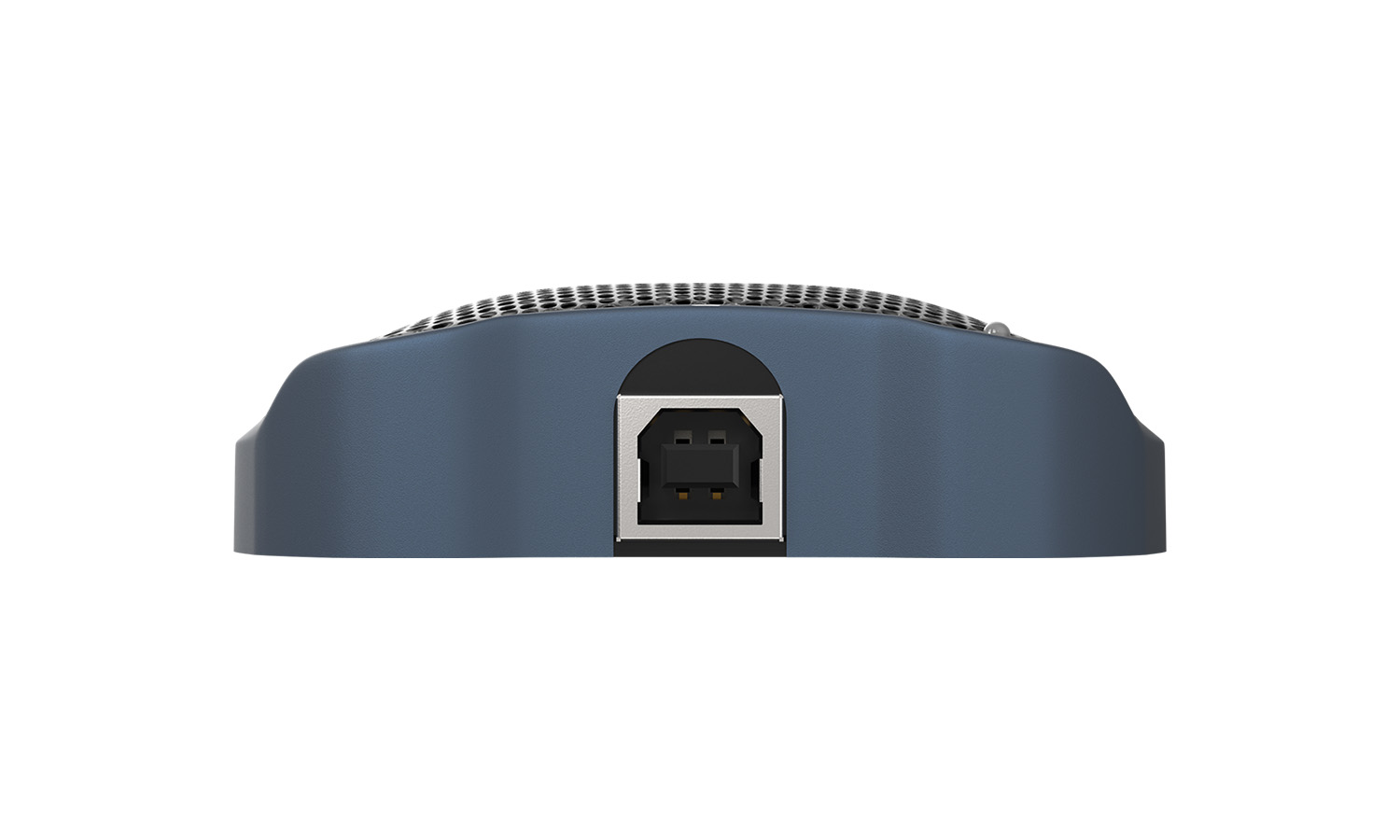

  3. USB Type-B Connector (audio and power).
