BZ-UHD-66M70-ARC
6X6 4K-Seamless HDMI/HDBaseT Matrix Switcher Streaming at 18Gbps Equipped with HDMI 2.0b and ARC up to 70M
6X6 4K-Seamless HDMI/HDBaseT Matrix Switcher Streaming at 18Gbps Equipped with HDMI 2.0b and ARC up to 70M
6X6 4K-Seamless HDMI/HDBaseT Matrix Switcher Streaming at 18Gbps Equipped with HDMI 2.0b and ARC up to 70M
SKU: BZ-UHD-66M70-ARC
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
POWER OVER CABLE
Power over Cat5e/6/7 refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over Cat5e/6/7 refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
AUDIO RETURN CHANNEL (ARC)
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.

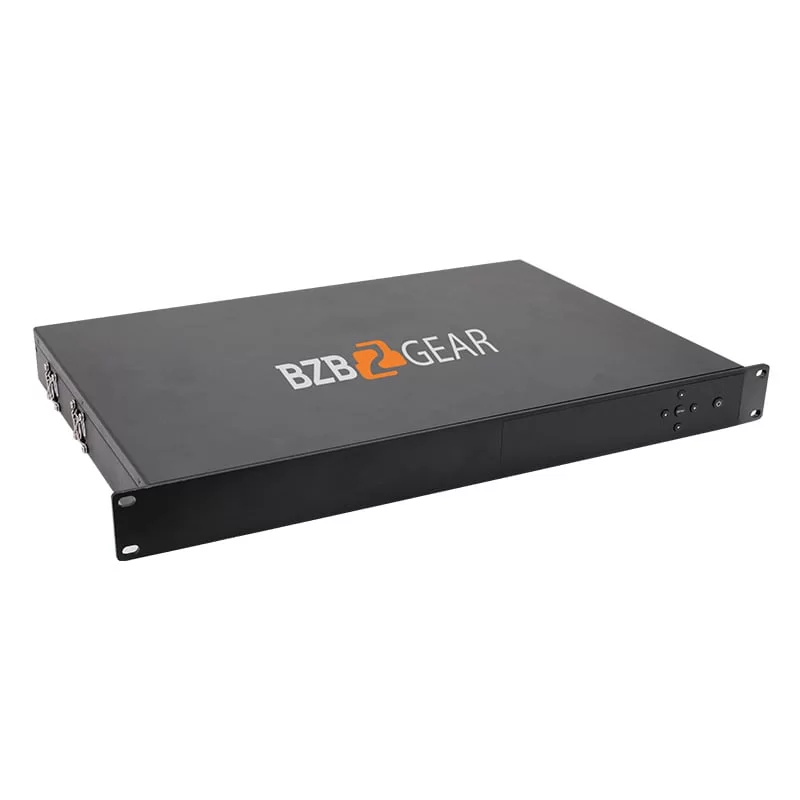

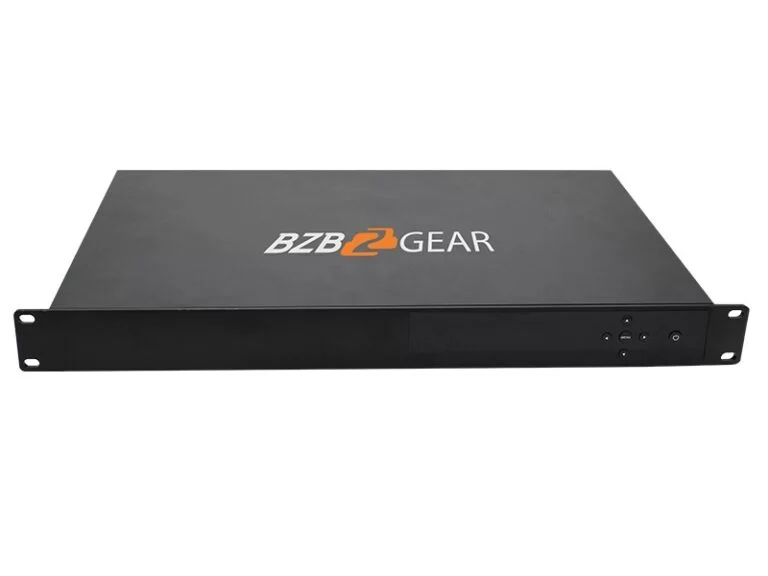

The BZ-UHD-66M70-ARC HDMI/HDBaseT Switcher distributes up to (6) Source HDMI inputs to (6) Display outputs for the distribution of video resolutions up to [email protected] (4:4:4) with HDCP 2.2 compatibility and HDMI 2.0 ports. It is capable of routing multiple digital audio formats to (4) HDBaseT outputs and two (2) independent HDMI 2.0 outputs from six of the HDMI sources. This Matrix Switcher transmits signals via one CAT5e/6/7 cable up to 230ft/70m. The individual HDMI outputs permit HDMI cables to extend up to 33ft/10m in distance. The unit features (12) independent inputs and (18) digital audio outputs with matrix with delay or volume tuning. The switcher enables High-Resolution digital audio formats like LPCM 7.1CH, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, and DTS-HD Master Audio and 3D video content pass-thru. Methods of control include front panel button, RS-232, IR, Telnet as well as Web GUI.
MSRP $3999.00*
*Pricing is for US only. International pricing will vary.Features
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant.
- Up to [email protected] (4:4:4) on all HDMI and HDBaseT ports.
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio).
- Digital and analog audio de-embedding from any one of 4 outputs (configurable).
- HDR and smart EDID management supported.
- 24V power over Cat5e/6/7 on all HDBaseT ports.
- Control is via on-panel Button, IR, RS-232, LAN and Web UI.
- Transmission distance over CAT6 cable:
- 70 meters: 1080P @60Hz36bit
- 40 meters: 1080P @[email protected], [email protected]@24bit, [email protected]/60Hz (YUV420), [email protected]/60Hz (YUV444)
Specifications
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
POWER OVER CABLE
Power over Cat5e/6/7 refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over Cat5e/6/7 refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
AUDIO RETURN CHANNEL (ARC)
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | Up to 18 Gbps |
| Video Resolutions | up to [email protected]/60Hz(YUV4:4:4),[email protected],[email protected], and 1080P [email protected] |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Audio Formats (Optical/Coaxial In) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+ |
| Audio Formats (Analog/Coaxial Out | LPCM 2CH up to 192KHz sample rate |
| L/R Audio Formats | Analog Stereo 2CH |
| Infrared Frequency | 20KHz - 60KHz |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Inputs | 6x HDMI Type A [19-pin female] 2x L/R Audio In [3.5mm Stereo Mini-jack] 2x Optical Audio In [S/PDIF] 2x Coaxial Audio In [S/PDIF] 8x IR In [3.5mm Stereo Mini-jack] 4x RS-232 [3pin Phoenix Jack] 1x TCP/IP [RJ45] |
| Outputs | 2x HDMI Type A [19-pin female] 4x HDBaseT Out [RJ45] 6x L/R Audio Out [3.5mm Stereo Mini-jack] 6x S/PDIF Out 7x IR Out [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 483 mm [W] x 303 mm [D] x 44.5 mm [H] |
| Weight | 2110g |
| Power Supply | Input: AC100 - 240V 50/60Hz |
| Power Consumption | 60W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C' |
| Relative Humidity | 20 - 90% RH (no condensation) |
Resources
Package Contents
① 1xHDMI 18Gbps over HDBaseT Matrix
② 3xHDBaseT receivers
③ 2xMounting Ears (Matrix)
④ 6xMounting Ears (Receiver)
⑤ 4xPhoenix terminals (male)
⑥ 8xWideband IR Receiver cables
⑦ 8xWideband IR Blaster cables
⑧ 1x24V/2.7A Locking Power Adaptor
⑨ 1xIR Remote control
⑩ 1x User Manual
② 3xHDBaseT receivers
③ 2xMounting Ears (Matrix)
④ 6xMounting Ears (Receiver)
⑤ 4xPhoenix terminals (male)
⑥ 8xWideband IR Receiver cables
⑦ 8xWideband IR Blaster cables
⑧ 1x24V/2.7A Locking Power Adaptor
⑨ 1xIR Remote control
⑩ 1x User Manual
Diagram
Warranty: 2 years
Buy this 6X6 4K-Seamless HDMI/HDBaseT Matrix Switcher Streaming at 18Gbps Equipped with HDMI 2.0b and ARC up to 70M
MSRP $3999.00*
*Pricing is for US only. International pricing will vary.Audio Inputs:
(6) x Through HDMI Input:
(6) x External Audio Inputs:
- (2) x L/R Audio In [3.5mm Stereo Mini jack]
- (2) x Optical Audio In [S/PDIF]
- (2) x Coaxial Audio In [S/PDIF]
(6) x ARC Audio in (Coaxial) Through TV ARC Port:
Audio Outputs:
(6) x HDMI+HDBaseT out:
- (2) HDMI
- (4) HDBaseT
(6) x L/R Audio Out [3.5mm Stereo Mini jack]:
