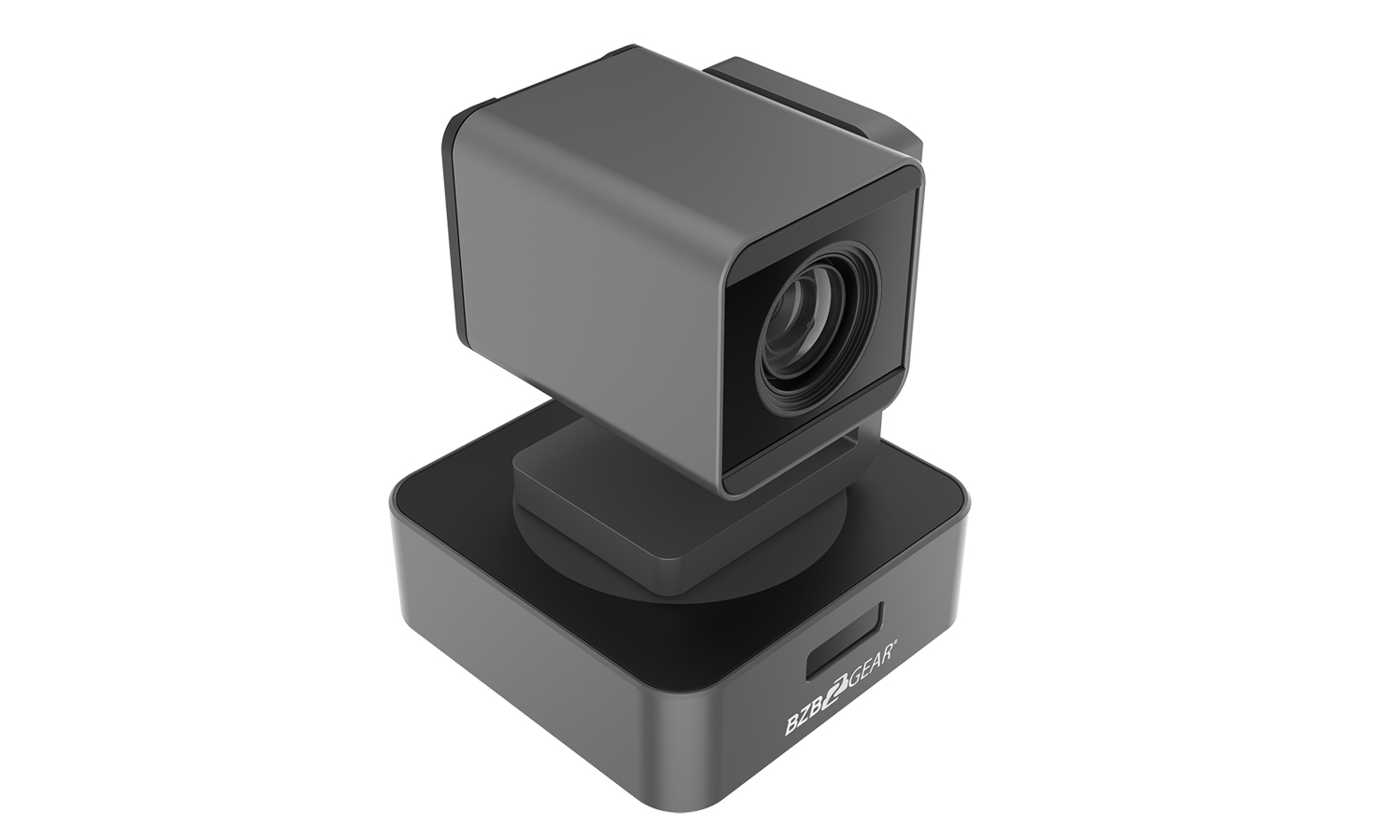

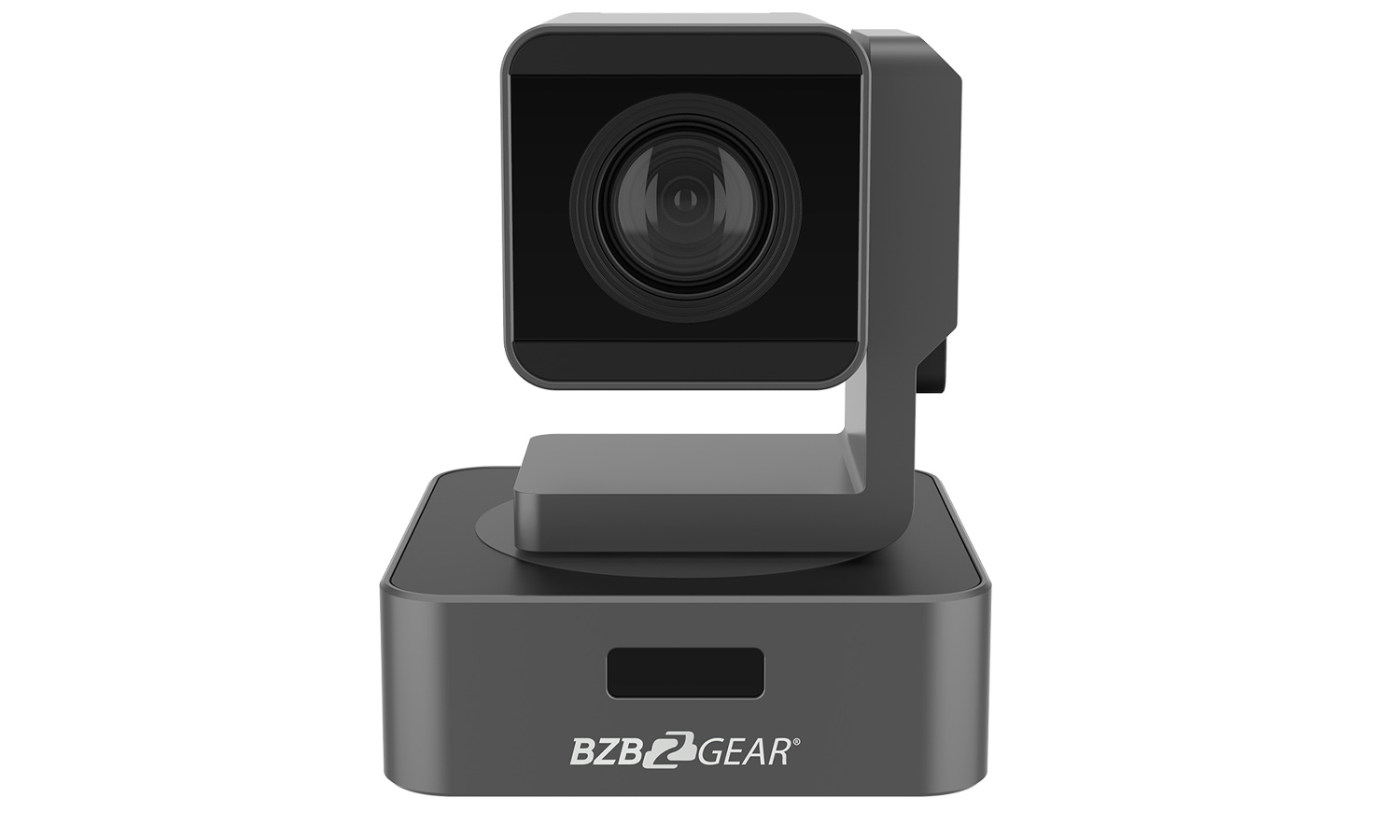

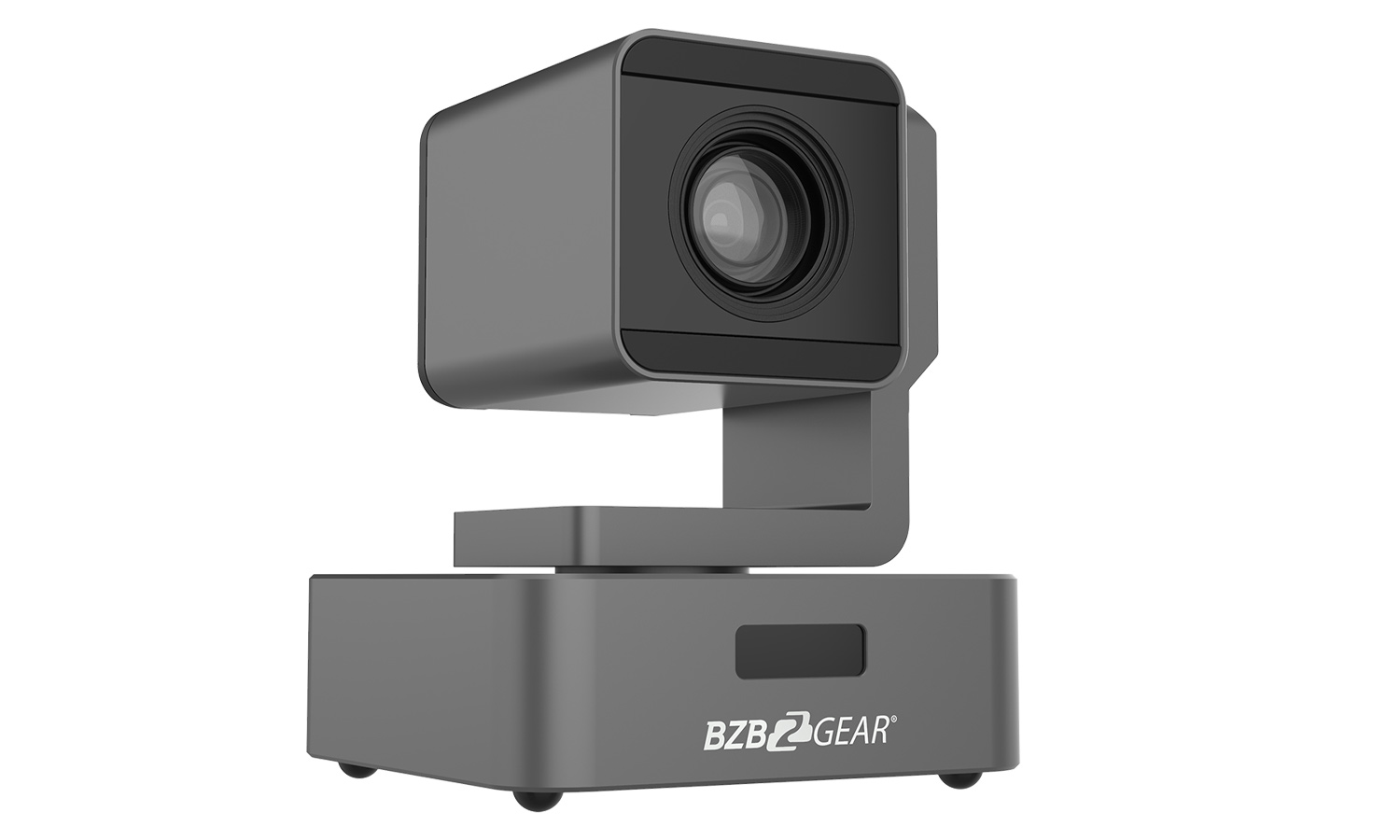

PTZ Full HD 1080P 10X Zoom HDMI/SDI/USB 2.0 Live Streaming Camera

MSRP: $899.00

MSRP $899

Out of stock


The BG-VPTZ-HSU10X is a broadcast-quality PTZ camera with advanced image processing technology and a price that won't stretch your budget. It features a full HD CMOS Sensor, supports multiple video output formats, a max resolution of 1080P60, 2.38 megapixels, accurate color reproduction, clear imaging and simultaneous USB 2.0\3G-SDI\HDMI\IP Streaming video outputs.

H.264/H.265 decoding provides excellent image quality without excessive bandwidth demands. An integrated 3.5MM Audio input makes this camera ideal for live streaming and recording.

Designed for flexibility, reliability, and performance, this PTZ camera is capable of 10X optical zoom and has multiple video output connections including Type-A USB 2.0, LAN, HDMI, and 3G-SDI. Native support makes it easy to broadcast live or recorded streaming via popular platforms like Skype, Zoom, Google Classroom, YouTube and Facebook.

The unit can be controlled via the included IR remote with programmable presets, via the WebGUI using your internet browser, or with a joystick controller using IP or serial control.

Our advanced ISP processing algorithms ensure fast, accurate, and stable auto-focusing.

When you combine the long list of features, outstanding image quality and competitive price, it's no surprise that this is one of our most popular cameras. This is the perfect camera for any indoor environment from Houses of Worship, Schools, and Venues to Offices and Conference Rooms.

*This camera USB 2.0 port is only compatable with Windows 7/8/10. It is not compatible with MacOS.

Broadcast Quality Video
Fluid motion, clear image, and accurate color
High-Stability Chassis design
All aluminum chassis eliminates vibrations for a clear and stable image
Simultaneous video output
3G-SDI / HDMI / USB2.0 / IP Streaming
Compact Design
Small footprint for more flexible placement
3.5mm Audio Input
Supports G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
Flexible installation options
Supports Ceiling / Wall / Tripod / Desk Mount Installations
  • Control Protocols: Built-in VISCA, PELCO P/D, ONVIF
  • Simultaneous multi-interface video output: 3G-SDI / HDMI / USB2.0 (this output only works with cables 10ft or shorter) / IP Streaming
  • Remote Control: Support RS485 / RS232 / LAN (VISCA Over IP) & IR Remote Control.
  • All-Aluminum High-Stability Chassis design: Ultra-quiet pan/tilt design, horizontal ±178 degrees, vertical -30°~+90° rotation. Imported high-precision Stepper motor drive, accuracy 0.01°
  • Supports Audio Input: Built-in 3.5mm Jack audio input interface & G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding (supports line-in audio function through IP stream only)
  • IP Streaming: TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, SNMP, FTP(Optional)
  • Smart Menu & WebGUI Interface: Easy to enter Menu for preview and setting changes
  • 10X Optical Zoom with wide horizontal of view: Advanced video image processing & full HD 1/2.8" CMOS Sensor, Max resolution up to [email protected]
  • 2D/3D Noise Reduction function
  • Broadcast-Grade video output format: Output formats include 1080P60/59.94/50/30/29.97/25, 1080I60/59.94/50fps/30/25, 720P/60/50
  • Flexible installation options: The image can support Mirror & Flip, supports Ceiling / Wall / Tripod / Desk Mount Installations.

Camera Specs
Image Sensor 1/2.7″ high quality HD CMOS sensor
Frame Rate 1080P60/59.94/50/30/29.97/25
720P60/50/30/25, 480I60, 576I50
Zoom 10X Optical
Lens f=5.1mm ~ 51.0mm, F=1.8(W)-3.5(T)
Effective Pixels 2.38 Megapixel
View Angle 72° (FOV)
Min Illumination 0.5lux (F 1.8, AGG ON)
Shutter Speed 1 to 1/10000s
  Vertical Flip & Mirror Supported
Input/Output Interface
Video Output HDMI, 3G-SDI, USB 2.0, RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input 1-ch 3.5mm audio interface, Line In
Communication interface 1X RS232 IN, 1X RS232 Out,  1X RJ45, RS485
Power On JEITA type (DC IN 12V)
Pan Rotation Angle ±178°, Tilt Rotation Angle -30°~ +90°
Pan 0.1~180°/s; Tilt: 0.1~120°/s
Presets Max 255 Presets ( Remote 9 Presets)
Network Protocol VISCA, PELCO P/D, ONVIF Protocol
IPC Video Features
Video standard H.265/H.264/MJPEG, H.264 HP, H.264 SVC, H.263 +, H.263, H.261 Dual video streams H.239BFCP content exchange
Video Stream Main stream, Sub stream
Main stream resolution 1920x1080, 1280x720
Sub stream resolution 720x480, 320x240
Bit Rate 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate Type Variable rate, Fixed rate
Maximum Frame 60fps
Audio encode standard G.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio stream rate 96K, 128K, 256K
Support protocols TCP/IP, HTTP, DDNS, RTSP, RTMP, PPPoE, SMTP, UPnP, SNMP, FTP (Optional)
  High Efficiency Lost Packet Recover
  Wake-on-LAN (WOL) support
Dimensions (L*W*H) 120mmx120mmx145mm
Gross Weight 1.6kg
Operating Temperature -10°C ~ 50°C
Max Consumption 12W [email protected]

Compatible with:

Ideal fit for:
- Mid-sized Conference Rooms
- Remote Education
- Studios

Who is buying it?
- Small Businesses
- Live Streamers
- Schools



Crystal clear image with resolutions up to 1080p @ 60 fps.


1080p @ 60 fps for distances up to 300 ft.


USB 2.0 plug & play connectivity for any conferencing service like Skype or Zoom.


IP Control and streaming interface.

Audio In

Stereo audio input for connecting mics and embedding local audio into video stream.

Control I/O

8 pin Mini-DIN input for RS-232 control and output for cascadable connections.
Download our IP Control App.
Mounting Options:


Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.

Package Contents
① 1x BG-VPTZ-HSU10X Camera
② 1x IR Remote Controller
③ 1x RS-232 to DB 9pin cable
④ 1x 12V/ 2.0 A DC Power Adapter
⑤ 1x User Manual
