2x4 USB 3.2 Gen 1 Peripheral Sharing Switcher with 5Gbps Data Transfer/Auto Switching and RS-232 Control
and engineering support
The BG-USW-24 is a professional USB 3.2 Gen1 peripheral sharing switch that allows two host computers to share up to four USB devices without reconnecting cables. With support for transfer speeds up to 5 Gbps, it is ideal for high-bandwidth peripherals, including USB cameras, external storage devices, audio interfaces, and docking stations. With backward compatibility for USB 2.0 and USB 1.1 devices, the BG-USW-24 integrates easily into virtually any USB-based workflow.
Designed for professional AV, broadcast, IT, and control room environments, the BG-USW-24 offers multiple switching methods including front-panel buttons, RS-232 control, and intelligent automatic host switching. Dedicated power for each USB port, over-current protection, power-loss memory, and true plug-and-play operation provide dependable performance in mission-critical applications.
Technical Description
The BG-USW-24 delivers reliable USB peripheral sharing between two computers while maintaining full USB 3.2 Gen1 performance. Four USB device ports can be dynamically assigned to either connected host, eliminating the need to manually disconnect and reconnect peripherals when switching between systems. With support for data rates up to 5Gbps, the switch is capable of handling demanding USB devices such as PTZ cameras, video capture hardware, USB docking stations, SSD storage, and other high-performance peripherals.
Built for integration into professional control systems, the BG-USW-24 supports three independent switching methods. Users can manually change hosts using the front-panel button, automate switching through RS-232 serial commands, or enable Auto Switching mode, which automatically transfers USB devices to the most recently active computer. The unit also features power-off memory, preserving both the selected host and Auto Switching configuration after power interruptions or system reboots for uninterrupted operation.
Each USB device port supplies a dedicated 5V/1A power output to ensure stable operation of connected peripherals while integrated over-current protection helps safeguard equipment from electrical faults. LED indicators provide immediate visual confirmation of the active host connection, and driver-free plug-and-play compatibility with Windows, macOS, and Linux simplifies installation. Compact and rack-mountable with the included mounting hardware, the BG-USW-24 is an excellent solution for conference rooms, production studios, KVM applications, and collaborative workspaces.
Features
-
![bi_usb-symbol]()
USB 3.2 Gen1 PerformanceSupports data transfer speeds up to 5Gbps with backward compatibility for USB 2.0 and USB 1.1 devices -
![HDMI Loop Out]()
2x4 USB Peripheral SharingAllows two computers to share up to four USB peripherals without swapping cables -
![Control Options]()
Flexible Switching ControlSwitch hosts using the front-panel button, RS-232 serial commands, or automatic host detection -
![fluent_dual-screen-span-20-regular]()
Automatic Host SwitchingAutomatically assigns shared USB devices to the most recently active computer for seamless workflow transitions -
![img8]()
Reliable Power & ProtectionProvides dedicated 5V/1A power to each USB port with built-in over-current protection for stable peripheral operation -
![fluent_plug-connected-add-20-regular]()
Professional IntegrationSupports Windows, macOS, and Linux with plug-and-play installation and includes mounting hardware for rack or surface installation
- Power-off memory retains host selection and Auto Switching settings after reboot
- Compatible with USB docking stations, HD cameras, external storage devices, audio interfaces, and other high-bandwidth peripherals
- LED indicators display the currently active host computer
- Driver-free operation with no software installation required
- Compact, durable enclosure for professional AV and IT installations
- Includes two USB 3.0 Type-A to Type-B host cables
- Includes locking 12V/2.5A power supply for secure operation
- Mounting ears and hardware included for rack or surface mounting
Tech Specifications
| Technical | |
| USB Compliance | USB 3.2 Gen1, USB 2.0 and USB 1.1 |
| Data Transfer Rates | 5Gbps |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap) & ±4kV (Contact) |
| Connection | |
| HOST Ports | 2x USB HOST [USB 3.0 Type B, 9-pin female] |
| DEVICE Ports | 4x USB DEVICES [USB 3.0 Type A, 9-pin female] |
| Control Port | 1x RS-232 [DB-9] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 4.9in x 3.1in x 1.2in [125mm x 80mm x 30mm] |
| Weight | 0.7lb [319g] |
| Power Supply | DC 12V / 2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Typical: 21.12W, Standby: 0.6W |
| Operating | |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20–90% RH (no-condensing) |
Resources
PACKAGE CONTENTS
- 1 x USB 3.2 Gen1 2x4 Peripheral Sharing Switch
- 2 x USB 3.0 Cables (Type-A to Type-B, 1.8 m)
- 2 x Mounting Ears
- 4 x Machine Screws (KM3 x 4)
- 1 x 12V / 2.5A Multinational Locking Power Supply
- 1 x User Manual

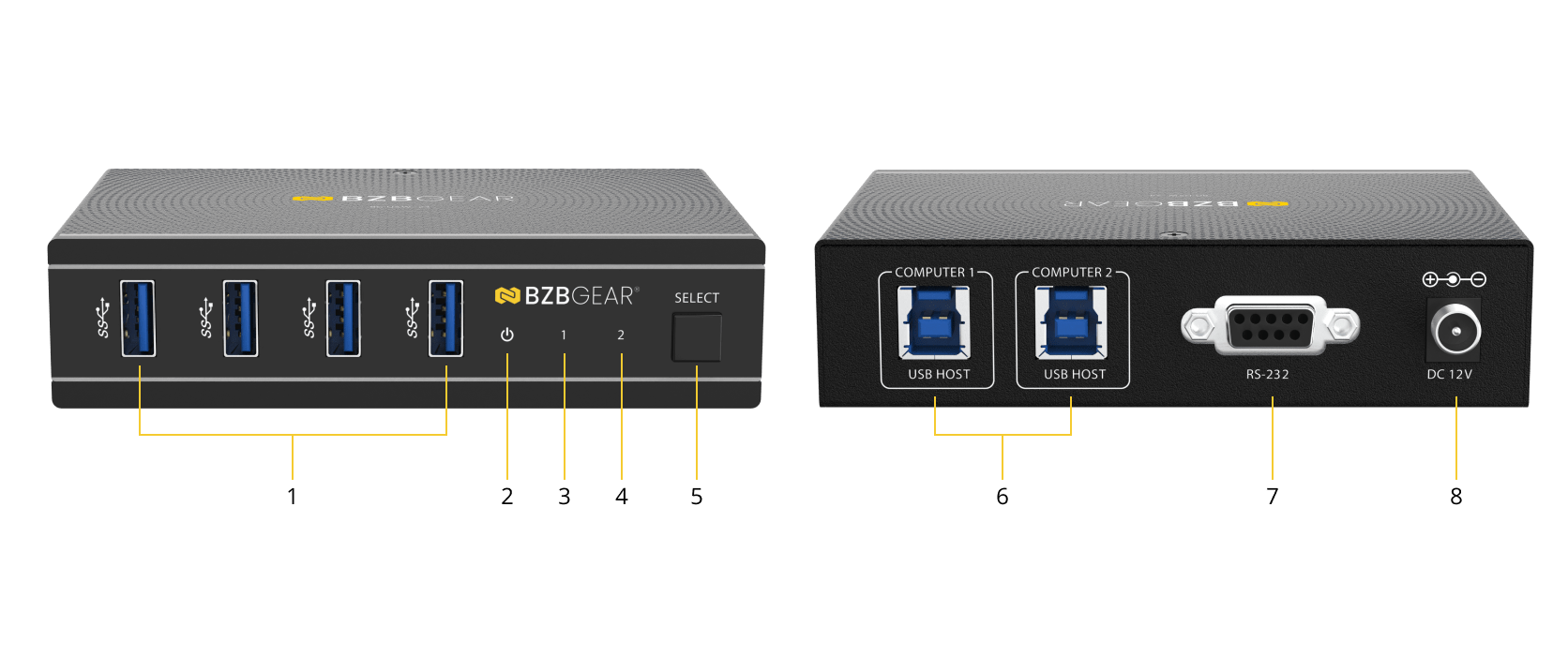

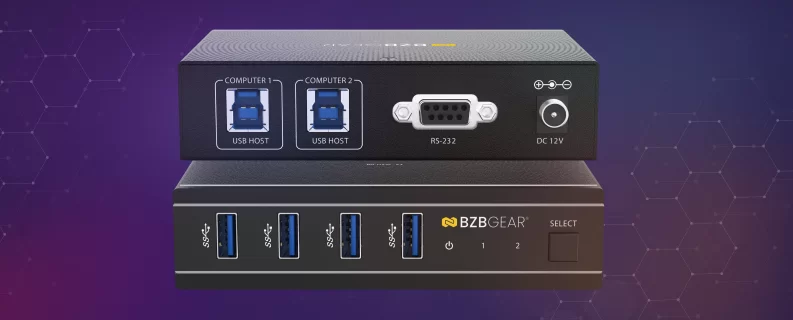

Interfaces

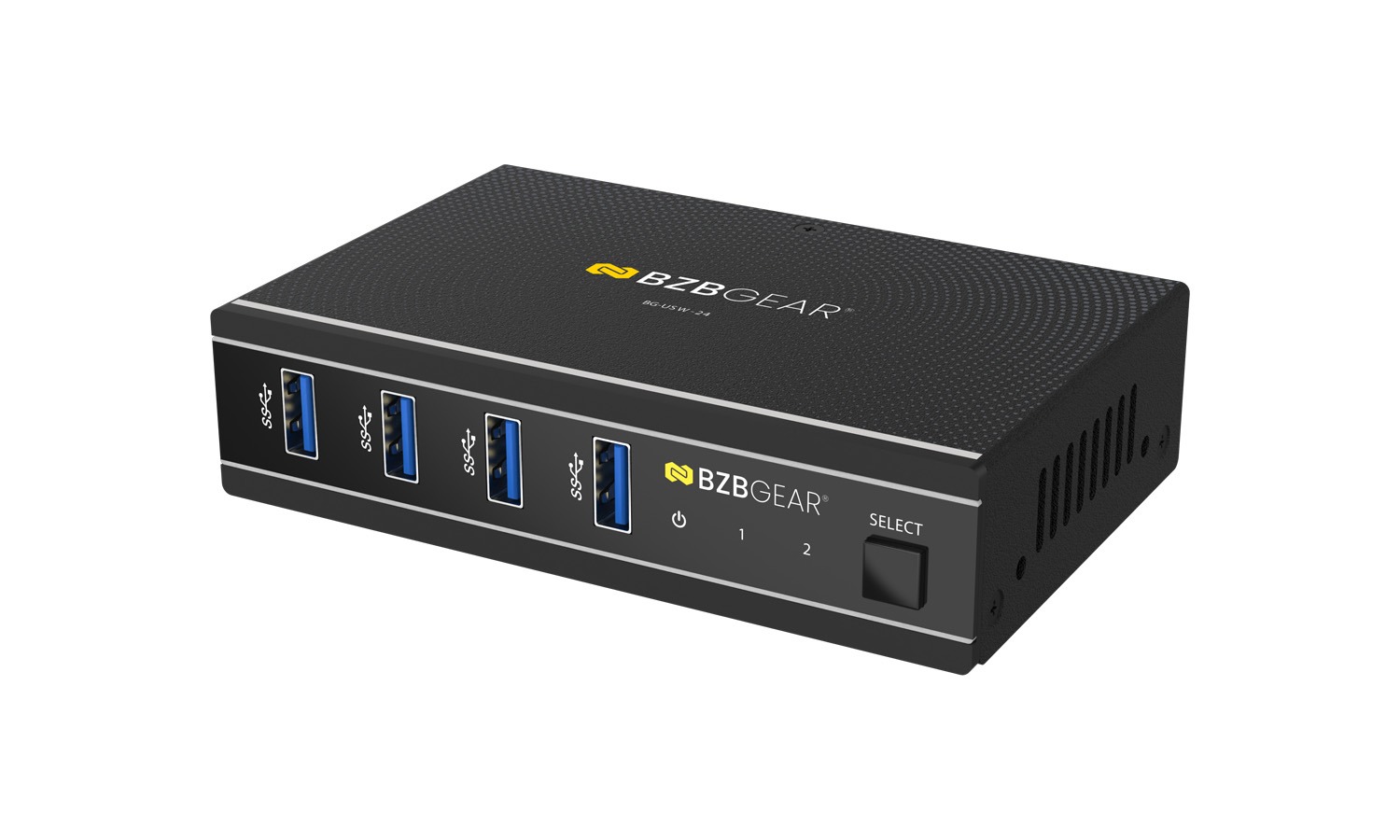

- USB 3.0 Ports: USB 3.2 Gen1 device ports, connect USB flash drives, cameras, keyboards, mice, etc.
- Power LED: Lights red when the product is powered on.
- USB Select LED 1: Lights green when PC 1 is selected as the active host.
- USB Select LED 2: Lights green when PC 2 is selected as the active host.
- SELECT Button: Short press: switch input between PC 1/2. Long press (3 sec): enable/disable auto switching.

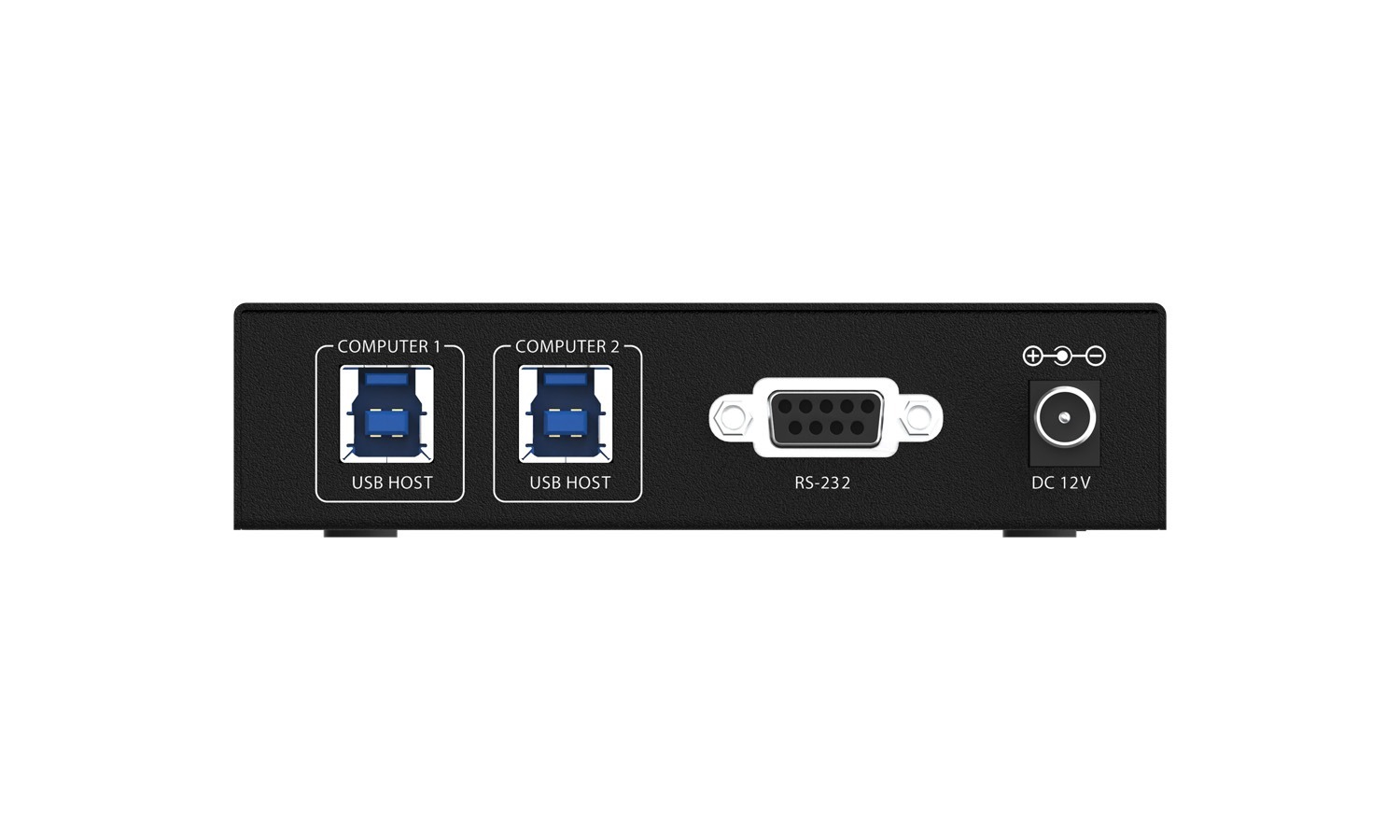

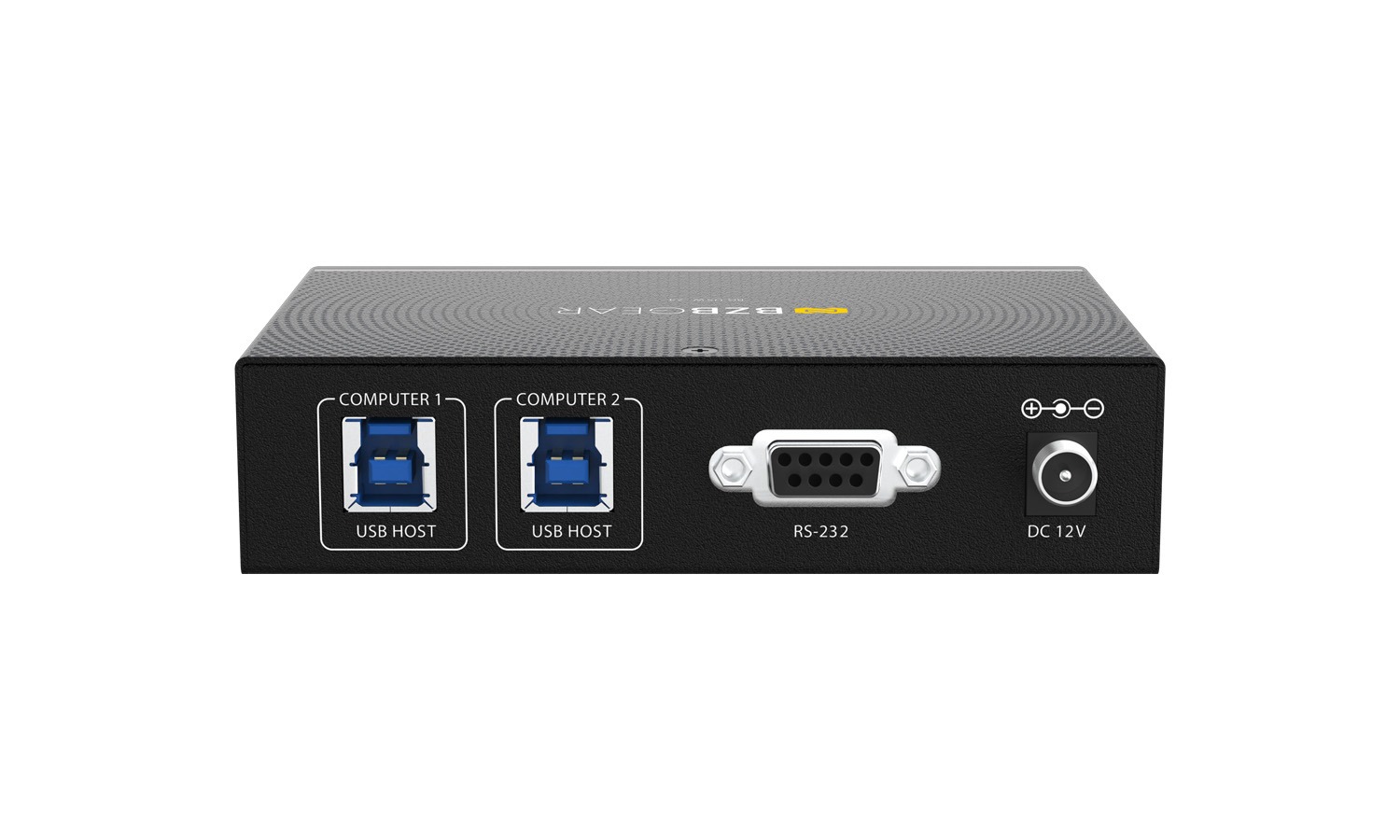

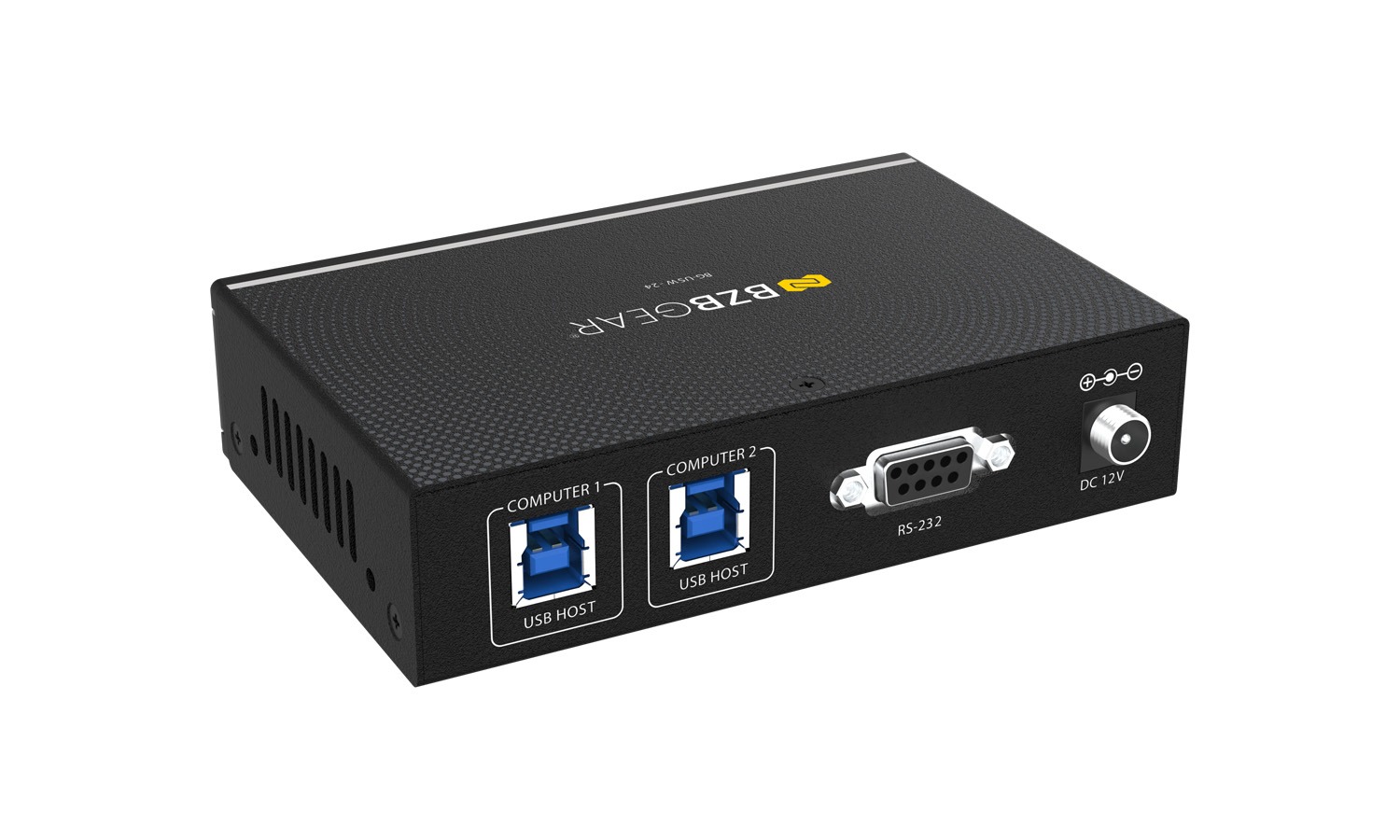

- PC 1/2 USB HOST Ports: Connect to two host computers (PC 1 and PC 2).
- RS-232 Port: Serial control port for RS-232 pass-through or sending ASCII commands from a PC/control system.
- DC 12V: Power input port (DC 12V / 2.5A).
