BG-UHD-KVM41-KIT
4K/UHD 4X1 HDMI2.0/USB 3.0 KVM/Presentation Switcher Kit with 4 Table Grommets
4K/UHD 4X1 HDMI2.0/USB 3.0 KVM/Presentation Switcher Kit with 4 Table Grommets
4K/UHD 4X1 HDMI2.0/USB 3.0 KVM/Presentation Switcher Kit with 4 Table Grommets
SKU: BG-UHD-KVM41-KIT
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
USB DATA TRANSFER
There are multiple USB standards based on release date of new USB technologies. Here is a reference regarding speeds and transfer rates. Make sure your source and destination devices are compatible for proper operation.
There are multiple USB standards based on release date of new USB technologies. Here is a reference regarding speeds and transfer rates. Make sure your source and destination devices are compatible for proper operation.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.

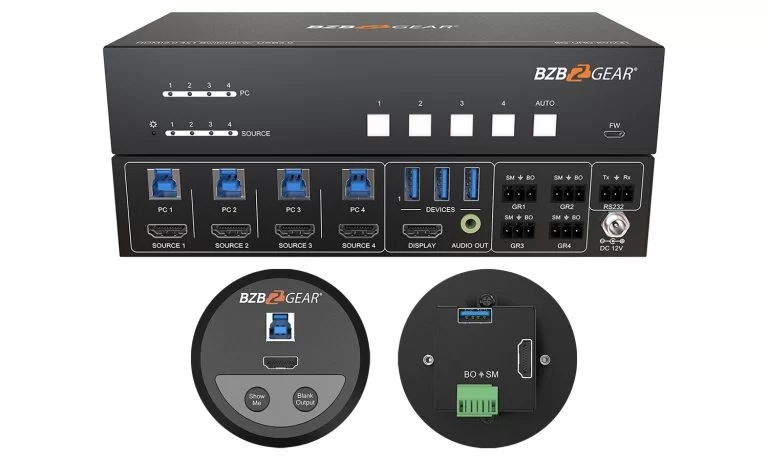

The BG-UHD-KVM41-KIT is 4X1 Switcher includes four BG-SC-GRHU table grommets. The unit features four HDMI video inputs and one HDMI output. It supports HDMI video resolutions up to [email protected] (4:4:4) HDR 10 and Dolby Vision. The KVM switcher provides one stereo audio output for audio de-embedding, and provides four type-B USB ports and three type-A USB ports for KVM management, the four HDMI computers can be controlled via one keyboard, one mouse and one monitor. In addition, the unit features four GR ports to connect BG-SC-GRHU table grommets for source selection and black screen setting. The KVM switcher can also be controlled via RS232 and front panel buttons.
MSRP $899.00*
*Pricing is for US only. International pricing will vary.Features
- 4x1 HDMI 2.0 Switcher with KVM
- Supports video resolution up to [email protected] 4:4:4, HDR 10 and Dolby Vision
- HDCP 2.2 compliant
- Compatible with Windows, Linux and Mac OS
- 5mm stereo audio output for audio de-embedding
- Convenient and cost-effective USB 3.0 peripheral sharing
- Controls four HDMI computers via one keyboard, one mouse and one monitor
- KVM auto-switching based on TMDS/5V detection
- Controllable by buttons, RS232 commands and BG-SC-GRHU table grommets
- Simplifies wiring for easy installation

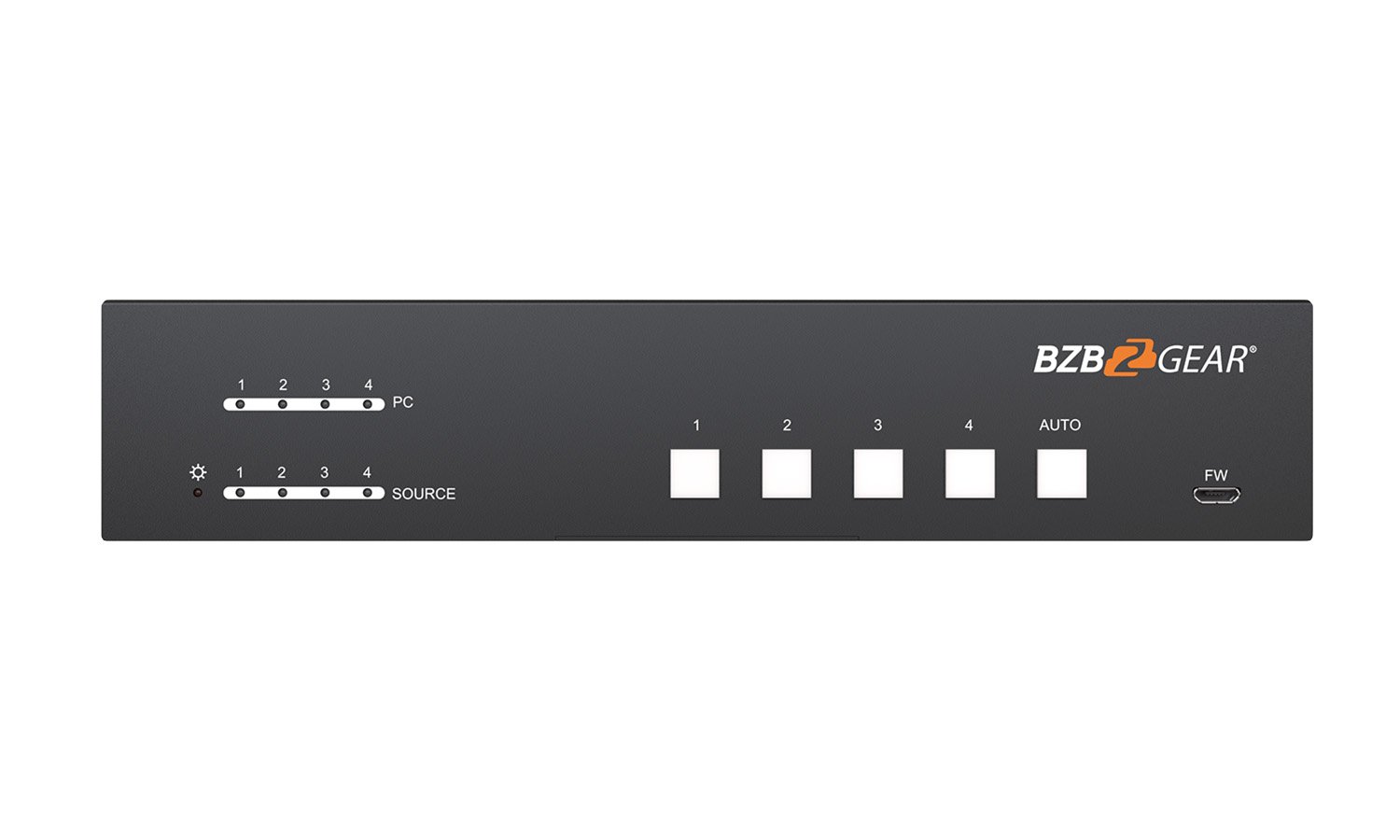

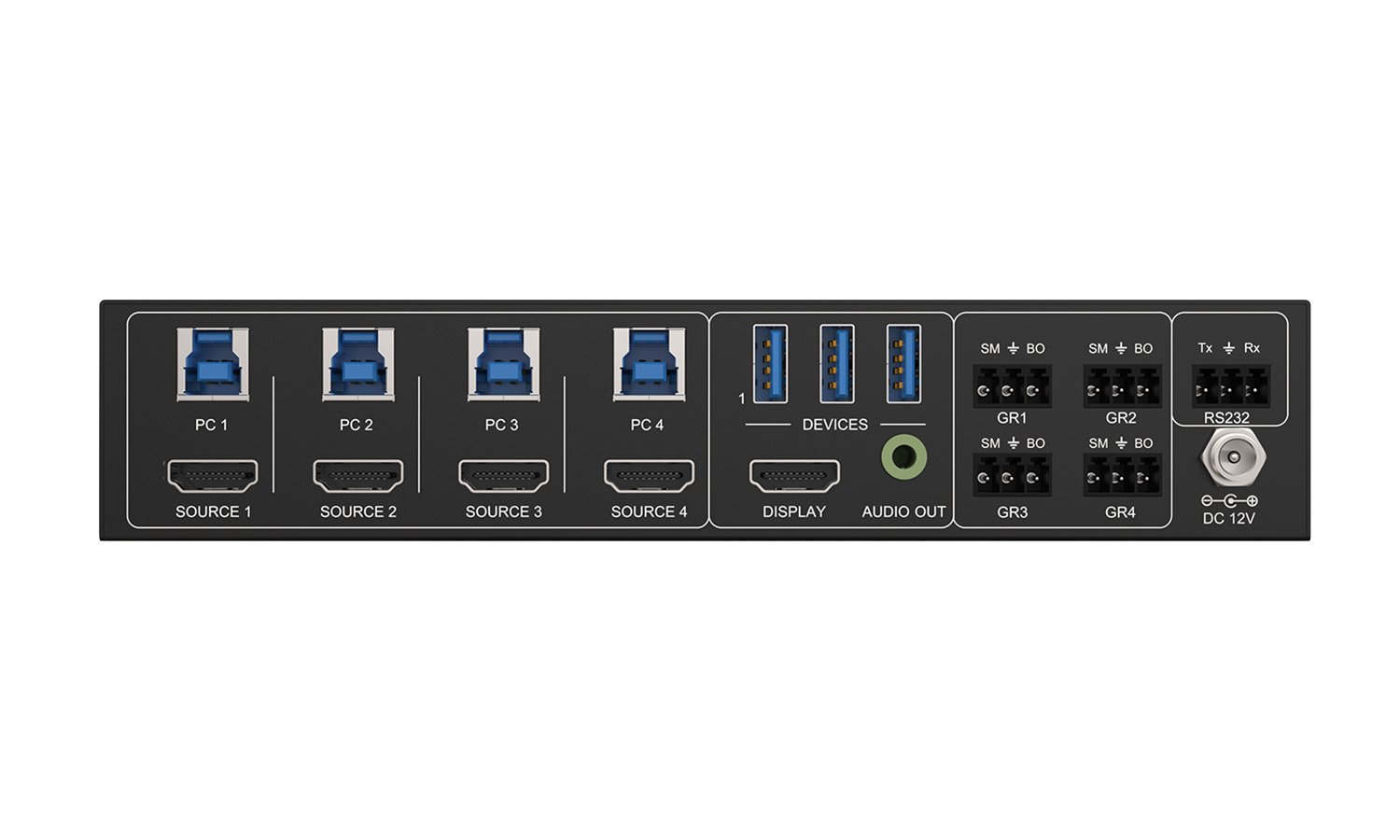

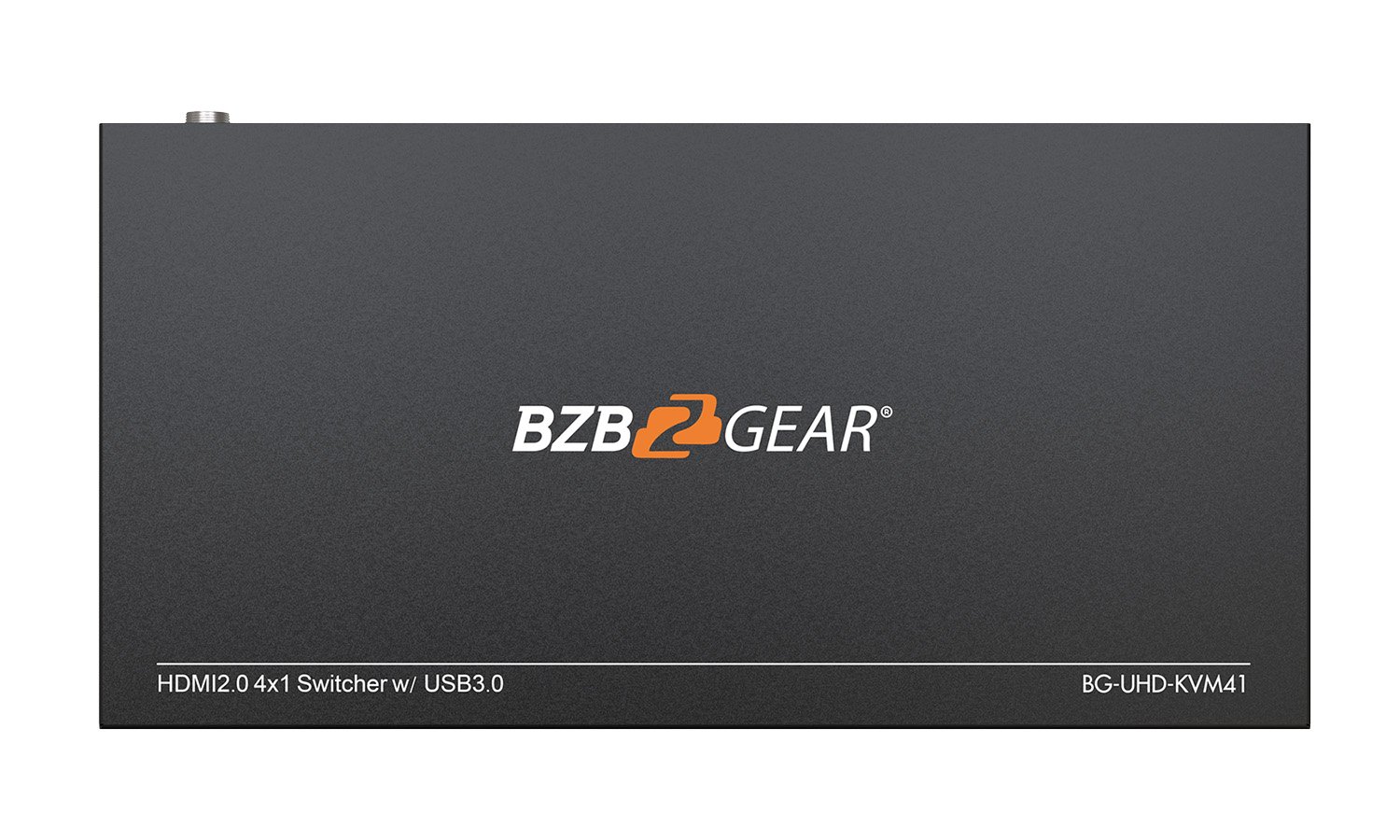

3D Pictures of the Product
Specifications
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
USB DATA TRANSFER
There are multiple USB standards based on release date of new USB technologies. Here is a reference regarding speeds and transfer rates. Make sure your source and destination devices are compatible for proper operation.
There are multiple USB standards based on release date of new USB technologies. Here is a reference regarding speeds and transfer rates. Make sure your source and destination devices are compatible for proper operation.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
| Video Input | |
| Input | (4) SOURCE 1~4 |
| Input Connector | (4) Female type-A HDMI |
| HDMI Input Resolution | Up to [email protected] 4:4:4, HDR10, Dolby Vision |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| Video Output | |
| Output | (1) DISPLAY |
| Output Connector | (1) Female type-A HDMI |
| HDMI Output Resolution | Up to [email protected] 4:4:4, HDR10, Dolby Vision |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| Audio | |
| Output | (1) AUDIO OUT |
| Output Connector | (1) 3.5mm mini stereo audio jack |
| Audio Format | PCM 2CH |
| Frequency Response | 20Hz to 20KHz, ±1dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316 mV) nominal consumer line level signal. |
| THD+N | < 0.05%, 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level). |
| SNR | > 80dB, 20Hz - 20KHz bandwidth. |
| Crosstalk Isolation | < -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping). |
| L-R Level Deviation | < 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping). |
| Output Load Capability | 1Kohm and higher (supports 10x paralleled 10k ohm loads). |
| Noise Level | -80dB |
| Control | |
| Control | (1) FW, (4) PC 1~4, (3) DEVICES 1~3, (4) GR 1~4, (1) RS232 |
| Control Connector | (1) Micro-USB, (4) Type-B USB, (3) Type-A USB, (5) 3-pin Terminal Blocks |
| General | |
| Bandwidth | 18Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| Type-A USB Power Supply | 1A |
| System Power Supply | Input:100V~240V AC; Output: 12V DC 2A |
| System Power Consumption | 14W(Max) |
| Dimension (W*H*D) | 200mm x 40mm x 100mm |
| Net Weight | 685g |

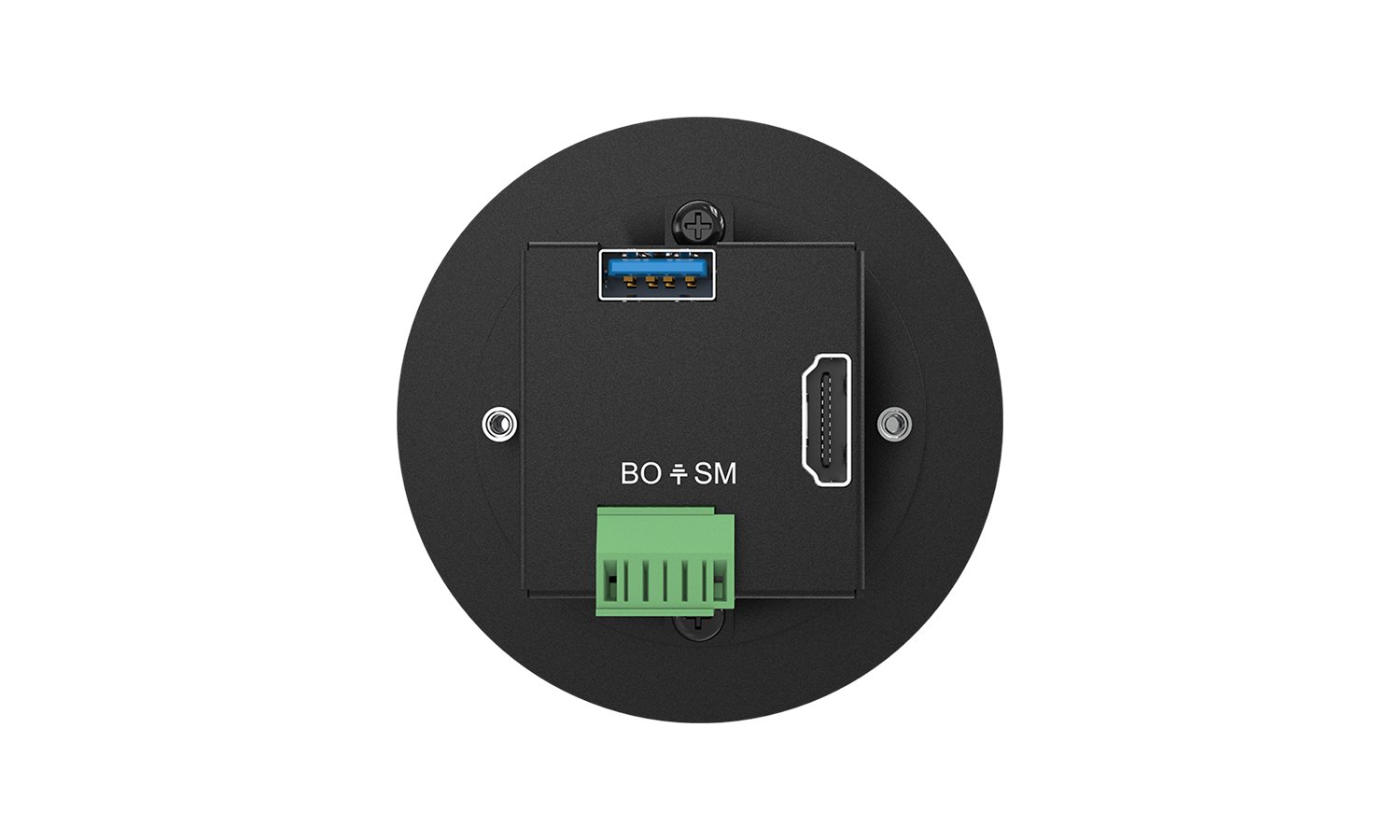

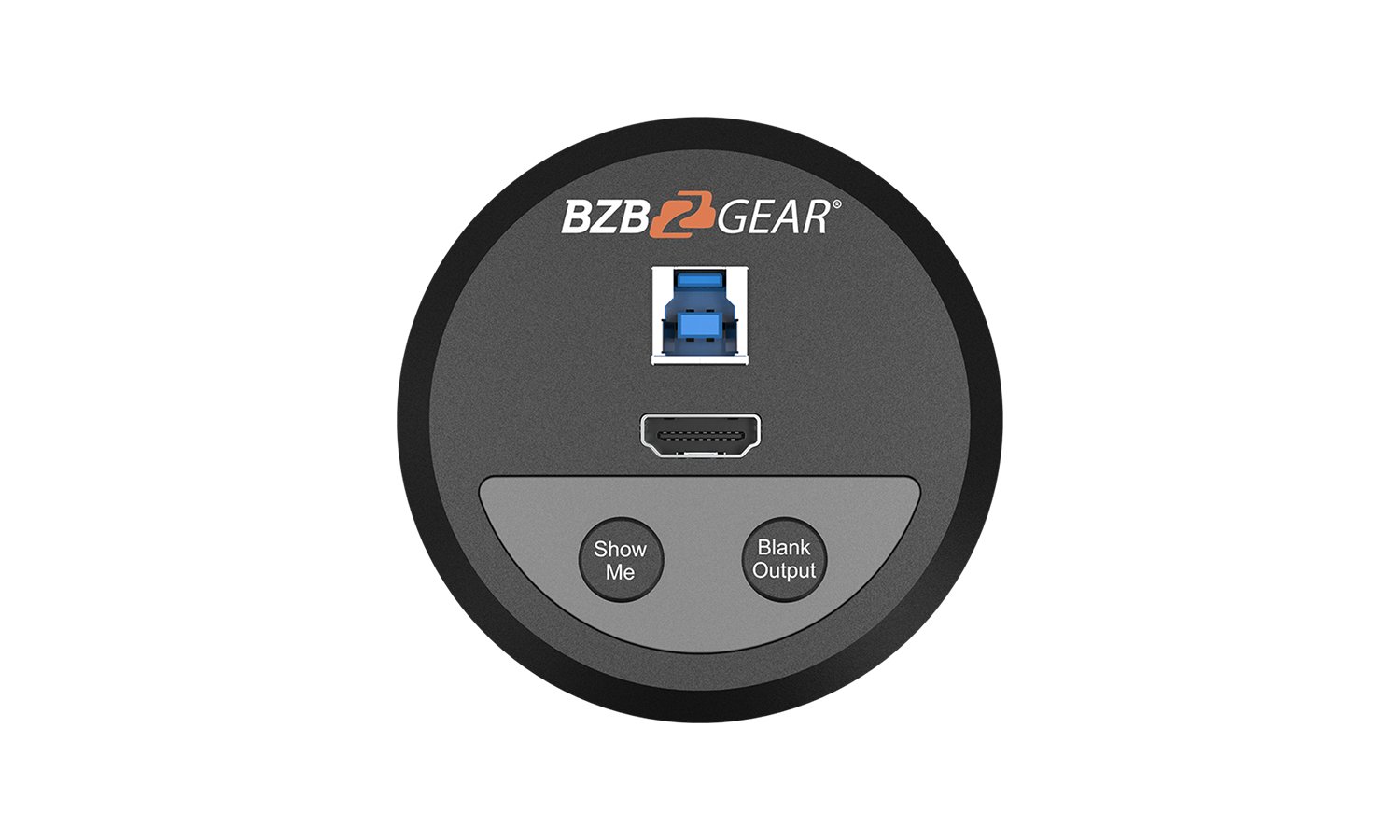

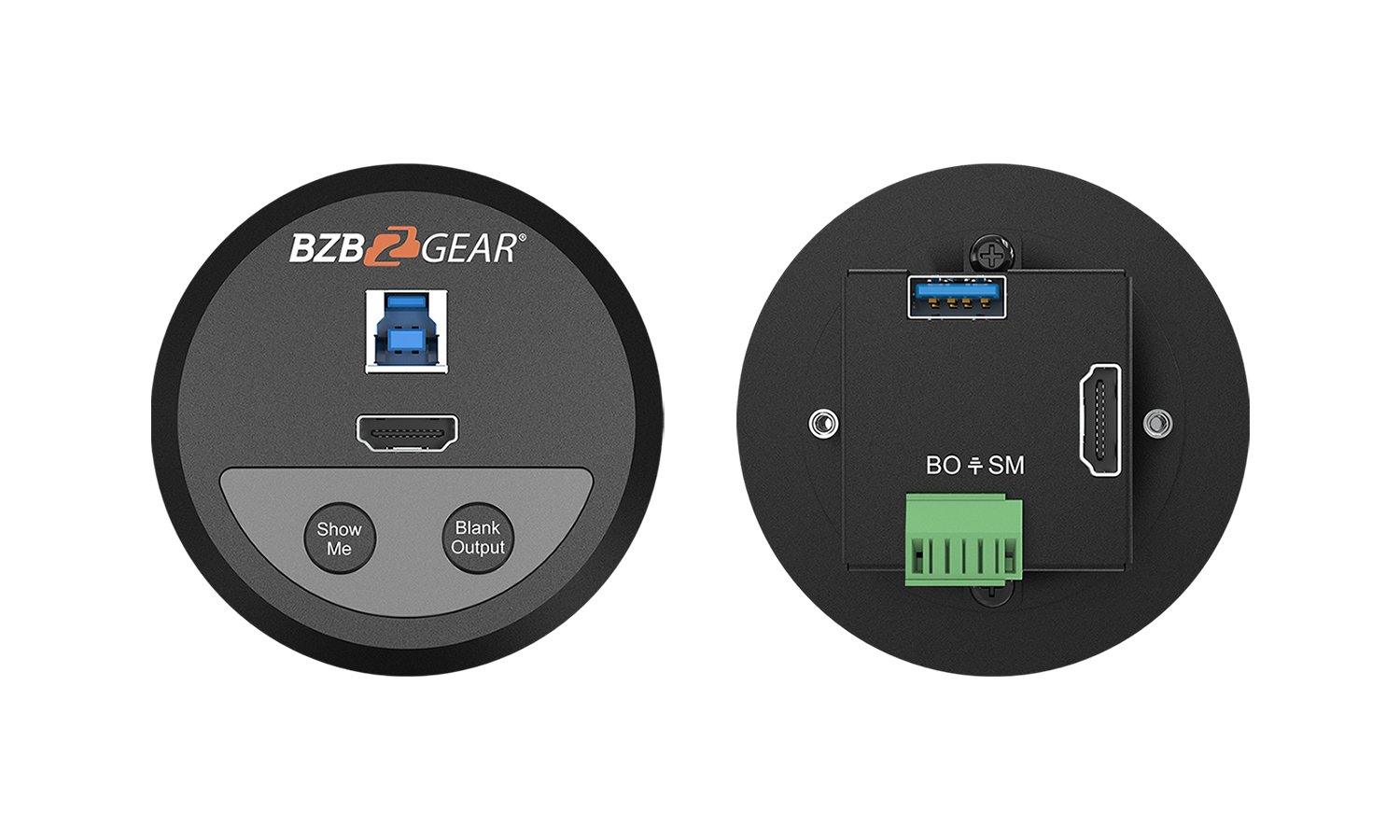

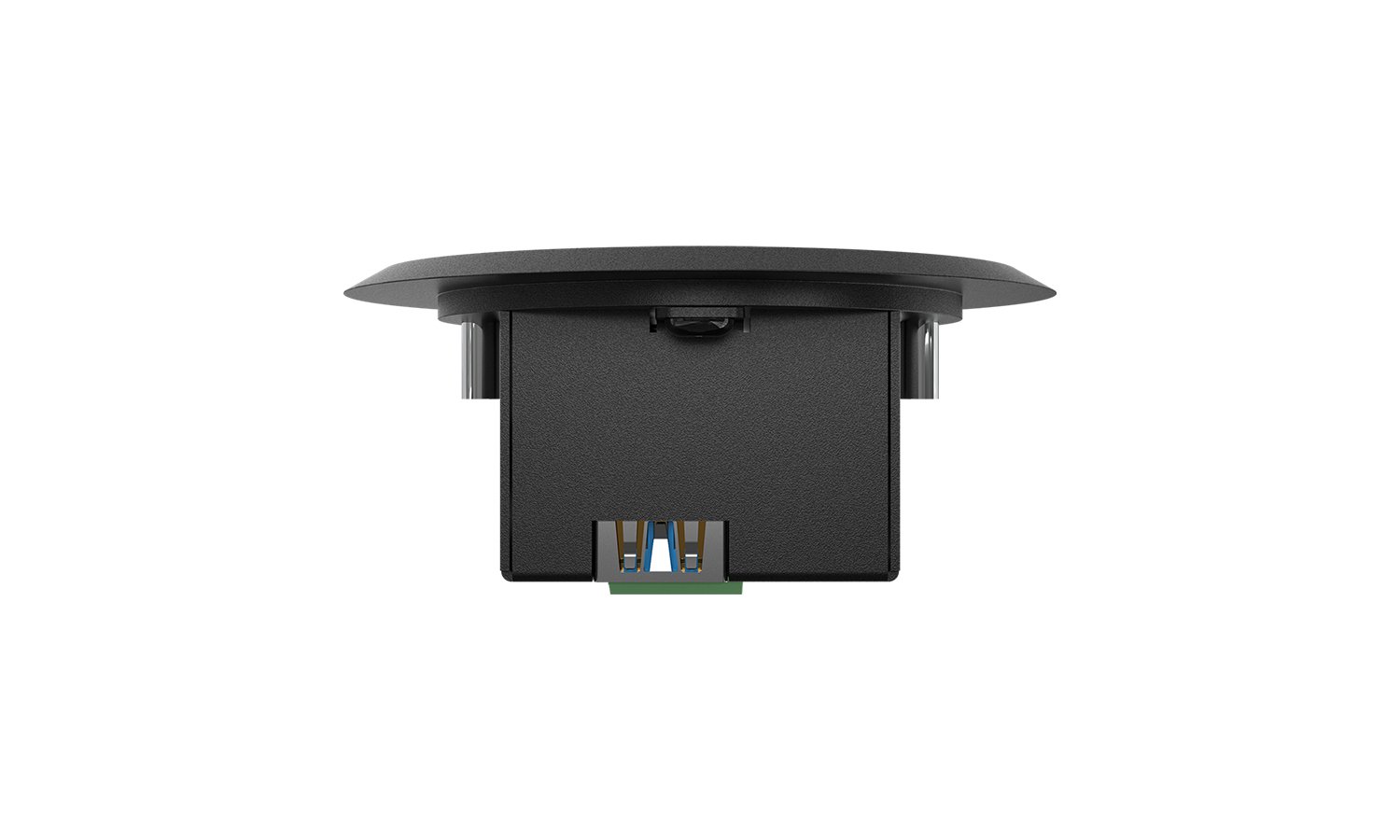

BG-SC-GRHU Table Grommet
| Video Input | |
| Input | (1) HDMI |
| Input Connector | (1) Female type-A HDMI |
| Video Output | |
| Output | (1) HDMI |
| Output Connector | (1) Female type-A HDMI |
| Control | |
| Control Connector | (1) Type-B USB, (1) Type-A USB, (1) 3-pin Terminal Block |
| General | |
| Resolution Range | Up to [email protected] 4:4:4, HDR10, Dolby Vision |
| Operation Temperature | -10°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humility | 10%-90% |
| Dimension (W*H*D) | 76mm x 29.6mm x 76mm |
| Net Weight (g) | 105g |
Resources
Package Contents
HDMI 2.0 4X1 Switcher:
① 1 x BG-UHD-KVM41 HDMI 2.0 4x1 Switcher
② 2 x Mounting Ears with 4 Screws
③ 4 x Plastic Cushions
④ 4 x 3-pin Terminal Blocks
⑤ 1 x RS232 Cable (3-pin to DB9)
⑥ 1 x Power Adapter (12VDC, 2A)
⑦ 1 x User Manual
Table Grommet:
① 4 x 1 BG-SC-GRHU Table Grommets
② 4 x 1 3-pin Terminal Block
③ 4 x 2 Mounting Screws (PM3*8mm)
④ 4 x 2 Mounting Screws (PM3*16mm)
⑤ 4 x 2 Mounting Screws (PM3*25mm)
① 1 x BG-UHD-KVM41 HDMI 2.0 4x1 Switcher
② 2 x Mounting Ears with 4 Screws
③ 4 x Plastic Cushions
④ 4 x 3-pin Terminal Blocks
⑤ 1 x RS232 Cable (3-pin to DB9)
⑥ 1 x Power Adapter (12VDC, 2A)
⑦ 1 x User Manual
Table Grommet:
① 4 x 1 BG-SC-GRHU Table Grommets
② 4 x 1 3-pin Terminal Block
③ 4 x 2 Mounting Screws (PM3*8mm)
④ 4 x 2 Mounting Screws (PM3*16mm)
⑤ 4 x 2 Mounting Screws (PM3*25mm)
Diagram
The following diagrams illustrate typical input and output connections that can be utilized with this switcher:The switcher is used with four BG-SC-GRHU table grommets:
The switcher is used alone:
Warranty: 2 years
