BG-UHD-44M
4×4 4K 60Hz HDR HDMI Matrix Switcher with Auto Downscaling and RS-232/IP/Cloud

4×4 4K 60Hz HDR HDMI Matrix Switcher with Auto Downscaling and RS-232/IP/Cloud

SKU: BG-UHD-44M
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS

Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
Full MultiView/PiP Matrix Switcher

Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.

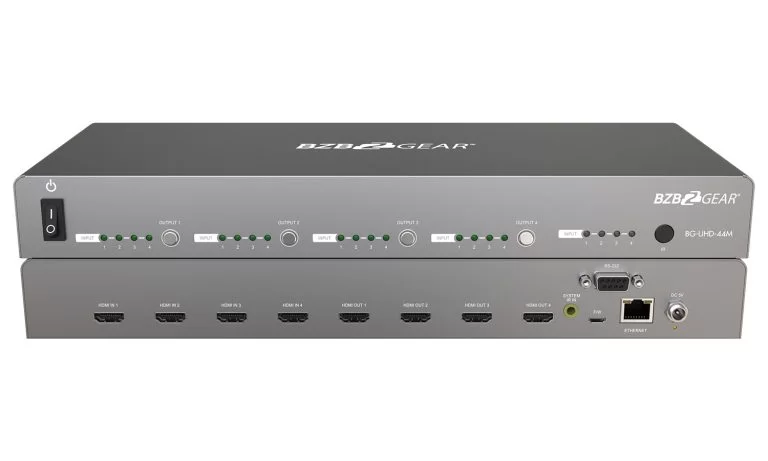

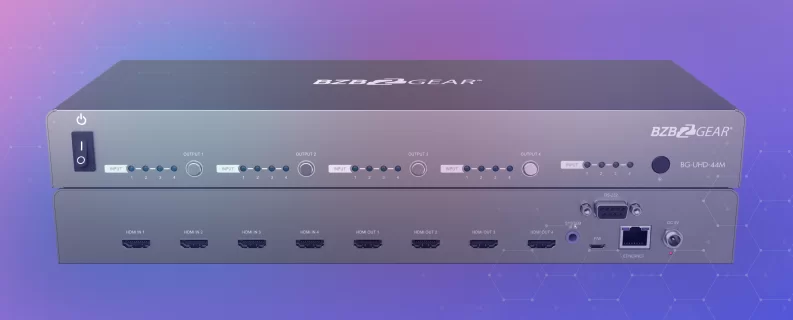

The BG-UHD-44M is the perfect solution for distributing audio and video sources streaming at 18Gbps delivering 4K2K@60Hz 4:4:4 8 bits with HDR support.  HDCP 2.2 compliant, this unit offers 4-source HDMI 2.0a inputs and 4-display HDMI 2.0a outputs with audio support including formats like DTS-HD Master Audio, DTS, Dolby TrueHD, 7.1 channel and LPCM. Capable of downscaling from 4K2K to 1080P you can use it in a variety of environments such as conference rooms, auditoriums, small businesses and digital signage. Conveniently this unit comes with an IR remote as well RS-232, IP and Cloud Control ability for optional control methods.

MSRP $699.00*

*Pricing is for US only. International pricing will vary.
Features
  • Supports resolutions up to 4K@60Hz
  • 4:4:4 HDCP 2.2/HDCP1.x and DVI compliant
  • Smart CSC technology support outputting 4K@60Hz 4:4:4 (6G) or 4:2:0 (3G) according to sink device
  • Supports HDR and full 3D
  • Supports HDCP management (Follow source or follow sink) Supports audio de-embed from HDMI output to associated L/R stereo audio output and coaxial SPDIF output simultaneously
  • Multiple control modes: Push Buttons, IR Remote, RS-232 (API) and GUI
  • Advanced EDID management for rapid integration of sources and displays
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
  • Device capabilities and compatibility.
  • Type of connections available.
  • How to set up and use software if applicable.
  • Useful tricks and tips.
Specifications


3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS

Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
Full MultiView/PiP Matrix Switcher

Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.

Technical
Role of usageTrue 4x4 matrix
HDMI complianceHDMI 2.0a
HDCP complianceHDCP 2.2 / 1.4
Video bandwidthSingle-link 600MHz [18Gbps]
Video supportHDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio supportDTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD protectionHuman body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up6-layer board [impedance control — differential 100Ω; single 50Ω]
Firmware updateFeasible via Micro-USB and RS-232 port
Input4x HDMI / 1x RS-232 / 1x Ethernet / 1x IR socket for IR receiver
Output4x HDMI
HDMI Input selectionPush-in button/ IR remote control/ RS-232 control/ IP control/ Cloud control
IR remote controlElectro-optical characteristics: = 25° / Carrier frequency: 38kHz
HDMI connectorType A [19-pin female]
RJ-45 connectorWE/SS 8P8C(Reverse Mode)
RS-232 connectorDE-9 [9-pin D-sub female]
USB connectorMicro USB
3.5mm connectorIR receiver / IR blaster

Mechanical
HousingMetal enclosure
Dimensions (L x W x H)Model340 x 123 x 44mm [1'1" x 4.8" x 1.7"]
Package494 x 225 x 70mm [1'6" x 8.9" x 2.8"]
Carton510 x 380 x 252mm [1'7" x 1'2" x 10"]
WeightModel1181g [2.6 lbs]
Package1837g[4 lbs]
FixednessWall-mounting case
Power supply5V 4A DC
Power Consumption12 Watt [max]
Operation temperature0~40°C [32~104°F]
Storage temperature-20~60°C [-4~140°F]
Relative humidity20~90% RH [no condensation]





Resources



Package Contents
① 1xBG-UHD-44M
② 1xRack-mounting ear set
③ 1xIR receiver
④ 1xInstallation software CD
⑤ 1xDC 5V 4A
⑥ 1xUser Manual
⑦ 1xIR Remote control
*Additional IR remote controllers and IR blasters can be purchased as optional accessories to control the HDMI sources located separately.


Device Interface

See full description of the connections here


Diagram





Warranty: 2 years

Buy this 4×4 4K 60Hz HDR HDMI Matrix Switcher with Auto Downscaling and RS-232/IP/Cloud


MSRP $699.00*

*Pricing is for US only. International pricing will vary.
