Overview
The BG-STREAM-D IP/UVC to HDMI 2.0 is a versatile and compact video decoder that bridges the gap between various video input sources and HDMI output. Featuring a single RJ45 input, USB 3.0 Type A (UVC) input, and HDMI 2.0 output, this device is ideal for high-definition video processing and streaming. It is powered through a secure locking DC jack, ensuring stable and reliable operation.
Features In-Depth
The BG-STREAM-D IP/UVC to HDMI 2.0 is an advanced video processing unit that supports multiple video and audio formats. It provides seamless connectivity options through its RJ45 and USB 3.0 inputs, delivering output via HDMI 2.0. This device is designed to handle high-resolution video up to 4096×2160p at 60/50fps, making it suitable for professional AV setups, live streaming, and broadcasting applications.
The device supports a wide range of streaming protocols, including RTSP, RTMP, HLS, TS, SRT, NDI HX, and Dante AV-H, providing flexibility and compatibility with various streaming platforms. The integrated web UI offers an intuitive interface for system configuration, ensuring user-friendly operation and easy setup.
With advanced features like hardware compression, real-time recording, and firmware upgradability, the BG-STREAM-D IP/UVC to HDMI2.0 decoder is designed to meet the demanding requirements of modern video production environments. Its compact design, measuring 103.8mm x 71.2mm x 26mm, allows for easy integration into existing AV infrastructures.
Features
-
![Multiple Connection Options]()
Versatile Connection OptionsSupports IP, USB-A 3.0, and HDMI 2.0 connections -
![bi_badge-4k]()
High-Quality Video ProcessingCapable of resolutions up to 4K@60Hz with downscaling ability -
![Audio Support]()
Comprehensive Audio SupportUtilizes AAC-LC codec with a configurable bit rate range from 32Kbps to 384Kbps -
![mdi_check-network-outline]()
Advanced Network CapabilitiesIncludes DHCP support and Power over Ethernet (PoE) functionality -
![Control Protocol Options]()
Extensive Protocol SupportCovers RTSP over UDP/TCP/Multicast/HTTP, RTMP, TS over IP, HLS, NDI, and Dante AV-H -
![Web Interface Module]()
User-Friendly InterfaceFeatures an accessible web UI for easy system configuration
- UVC Device Support: Ensures compatibility with a wide range of devices
- Real-Time Mode Recording: Enables immediate recording functionality
- Compact and Durable Design: Includes a secure locking DC jack power input
- Efficient Hardware Compression: Supports H.265/H.264/AVC encoding
- Firmware Upgradeable: Allows for easy updates to enhance functionality
Professional IP/UVC
to HDMI 2.0 processing
Videos
Tech Specifications
| Technical Specifications | |
| Max FPS | 4096x2160p@60/50fps |
| Recording Modes | Hardware Compression, Real-Time Mode |
| Input Interfaces | Video: 1x RJ45 (RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H Support) 1x USB 3.0 Type A (UVC) input |
| Output Interfaces | Video: 1x HDMI 2.0 |
| Video Support |
H.265/H.264/AVC, Baseline/Main/High Profile Supported HDMI output Resolutions: 4096x2160p@60/50fps |
| Audio Support | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
| Network Features | 1x RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Streaming Protocols | NDI Support (Separate License with NDI Required) Dante AV-H (Separate License with Dante AV-H Required) RTSP over UDP/TCP/Multicast/HTTP RTMP (Publish) TS over IP HLS |
| Power Supply | 12V DC input POE input |
| Unit Dimensions | 4.1in x 2.8in x 1in [103.8mm x 71.2mm x 26mm] |
Resources
PACKAGE CONTENTS
- 1x BG-STREAM-D
- 1x 12V DC Adapter

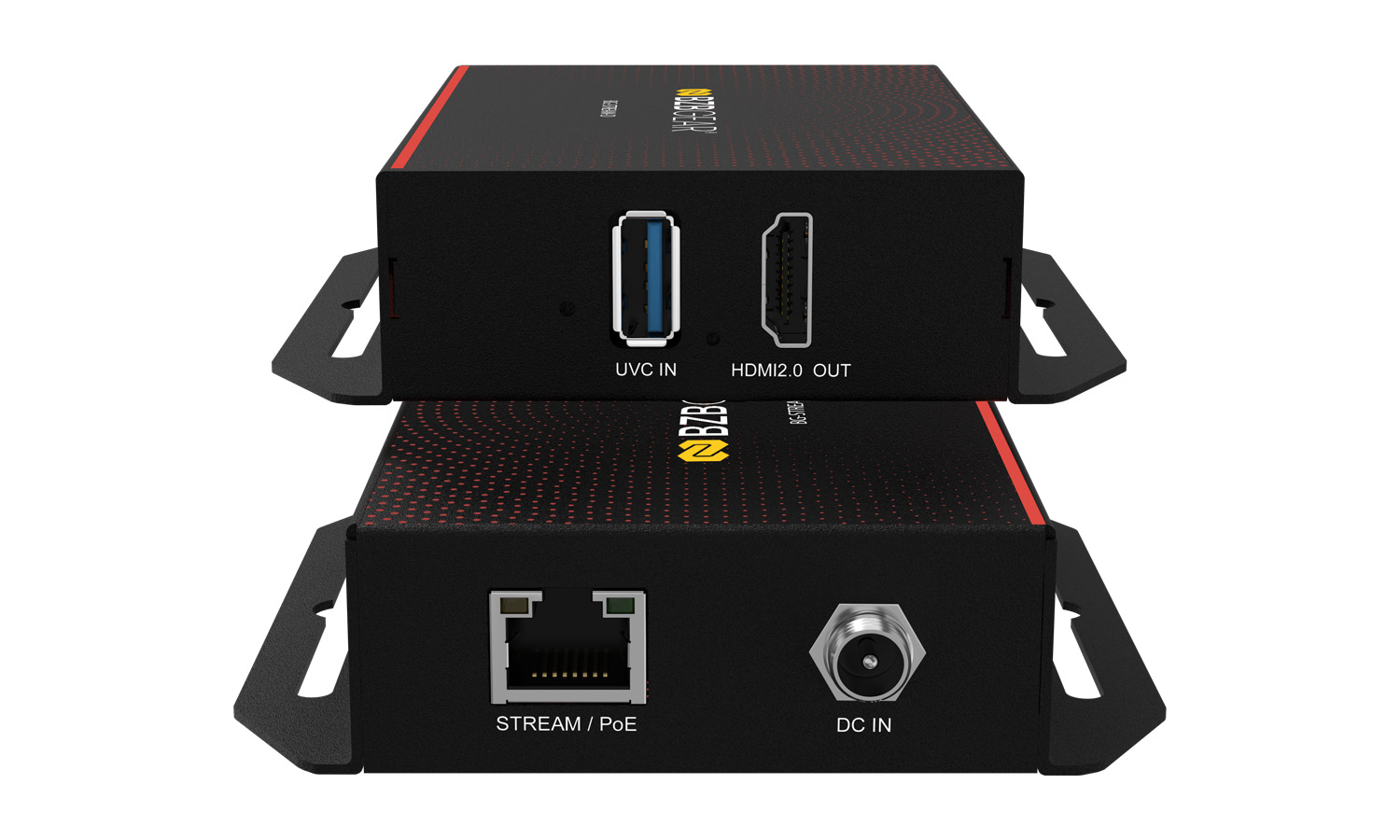

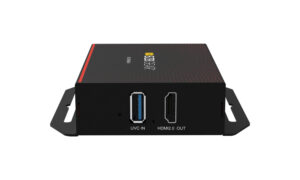

Interfaces
- Factory Restore Button: Use a pin to press and hold for 3 seconds.

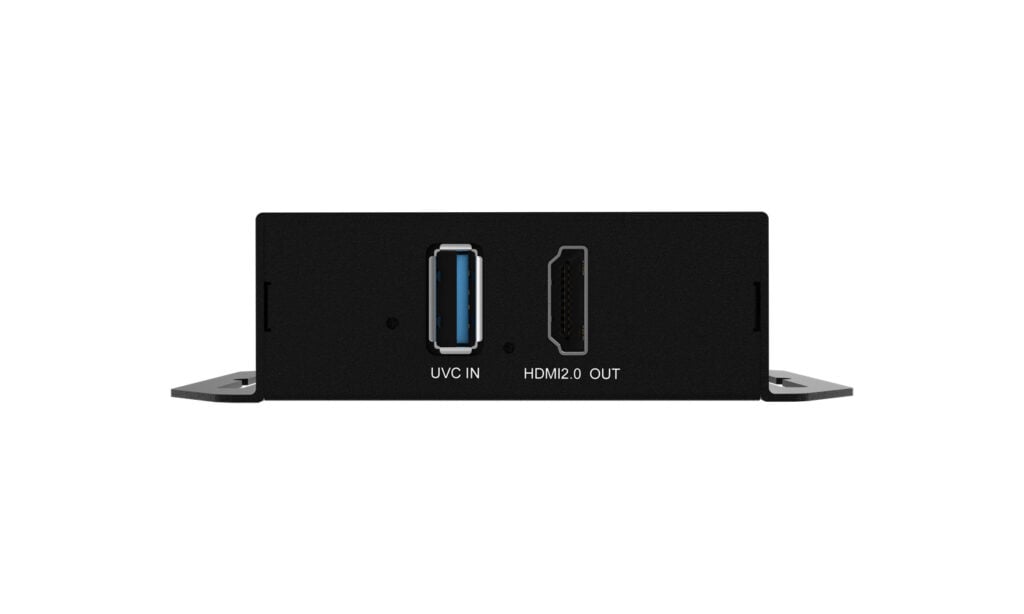

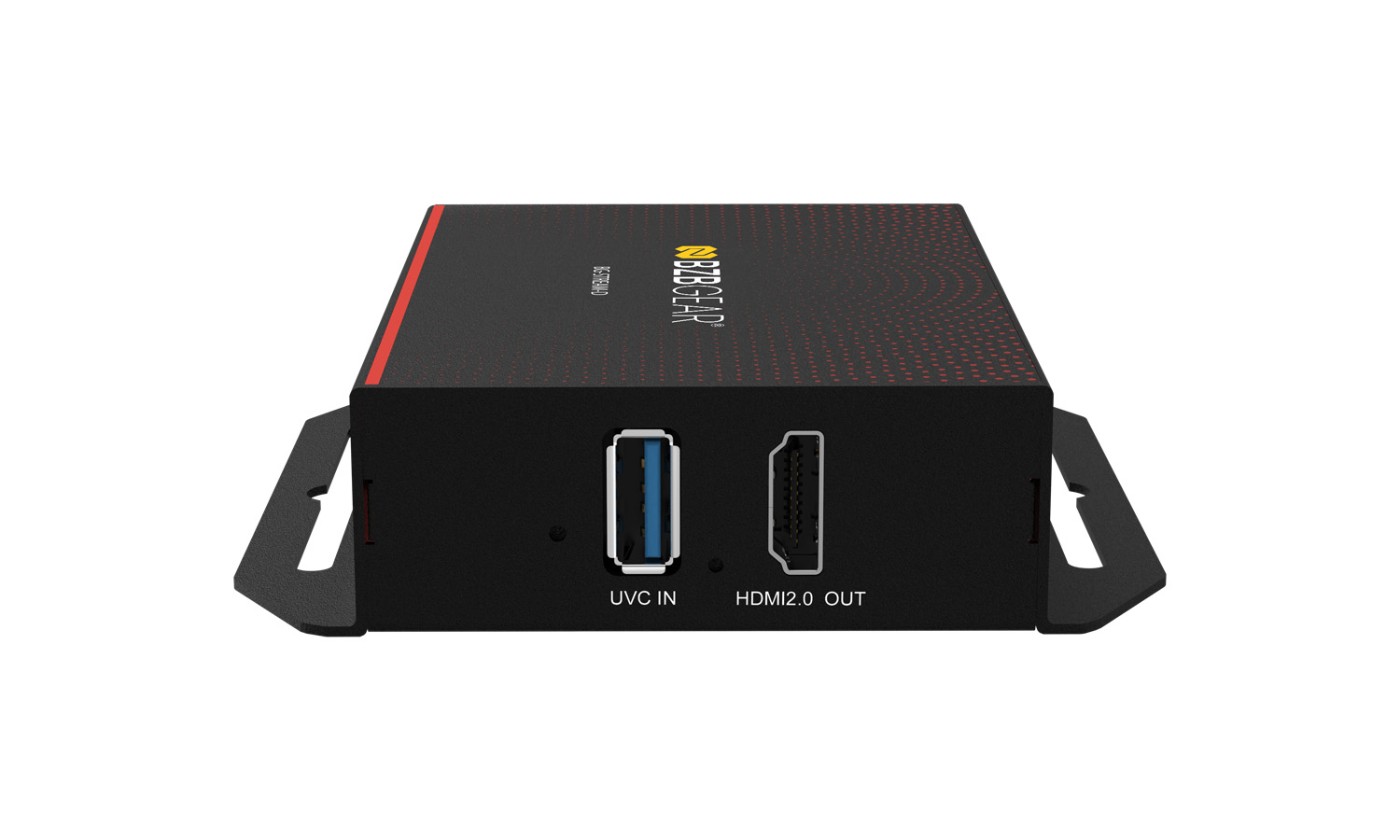

- UVC In: UVC source input.
- HDMI Out: HDMI 2.0 output for viewing or monitoring.

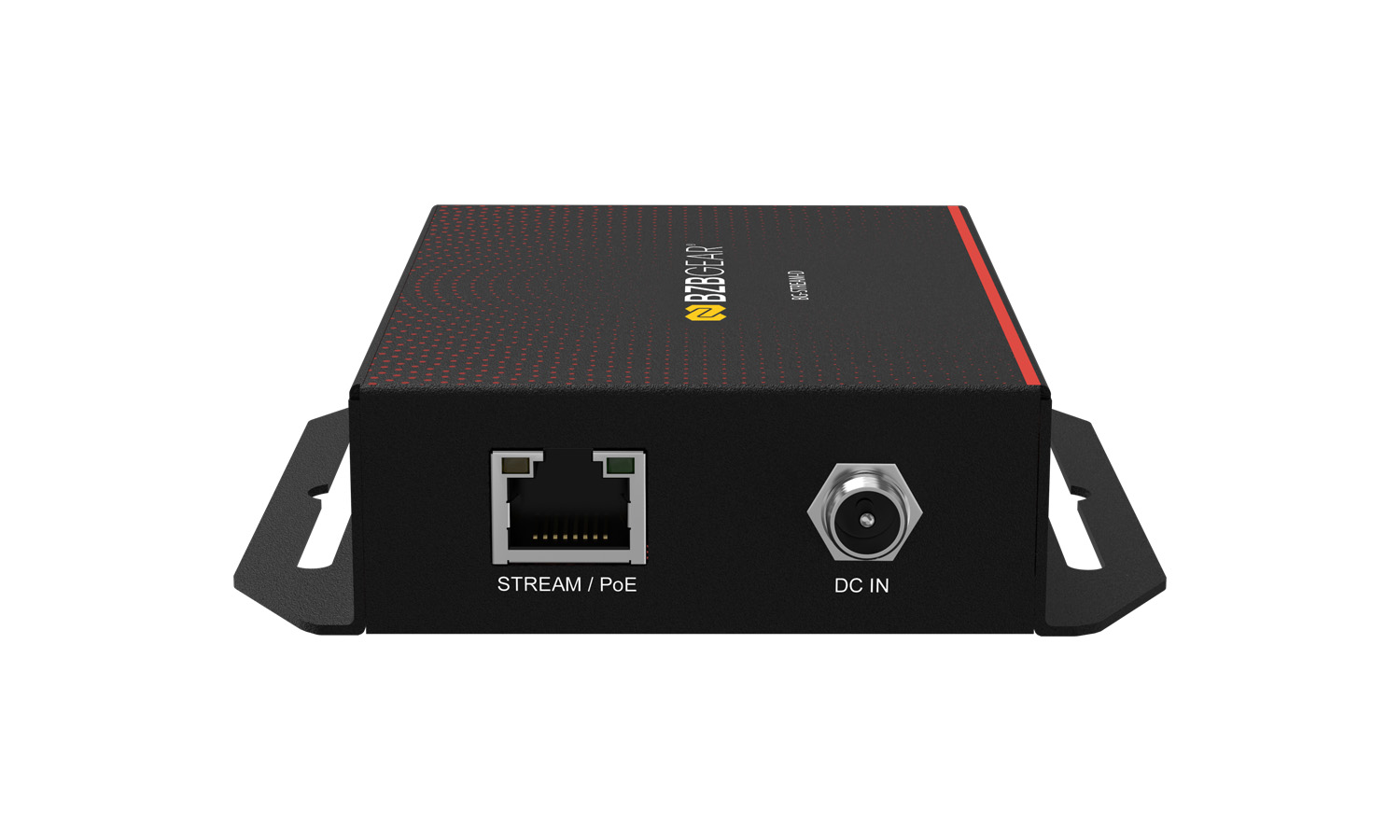

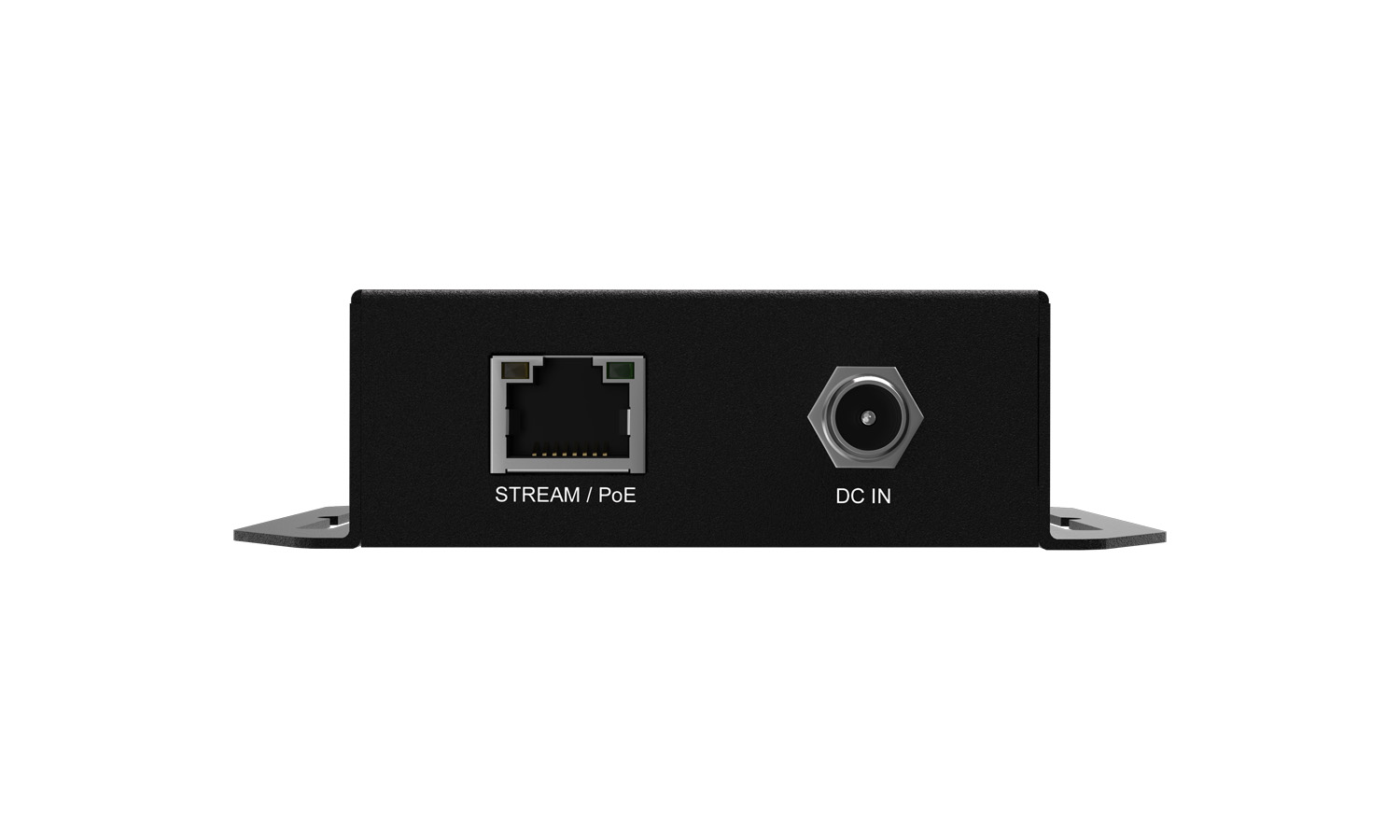

- Stream/PoE In: PoE enabled ethernet port.
- DC Power In: 12V DC power supply input.
