4K UHD 12G SDI Video Test Pattern Generator (Support 12G/6G/3G/HD/SD-SDI)

MSRP: $2,199.00

MSRP $2199

3
Overview

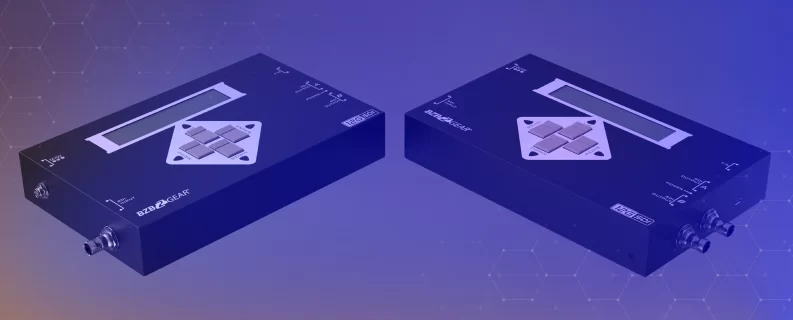

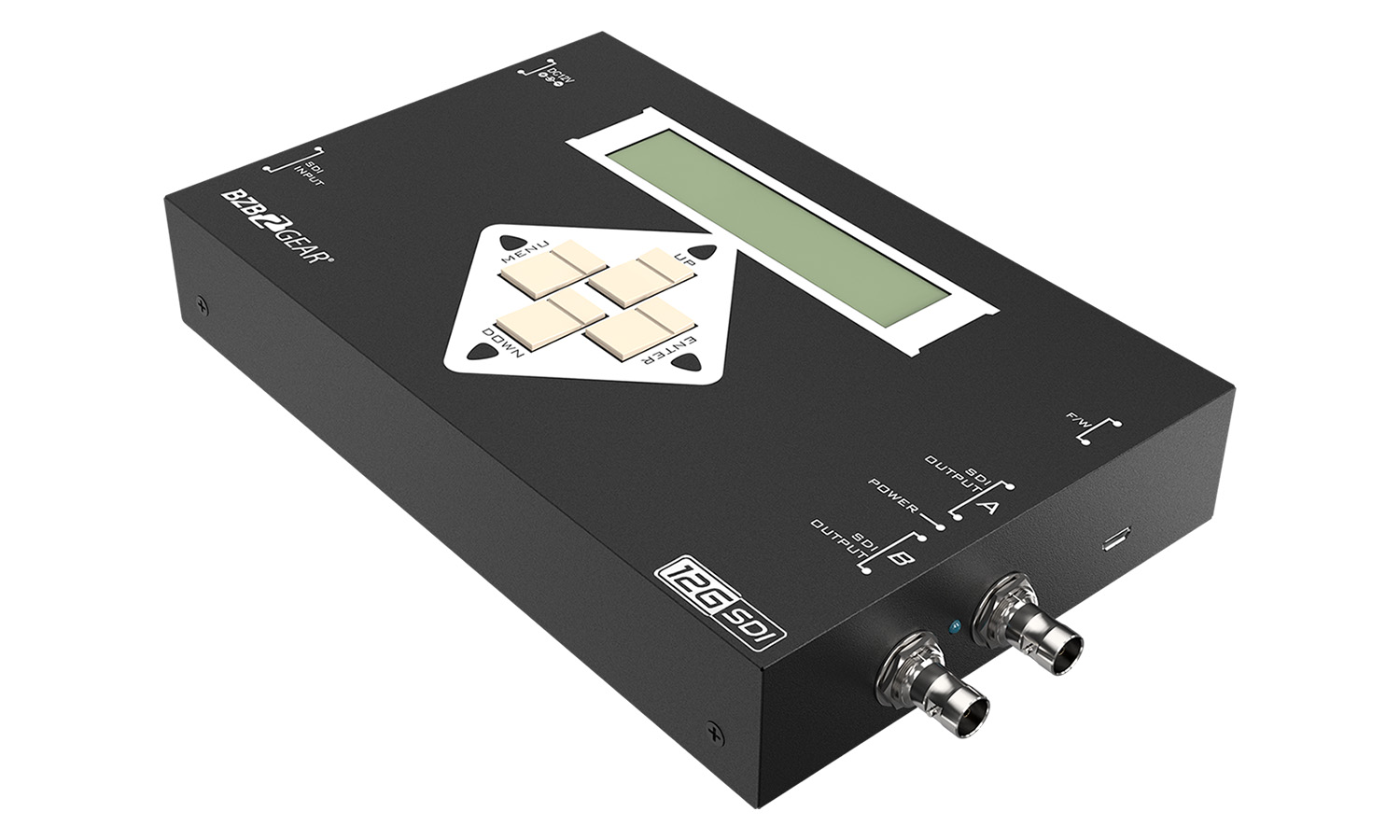

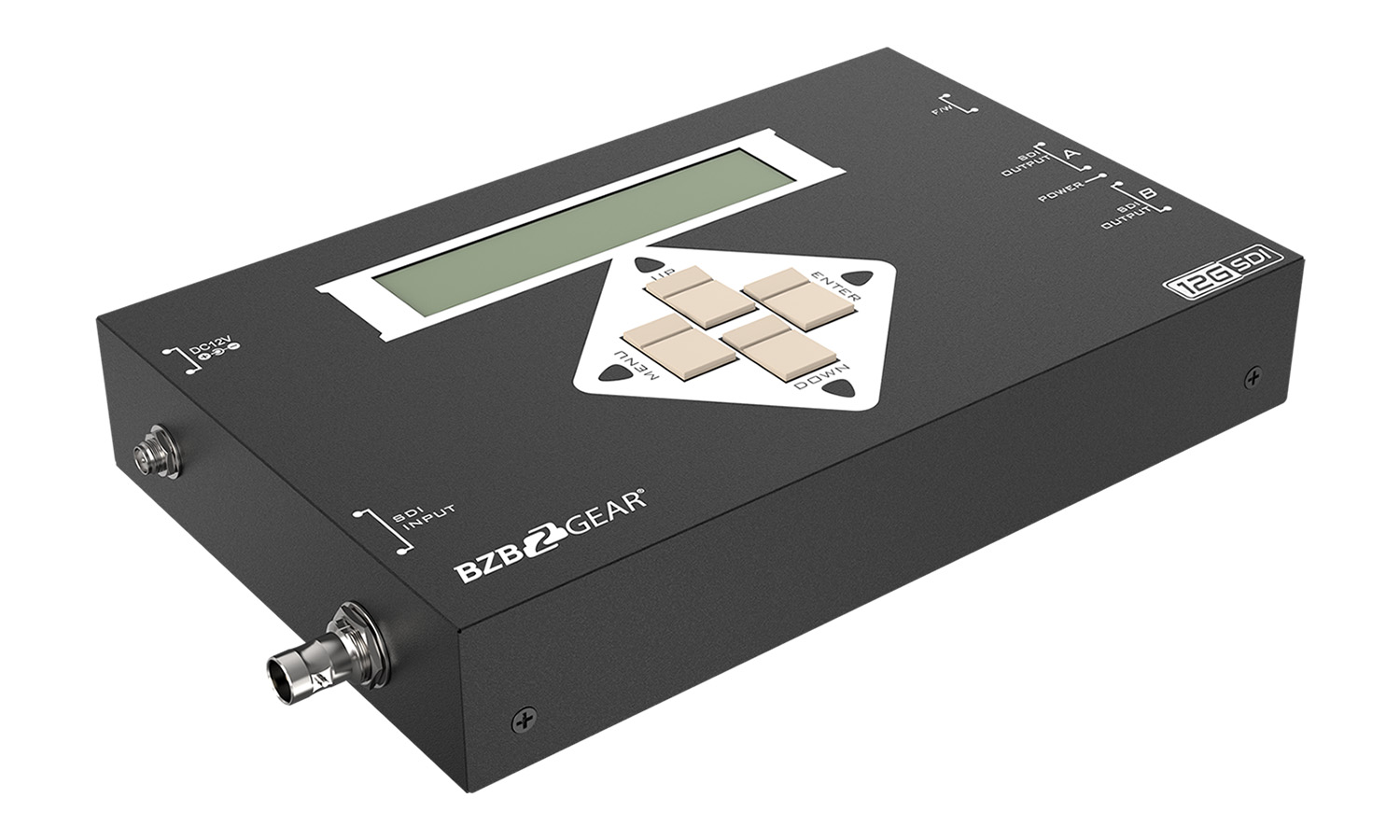

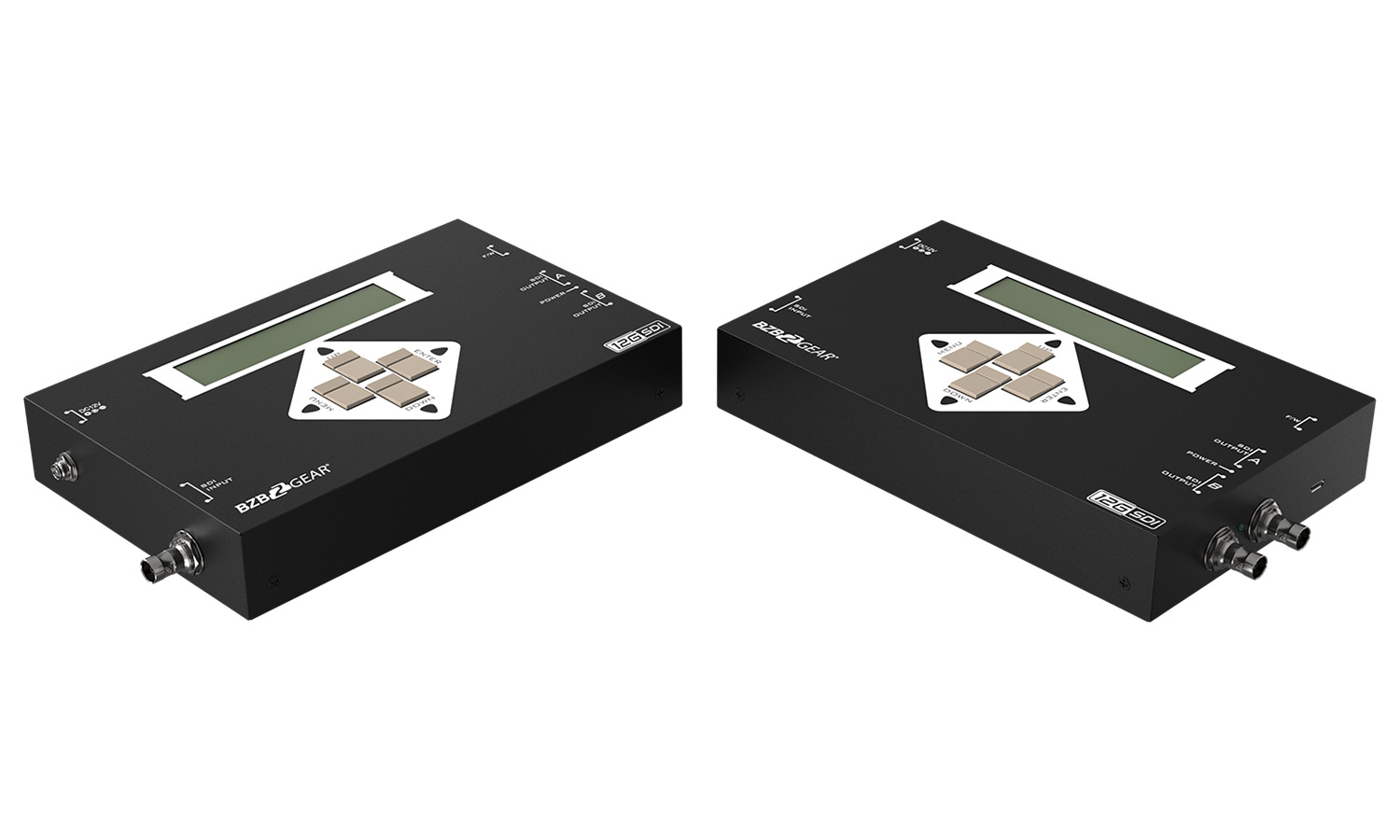

The BG-SDITPG is a 12G-SDI test pattern generator that can generate test signals at resolutions up to [email protected] Designed for video production environments, the BG-SDITPG is an essential part of any video crew’s toolkit. Encased in a durable metal housing, this unit is equipped with carefully chosen still and moving test patterns that allow video engineers to quickly test SDI equipment and cabling.

If troubleshooting a video display is necessary, a video test pattern generator may be necessary. Video test pattern generators can help AV technicians fine tune displays in various categories in the field. As an advanced SDI pattern generator, the BG-SDITPG supports multiple SDI formats such as 12G, 6G, 3G, HD, and SD. It also multi-pattern support to test different kinds of display characteristics.

Features

The BG-SDITPG video test pattern generator supports a maximum resolution of [email protected] With two simultaneous 12G-SDI outputs, users can test two signal chains at once. The test patterns can be transmitted at 12G/6G/3G/HD/SD-SDI formats, ensuring full compatibility with legacy systems. This unit can also generate up to 8 channel AES compliant audio signals at 48kHz sampling rate. The easy-to-use interface of the BG-SDITPG is operated using the LCD screen and 4 top cover buttons.


TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).
You can find all BZBGEAR TAA Compliant Products on this page.


Features
[email protected] Support
Ultra HD refers to a TV resolution of 3840 x 2160 pixels
Multi-Format
12G, 6G, 3G, HD, SD
Audio Generator
8 Channel AES Compliant @48KHZ
Dual Output
Simultaneous 12G SDI outputs
Easy to Use
4 simple buttons access all functions
Locking PSU
Prevents accidental disconnection
  • Multi-Format - 12G, 6G, 3G, HD, SD
  • Audio Generator - 8 Channel AES Compliant @48KHZ
  • Dual Output - Simultaneous 12G SDI outputs
  • Easy to Use - 4 simple buttons access all functions
  • Multiple Patterns - Choose from multiple still and moving test patterns
  • Locking PSU - Prevents accidental disconnection


Specifications
Role of usage Pattern generator
SDI standards 12G/6G/3G/HD/SD-SDI
Auto SDI rate detection Yes
Supported protocols SMPTE 259M (270Mbps / 360Mpbs) SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps) SMPTE 424/425M (2.97 & 2.97/1.001Gbps) SMPTE ST-2081 (5.94&5.94/1.001Gbps) SMPTE ST-2082 (11.88&11.88/1.001Gbps)
Video bandwidth 11.88Gpbs
Data rates 143 / 270 / 1483 / 1485 / 2967 / 2970 / 5934 / 5940 / 11868 / 11880 Mbps
Video support [12G] [email protected]/59.94/60 [6G] [email protected]/24, 25, 30 [3G] [email protected]/59.94/60 (4:2:2) [HD] [email protected]/59.94/60, [email protected]/30, [email protected]/59.94/60, [email protected]/59.94/60 [SD] [email protected], [email protected]
SDI signal type SMPTE-292M / 259M / 424M / ST-2081 / ST-2082
Output impedance 75W
Cable (Belden 1694A) equalization / transmission [12G-SDI] up to 50m (165ft) / [6G-SDI] up to 100m (330ft) / [3G-SDI] up to 200m (660ft)
Audio support Yes
PCB Stack-up 6-layer board [impedance control — differential 100W; single 75W]
Output 2x BNC [SDI]
BNC connector 75W interlocking socket
[HD] Eye pattern characteristics Amplitude: Within 800mV  <10%Long time jitter <1.0 UI Rise overshoot: Less than 2% Timing jitter <1.0 UI Fall overshoot: Less than 2% Alignment jitter <0.2 UI
Mechanical
Housing Metal enclosure
Dimensions [L x W x H] Model 5.9” x 7.5” x 1.3” [150 x 190 x 32mm]
Package 10.3” x 6.7” x 3.8” [263 x 170 x 97mm]
Carton 1'7” x 1.2' x 11.3” [512 x 364 x 288mm]
Weight Model 1.5 lbs [660g]
Package 2.8 lbs [1260g]
Fixedness Interlocking power supply
Power supply 12V 2A DC
Power consumption 8 Watts [max]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]
MORE / LESS SPECS

Ideal fit for:
  • Studios
  • Event Centers
  • Live Video Productions
  • IT professionals
  • Production Staff
  • A/V Integrators

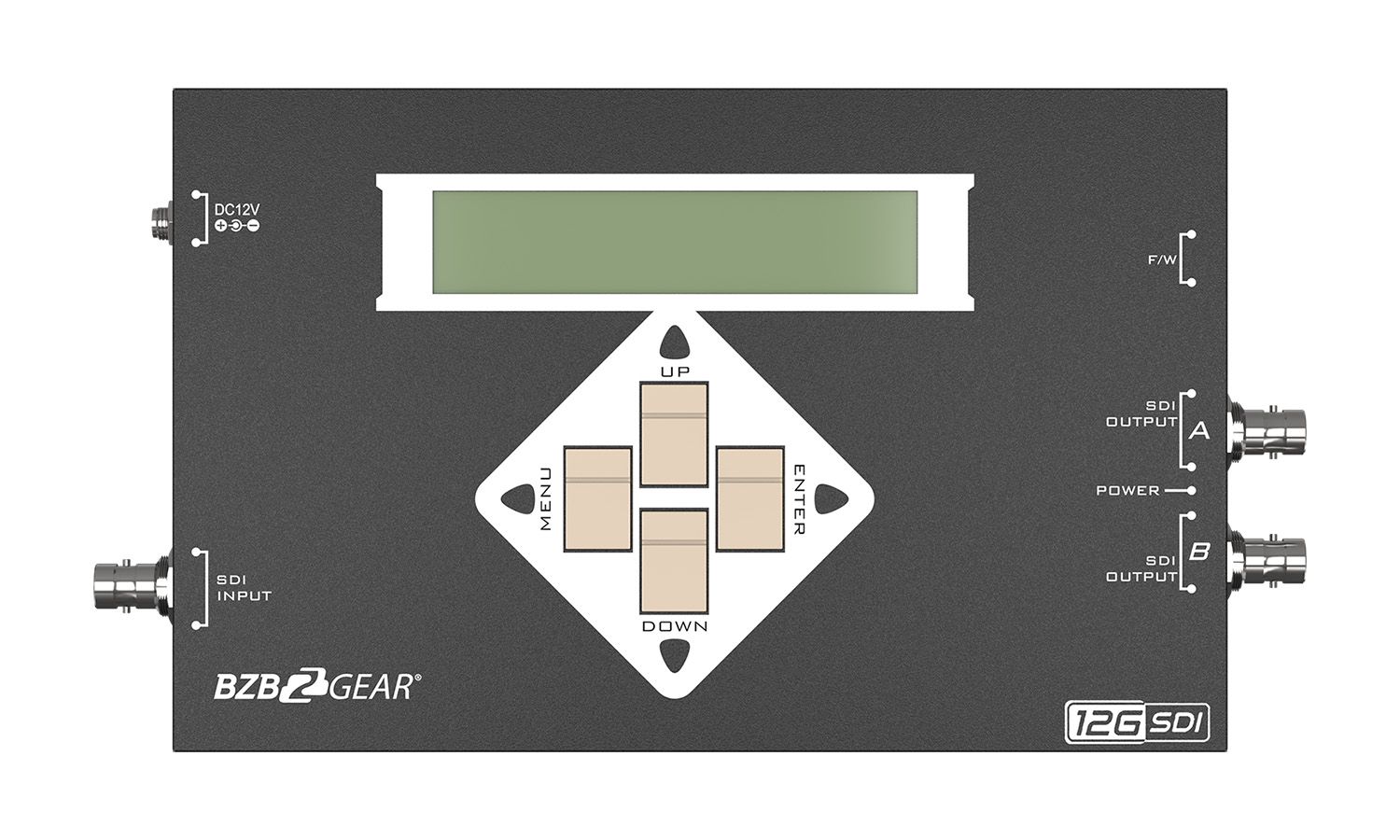

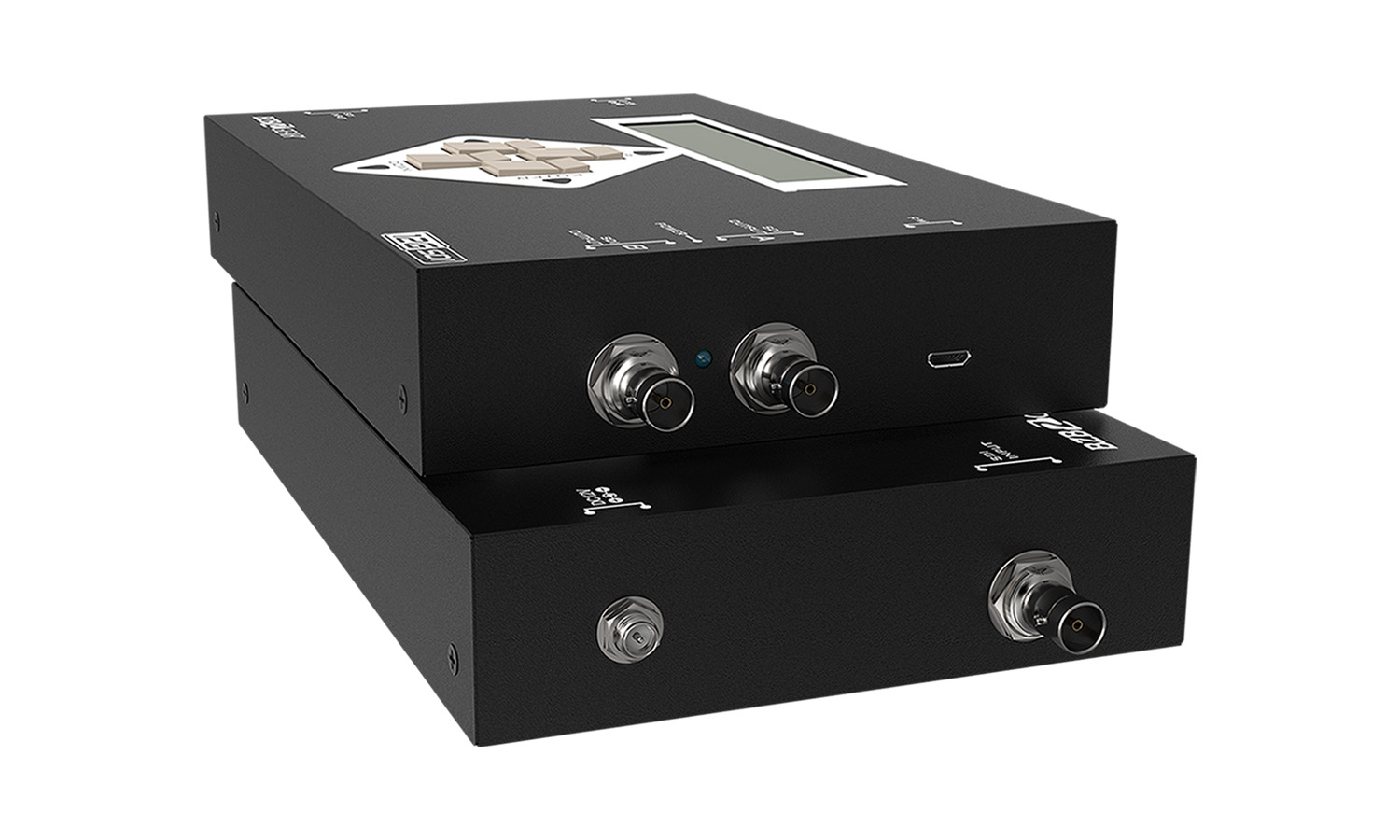

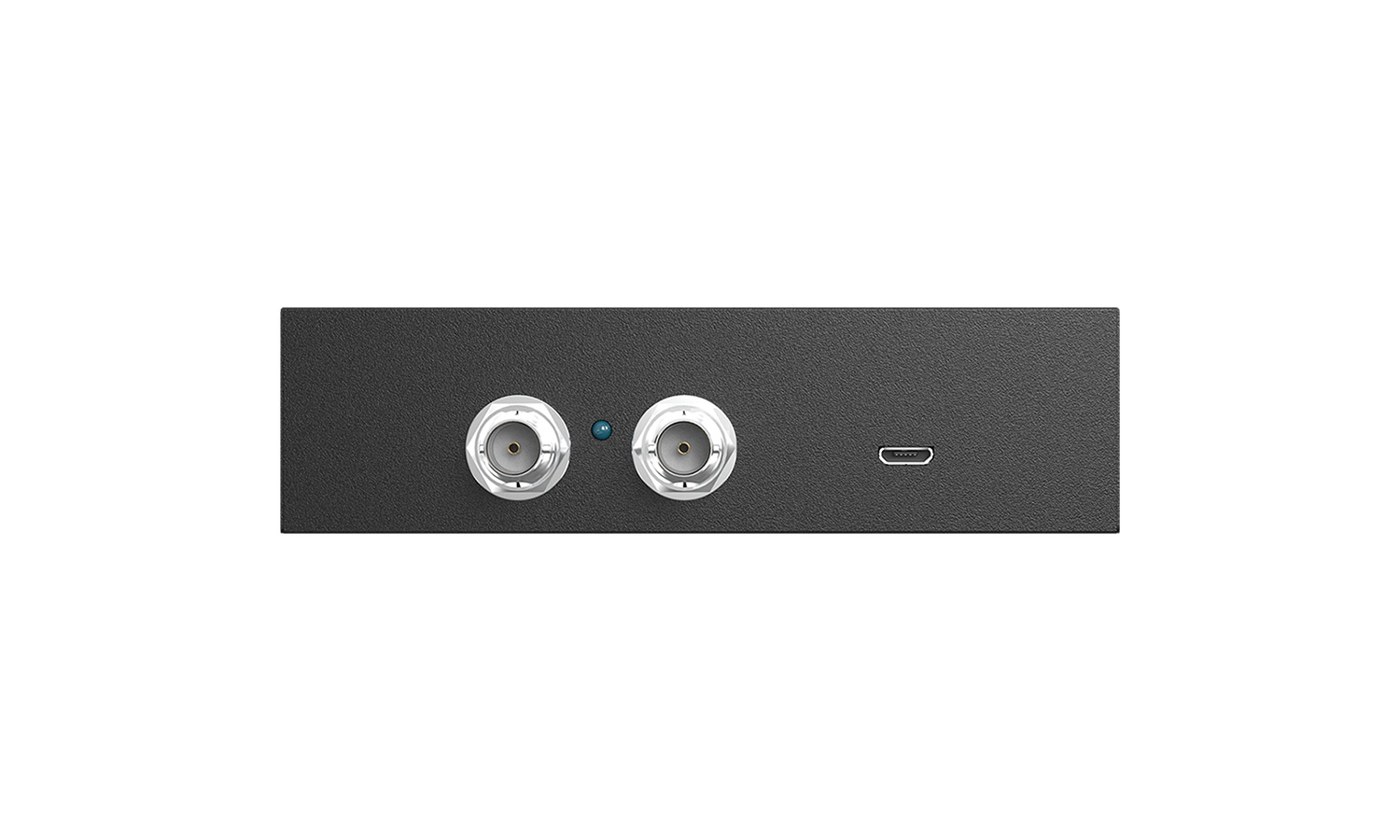

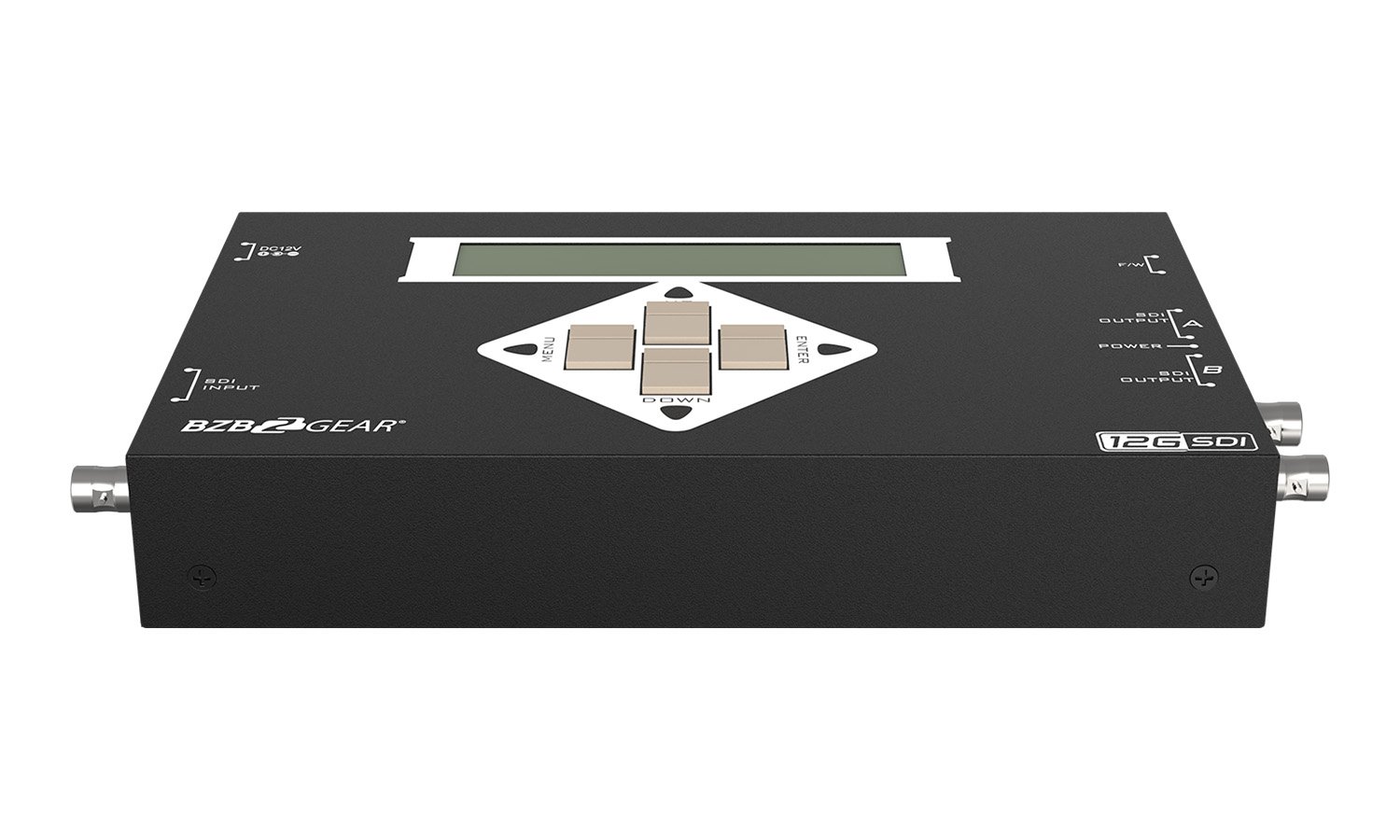

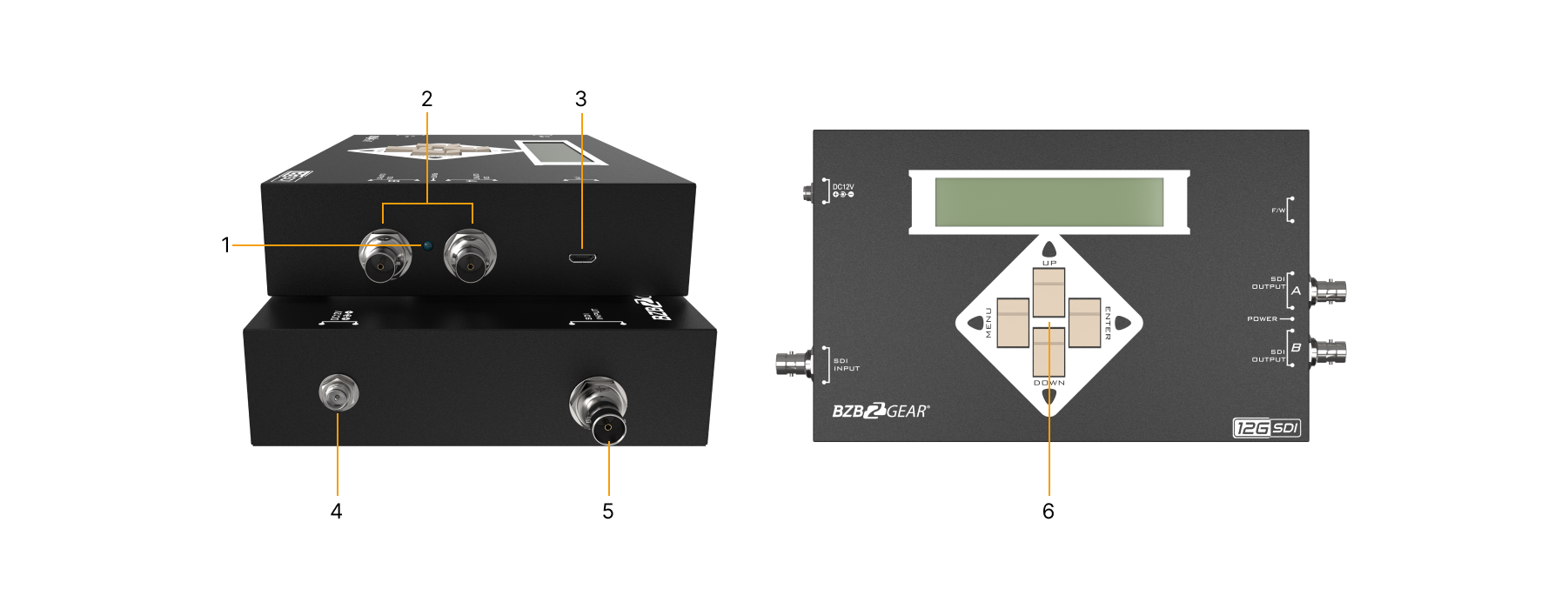

Interface
1.
Power LED indicator: Illuminates when device is powered on.
2.
SDI OUTPUT: Connect to an SDI device for SDI signal output either from the chosen pattern or the SDI source signal.
3.
Mini-USB: Firmware update.
4.
+12V DC: Connect to a 12V DC power supply unit.
5.
SDI INPUT: Connect to an SDI source.
6.
PUSH BUTTONS: Menu, Enter, Up, Down.
Videos


Professional Grade 4K Video Test Pattern Generators, Testers & Analyzers
BG-SDITPG 12G SDI Test Pattern Generator Overview
Easily Test Professional Grade 4k SDI Displays With The 12G SDI BG-SDITPG
BZBGEAR BG-SDITPG 12G/6G/3G/HD/SD-SDI Pattern Generator

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual
Product Brochure



Package Contents
① 1x BG-SDITPG
② 1x 12V power supply unit
③ 1x User Manual
