BG-PT5X-IPHDSD

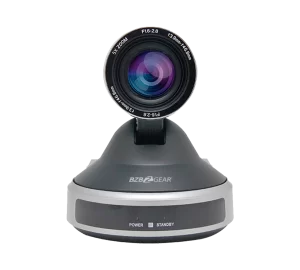

PTZ 5X Zoom Full HD Live Video Streaming Camera with HDMI/SDI/USB3.0
PTZ 5X Zoom Full HD Live Video Streaming Camera with HDMI/SDI/USB3.0
Out of stock
PTZ 5X Zoom Full HD Live Video Streaming Camera with HDMI/SDI/USB3.0
SKU: BG-PT5X-IPHDSD
Video conferencing camera BG-PT5X-IPHDSD is widely used in video conference system, remote learning, telemedicine, live streaming, broadcasting and so on.
MSRP $1399.00*
*Pricing is for US only. International pricing will vary.Features
- Optical zoom: 5x optical zoom, Wide Angle: 84.5°
- Dual IP-Stream(H.264/MJPEG), H.264/H.265 and MJPEG compression enabling Full HD video stream by ultra low bandwidth over RTSP, TCP/IP, HTTP, etc.
- HDMI+SDI+IP+USB+RS232(Input)+RS422/485+LINE IN
- Remote Control: Can Controlled by RS232/RS485,and remote controller
- Wall mounting, desktop or ceiling mounting
- Support Onvif, Vmix, Wirecast softwares, etc.
Specifications
| Image Sensor | SONY 1/2.8" Progressive CMOS |
| Effective Pixels | 3.10 Megapixels |
| Resolution | 1080p60/50, 1080i60/50, 1080p30/25,720p60/50 |
| Signal System | PAL/NTSC |
| Lens | 5X optical zoom f=3.2mm(w)~14.4 mm(f) F2~F2.8 |
| Horizontal View Angle | 84.5°(W)~23.9°(T) |
| Pan | 355°(max. speed:80°/s) |
| Tilt | -30° to +30° (max. speed: 60°/s) |
| Focus System | Auto/Manual |
| S/N Ratio | ≥50db |
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC |
| Minimum Illumination | 0.1Lux |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/Bright |
| Shutter Speed | 1/1~1/10,000s |
| Gain | Auto/Manual |
| White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor |
| Image Effect | Full color/black and white/Electronic flip |
| Video Output HD | HDMI, USB, SDI, IP |
| Other Input | Line In |
| Control Protocol | SONY VISCA, PELCO P/D |
| Control Mode | RS-232C, RS-422/485 |
| Power | 12V DC(10.8~13.0V DC) |
| Power Consumption | Max. 12W(DC 12V) |
| Operating Temperature | 0~40°C |
| Storage Temperature | -20-60°C |
| Camera Dimensions | (L)164 ×(W)148 ×(H)173mm |
| Weight | 1050g |
| Color | Black |
Package Contents
① 1x Camera
② 1x IR Remote
③ 1x DC 12V power adapter
④ 1x RS-232C Cable
⑤ 1x HDMI cable
⑥ 1x USB Cable
⑦ 1x User Manual
② 1x IR Remote
③ 1x DC 12V power adapter
④ 1x RS-232C Cable
⑤ 1x HDMI cable
⑥ 1x USB Cable
⑦ 1x User Manual
Warranty: 3 years
