BG-PT20X-IPHDSD

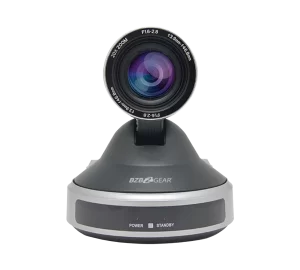

PTZ 20X Zoom Full HD Live Video Streaming Camera with HDMI/SDI/USB3.0

PTZ 20X Zoom Full HD Live Video Streaming Camera with HDMI/SDI/USB3.0

SKU: BG-PT20X-IPHDSD

The high-quality BG-PT20X-IPHDSD 20X optical zoom/wide angle PTZ Camera offers an HD 1080P@60Hz video signal and multiple functionalities suited for Houses of Worship, Video Conferencing, Education and Live Events. This aesthetically desirable camera is equipped with an array of connections including HDMI, 3G-SDI, USB 3.0, LAN, RS-232, RS-422 and comes with an IR remote. Stream your High Definition video stream over RTSP, TCP/IP and HTTP using H.264/H.265 compression. Supportive of VISCA and PELCO P/D protocols, easily connect a BG-CAM-JOY controller to simplify control.  With multiple methods of mounting, locating this camera is extremely convenient.

MSRP $1499.00*

*Pricing is for US only. International pricing will vary.
Features
  • 20X optical zoom , 3.1 Megapixels
  • HDMI, 3G-SDI, USB3.0, IP outputs, UVC control, POE optional
  • Support H264/H.265, MJPEG compression enabling,full hd video stream over RTSP, TCP/IP, HTTP
  • Support IR remote control, RS232/485 serial controls
  • Support VISCA and Pelco P/D protocol
  • 9 preset positions by Visca, 200 preset positions by Pelco
  • Support desktop Tripod, Pole and ceiling mount
Specifications



Image Sensor1/2.5″ Image Sensor
Effective Pixels3.10 Megapixels
Resolution1080p60/50, 1080i60/50, 1080p30/25
Signal SystemPAL/NTSC
Lens20X optical zoom
f=4.7mm(wide)-94.0mm
(far end) F1.6~F2.8
Horizontal View Angle72.5°(W)~6.55°(T)
Pan355°(max. speed:80°/s)
Tilt-30° to +90° (max. speed: 60°/s)
Focus SystemAuto/Manual
S/N Ratio≥50db
Preset Position9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
Minimum Illumination0.1Lux
Exposure ControlAuto/Manual/Priority AE/Exposure Compensation/Bright
Shutter Speed1/1~1/10,000s
GainAuto/Manual
White BalanceAuto/Manual/ATW/One-click/Indoor/Outdoor
Image EffectFull color/black and white/Electronic flip
Video Output HDHDMI, SDI,USB3.0, IP
Other OutputLine In
Control ProtocolSONY VISCA, PELCO P/D
Control ModeRS-232C, RS-422/485
Power12V  DC(10.8~13.0V DC)
Power ConsumptionMax. 30W(DC 12V)
Operating Temperature0~40℃
Storage Temperature-20-60℃
Camera Dimensions(L)147 ×(W)147 ×(H)165 mm
Weight870 g
ColorBlack
CertificateISO/CE/FCC/ROSH





Package Contents
① Camera
② DC 12V power adapter
③ IR Remote,
④ RS-232C Cable
⑤ HDMI cable
⑥ USB Cable
⑦ Ceiling bracket
⑧ Operation manual


Device Interface

See full description of the connections here


Warranty: 3 years
