Overview

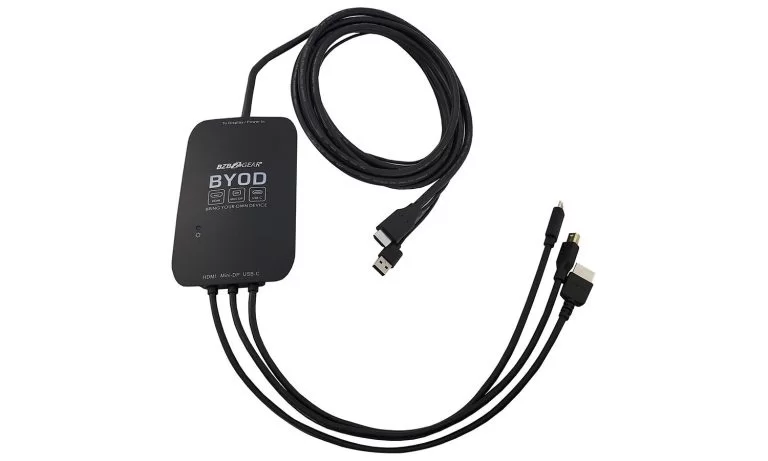

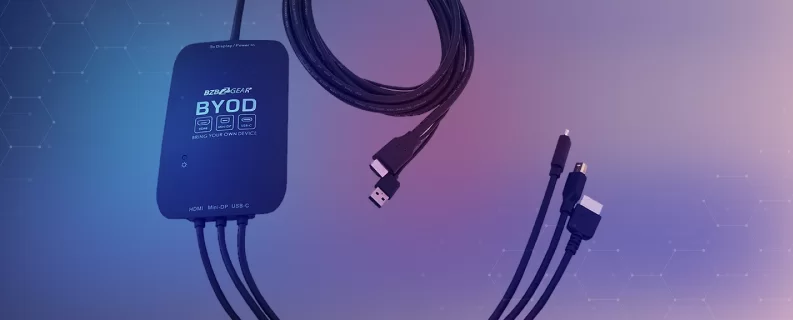

The BG-PS-BYOD-4K is a simple to connect 3X1 Multi-format Presentation Switcher transmitting AV signals from HDMI, Mini DP (DisplayPort) and USB type-C input to a single HDMI 2.0 output.
The BG-PS-BYOD-4K is a green low energy consumption product which has a various application in an array of environments, such as classroom, small meeting room, lecture hall, and etc.
Features
- Supports HDMI, Mini DP and USB-C input signals to be converted to HDMI signals
- Auto-detects the input signal, the last connected signal source will be switched to the output automatically
- Starts to scan from HDMI to USB-C and switch the first detected source to output
- Supports Mini DP and USB-C input video resolution up to 4K@60Hz 4:4:4
- Supports HDMI input and output video resolutions up to 4K@60Hz 4:4:4 HDR and Dolby Vision
- HDCP 2.2 compliant
- Powered via USB-A from display end
- LED for power indicating
Tech Specifications
| Input | |
| Connector Type | (1) Type-A HDMI, (1) Mini DP, (1) Type-C USB |
| HDMI Video Resolution | Up to 4K@60Hz 4:4:4, HDR |
| Mini DP Video Resolution | Up to 4K@60Hz 4:4:4 |
| USB-C Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDMI Audio | LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| HDMI Version | 2.0 |
| DP Version | 1.2 |
| HDCP Version | HDCP 2.2 compliant. |
| HDMI/Mini DP/USB-C Input Cable Length | 30cm |
| Output | |
| Connector Type | (1) Type-A HDMI, (1) Type-A USB |
| HDMI Version | 2.0 |
| DP Version | 1.2 |
| HDCP Version | 2.2, Pass-through |
| Video Resolution | Up to 4K@60Hz 4:4:4, HDR |
| HDMI Output Cable Length | 300cm |
| USB-A Cable Length | 150cm |
| General | |
| Operation Temperature | -5 ~ +55°C |
| Storage Temperature | -25 ~ +70°C |
| Relative Humidity | 10% ~ 90% |
| Power Supply | Powered via USB-A from display end. |
| Power Consumption | Max. 1.8w |
| Dimension (W*H*D) | 5.3in x 3.3in x 0.79in [135mm x 83mm x 20mm] |
| Net Weight | 0.8 lbs [370g] (Including cables) |
Resources
Documents
PACKAGE CONTENTS
- 1x BG-PS-BYOD-4K
- 1x User Manual
