BG-ND-30XDSR

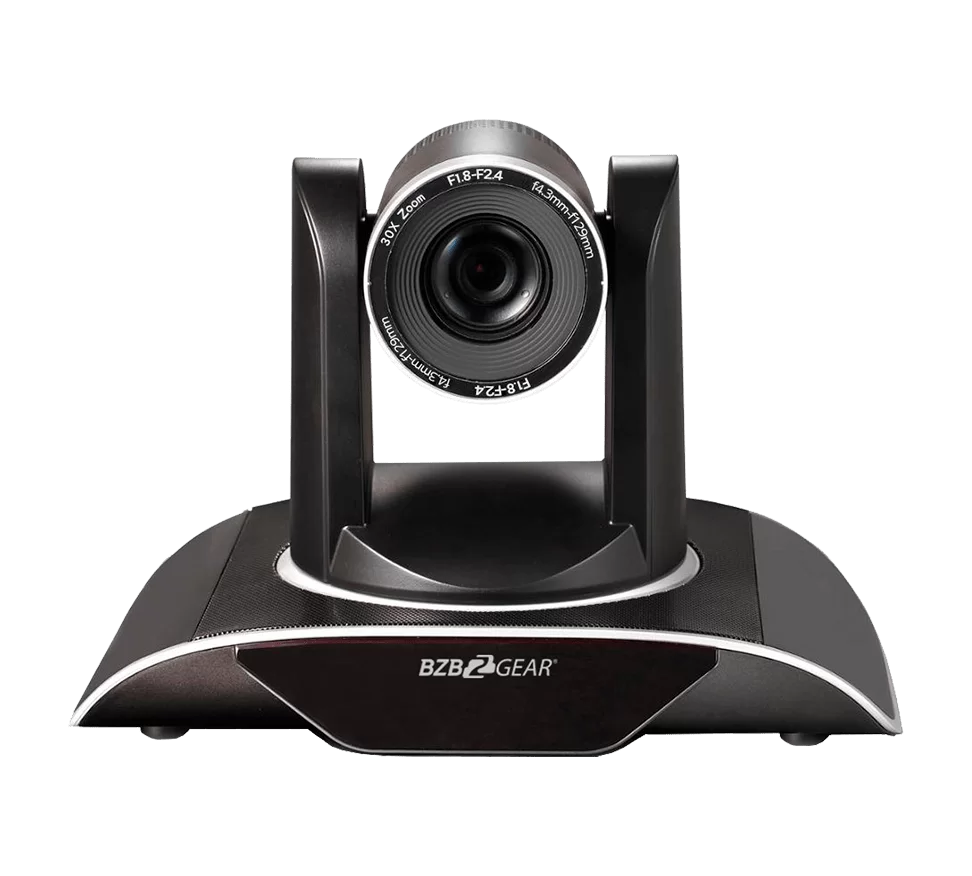

PTZ 30X NDI HDMI/DVI 3G-SDI RS232/485 Live Streaming Camera

PTZ 30X NDI HDMI/DVI 3G-SDI RS232/485 Live Streaming Camera

SKU: BG-ND-30XDSR

This camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

MSRP $1999.00*

*Pricing is for US only. International pricing will vary.
Features
  • Superb High-definition Image. The camera employs 1/2.8 inch 2.07 megapixel high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
  • Various Optical Zoom Lens. The camera has 30X optical zoom lens for options.
  • Leading Auto Focus Technology. Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
  • Low Noise and High SNR. Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
  • Audio Input Interface (for future development). Support 8000, 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
  • Wide-range, Quiet and Quick Pan/Tilt Mechanism. By adopting step driving motor mechanism, this camera works extremely quiet and moves smoothly.
  • Multiple Audio/Video compression. Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
  • Multiple Network Protocol Support. NDI (additional option), ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
  • Wide Application. Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
  • Low-power sleep function. Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
Specifications



Model/Zoom BG-ND-30XDSR 30X
Camera Parameters
Optical Zoom 30X

f=4.3~129mm

Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9  2.07 megapixel
Video Format

1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97

View Angle 4.3°(tele)–54.7°(wide)
AV F1.8 ~ F2.4
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve
SNR >55dB
Input/Output Interface
Video Interfaces

3G-SDI, DVI (HDMI), LAN, RS232 (IN/OUT), RS485, A-IN

Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Signal Interface RS-232 Ring through RS232 output
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface Double track 3.5mm linear input;
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP Interface 100M IP port(100BASE-TX); 5G WiFi (optional),

Support Visca protocol control through IP port.

Network Protocol RTSP/RTMP, ONVIF, GB/T28181, NDI (Additional option)
Power Interface HEC3800 outlet (DC12V)
PTZ Parameters
Pan Rotation ±170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1 -100°/sec
Tilt Control Speed 0.1-45°/sec
Preset Speed Pan: 100°/sec,Tilt: 45°/sec
Preset Number 255 presets (10 presets by remote controller)
Other Parameters
Supply Adapter AC110V-AC220V to DC12V/1.5A
Input Voltage DC12V±10%
Input Current 1A(Max)
Consumption 12W (Max)
Store Temperature -10°C~+50°C
Store Humidity 20% – 95%
Working Temperature -10°C~+50°C
Working Humidity 20%–80%
Dimension 258mm x 172mm x 168mm
Weight 1.54KG
Remote Operation (IP) Remote Upgrade, Reboot and Reset





Package Contents
① Camera
② Power supply
③ RS232 control cable
④ Remote Control
⑤ Bracket (optional)
⑥ Operation manual


Warranty: 3 years
