Medical-Grade Medical Equipment Roll Stand with 10X PTZ Camera & Speakerphone for Enhanced Care

Configure the Perfect Solution
Get Started

Overview

The BG-MR700-HSU10X-4M Medical Cart Kit stands as a meticulously tailored solution, precisely crafted to meet the specific demands of healthcare professionals. This kit seamlessly integrates a versatile medical cart, the cutting-edge BG-SMB-4M Speakerphone, and the high-performance BG-VPTZ-HSU3 Medical Camera.

Collectively, these components create a comprehensive telemedicine and communication solution designed for medical environments, providing indispensable features and capabilities. Elevating patient care, streamlining remote collaboration, and supporting medical education, this kit represents a holistic approach to advancing healthcare practices.

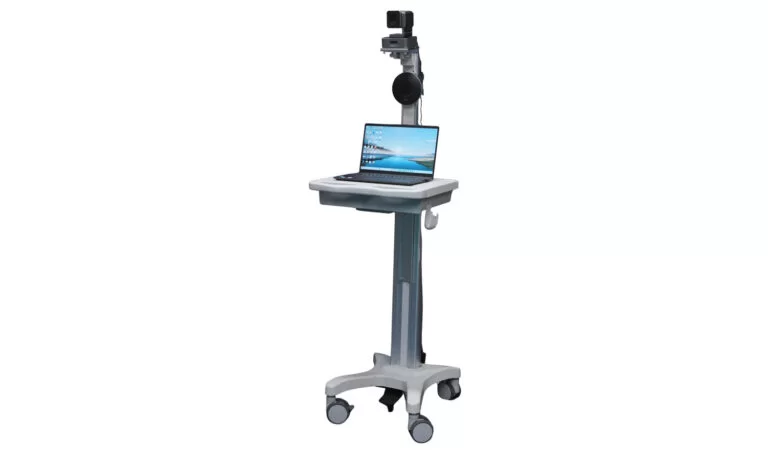

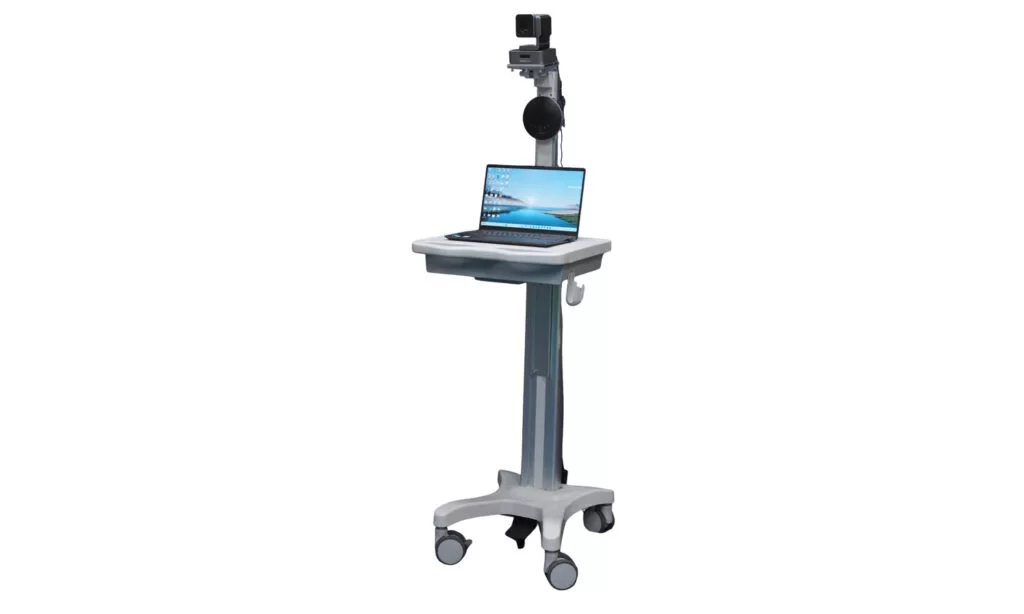

BG-MR700-HSU10X-4M Kit: Medical Cart

Wheel Base: The cart is equipped with a 4-wheel base for easy and stable movement.

Camera Pole Top Holder: It includes a holder at the top of the camera pole for secure mounting of medical cameras or other devices.

Controller Hanger: The cart features a hanger for convenient storage of medical equipment controllers.

Small Table Top: There is a small tabletop on the cart for additional workspace or equipment placement.

Adjustable Pole Height: The pole at the top of the cart is variable in height, ranging from 48 inches to 64 inches, allowing for flexibility in use.

Mouse Holder: It includes a mouse holder for easy access and storage.

Keyboard Drawer: The cart features a keyboard drawer for comfortable and convenient use of a keyboard, enhancing usability.

BG-MR700-HSU10X-4M Kit: BG-SMB-4M

Introducing the BG-SMB-4M: The BG-SMB-4M stands out as a versatile USB/Bluetooth desktop speakerphone, offering an impressive 360-degree audio pickup that extends up to 4 meters. The device is equipped with a sophisticated high-fidelity omnidirectional microphone, ensuring comprehensive coverage with a range of up to 12 feet.

Connectivity and Portability: Seamlessly connecting to laptops, smartphones, and tablets through USB or Bluetooth, this speakerphone provides a portable solution. It features a rechargeable battery that offers up to 4 hours of on-the-go performance. The 3.5mm headset port adds flexibility, allowing a smooth transition from conference calls to private conversations.

Advanced Audio Technologies: To enhance the audio experience, the speakerphone incorporates advanced features such as full-duplex echo cancellation, noise reduction, and ultra-wideband HD voice technology. These technologies work together to guarantee a crystal-clear audio experience, eliminating echoes and distortions.

Impressive Volume Capabilities: The speaker boasts impressive volume capabilities, reaching up to 85dB, making it suitable for various settings. Additionally, the inclusion of a line-out connection ensures optimal sound output when higher volume levels are required.

BG-MR700-HSU10X-4M Kit: BG-VPTZ-HSU3

High-Quality Imaging: The camera can capture images at resolutions up to 1080p@60Hz, ensuring high-quality visuals. This is especially important in a medical setting where clear and detailed images are crucial for accurate diagnosis and communication.

Multiple Output Options: The camera offers simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. This versatility allows it to seamlessly integrate with various equipment and software commonly found on medical carts, such as monitors and recording devices.

Audio Integration: The 3.5mm audio input jack allows for audio to be embedded directly into the video stream. In a medical context, this can be valuable for capturing and transmitting audio from medical procedures, discussions, or patient interactions along with the video.

Video Compression and Streaming Support: The camera supports H.264 and H.265 video compression formats and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols. This makes it compatible with a wide range of streaming and recording platforms used in healthcare, facilitating remote consultations, telemedicine, and medical education.

Control Options: The camera can be controlled using various protocols, including RS-232, RS-485, LAN, or IR remote control. This flexibility allows medical professionals to adjust the camera’s position and settings easily, ensuring optimal viewing angles during medical procedures or consultations.

Features

  • badge-Full-hd | 1080P HD
    Full HD Video
    The BG-VPTZ-HSU3 PTZ camera outputs a clear 1080p@60Hz video feed
  • 2 Omnidirectional microphones | MICROPHONE INPUT | 360° MICROPHONE PICKUP
    360° Audio Pickup
    The BG-SMB-4M is equipped with an omnidirectional microphone, enabling clear communication in busy environments
  • Adjustable Medical Cart
    Adjustable Medical Cart
    Adjust the height of the medical cart for ease of use
  • Medical Cart Accessories
    Medical Cart Accessories
    The medical cart comes equipped with a keyboard drawer and mouse holder to enhance comfort and organization
  • Versatile Mounting Options
    Secure Device Mounting
    The medical cart is equipped with secure mounts for your camera and speakerphone and offers a secure space for laptops
  • Efficient Cable Management
    Efficient Cable Management
    The medical cart is designed to ensure clean and organized cable management

Tech Specifications

Medical Cart
Hardware Specifications
Load Capacity 44.1 lbs [20kg]
Adjust Way Gas spring inside
Height Adjust Range 15.7in [400mm]
Trolley Top to Grand Height 47.2 ~ 63in [1200 ~ 1600mm]
Screen Arm 130mm, Tilt Angle 0~15°, Horizontal Rotate ±90°
Tablet 20.1in x 18.5in x 1.4in [510 x 470 x 36mm]
Keyboard Drawer 16.3 x 6.2in [413 x 158mm]
Base 18.1 x 20.9in [460 x 530mm]
Caster 4-inch, All with brakes
Material Aluminum alloy+Sheet metal+ABS
Package Size 22.4 x 20.1 x 17.1in + 5.9 x 0.8 x 0.5in
57 x 51 x 43.5cm + 150 x 20 x 13mm (1PCS in 2 Carton)
Certificates ISO13485/ISO9001/CE/FDA
Environmental Specifications
Temperature Range Operating 32°F ~ 104°F / 0°C ~ +40°C
Storage -40°F ~ 158°F / -40°C ~ +70°C
Humidity Range Operating 15% - 95 %, non-condensing
Storage 10% - 95 %, non-condensing
Altitude Range Operating -500 ~ +4.600 m (57.0kPa ~ 106.0kPa)
Storage -500 ~ +4.600 m (50.0kPa ~ 106.0kPa)

PACKAGE CONTENTS

Video

  • 1x BG-VPTZ-HSU3 Camera
  • 1x IR Remote Controller
  • 1x RS-232 to DB 9pin Cable
  • 1x 12V/ 2.0A DC Power Adapter
  • 1x User Manual

Audio

  • 1 x BG-SMB-4M
  • 1 x 1.8M USB Cable
  • 1 x User Manual

Medical Cart

  • 1 x Pole
  • 1 x Arm
  • 1 x Mouse Stand
  • 1 x Base
  • 1 x Lifting Pedal
  • 1 x Caster
