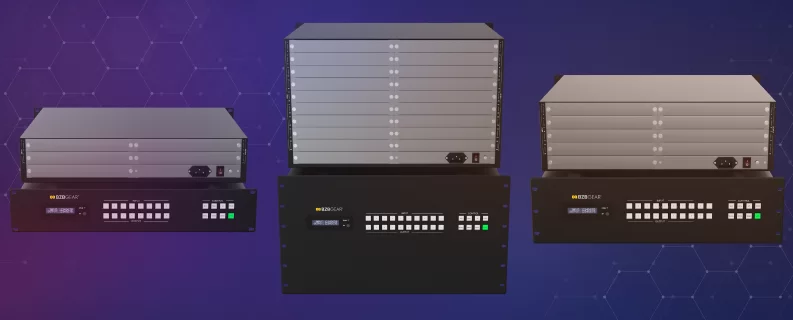

BG-MC-88M-1 BG-MC-1616M-1 BG-MC-3636M-1

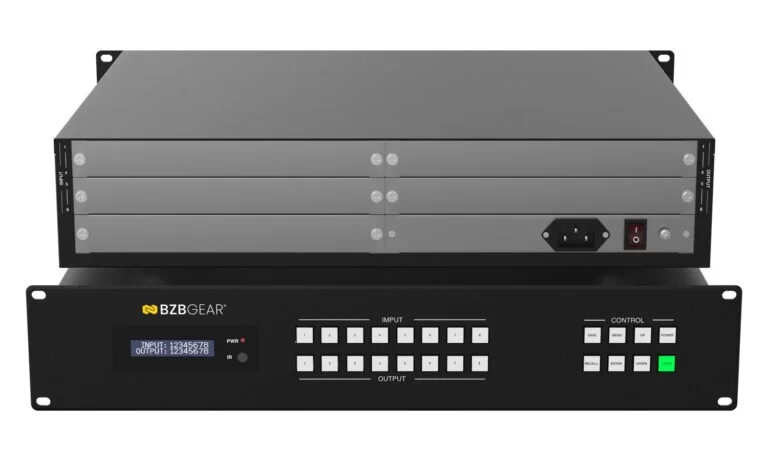

BG-MC-88M-1

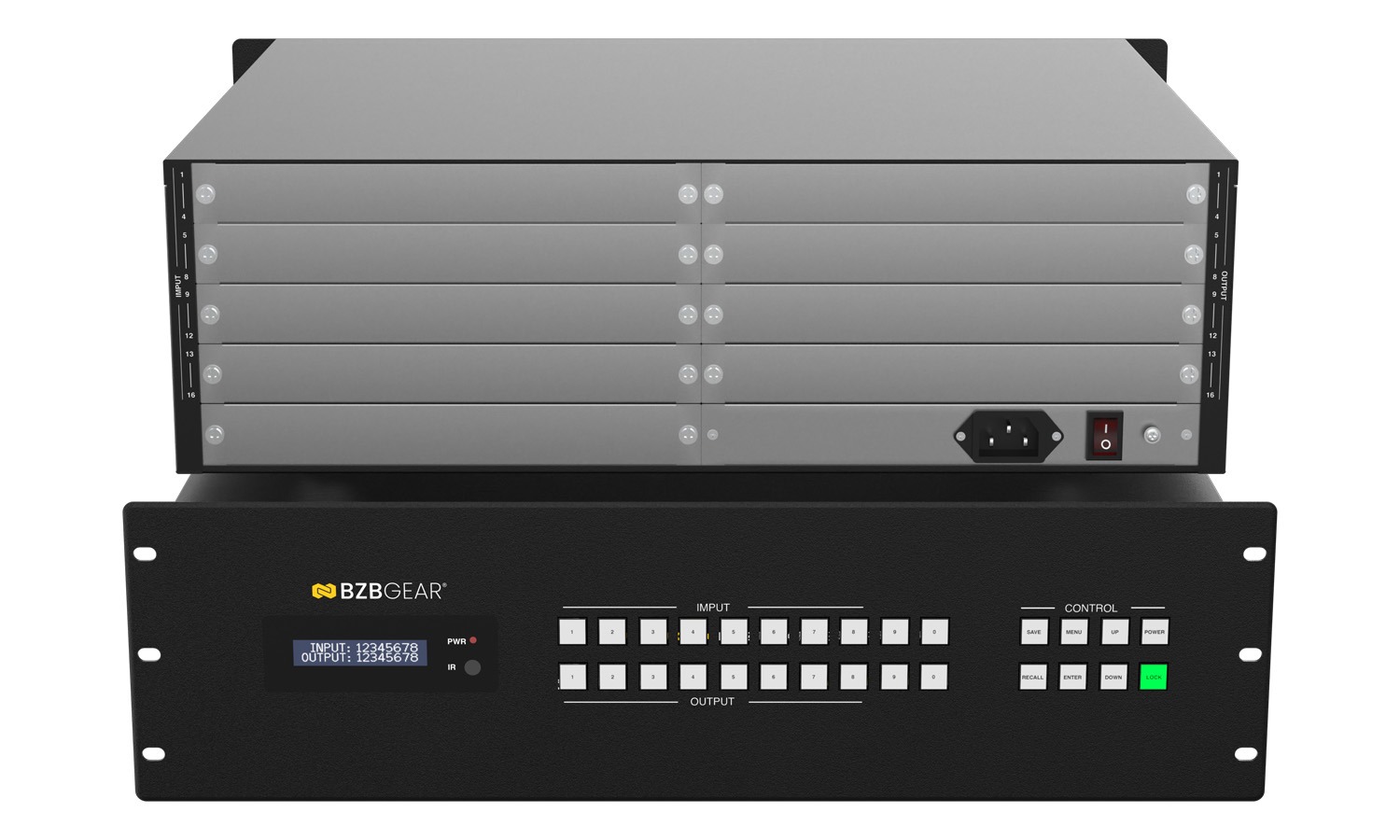

BG-MC-1616M-1

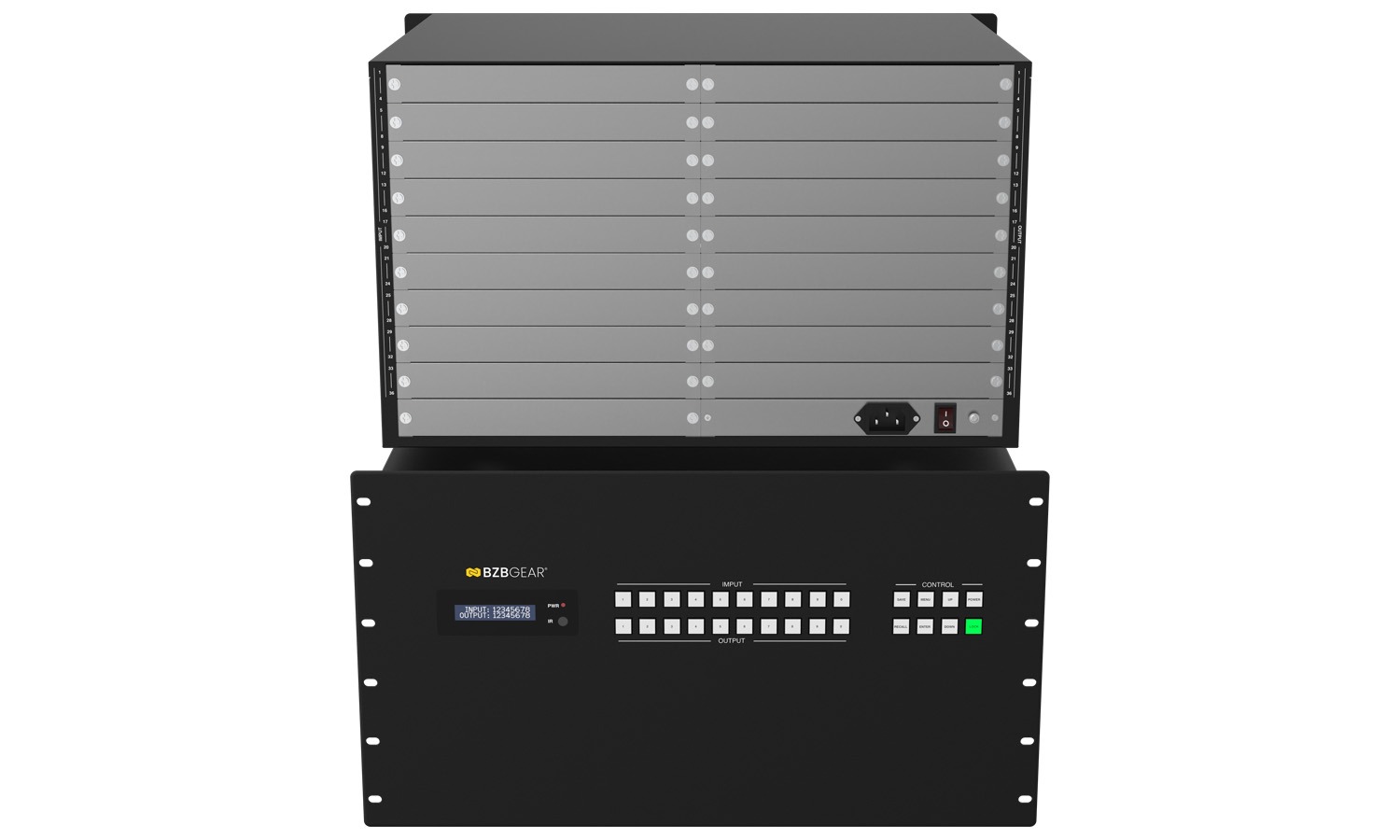

BG-MC-3636M-1
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Resources Package contents Trade In

Overview

The BG-MC-SERIES Modular Seamless Switching Matrix is a professional-grade AV solution engineered for demanding signal management environments. Supporting up to 8-36 inputs and outputs, it delivers powerful, real-time switching, distribution, and control with zero latency or signal degradation. Designed for mission-critical installations, this all-in-one system integrates a high-performance video wall processor, seamless switching technology, and intelligent control capabilities. Whether deployed in control rooms, broadcasting studios, corporate AV systems, or large-scale video walls, the BG-MC-SERIES ensures pristine 4K60 (4:4:4) image quality and uncompromised reliability across every connected display.

With its modular, pluggable architecture, the BG-MC-SERIES provides unmatched scalability and flexibility. Input and output modules are available for HDMI, DVI-U, VGA, SDI, HDBaseT, and fiber interfaces-each offering four channels per card. This adaptable design allows system integrators to tailor configurations to specific application requirements while maintaining consistent, seamless video performance. Combined with comprehensive audio embedding and de-embedding, intelligent EDID management, and multi-protocol control options, the BG-MC-SERIES delivers a complete and future-ready AV distribution platform.

In-Depth Technical Description

At its core, the BG-MC-SERIES is built upon a high-speed pure hardware matrix switching architecture that eliminates compression and latency. Its 18Gbps video bandwidth supports full HDMI 2.0b specifications, enabling transmission of 4Kx2K@60Hz video with 24-bit deep color and HDCP 2.2 compliance. The system’s advanced backplane design ensures full digital signal processing across all channels, maintaining image fidelity and color accuracy even in complex, multi-display setups. Each signal path is optimized through integrated equalization and re-clocking technology, ensuring consistent quality over long cable runs and through multiple signal conversions.

Seamless switching is a defining feature of the BG-MC-SERIES, allowing transitions between inputs without flicker, tearing, or black frames. Its integrated Gen-Lock synchronization ensures sub-0.1ms latency between outputs for precise, synchronized video wall splicing. The internal video processing engine supports flexible wall configurations up to 36x36, offering pixel-perfect alignment and scaling for both LCD and LED display arrays. On the audio side, the system supports LPCM 2.0CH analog audio embedding and de-embedding, allowing simultaneous handling of both digital and analog signals for versatile AV integration.

Control flexibility is central to the BG-MC-SERIES. Users can manage the system via front panel controls with an LCD interface, IR remote, RS-232, TCP/IP, or intuitive Web GUI. Its built-in intelligent control platform supports 64 scene presets, providing instant recall of custom configurations for rapid operation. Designed with a robust chassis, quiet cooling fans, and an integrated power supply, the BG-MC-SERIES is engineered for continuous, reliable performance in professional AV environments.

Features

  • One-Push Source Switching
    Seamless 4K Switching
    Zero-latency transitions between sources with no tearing or black screens
  • fluent-mdl2_customize-toolbar
    Modular Card Architecture
    Pluggable input/output modules for HDMI, SDI, HDBaseT, fiber, and more
  • video-wall2-icon
    Ultra-Low Latency Gen-Lock
    Synchronizes outputs for precise video wall splicing (
  • Compact Design
    Scalable Design
    Expandable from 8x8 up to 36x36 configurations for flexible installations
  • Four Control Modes
    Comprehensive Control Options
    Operate via front panel, RS-232, LAN, IR, Web GUI, or PC software
  • ion_hardware-chip-outline
    Integrated Video Wall Processor
    Supports advanced multi-screen layouts with perfect synchronization
    • HDCP 2.2 compliance for secure 4K UHD content transmission
    • HDMI 2.0b standard with 18Gbps video bandwidth
    • Supports up to 3840x2160@60Hz (4:4:4, 24-bit) and 1920x1200@60Hz resolutions
    • Full digital signal processing with 12-bit deep color support
    • Signal optimization through equalization and redriving
    • Embedded and de-embedded LPCM 2.0CH analog audio
    • Internal or display-copy EDID management
    • Video enhancement engine for adjustable output quality
    • 64 user-definable scene presets
    • Silent fan cooling for stable, low-noise operation
    • Integrated AC power module for reliable performance
    • Rack-mountable design for streamlined installation

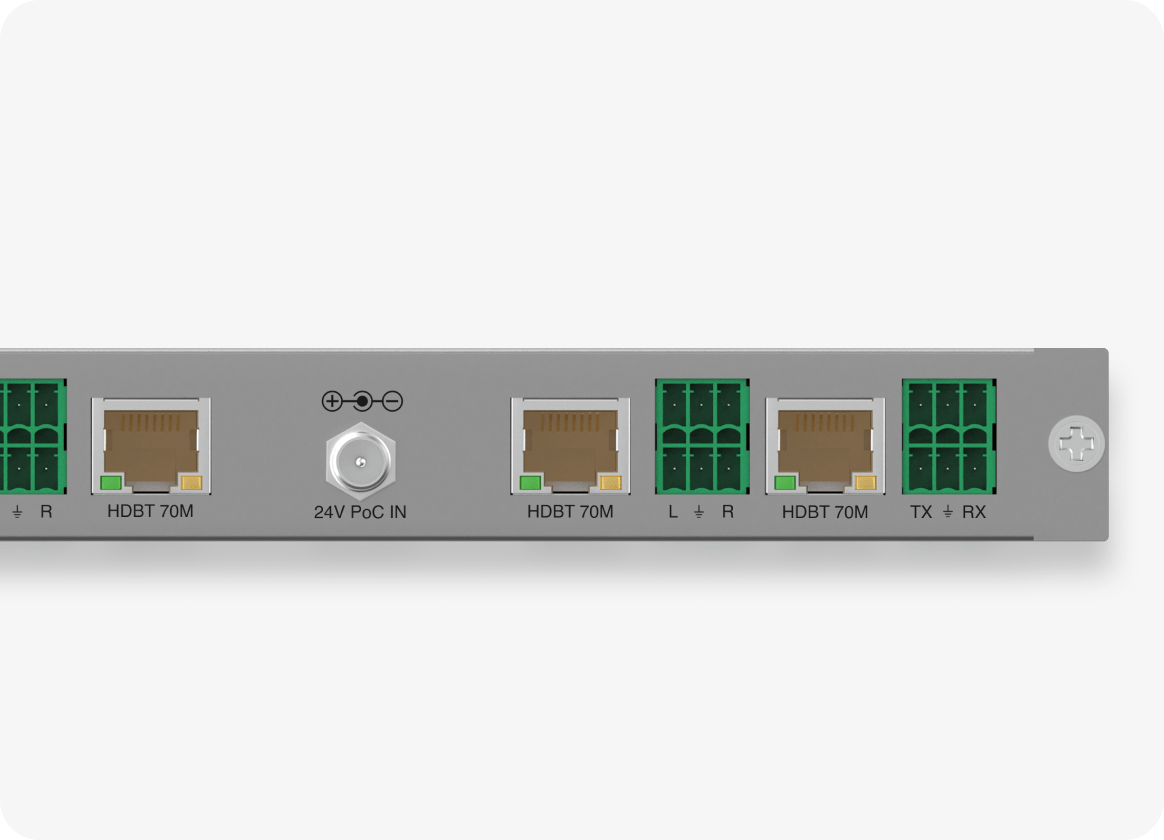

Modular Card Architecture

The BG-MC-SERIES features a fully modular design with pluggable input and output cards, allowing system integrators to mix and match signal types such as HDMI, SDI, HDBaseT, DVI, VGA, and fiber within the same chassis. Each card includes four channels, providing exceptional flexibility for adapting to different source and display requirements.

This modularity not only simplifies system customization and future upgrades but also minimizes downtime—modules can be swapped or added without affecting other system components.

Scalable Design

Built to grow with your system, the BG-MC-SERIES supports configurations ranging from 8×8 to 36×36, making it ideal for both small- and large-scale AV installations. Its scalable framework enables seamless expansion as your needs evolve, eliminating the need to replace the entire system when additional inputs or outputs are required.

Whether used in a conference room, broadcast facility, or control center, this scalability ensures long-term adaptability and maximum return on investment.

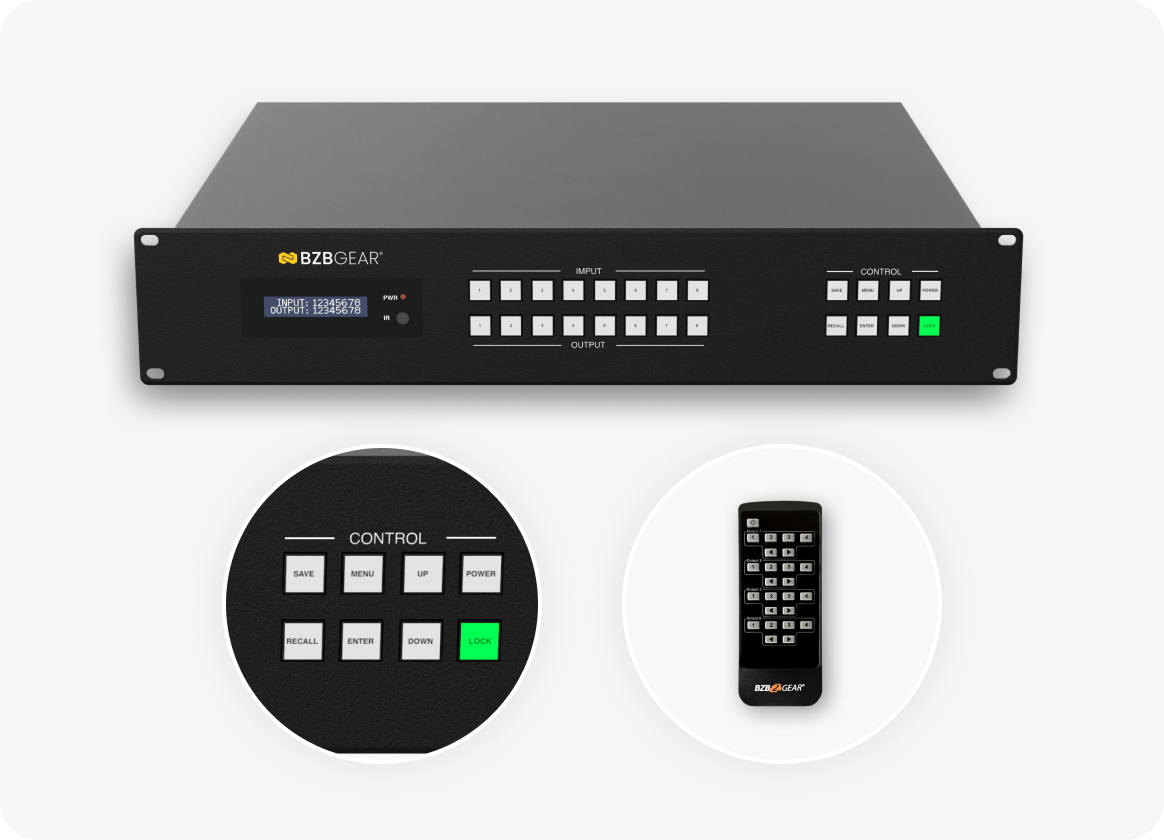

Comprehensive Control Options

Offering multiple control pathways, the BG-MC-SERIES gives users complete flexibility in operation and integration. Manage system functions directly through the front panel LCD buttons for on-site adjustments, or take control remotely via RS-232, LAN, IR, intuitive Web GUI, or PC-based software.

This wide array of control methods makes it easy to integrate into automation systems, central management platforms, and complex AV networks—ensuring effortless operation and quick configuration in any environment.

Integrated Video Wall Processor

The BG-MC-SERIES includes a built-in video wall processor that enables seamless creation of multi-screen display configurations without the need for external equipment. It supports advanced splicing and scaling functions, allowing users to arrange multiple displays into customized layouts such as 2×2, 3×3, or even larger 8×8 configurations with pixel-perfect precision. With its Gen-Lock synchronization technology, the system ensures all screens display synchronized content with ultra-low latency, delivering smooth, tear-free visuals that are ideal for command centers, digital signage, and large-scale presentation environments.
