BG-M88S-H2A-KIT
8X8 HDMI2.0 18Gps [email protected] 4:4:4 HDBT Video And Audio Matrix Switcher with 8 Receivers
8X8 HDMI2.0 18Gps [email protected] 4:4:4 HDBT Video And Audio Matrix Switcher with 8 Receivers
8X8 HDMI2.0 18Gps [email protected] 4:4:4 HDBT Video And Audio Matrix Switcher with 8 Receivers
SKU: BG-M88S-H2A-KIT
POWER OVER CAT5E/6/7
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
GUI/WEB UI
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.

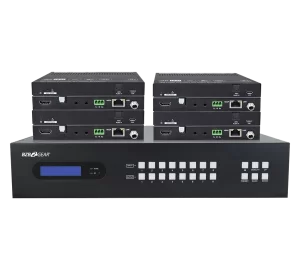

The BZBGEAR BG-M88S-H2A-KIT is an eight-input by eight-output HDBaseT and HDMI matrix with HDCP 2.2 and up to 4K/[email protected] video support. It transmits 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 230 feet (70 meters) over a single CATx Ethernet cable. The eight HDBaseT outputs support 24V power over Cat5e/6/7 feature, allowing the receivers to draw their power from the matrix over the HDBaseT cable. BZBGear BG-M88S-H2A-KIT matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources.
The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options. BZBGear BG-M88S-H2A-KIT provides performance in control and transmission, which could be used in several different installation scenarios, for example, with computers, for monitoring purposes, large screen displays, conference systems, television education, bank security institutions, etc.
MSRP $4999.00*
*Pricing is for US only. International pricing will vary.Features
- 8x8 HDBaseT matrix switcher with audio matrix
- Fully compliant with the HDMI 2.0 and HDCP 2.2
- Supports HDMI resolution up to [email protected] 4:4:4, HDR10
- Features eight mirrored HDMI outputs for eight HDBaseT outputs, and the eight HDMI outputs support 4K to 1080p down-scaling
- The eight HDBaseT outputs support 24V power over Cat5e/6/7, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable
- Transmits 4K signal to the distance up to 131 feet (40 meters) and 1080p signal to the distance up to 230 feet (70 meters) over a single CATx Ethernet cable
- Supports audio matrix. Provides eight digital SPDIF audio outputs and eight analog L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the eight digital SPDIF audio outputs supports ARC audio output from receivers
- Volume adjustment for analog L+R audio outputs
- Supports comprehensive EDID management and advanced HDCP handling
- Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI)
Specifications
POWER OVER CAT5E/6/7
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
GUI/WEB UI
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
Matrix Switcher
| Video Input | |
| Input | (8) HDMI |
| Input Connector | (8) Type-A female HDMI |
| HDMI Input Resolution | Up to [email protected] 4:4:4, HDR10,1080p 3D |
| Video Output | |
| Output | (8) HDBaseT, (8) HDMI |
| Output Connector | (8) RJ45, (8) Type-A female HDMI |
| HDMI Output Resolution | Up to [email protected] 4:4:4, HDR10, 1080p 3D. Supports 4K to 1080p down-scaling. |
| HDBaseT Output Resolution | Up to [email protected] 4:2:0 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Audio Output | |
| Output | (8) Stereo analog L+R audio, (8) Digital SPDIF audio |
| Output Connector | (8) 3-pin terminal blocks, (8) Toslink connectors |
| Analog L+R Audio Format | Supports PCM |
| Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
| Local Audio Sampling Rate | Supports 44.1KHz, 48KHz, 96KHz |
| ARC Audio Sampling Rate | Supports 48KHz, 96KHz |
| Frequency Response | 20Hz – 20KHz, ±3dB |
| Audio Output Impedance | 70Ohms |
| Max Input Level | L+R: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal. SPDIF:±0.05dBFS. |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level). |
| SNR | L+R: > 80dB, 20Hz - 20KHz bandwidth. SPDIF: > 90dB, 20Hz-20 kHz bandwidth. |
| Crosstalk Isolation | SPDIF: < -70 dB, 10KHz sine at 0dBFS level (or max level before clipping). L+R: < -80 dB, 10KHz sine at 0dBFS level (or max level before clipping). |
| L-R Level Deviation | L+R: < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping). |
| Frequency Response Deviation | < ± 0.5dB 20Hz - 20KHz. |
| Output Load Capability | L+R: 1KΩ and higher (Supports 10x paralleled 10KΩ loads). |
| Stereo Channel Separation | >[email protected] |
| Noise Level | L+R: -80dB; SPDIF: -90dB |
| Control Part | |
| Control port | (8) IR IN, (1) IR ALL IN, (8) IR OUT, (1) IR ALL OUT, (1) IR EYE, (9) RS232, (1) FIRWARE, (1) TCP/IP |
| Control Connector | (19) 3.5mm jacks, (9) 3-pin terminal blocks, (1) Type-A USB, (1) RJ45 |
| General | |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p ≤ 230 feet (70 meters), [email protected] ≤ 131 feet (40 meters) |
| Bandwidth | 18Gbps |
| Operation Temperature | -5°C~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | 100V~240V AC, 50/60Hz |
| Power Consumption | 125W (Max) |
| Dimension (W*H*D) | 436.6mm x 88mm x 440mm |
| Net Weight | 5.8kg |
HDBaseT Receiver
| Video | |
| Input | (1) HDBT |
| Input Connector | (1) RJ45 |
| Input Resolution | Up to [email protected] 4:2:0 |
| Output | (1) HDMI |
| Output Connector | (1) Type-A female HDMI |
| Output Resolution | Up to [email protected] 4:4:4 8bit, HDR10 |
| Audio | |
| Input | (1) ARC Audio In |
| Input Connector | (1) Toslink Connector |
| Output | (1) Audio Breakout |
| Output Connector | (1) Toslink connector |
| Audio Format | Supports PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD. |
| Frequency Response | 20Hz – 20KHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | > 85dB, 20Hz-20 kHz bandwidth |
| Crosstalk Isolation | > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz - 20KHz |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >[email protected] |
| Control | |
| Control Part | (1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232 |
| Control Connector | (1) Micro-USB port, (2) 3.5mm jacks, (1) 3-pin terminal block |
| General | |
| Bandwidth | 18Gbps |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2, 1.4 compliant |
| CEC | Pass-through |
| Bidirectional power over Cat5e/6/7 | Supported |
| HDMI 2.0 Cable Length | [email protected] 4:4:4 ≤ 5m, [email protected] 4:2:0 ≤ 15m, 1080p ≤ 20m |
| Transmission Standard | HDBaseT |
| Transmission Distance | [email protected] ≤ 230 feet (70 meters), [email protected] ≤ 131 feet (40 meters) |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V~240V AC; Output:24V DC 1.25A |
| Power Consumption | 12W (Max) |
| Dimension (W*H*D) | 40mm x 19.5mm x 84mm |
| Net Weight | 290g |
Resources
Package Contents
HDBaseT Matrix Switcher
① 1x 8x8 HDMI 2.0 HDBaseT Matrix Switcher
② 2x Mounting Ears with 6 Screws
③ 4x Plastic Cushions with 4 Screws
④ 1x IR Receiver
⑤ 1x IR Remote
⑥ 16x 3-pin Terminal Blocks
⑦ 1x RS232 Cable (3-pin to DB9)
⑧ 1x Power Cord
HDBaseT Receiver
① 8x HDBaseT Receivers
② 16x Mounting Ears with 32 Screws
③ 32x Plastic Cushions
④ 8x 3-pin Terminal Blocks
⑤ 1x User Manual
① 1x 8x8 HDMI 2.0 HDBaseT Matrix Switcher
② 2x Mounting Ears with 6 Screws
③ 4x Plastic Cushions with 4 Screws
④ 1x IR Receiver
⑤ 1x IR Remote
⑥ 16x 3-pin Terminal Blocks
⑦ 1x RS232 Cable (3-pin to DB9)
⑧ 1x Power Cord
HDBaseT Receiver
① 8x HDBaseT Receivers
② 16x Mounting Ears with 32 Screws
③ 32x Plastic Cushions
④ 8x 3-pin Terminal Blocks
⑤ 1x User Manual
Warranty: 2 years
