8X6+2 18Gps [email protected] HDMI2.0 HDBT Matrix Switcher with 6 Receivers
SKU: BG-M88-H2A-KIT
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K HDR
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
POWER OVER CAT5E/6/7
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.

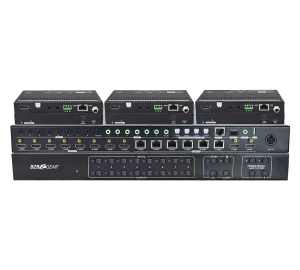

BG-M88-H2A-KIT is 4K 8x8 HDBaseT Matrix Switcher with six Receivers! It features eight HDMI inputs, six HDBaseT outputs, two HDMI outputs and four SPDIF audio outputs. It supports video resolutions up to [email protected] 4:4:4 and can transmit 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 230 feet (70 meters) over a single CATx cable. The six HDBaseT outputs support 24V power over Cat5e/6/7 feature, allowing the receivers to draw their power from the matrix over the HDBaseT cable.
The matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources.
The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.
MSRP $3999.00*
*Pricing is for US only. International pricing will vary.Features
- 8x8 HDBaseT matrix switcher with audio matrix.
- Eight HDMI inputs, six HDBaseT outputs and two HDMI outputs.
- Fully compliant with the HDMI 2.0 and HDCP 2.2.
- Supports HDMI resolution up to [email protected] 4:4:4, HDR.
- The six HDBaseT outputs support 24V power over Cat5e/6/7, allowing the receivers to draw their power from the matrix switcher over the CATx cable.
- Transmits 4K signal to the distance up to 131 feet (40 meters) and 1080p signal to the distance up to 230 feet (70 meters) over a single CATx cable.
- Supports audio matrix. Provides four digital SPDIF audio outputs for HDMI input audio de-embedding, HDBT/HDMI output audio de-embedding or ARC audio output from receivers.
- Supports comprehensive EDID management and advanced HDCP handling.
- Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI)
Specifications
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K HDR
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
POWER OVER CAT5E/6/7
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Matrix Switcher
| Video Input | |
| Input | (8) HDMI |
| Input Connector | (8) Type-A female HDMI |
| HDMI Input Resolution | Up to [email protected] 4:4:4, HDR |
| Video Output | |
| Output | (6) HDBT, (2) HDMI |
| Output Connector | (6) RJ45, (2) Type-A female HDMI |
| HDMI Output Resolution | Up to [email protected] 4:4:4, HDR |
| HDBaseT Output Resolution | Up to [email protected] 4:2:0 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Audio Output | |
| Output | (4) Digital SPDIF audio |
| Output Connector | (4) Toslink connectors |
| Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
| Frequency Response | 20Hz – 20kHz,±1dB |
| Max Output Level | ±0.05dBFS |
| THD+N | < 0.05%, 20Hz – 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 90dB, 20Hz-20kHz bandwidth |
| Crosstalk Isolation | < -70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| Noise Level | -90dB |
| Control Part | |
| Control port | (1) FIRWARE, (6) IR IN, (1) IR ALL IN, (8) IR OUT, (1) IR ALL OUT, (1) IR EYE, (1) RS232, (1) TCP/IP |
| Control Connector | (1) Micro-USB, (17) 3.5mm jacks, (1) 3-pin terminal block, (1) RJ45 |
| General | |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p ≤ 230 feet (70 meters), [email protected] ≤ 131 feet (40 meters) |
| Bandwidth | 18Gbps |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | 100V~240V AC, 50/60Hz |
| Power Consumption | 92W (Max) |
| Dimension (W*H*D) | 436.4mm x 44mm x 385mm |
| Net Weight | 4.87kg |
HDBaseT Receiver
| Video | |
| Input | (1) HDBT |
| Input Connector | (1) RJ45 |
| Input Resolution | Up to [email protected] 4:2:0 |
| Output | (1) HDMI |
| Output Connector | (1) Type-A female HDMI |
| Output Resolution | Up to [email protected] 4:4:4 8bit HDR10 |
| Audio | |
| Input | (1) ARC Audio In |
| Input Connector | (1) Toslink Connector |
| Output | (1) Audio Breakout |
| Output Connector | (1) Toslink connector |
| Audio Format | Supports PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD. |
| Frequency Response | 20Hz – 20kHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 85dB, 20Hz-20 kHz bandwidth |
| Crosstalk Isolation | > 70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz - 20kHz |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >[email protected] |
| Control | |
| Control Part | (1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232 |
| Control Connector | (1) Micro-USB port, (2) 3.5mm jacks, (1) 3-pin terminal block |
| General | |
| Bandwidth | 18Gbps |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2, 1.4 compliant |
| CEC | Pass-through |
| Bidirectional PoC | Supported |
| HDMI 2.0 Cable Length | [email protected] 4:4:4 ≤ 5m, [email protected] 4:2:0 ≤ 15m, 1080p ≤ 20m |
| Transmission Standard | HDBaseT |
| Transmission Distance | [email protected] ≤ 230 feet (70 meters), [email protected] ≤ 131 feet (40 meters) |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V~240V AC; Output:12V DC 10A |
| Power Consumption | 12W (Max) |
| Dimension (W*H*D) | 40mm x 19.5mm x 84mm |
| Net Weight | 290g |
Resources
Package Contents
HDBaseT Matrix Switcher:
① 1x 4K 8x8 HDBaseT Matrix Switcher
② 2x Mounting Ears with 6 Screws
③ 4x Plastic Cushions
④ 1x IR Remote
⑤ 7x IR Receivers
⑥ 8x IR Emitters
⑦ 1x RS232 Cable (3-pin to DB9)
⑧ 1x Power Cord
⑨ 1x Power Adapter (12V DC 10A)
HDBaseT Receiver:
① HDBaseT Receiver
② 6x HDBaseT Receivers
③ 12x Mounting Ears with 24 Screws
④ 24x Plastic Cushions
⑤ 6x 3-pin Terminal Blocks
① 1x 4K 8x8 HDBaseT Matrix Switcher
② 2x Mounting Ears with 6 Screws
③ 4x Plastic Cushions
④ 1x IR Remote
⑤ 7x IR Receivers
⑥ 8x IR Emitters
⑦ 1x RS232 Cable (3-pin to DB9)
⑧ 1x Power Cord
⑨ 1x Power Adapter (12V DC 10A)
HDBaseT Receiver:
① HDBaseT Receiver
② 6x HDBaseT Receivers
③ 12x Mounting Ears with 24 Screws
④ 24x Plastic Cushions
⑤ 6x 3-pin Terminal Blocks
Warranty: 2 years
