4x4 HDMI 2.0 18Gbps 4K@60Hz 4:4:4 HDBT Video and Audio Matrix Switcher with 4 Receivers

Configure the Perfect Solution
Get Started

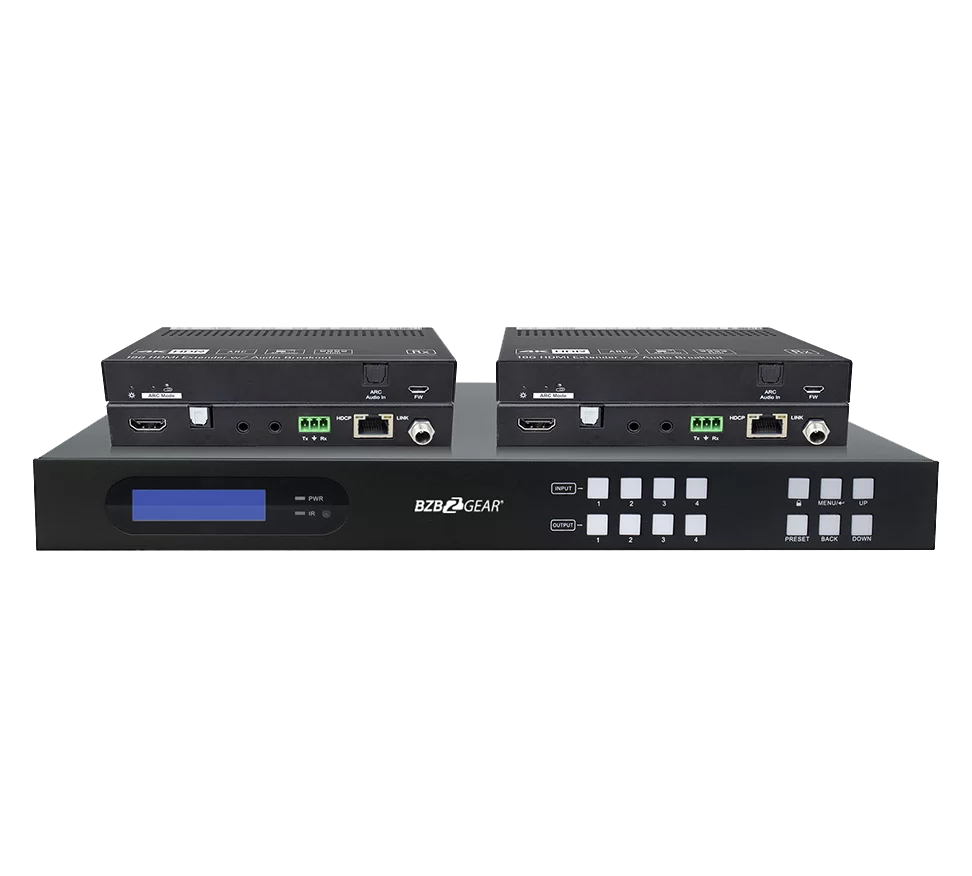

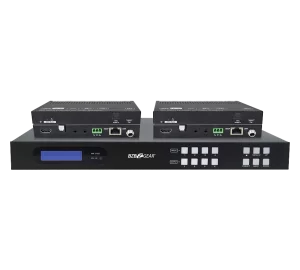

The BG-M44S-H2A-KIT is a 4X4 HDMI matrix with 4 HDBaseT outputs and 4 mirrored HDMI outputs. Featuring HDCP 2.2 and up to 4K/UHD@60Hz video support, it can transmit 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 230 feet (70 meters) over a single CATx Ethernet cable. The four HDBaseT outputs support 24V power over Cat5e/6/7 allowing the receivers to draw their power from the matrix. Equipped with comprehensive EDID management and advanced HDCP handing, it ensures maximum functionality with a wide range of video sources.
This matrix support bi-directional IR and RS232 extension in addition to the IR, RS232, and TCP/IP control options.


  • 4K - Supports resolutions up to 4K@60Hz
  • Audio Matrix - Each output features de-embedded digital optical and analog outputs
  • HDMI outputs support 4K to 1080P down-scaling
  • HDMI - Fully compliant with HDMI 2.0 and HDCP 2.2 specifications
  • Adjustable Volume - Each analog audio output has an independent volume adjustment
  • Comprehensive EDID management and advanced HDCP handling.
  • HDBaseT - Extend 4K signals up to 130 feet (40 meters) with included receivers
  • Multiple Control Options - Front panel buttons, RS232, IR, CEC, and TCP/IP (WebGUI)
