BG-M44-H2A-KIT
4X3+1 HDMI 2.0 HDBT Matrix Switcher with 3 Receivers
4X3+1 HDMI 2.0 HDBT Matrix Switcher with 3 Receivers
4X3+1 HDMI 2.0 HDBT Matrix Switcher with 3 Receivers
SKU: BG-M44-H2A-KIT
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K HDR
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
POWER OVER CAT5E/6/7
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.

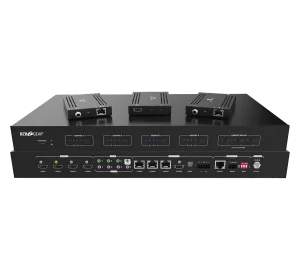

BG-M44-H2A-KIT is a 4K 4x4 HDBaseT Matrix with 3 Receivers! It features 4 HDMI inputs, 1 HDMI output with audio breakout and 3 HDBaseT outputs. The de-embedded audio can be output from SPDIF and L/R connector. It supports video resolutions up to [email protected] 4:4:4 and can transmit 4K video to distances up to 131 feet (40 meters) and 1080P video to distances up to 229 feet (70 meters) over a single CATx cable. It supports bidirectional IR extension and IR, RS232, and TCP/IP control options. It supports power over Cat5e/6/7 feature, allowing the receivers to draw their power from the matrix over the CATx cable. In addition, there is the smart built-in EDID setting can be selected by the 4-pin DIP switch on the rear panel.
MSRP $2200.00*
*Pricing is for US only. International pricing will vary.Features
- Supports HDMI resolutions up to [email protected] 4:4:4, including 1080P 3D video
- Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications
- Can transmit 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 229 feet (70 meters) over a single CATx cable.
- Features three HDBaseT outputs and includes three receivers.
- Supports the 24V power over Cat5e/6/7 feature, allowing the receivers to draw their power from the matrix over the CATx cable.
- Includes a local HDMI output with corresponding digital optical S/PDIF and stereo L/R analog outputs.
- Smart EDID management for various application and customized setting.
- Controllable via RS232, IR and TCP/IP.
Specifications
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K HDR
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
S/PDIF CHANNELS
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
POWER OVER CAT5E/6/7
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Power over category cable refers to being able to power up either a Receiver or transmitter from one of the devices via a CAT5E/6/7 cable, eliminating the need for two power supplies providing a convenient and clean install.
Matrix Switcher
| Video | |
| Video Input | (4) HDMI |
| Video Input Connector | (4) Type-A female HDMI |
| Video input Video Resolution | Up to [email protected] 4:4:4 |
| Video Output | (3) HDBaseT, (1) HDMI |
| Video Output Connector | (3) RJ45, (1) Type-A Female HDMI, |
| Video output Video Resolution | HDMI: Up to [email protected] 4:4:4 HDBaseT: Up to [email protected] 4:4:4 |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Audio | |
| Audio Output | (1) SPDIF, (1) L/R |
| Audio Output Connector | (1) Toslink connectors, (1) 5-pin terminal blocks |
| Frequency Response | 20Hz – 20kHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz - 20kHz bandwidth |
| Crosstalk Isolation | > 70dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz - 20kHz |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >[email protected] |
| Control | |
| Control Port | (1) FIRMWARE, (3) IR IN, (1) IR EYE, (4) IR OUT, (1) TCP/IP, (1) RS232, (1) EDID |
| Control Connector | (1) Micro-USB, (8) 3.5mm jacks, (1) RJ45, (1) 3-pin terminal block, (1) 4-pin DIP switch |
| General | |
| Transmission Standard | HDBaseT |
| Transmission Distance | [email protected] ≤ 230 feet (70 meters), [email protected] ≤ 131 feet (40 meters) |
| Bandwidth | 18Gbps |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10%-90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24V DC 2.71A |
| Maximum Power Consumption | 58watts |
| Dimension (W*H*D) | 436.4mm x 44mm x 236.5mm |
| Net Weight | 1.9KG |
HDBaseT Receiver
| Receiver | |
| Input | (1) HDBT |
| Input Connector | (1) RJ45 |
| Output | (1) HDMI |
| Output Connector | (1) Female type-A HDMI |
| Control | (1) IR IN, (1) IR OUT |
| Control Connector | (2) 3.5mm mini jacks |
| General | |
| Video Resolution | Up to [email protected] 4:4:4 |
| Transmission Mode | HDBaseT |
| Transmission Distance | [email protected] ≤ 230 feet (70 meters), [email protected] ≤ 131 feet (40 meters) |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.2 |
| Bandwidth | 18Gbps |
| Power Consumption | 9.5W (Max) |
| Operating Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10%-90% |
| Power Supply | Input Power: 24V DC 1.25A or power over Cat5e/6/7 AC Adaptor Input Power: 100~240VAC, 50/60Hz |
| Dimension (W*H*D) | 74mm x 18mm x 120mm |
| Net Weight (g) | 235g |
Resources
Package Contents
HDBaseT Matrix Switcher:
① 1x 4K 4x4 HDBaseT Matrix
② 2x Mounting Ears with 6 Screws
③ 4x Plastic Cushions
④ 4x IR Receivers
⑤ 4x IR Emitters
⑥ 1x IR Remote
⑦ 1x RS232 Cable (3-pin to DB9)
⑧ 1x 5-pin Terminal Block
⑨ 1x Power Adaptor (24V DC 2.71A)
⑩ 1x Power Cord
HDBaseT Receiver:
① 3x HDBaseT Receivers
② 6x Mounting Ears with 6 Screws
③ User Manual
① 1x 4K 4x4 HDBaseT Matrix
② 2x Mounting Ears with 6 Screws
③ 4x Plastic Cushions
④ 4x IR Receivers
⑤ 4x IR Emitters
⑥ 1x IR Remote
⑦ 1x RS232 Cable (3-pin to DB9)
⑧ 1x 5-pin Terminal Block
⑨ 1x Power Adaptor (24V DC 2.71A)
⑩ 1x Power Cord
HDBaseT Receiver:
① 3x HDBaseT Receivers
② 6x Mounting Ears with 6 Screws
③ User Manual
Warranty: 2 years
Buy this 4X3+1 HDMI 2.0 HDBT Matrix Switcher with 3 Receivers
MSRP $2200.00*
