  • 12X PTZ Zoom Full HD HDMI/SDI/IP Camera with USB Recording Option
Model: BG-LVPTZ-12XHSURP
OVERVIEW FEATURESSPECSRESOURCESPACKAGE CONTENTS

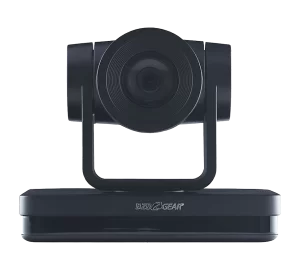

12X PTZ Zoom Full HD HDMI/SDI/IP Camera with USB Recording Option
MSRP: $719.00
Instant savings $480.00

Out of stock

3
Sale!

Description

This multi-function PTZ IP camera is capable of 12X optical zoom while offering a a diversity of connections including CVBS connection for analog devices, as well as High Definition video outputs like HDMI and 3G-SDI. Stream using the IP/LAN port or one of these video connections via a streamer to popular social media platforms like YouTube and Facebook. Conveniently, this unit is equipped with USB-A style port to record to a USB thumb drive. When it comes to control, methods include an IR Remote, WebGUI, RS232 and RS485.

By eliminating the need for a power supply, installation and placement has been simplified with PoE functionality via a Cat5/6/7 cable consolidating both A/V signals and power.

Stream H.264/H.265 compression codecs while utilizing the most advanced ISP processing algorithms ensuring fast, accurate and stable auto-focusing making it the best overall choice for any indoor environment like Houses of Worship, Schools, Factories and Presentation rooms.

Additional information

Weight 5 lbs
Dimensions 14 × 10 × 8 in
Overview

This multi-function PTZ IP camera is capable of 12X optical zoom while offering a a diversity of connections including CVBS connection for analog devices, as well as High Definition video outputs like HDMI and 3G-SDI. Stream using the IP/LAN port or one of these video connections via a streamer to popular social media platforms like YouTube and Facebook. Conveniently, this unit is equipped with USB-A style port to record to a USB thumb drive. When it comes to control, methods include an IR Remote, WebGUI, RS232 and RS485.

By eliminating the need for a power supply, installation and placement has been simplified with PoE functionality via a Cat5/6/7 cable consolidating both A/V signals and power.

Stream H.264/H.265 compression codecs while utilizing the most advanced ISP processing algorithms ensuring fast, accurate and stable auto-focusing making it the best overall choice for any indoor environment like Houses of Worship, Schools, Factories and Presentation rooms.



https://www.youtube.com/embed/LePfRTmoNG0
Features
  • Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolutions up to 1920x1080 with frame rate up to 60 fps.
  • Optical Zoom Lens: 12X optical zoom lens.
  • Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
  • Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
  • Multiple video output interfaces: HDMI, 3G-SDI, CVBS, LAN. (Can be displayed simultaneously)
  • SDI output: Up to 100M supporting [email protected]
  • Multiple Audio/Video Compression Standards: Supports H.264/H.265 video compression, up to 1920×1080 resolution 60 fps; supports AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling frequency
  • Video / audio record and store: USB2.0 interface supports (FAT32) U disk storage, real-time record and store
  • Built-in Gravity Sensor: Supports PTZ auto-flip function and easy installation.
  • Multiple Network Protocol: Supports ONVIF, GB/T28181, RTSP, RTMP protocols; Supports RTMP push mode，easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Supports network full command VISCA control protocol.
  • Control Interface: RS485, RS232 (cascade connection)
  • Multiple Control Protocol: Supports VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
  • Quiet Pan / Tilt Movement: Accurate step driving motor, camera can pan / tilt extremely quiet and smooth.
  • Auto sleep function: Auto sleep/wake up function with low power consumption, less than 400mw.
  • Multiple presets: Up to 255 presets (10 presets via remote control).
  • IR / Wireless Remote Control: Users can choose IR remote control or wireless remote control according to different conditions. 2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.
  • Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and Control systems, etc.


Specifications
Camera Parameters
Optical Zoom 12X
f＝3.9~46.8mm
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9,  2.07 megapixel
Video Format HDMI/SDI video format: 1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97

CVBS output: 570i 480i
View Angle 72.5° (W) 6.3° (T)
AV F1.8 – F2.4
Digital Zoom 10X
Minimum Illumination 0.5 Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ Specify color temperature (range: 2400k-7100k)
Focus/Aperture/Electronic Shutter Auto/Manual/One Push Focus
Iris Auto/Manual
Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/output Interface
Video Interfaces HDMI, SDI, LAN, CVBS, RS232-IN/OUT, RS485, A-IN, USB2.0 (USB Disk Storage)
Video Output HDMI, SDI, LAN, CVBS
Video Stream Dual stream output
Video Compression Format LAN Interface: H.265, H.264, Dual stream output USB2.0 Interface: H.265, H.264, MJPEG
Audio Input Interface Double track 3.5mm linear input
Audio Output Interface HDMI, SDI, LAN
Audio Compression Format AAC/MP3/G.711A
Control Interface RS232, RS485
Control Protocol VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
Power Interface HEC3800 outlet (DC12V)
Input Voltage DC12V±10%
Input Electric Current Maximum: 1A
Power Consumption Maximum: 12W
IPC Features
Video Encoding Format H.265, H.264
Code Stream Support dual streaming output, main code stream and sub-code stream
Video Format Main stream：1920×1080, 1280×720, 640×480 Sub stream：1920×1080, 1280×720, 640×480, 640×360, 320×240, 320×180
Video Bitrates 64Kbps~40960Kbps
Audio Compression Format AAC, MP3, G.711A
Audio Bitrates 32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps
Network Protocols TCP/IP, RTSP, RTMP, ONVIF, GB/T28181;
Network VISCA control protocol;
Support remote upgrade, reboot and reset
PTZ Parameters
Pan/Tilt Rotation ±170°, -30°~+90°
Pan Control Speed 0.1 - 60°/sec
Tilt Control Speed 0.1- 30°/sec
Preset Speed Pan: 60°/sec, Tilt: 30°/sec
Preset Number 255 presets (10 presets via remote control)
Other Parameters
Stored Temperature -10°C ~+60°C
Storage Humidity 20%~95%
Working Temperature -10°C ~+50°C
Working Humidity 20%~80%
Dimension 178mm x 115.5mm x 150.9mm
Weight 1.38KG
MORE / LESS SPECS

https://www.youtube.com/embed/1CmnuNKBg8o
Download our IP Control App.

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual
Download Manual
Diagram
See Diagram



Package Contents
① 1x Camera
② 1x Power supply
③ 1x RS232 control cable
④ 1x IR Remote Control
⑤ 1x User Manual
