1080P FHD H.264/265 HDMI Video and Audio Streaming Encoder

EOL
TAA Compliant
Configure the Perfect Solution
Get Started

Overview

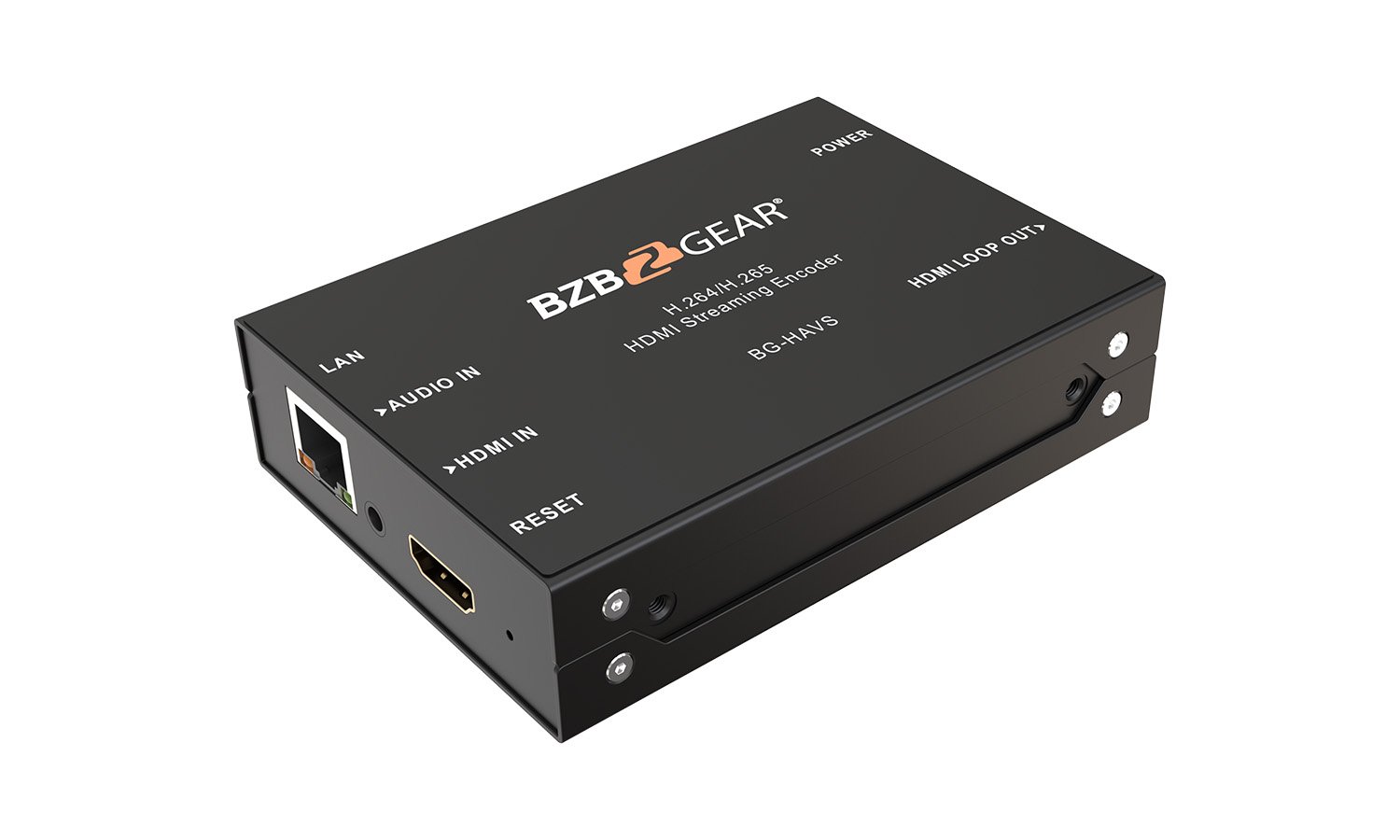

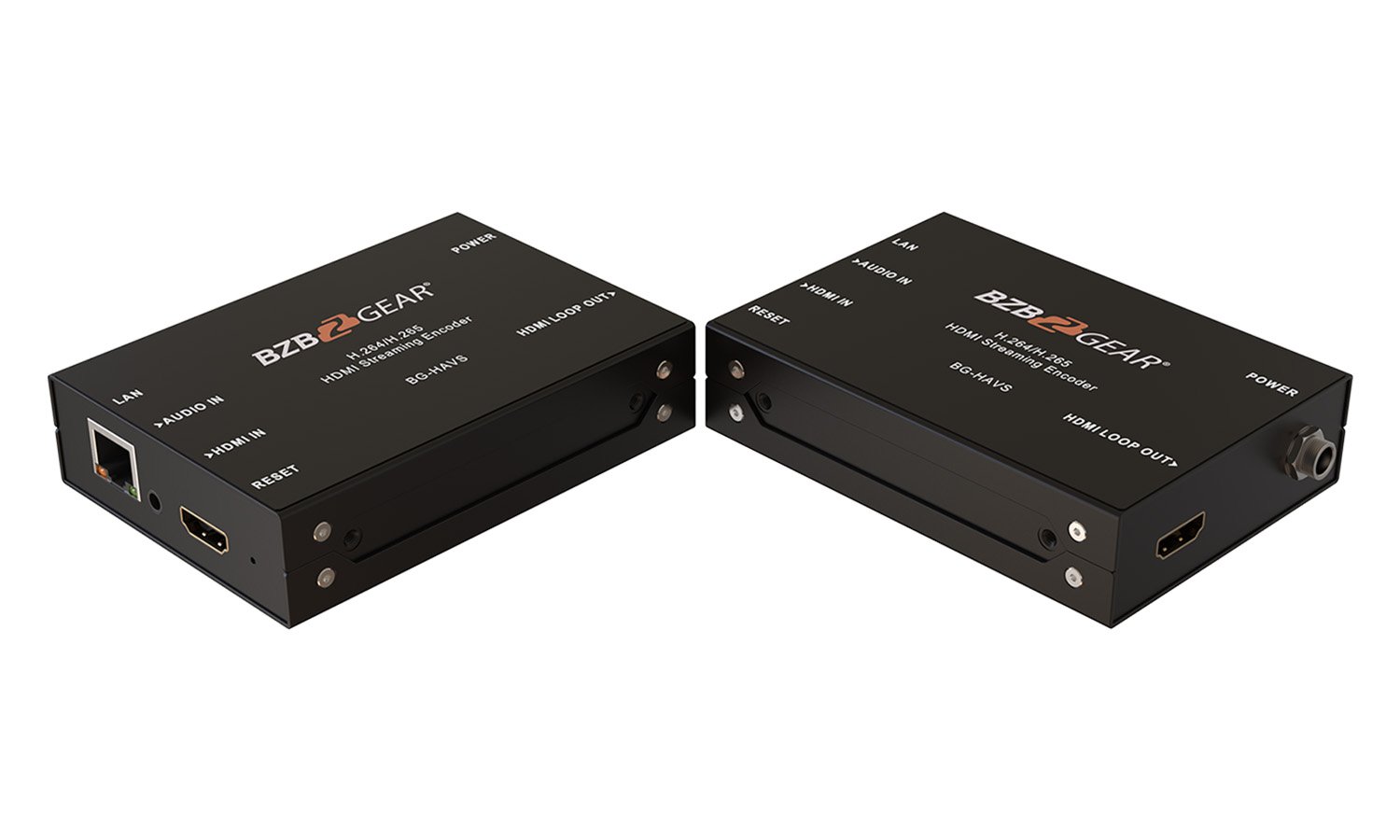

The BG-HAVS is a single-channel stream encoder that takes a HDMI input/source and converts it to an IP video stream that can be recorded to a NVR, PC, or broadcast to streaming platforms like YouTube, Twitch, or Facebook.



Features

  • HDMI
    1 x HDMI input, 1 x HDMI loop out
  • Audio
    1 x 3.5 mm analog audio input
  • Direct Streaming
    Stream directly from the device without the need of hooking up a computer
  • Image overlay
    Image and text overlay to brand your streams
  • Crystal Clear Images
    Supports resolutions up to 1080p@60fps
  • Durable
    Strong metal enclosure designed to last for years of use
  • Supports H.265/H.264 stream encoding
  • Dual-Stream encoding (main stream and sub stream)
  • RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast, and multicast formats

Videos

HDMI and SDI Video and Audio Streaming Encoders | BG-HAVS and BG-SAVS
HDMI and SDI Video and Audio Streaming Encoders | BG-HAVS and BG-SAVS
Setting Up BZBGEAR H.264/265 HDMI/SDI Video & Audio Streaming Encoder For Effortless Live Streaming
Setting Up BZBGEAR H.264/265 HDMI/SDI Video & Audio Streaming Encoder For Effortless Live Streaming
Stream On Any Video Device Including DSLRs, Game Consoles, & Video Mixers using BZBGEAR BG-HAVS
Stream On Any Video Device Including DSLRs, Game Consoles, & Video Mixers using BZBGEAR BG-HAVS

Tech Specifications

CONNECTIONS
Video Input HDMI Type A x 1
Video Loop Out HDMI Type A x 1
Analog Audio 3.5mm (line in) x 1
Network RJ-45 x 1 (100/1000Mbps self-adaptive Ethernet)
STANDARDS
HDMI In Format Support 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976,
1080i 50/59.94/60,
720p 60/59.94/50/30/29.97/25/24/23.98,
576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
Video Coding H.265/ H.264
Video Bitrate 16Kbps ~ 12MKbps
Audio Coding ACC/ MP3/ MP2/ G711
Audio Bitrate 24Kbps ~ 320Kbps
Encoding Resolution 1920×1080, 1680×1056, 1280×720, 1024×576, 960×540,
850×480, 720×576, 720×540, 720×480, 720×404,
720×400, 704×576, 640×480, 640×360
Encoding Frame Rate 5-60fps
SYSTEMS
Network Protocols HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT

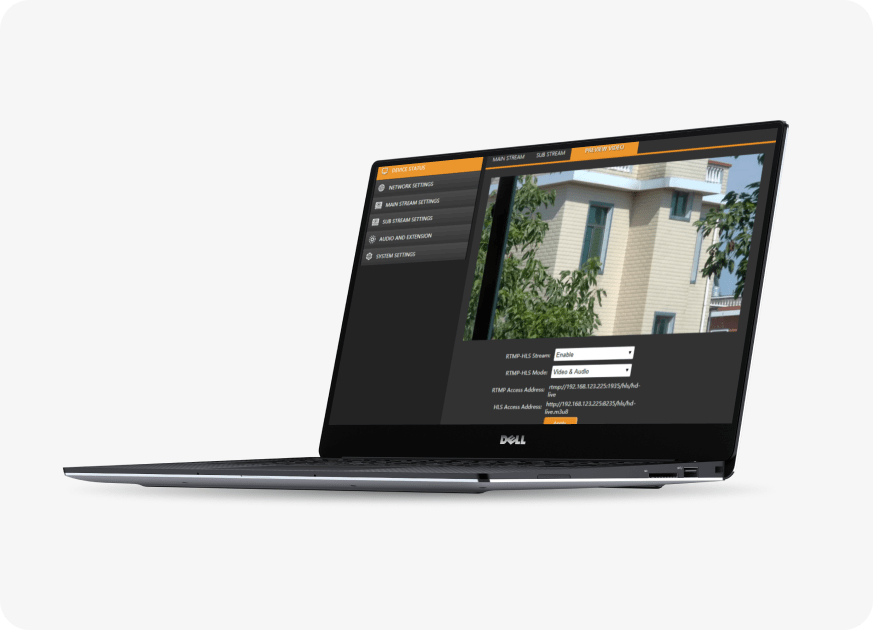

Configuration Management Web configuration, Remote upgrade
OTHERS
Consumption 5W
Temperature Working temp: 14°F ~ 140°F / -10°C ~ 60°C , Storage temp: -4°F ~ 158°F / -20°C ~ 70°C
Dimension (LxWxD) 4.1 x 3 x 1in [104 x 76 x 25mm]
Weight Net weight: 0.7 lbs [310g], Gross weight: 1.5 lbs [690g]

PACKAGE CONTENTS

  • 1x BG-HAVS Streaming Encoder
  • 1x 12V 2A Power supply

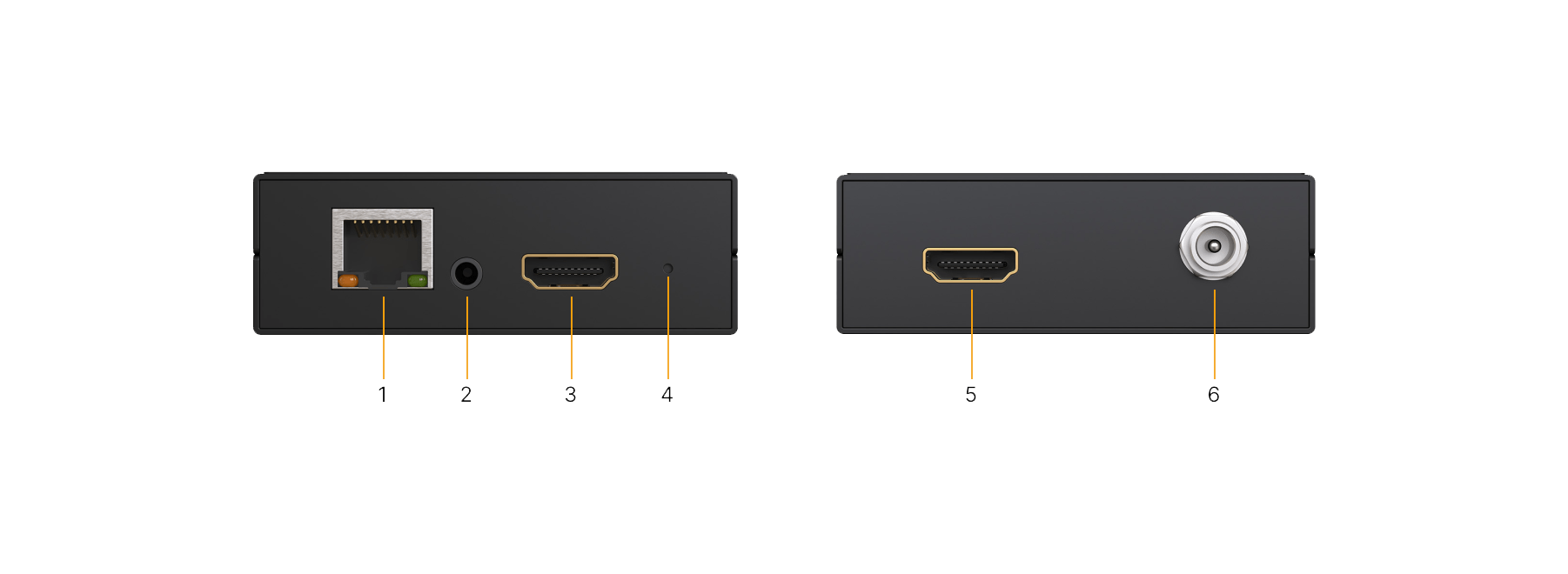

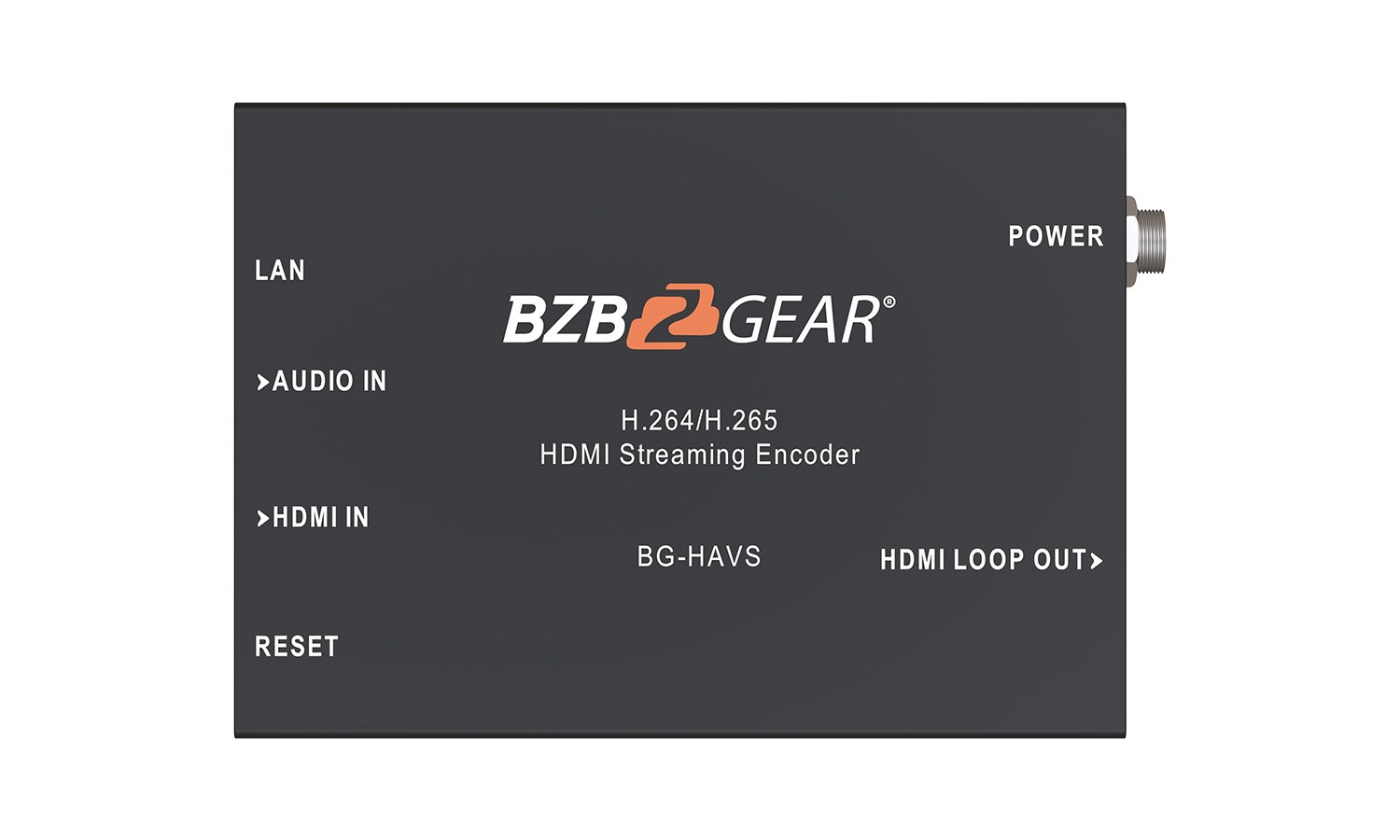

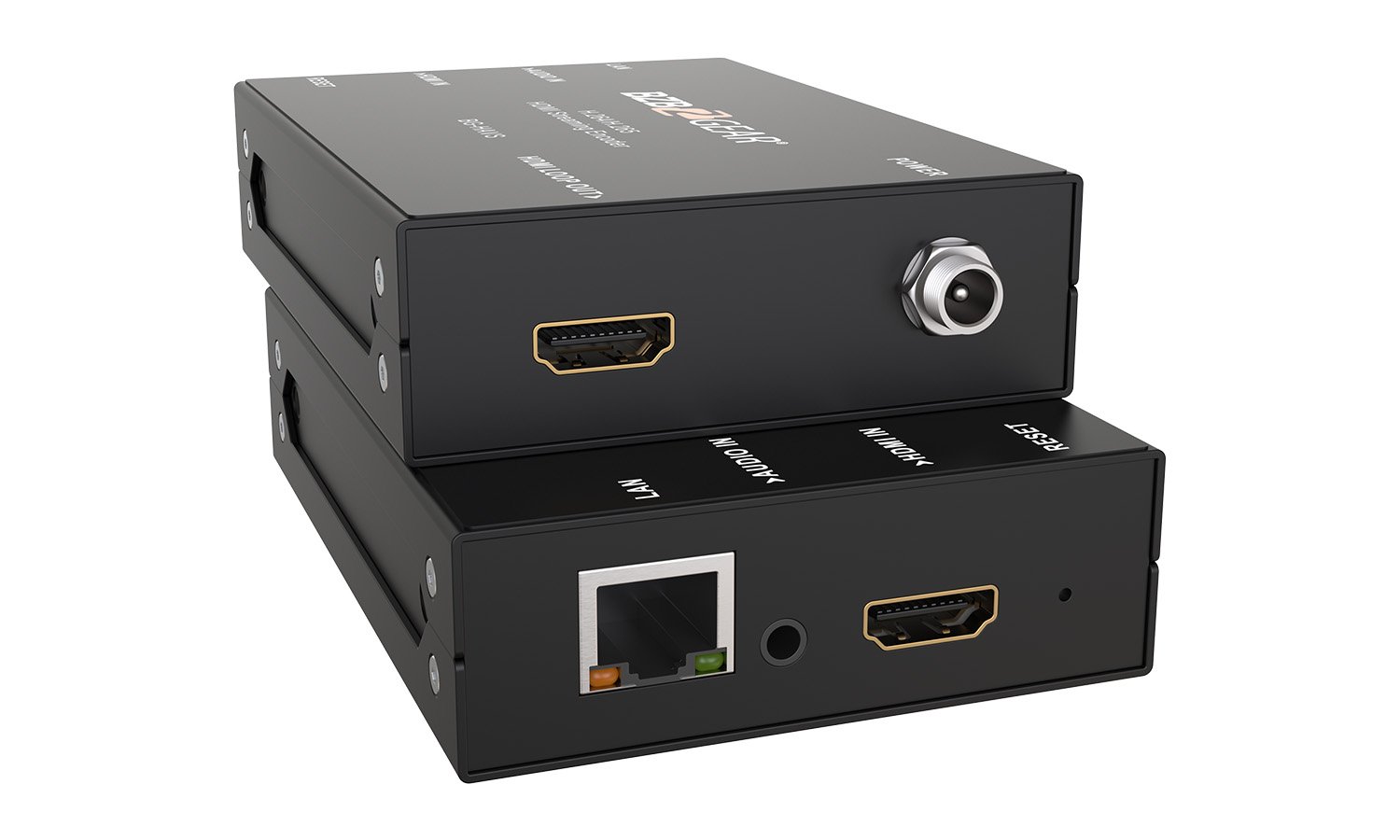

Interfaces

  1. LAN Port: Connect to Internet for IP Video Streaming.
  2. AUDIO Input: 3.5mm Stereo mini jack to embed audio.
  3. HDMI Input: Connect HDMI to the source device.
  4. Reset: long press for 5s to factory reset device.

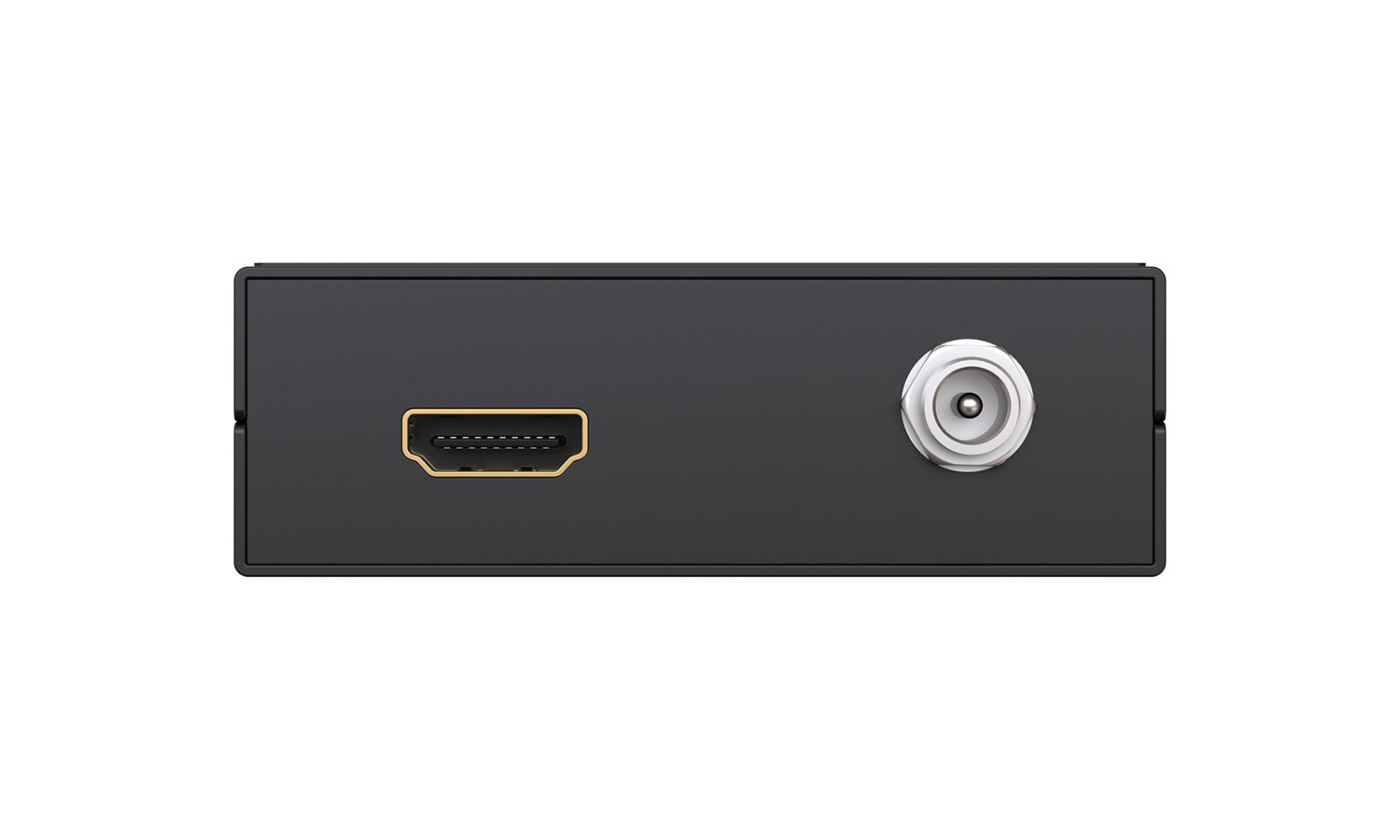

  5. HDMI Loopout: Connect to a display to view captured content.
  6. DC 12V: Connect to the provided power supply.
