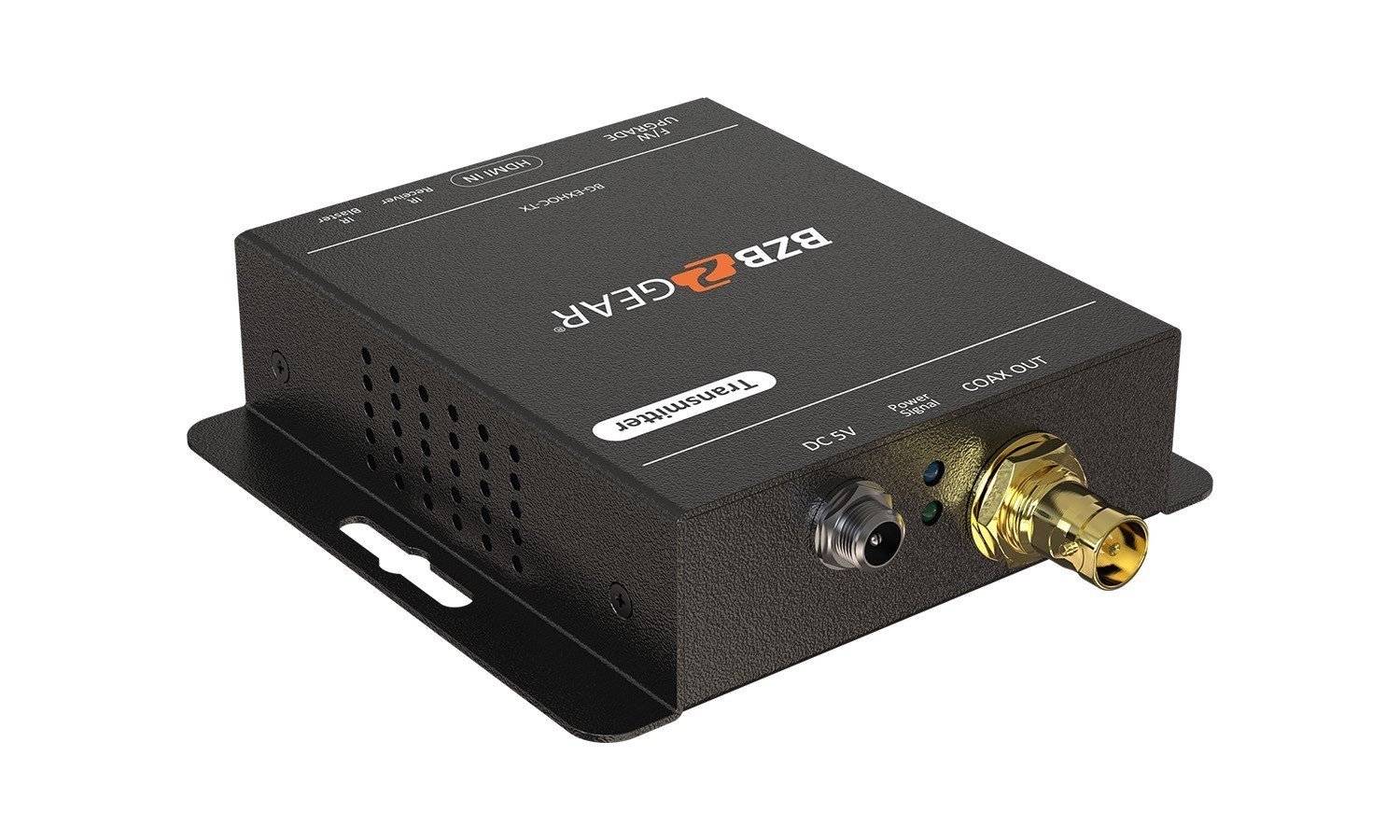

4K UHD HDMI Extender over Single Coax with Bi-directional IR

ProGear
TAA Compliant
Overview Specifications Interfaces Resources Package contents

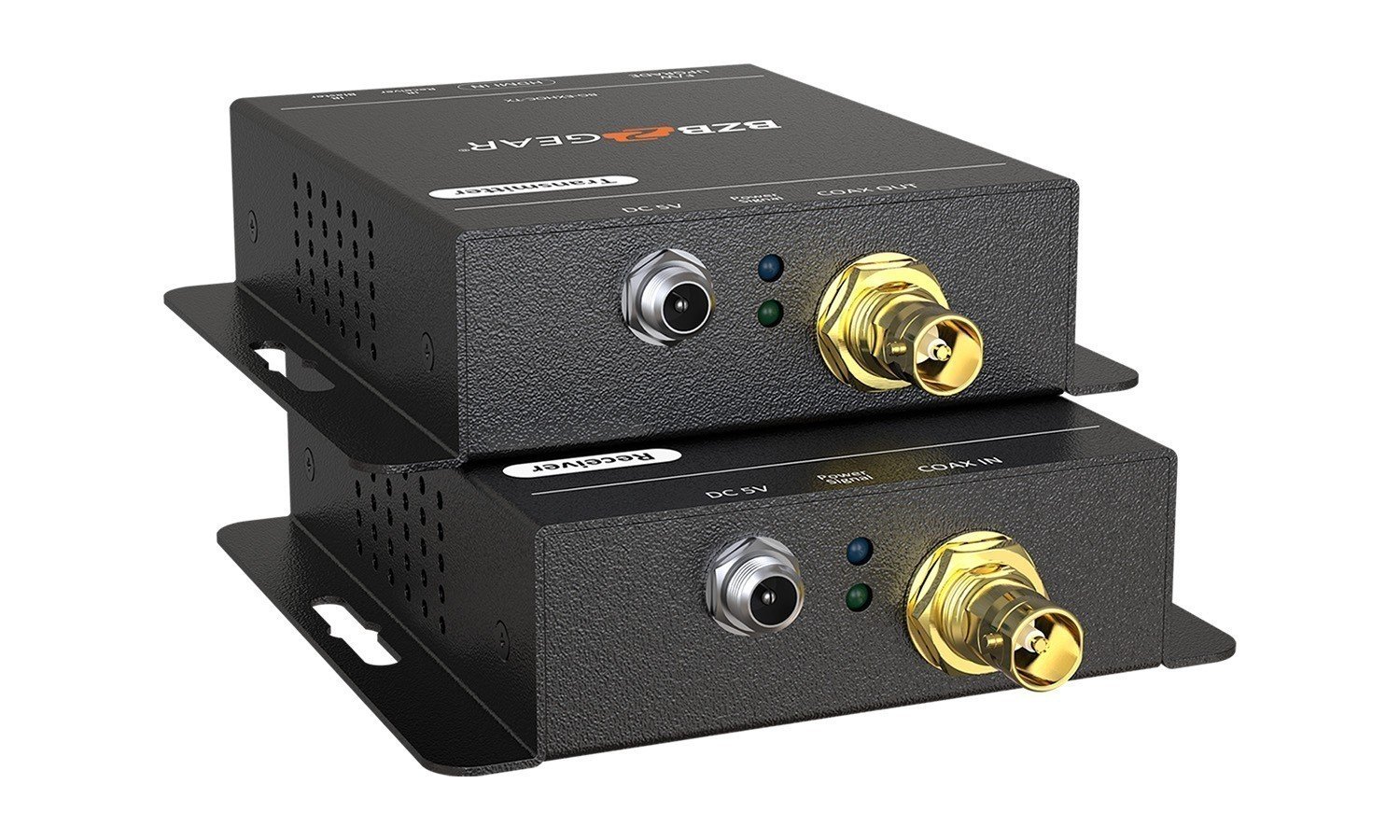

Overview

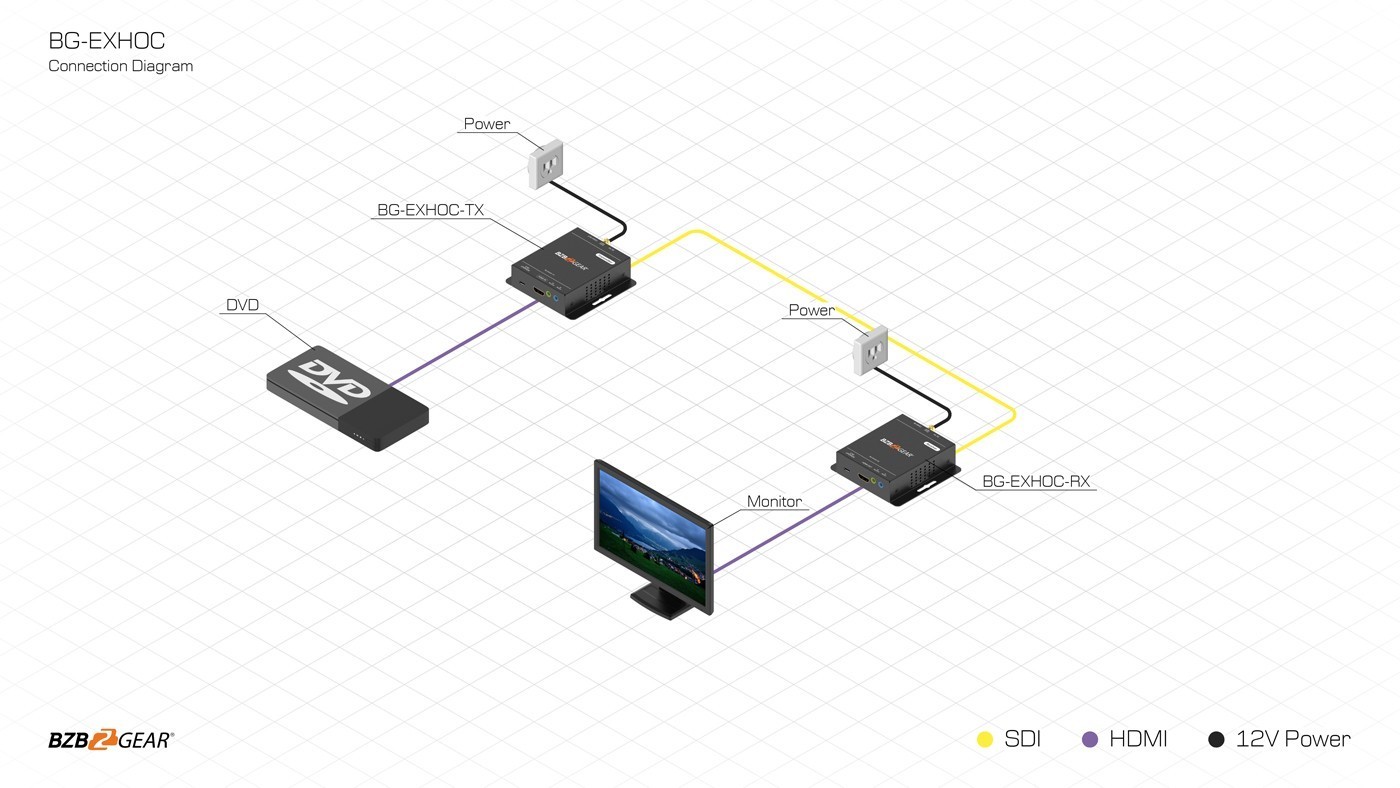

The BG-EXHOC is a 4K HDMI signal extender that increases the range of an HDMI input signal up to 110m (363ft) over a single coaxial cable. The use of coaxial cable provides a durable, inexpensive method of transmitting uncompressed HDMI signals over long distances.

TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).
You can find all BZBGEAR TAA Compliant Products on this page.



Connectivity

The BG-EXHOC can extend HDMI signals to its maximum range with resolutions up to 4K2K@60Hz 4:4:4. The extender is also HDMI 2.0 compliant and supports HDCP 2.2/1.4 input and output. To achieve this level of quality, the unit sends the full uncompressed HDMI signal through the coaxial cable. Belden 1694A coaxial cable is recommended for maximum performance. The BG-EXHOC has a maximum data rate of 18Gbps and features automatic signal equalization.

Audio

Not only does the BG-EXHOC preserve HDMI video quality over long distances, it also maintains crisp and clear audio quality. Multi-channel audio is supported at rates of 32KHz, 44.1KHz, and 48KHz. Supported audio formats include Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, and LPCM 7.1.

Control with IR Passthrough

To help control devices across longer distances and around obstacles, the BG-EXHOC supports bi-directional IR passthrough via IR blasters and IR receivers. This allows control of distant devices without incurring the expense of a third-party control system.

Features

  • Stunning Image Quality
    Supports resolutions up to 4K@60Hz 4:4:4
  • Long Range
    Extend uncompressed HDMI up to 363 feet (110m)
  • Compliant
    HDMI 2.0 and HDCP 2.2 compliant to ensure copyright protections
  • Control
    Bi-Directional IR Passthrough
  • Multi-Channel Audio Support
    Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1
  • Secure Connection
    Locking BNC and power connectors prevent accidental disconnects
  • Uncompressed HDMI over Coaxial cable transmission
  • Auto signal equalization
  • Wall mounting housing design for easy and robust installation

Videos

Lock On For Distance - BZBGEAR 4K 18Gbps HDMI Extender over Single Coax Cable
Lock On For Distance - BZBGEAR 4K 18Gbps HDMI Extender over Single Coax Cable

Tech Specifications

Technical
Role of usage Transmitter (TX) Receiver (RX)
HDMI compliance HDMI 2.0a
HDCP compliance Yes
Video bandwidth Single-link 594MHz (18Gbps)
Video support up to 4K2K @ 60 4:4:4 8bits
Audio support Stereo audio
HDMI over Coax
transmission range		 Ultra HD (4K2K 24-bit color) - up to 110m (363ft)
HDMI Equalization Auto
Input TMDS signal 1.2 Volts (peak-to-peak)
Input DDC signal 5 Volts (peak-to-peak, TTL)
ESD protection Human body - ±15kV (air-gap discharge) & ±8kV (contact discharge)
PCB stack-up 4-layer board (impedance control - differential 100Ω; single 50Ω)
Input 1x HDMI/ 1x IR socket 1x BNC/ 1x IR socket
Output 1x BNC/ 1x IR socket 1x BNC/ 1x IR socket
IR remote control Electro-optical characteristics: τ= 25° / Carrier frequency: 20-60kHz
HDMI connector Type A [19-pin female]
BNC connector 75Ω interlocking socket
3.5mm connector 3.5mm earphone jack for IR blaster to control HDMI source device
Mechanical
Housing Metal enclosure
Dimensions
(L x W x H)		 Model 3.5" x 3.7" x 1" [90 x 96 x 25mm] 3.5" x 3.7" x 1" [90 x 96 x 25mm]
Package 10.3" x 6.7" x 3.8" [263 x 170 x 97mm]
Weight Model 4.5oz [127g] 4.5oz [127g]
Package 2.5lbs [1140g]
Fixedness Interlocking power supply
Power supply 5V DC
Power consumption 10 Watt (max) 6 Watt (max)
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH (no condensation)

PACKAGE CONTENTS

  • 1x BG-EXHOC (TX & RX)
  • 2x DC 5V wall wart
  • 1x User Manual

Interfaces

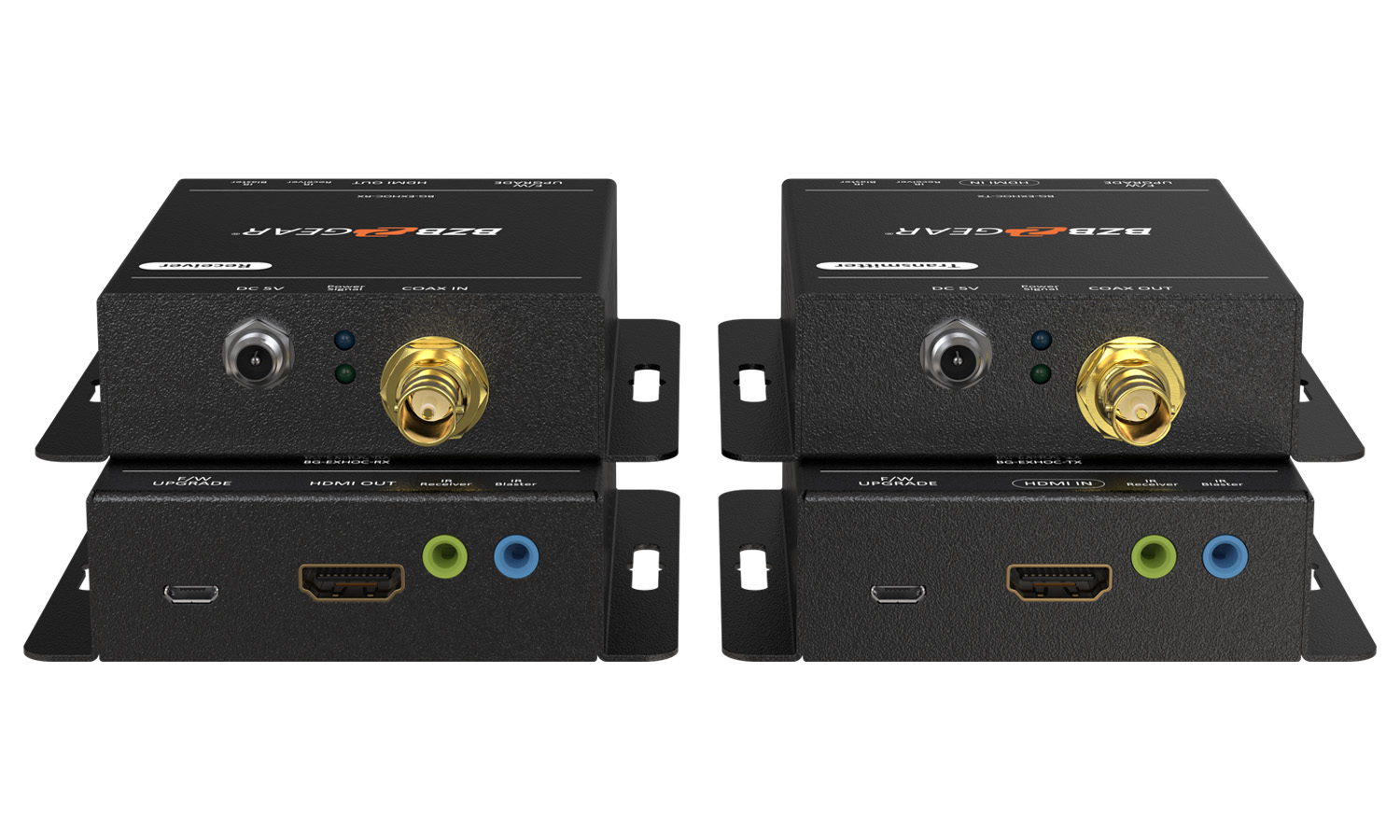

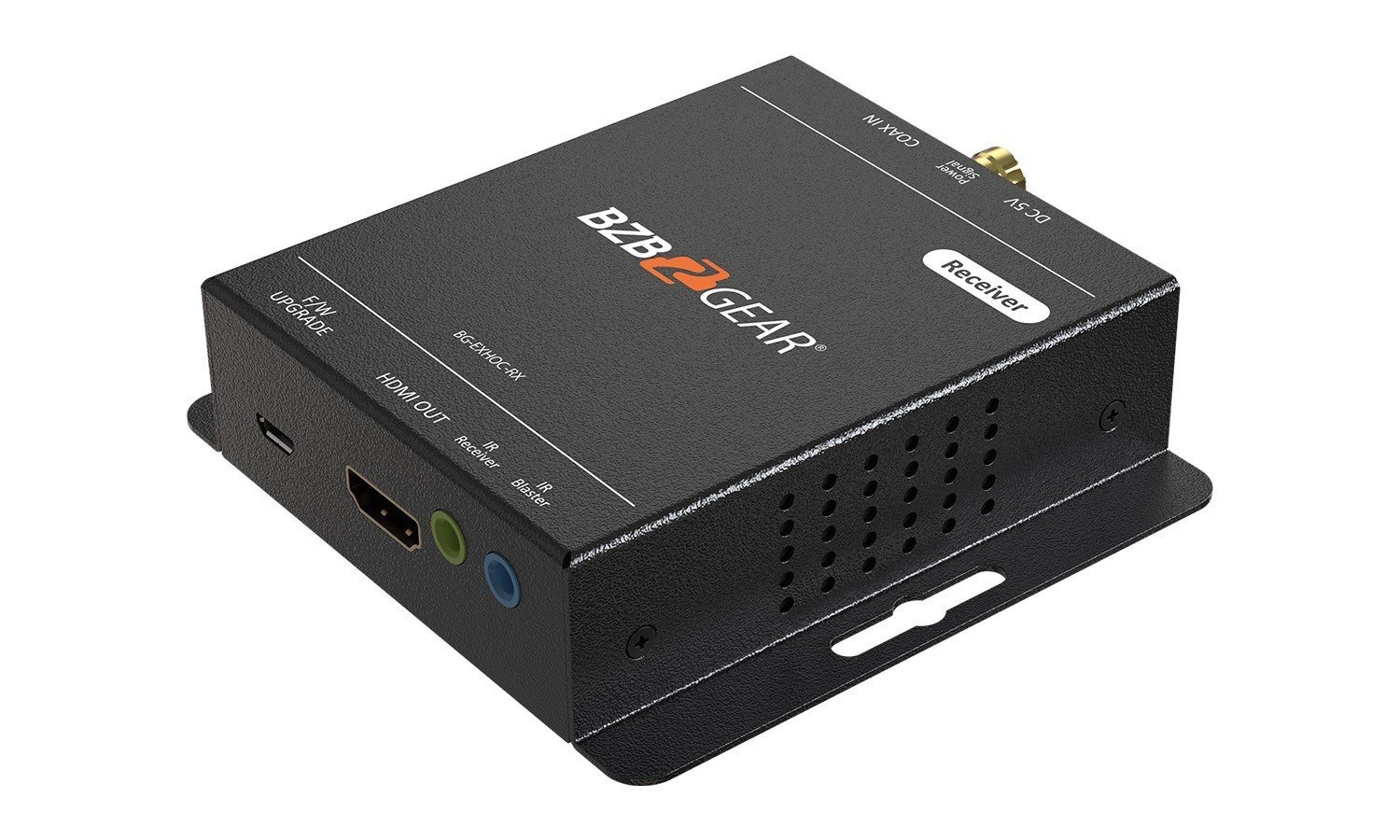

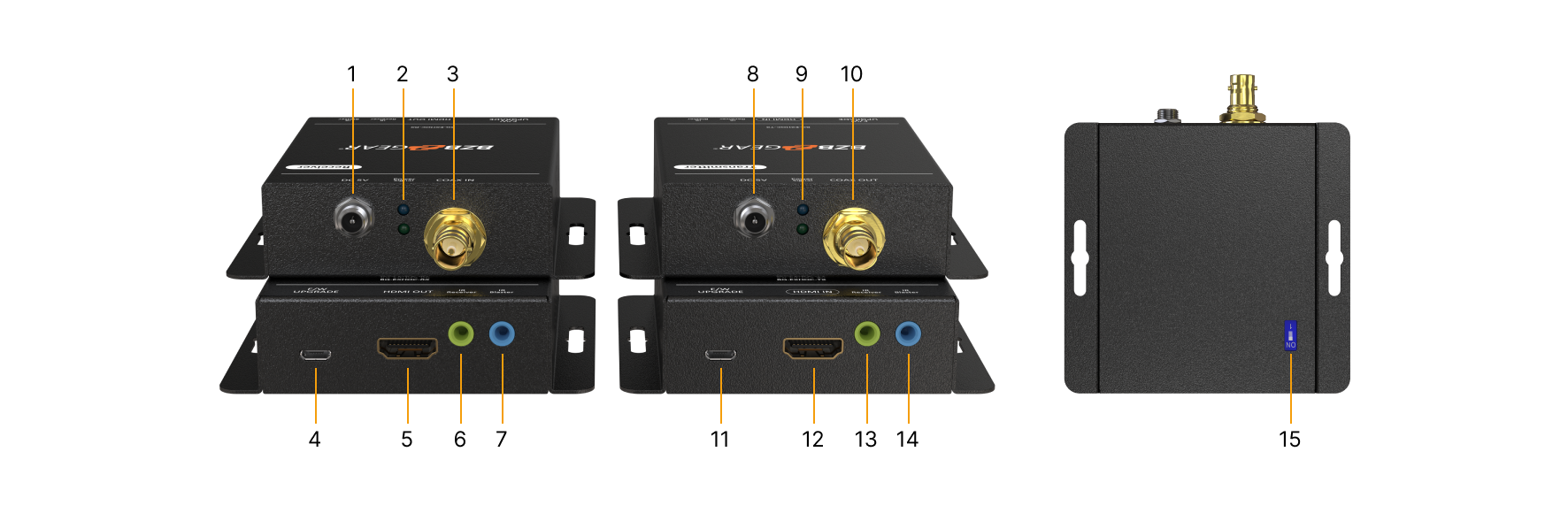

  1. +5V DC: Connects to 5V DC power supply.
  2. POWER/SIGNAL LED: Blue light - POWER; Green light - SIGNAL ACTIVE.

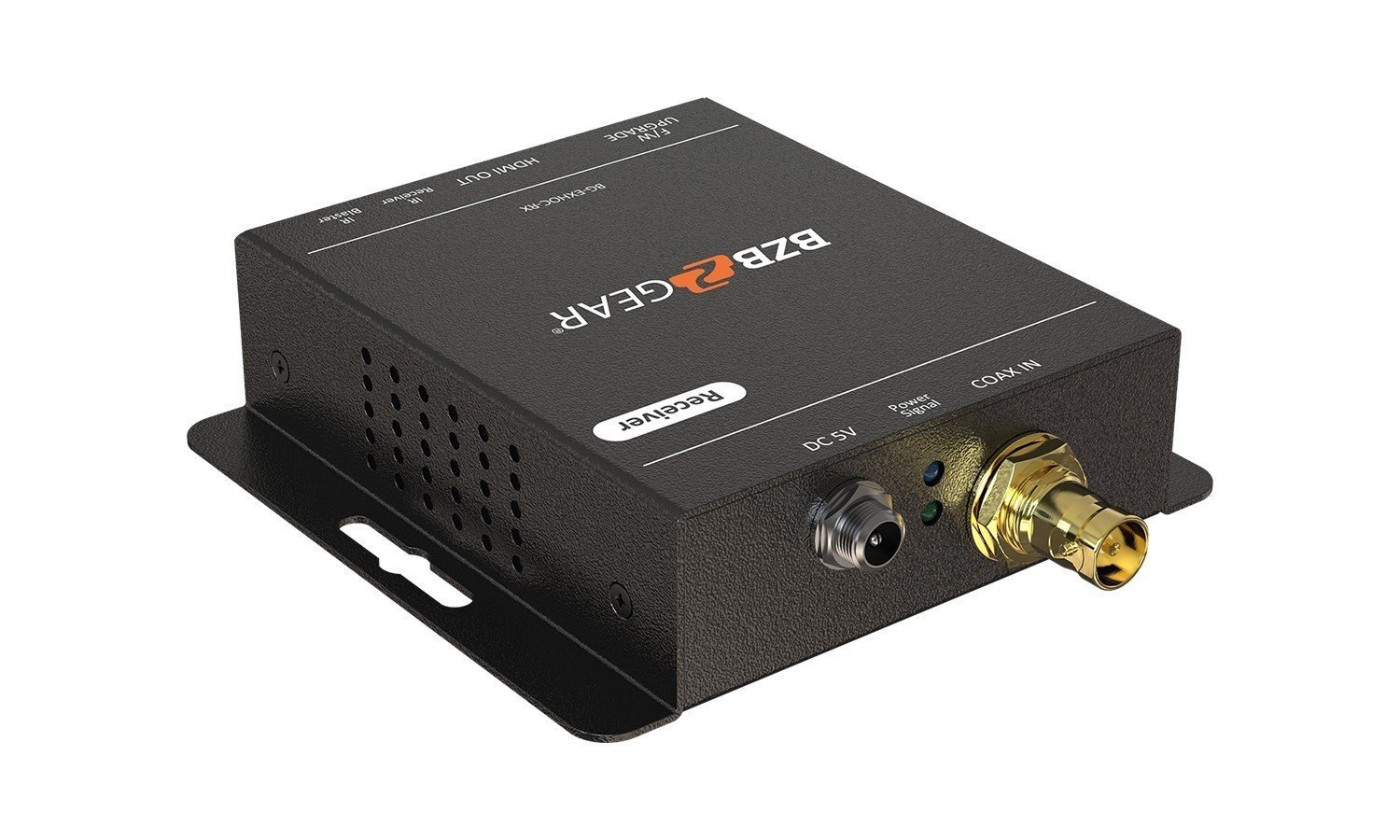

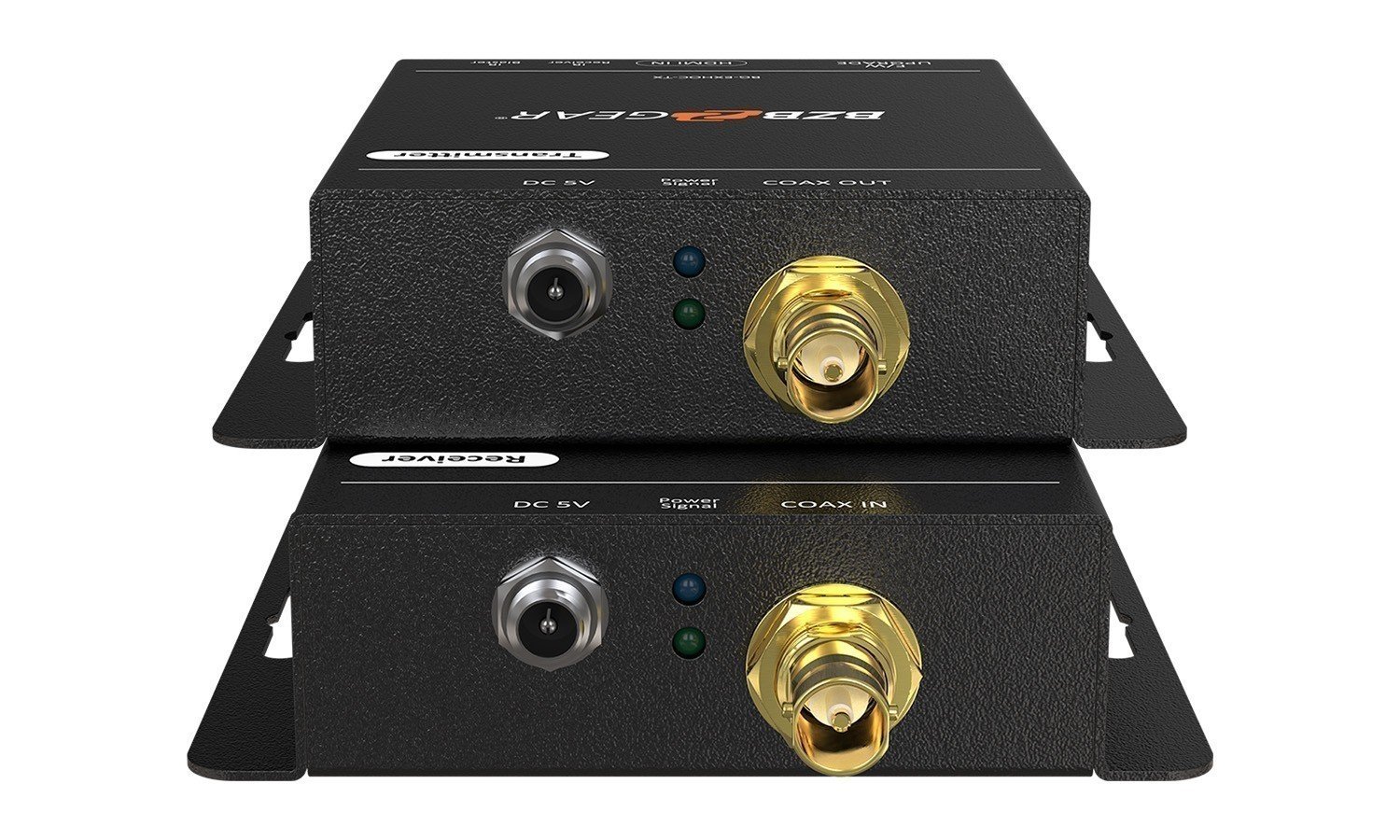

  3. COAX IN: Connect to coaxial cable.
  4. Micro-USB: for F/W update.

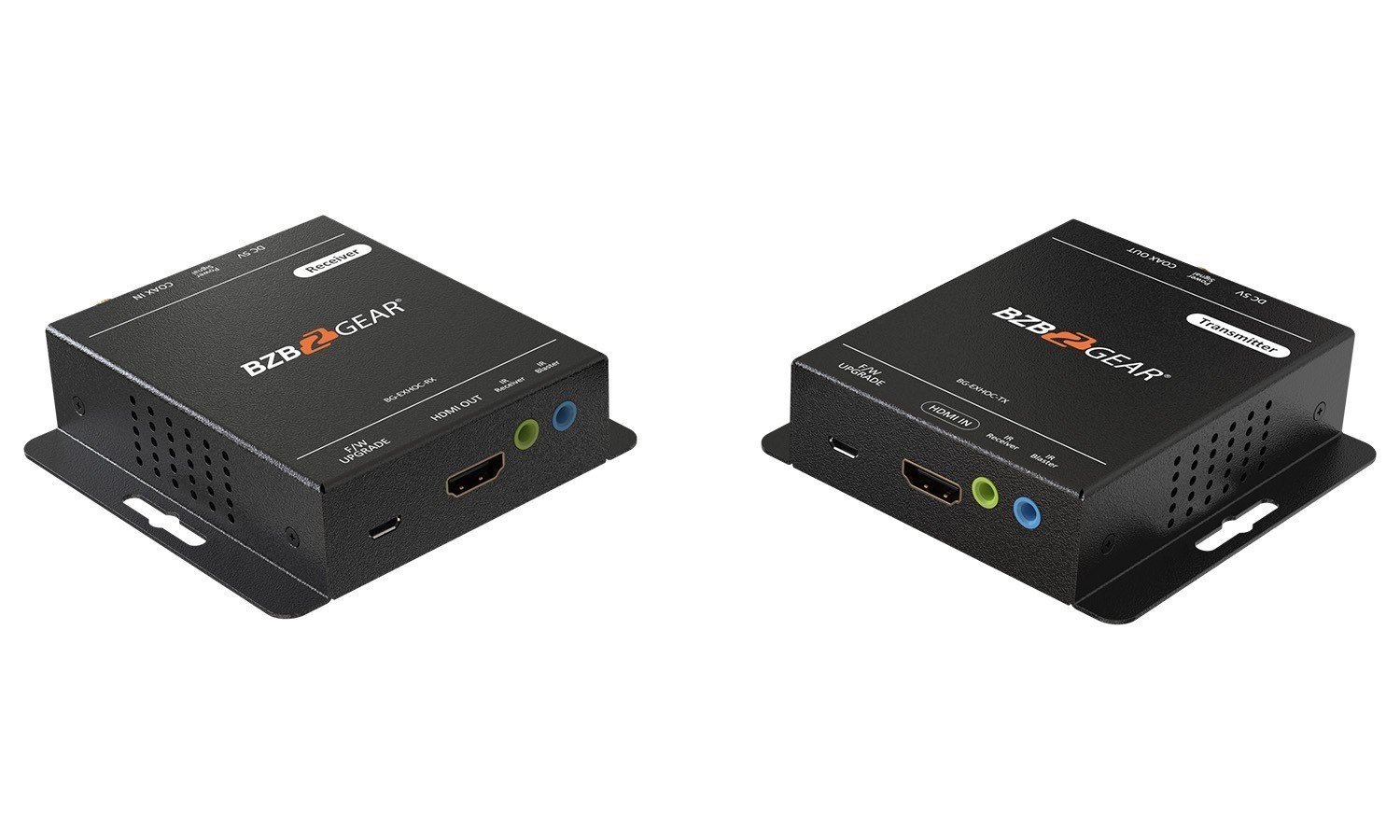

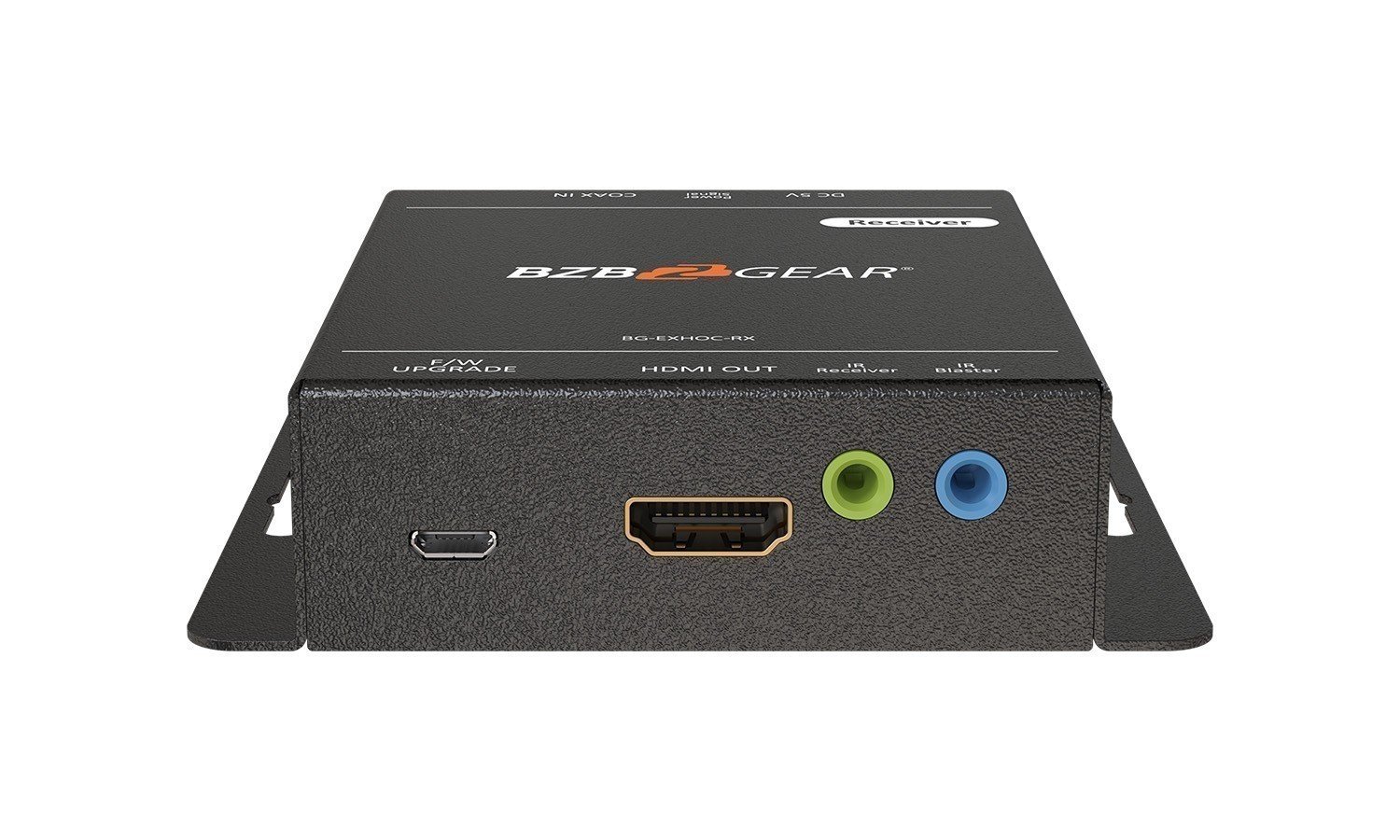

  5. HDMI OUT: Connect to HDMI display.
  6. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of an IR receiver.
  7. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of an IR blaster.
  8. +5V DC: Connects to 5V DC power supply.
  9. POWER/SIGNAL LED: Blue light - POWER; Green light - SIGNAL ACTIVE.
  10. COAX OUT: Connect to coaxial cable.
  11. Micro-USB: for F/W update.

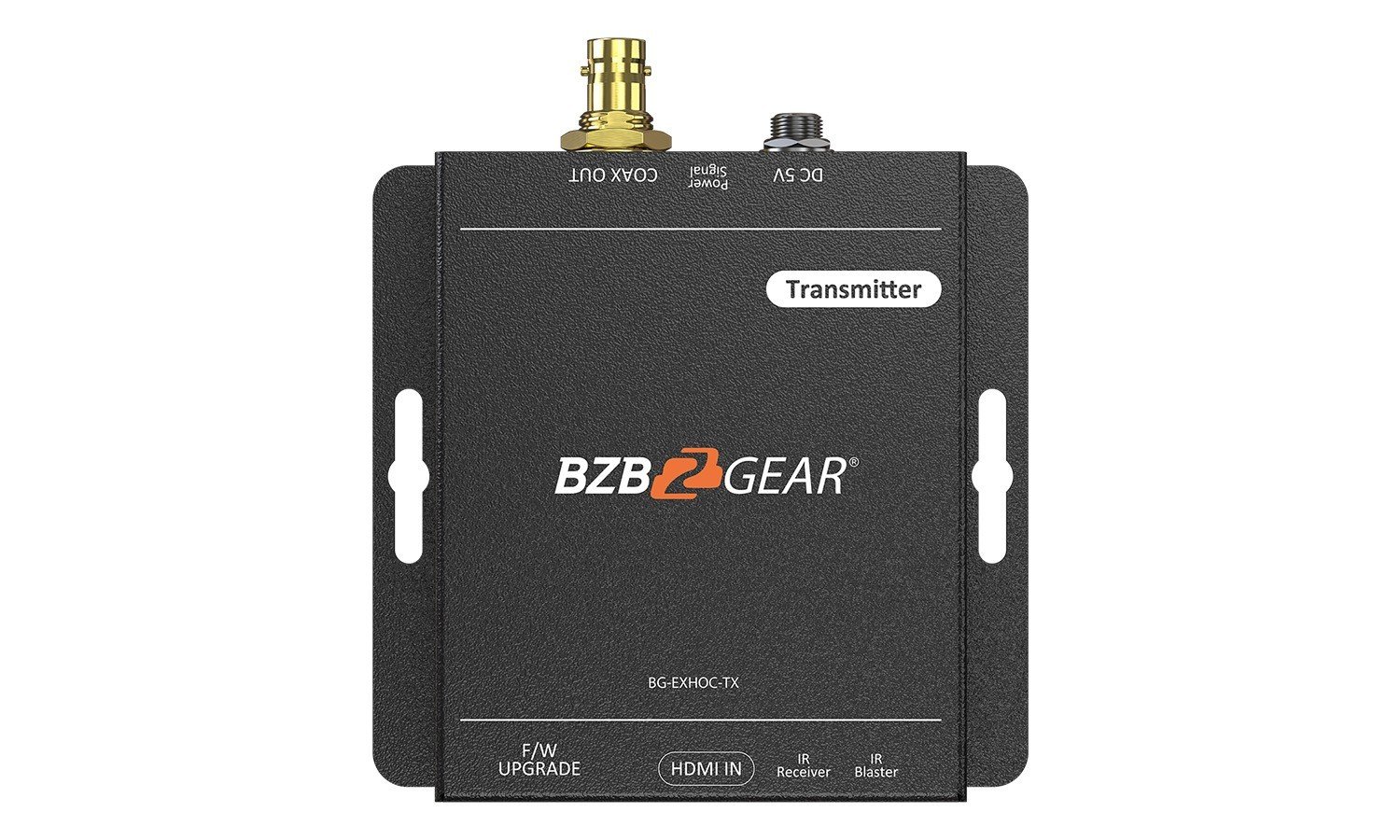

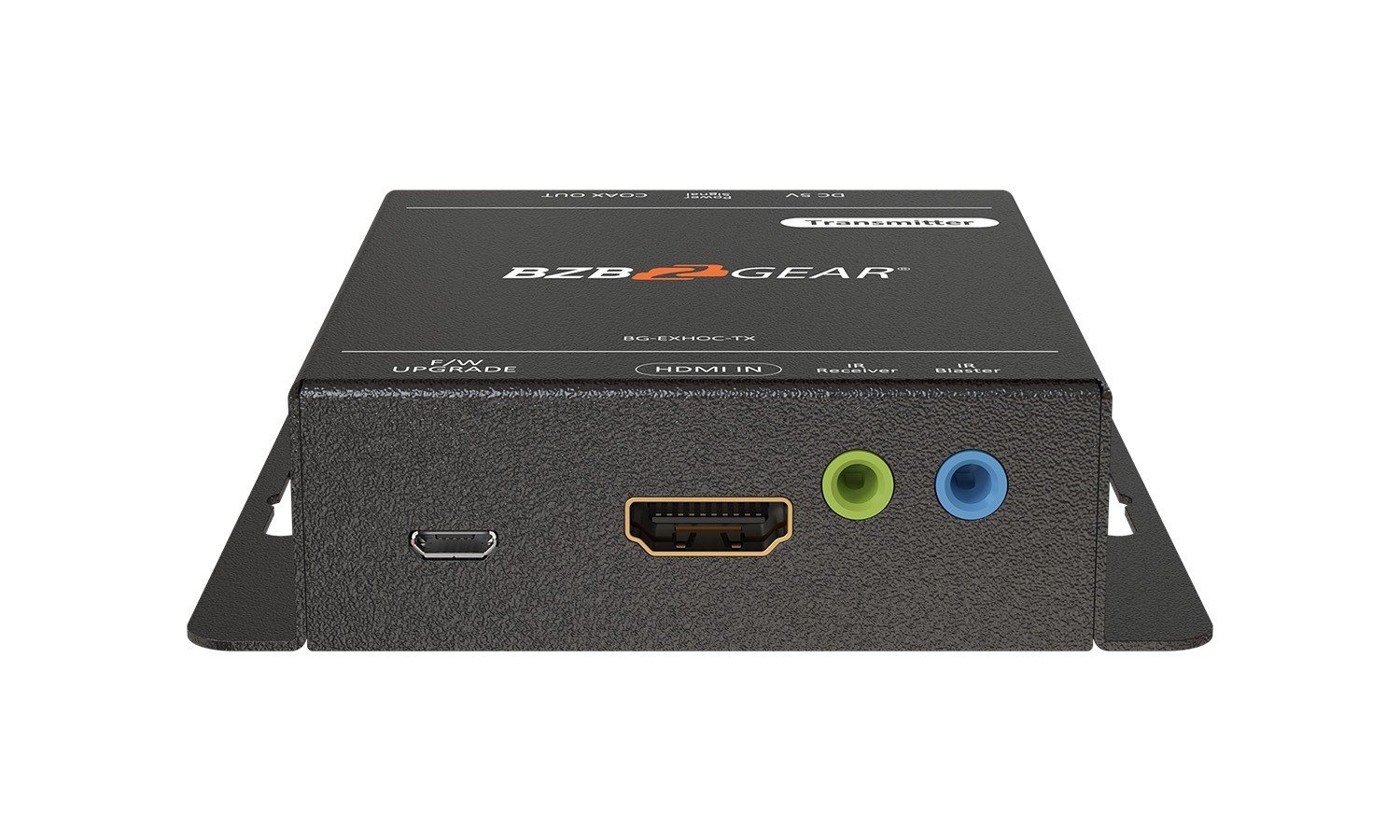

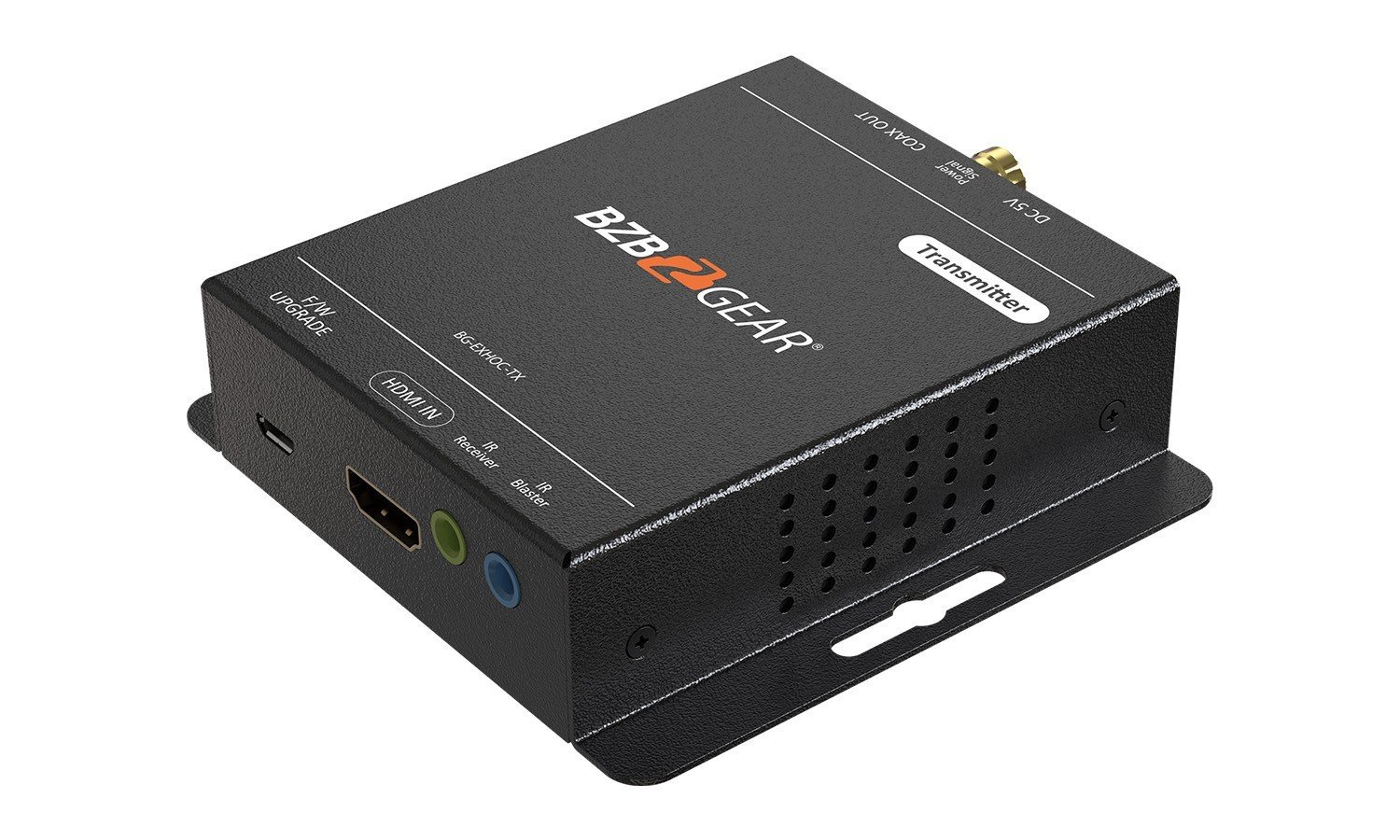

  12. HDMI IN: Connect to HDMI source device.
  13. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of an IR receiver.
  14. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of an IR blaster.

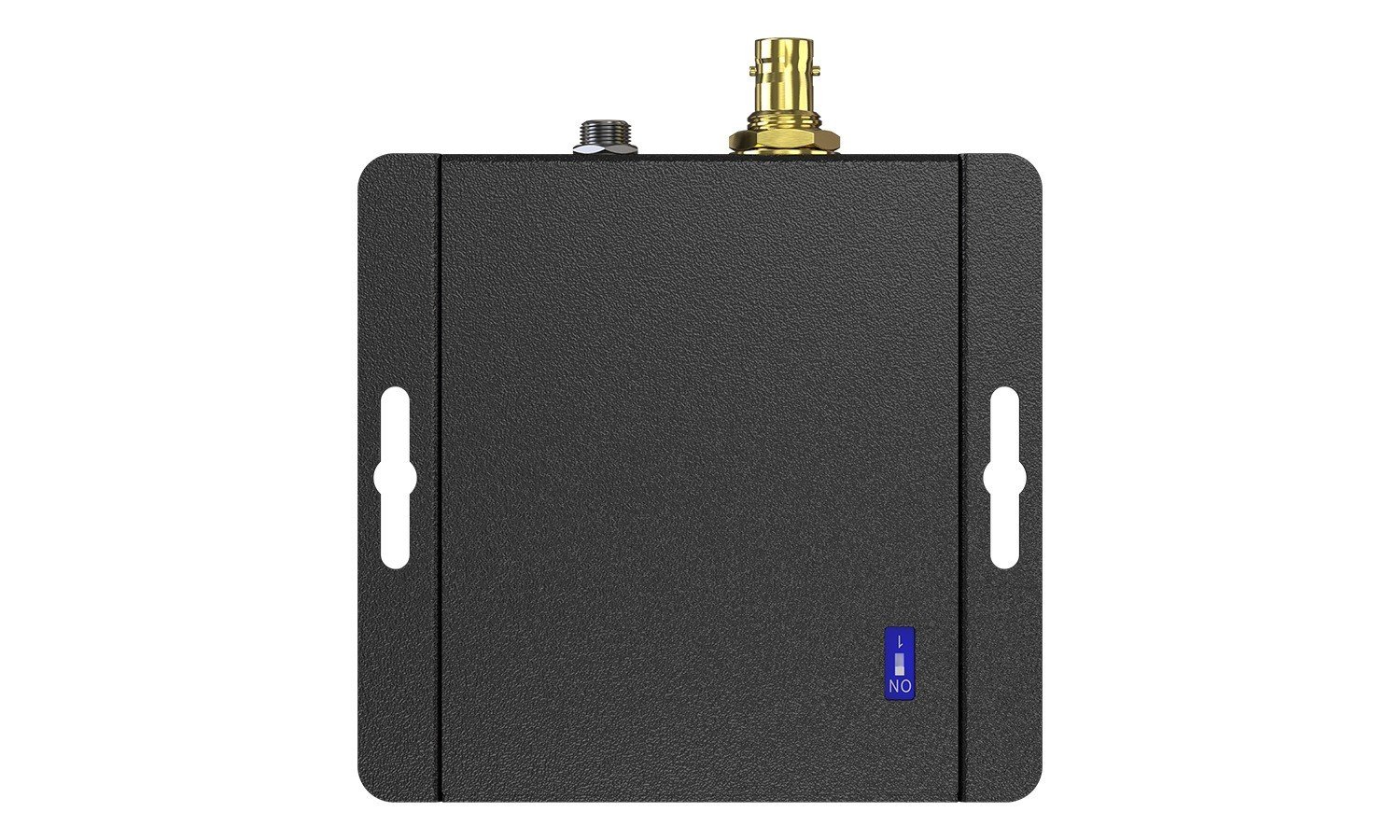

  15. DIP Switch: [ON] FW update mode; [OFF] Normal mode.
