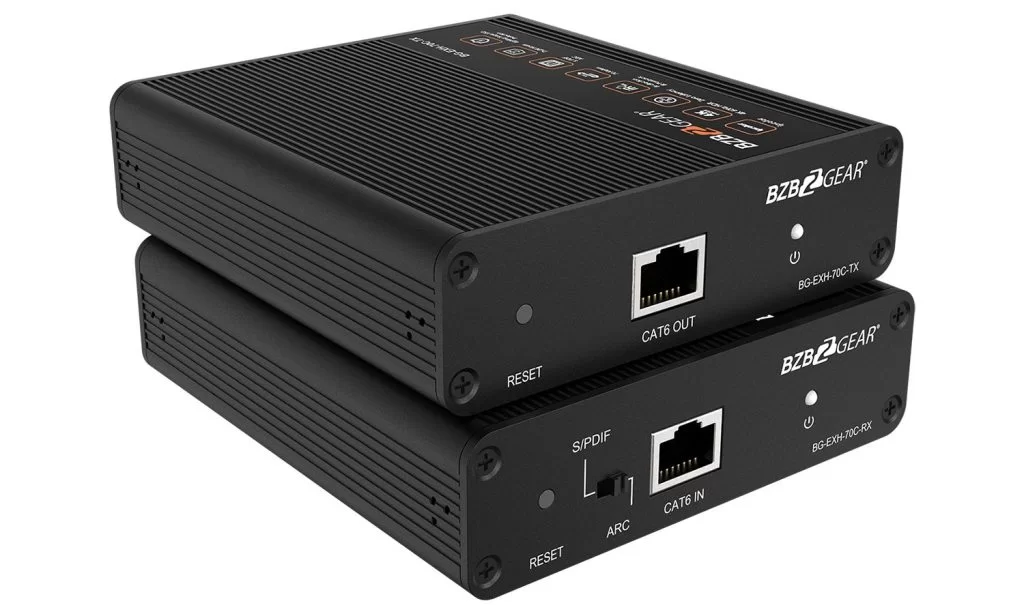

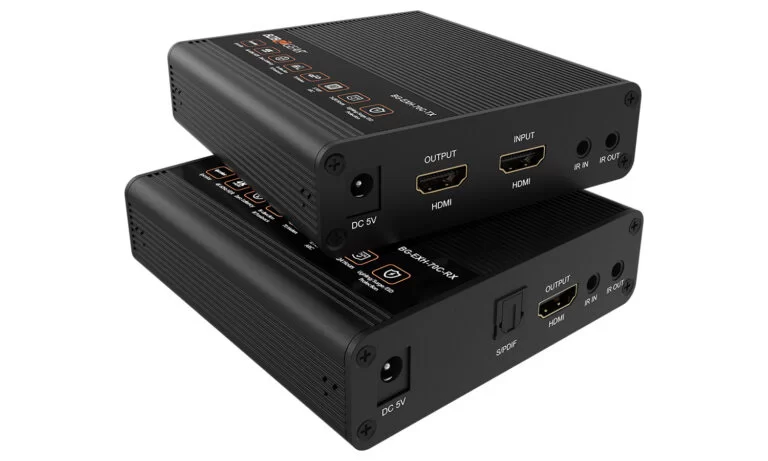

4K UHD HDMI Extender with Bi-directional IR and Zero Latency up to 230ft

EssentialGear
BG-EXH-70C-1-1.jpg BG-EXH-70C-3-1.jpg BG-EXH-70C-4-1.jpg BG-EXH-70C-12-1.jpg BG-EXH-70C-5-1.jpg BG-EXH-70C-6-1.jpg BG-EXH-70C-7-1.jpg BG-EXH-70C-8-1.jpg BG-EXH-70C-9-1.jpg BG-EXH-70C-10-1.jpg BG-EXH-70C-11-1.jpg
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
3 year warranty
3 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

With a new IPCOLOR technology (a global leading and innovative protocol for UHD video digital transmission with lossless compression) this extender is capable of transmitting HDMI signals with zero latency across distances of up to 70 meters (230 ft) over a single Cat6/6a/7 cable.

With 18Gbps bandwidth it supports many video resolutions up to 4K 60fps 4:4:4 HDR as well as modern audio formats as DTS-HD, Dolby Digital 5.1CH and Dolby TrueHD 7.1CH.

Bidirectional IR passthrough adds a layer of convenience for control – you can control your source (like a cable box or BlueRay player) from the TV side and control your TV from the source side (when using 3rd party control systems).

Another great feature is an audio de-embedding from HDMI signal. Using the S/PDIF output on the receiver you can connect your local audio system. More to that you can switch to use ARC function which will de-embed audio from the TV (when you are using smart-tv functions, not an extended HDMI).

Aluminum housing and integrated surge protection provides more durability for your setup.

Features

  • Bzbgear image
    Stunning Image Quality
    Supports resolutions up to 4K@60Hz
  • Wide-Angle 2
    Long Distance
    Transmit 4K HDR 4:4:4 signals up to 230ft over CAT6/6a/7
  • wpf_audio-wave
    Multiple Audio Formats
    Supports LPCM, DTS-HD, DTS Audio, Dolby Digital, and Dolby TrueHD
  • solar_remote-controller-2-linear
    Bi-Directional IR
    Control devices via IR from either the transmitter or receiver side
  • fluent-mdl2_connect-virtual-machine
    HDMI Loop-Out
    Connect an additional display to the transmitter
  • material-symbols_safety-check
    Surge Protection
    Integrated surge protection increases reliability
  • Audio Extraction – Digital audio can be extracted via the optical audio port
  • Plug and Play – Easy setup, no drivers to install
  • Zero Latency

Videos

Top 3 BZBGEAR HDMI Extenders That Go The Distance
Top 3 BZBGEAR HDMI Extenders That Go The Distance
How to Connect a 4K HDMI Extender - BZBGEAR BG-EXH-70C
How to Connect a 4K HDMI Extender - BZBGEAR BG-EXH-70C
4K HDMI Extender over Cat6 Delivers Crystal-Clear Quality - BZBGEAR BG-EXH-70C
4K HDMI Extender over Cat6 Delivers Crystal-Clear Quality - BZBGEAR BG-EXH-70C

Tech Specifications

Model No. BG-EXH-70C
Technical Transmitter Receiver
Input HDMI x1, DC2.1 x1, 3.5mm jack x1 (IR) DC2.1 x1, RJ45 x1, 3.5mm jack x1 (IR)
Output HDMI x1, RJ45 x1, 3.5mm jack x1 (IR) HDMI x1, RJ45 x1, 3.5mm jack x1 (IR), Optical x1
HDMI compliance HDMI2.0, compatible HDMI1.4
HDCP compliance HDCP2.2, compatible HDCP1.4
Transmission medium CAT6/CAT6A/CAT7
Transmission distance CAT6/6A/7 Transmission 70 meters
Video bandwidth 18Gbps
Resolution support 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
Audio support LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 7.1CH
HDR10 (YUV4:4:4) support
HDMI Loop-out support
ARC and S/PDIF out support
EDID through support
Bi-directional IR passback support
Input TMDS signal 0.7~1.2Vp-p
Input DDC signal 5Vp-p
HDMI connector Type A 19 Pins, Female
Network cable standard CAT6/CAT6A/CAT7, follow IEEE-5688 standard
Mechanical Transmitter Receiver
Housing Aluminium alloy material+crystal panel
Dimensions (LxWxH mm) 4.2"(L) x 3.9"(W) x 1.0”(H) [106.0(L) x 99.0(W) x 26.2(H)mm]
Net weight 0.46lbs [210g] 0.46lbs [210g]
Power supply 5V/2A 5V/2A
Power consumption 4W 4W
Operation temperaure -4~140°F / -20~60°C
Storage temperature -22~158°F / -30~70°C
Relative humidity 0~90% (no condensation)

PACKAGE CONTENTS

  • 1 x HDMI Extender Transmitter
  • 1 x HDMI Extender Receiver
  • 1 x User Manual
  • 1 x Wideband IR TX
  • 1 x Wideband IR RX
  • 2 x 5V2A DC Power Supply
  • 8 x Mounting brackets
  • 18 x Screws

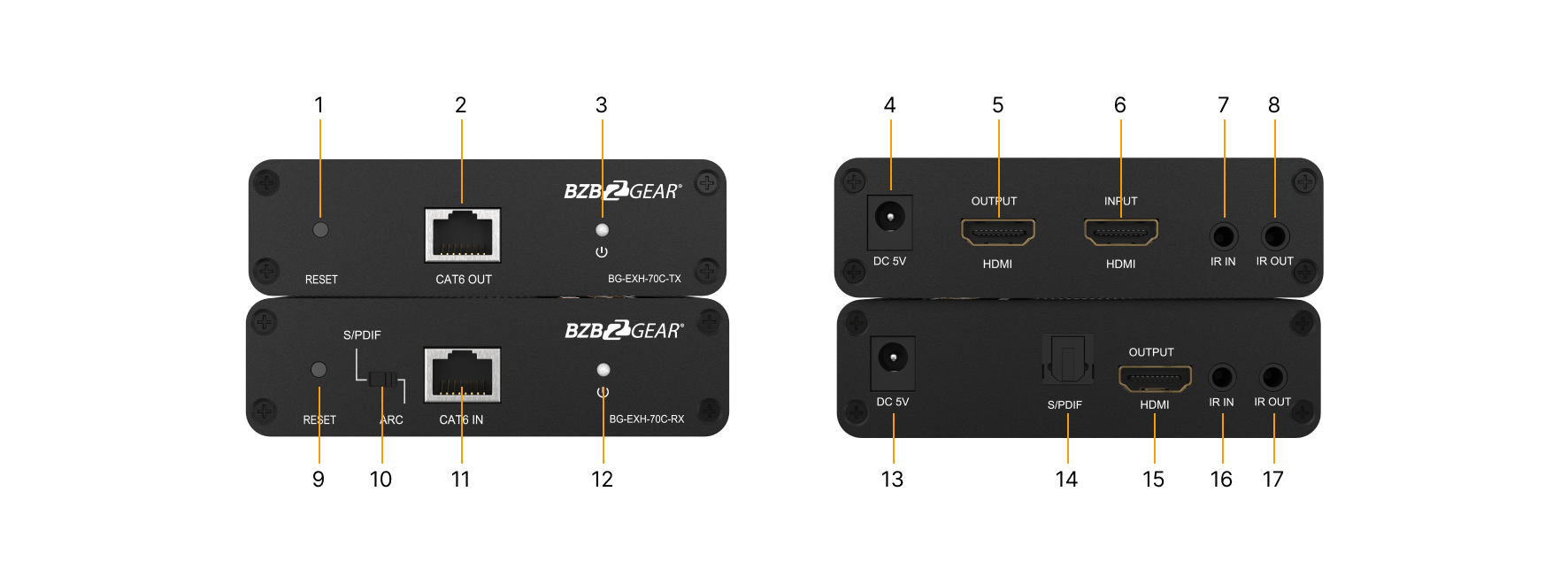

Interfaces

Interfaces image
  1. Reset button: Press to restart the device.
  2. RJ45 signal output: Connect with network cable to receiver.
  3. Power/Signal indicator: When there is power and no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue.
  4. DC5V input: Connect with DC5V/2A power adapter.
  5. HDMI output: Connect with an HDMI display device.
  6. HDMI input: Connect with the source device.
  7. IR in: Connect with IR receiver extension cable, please make sure the remote control used is within the effective range.
  8. IR out: Connect with IR blaster extension cable, please get closer to the source device while using.
  9. Reset button: Press to restart the device.
  10. Audio switch: Choose to decode audio from HDMI or ARC output from fiber optic interface.
  11. Rj45 signal input: Connect with network cable.
  12. Power/Signal indicator: When there is power and no HDMI signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue.
  13. DC5V input: Connect with DC5V/2A power adapter.
  14. S/PDIF out: Output digital audio signal.
  15. HDMI output: Connect with an HDMI display device.
  16. IR in: Connect with IR receiver extension cable, please make sure the remote control used is within the effective range.
  17. IR out: Connect with IR blaster extension cable, please get closer to the source device while using.
