4K Ultra HD DisplayPort 1.2a KVM Extender Kit - HDBaseT, Long Range over Cat6 up to 150m, Bi-Directional POC with USB, IR & RS232

Name: 4K Ultra HD DisplayPort 1.2a KVM Extender Kit - HDBaseT, Long Range over Cat6 up to 150m, Bi-Directional POC with USB, IR & RS232
Brand: Bzbgear
SKU: BG-EXD-150C
Price: 399.00 USD
Availability: InStock

ProGear

U.S.-based Company

Complimentary design services<br> and engineering support

Complimentary design services
and engineering support

5 year warranty

Click here to learn more about BZBGEAR Fundamentals

Configure the Perfect Solution

Get Started

Overview Specifications Interfaces Resources Package contents

Overview

Overview

The BG-EXD-150C is a 4K60 DisplayPort (DP) range extender capable of transmitting DP video, bi-directional IR, and RS-232 control signals, as well as USB KVM signals. It can transmit signals over distances of up to 328ft/100m for a 4K60 signal and 492ft/150m for a 1080P signal using a single CAT6 cable.

The BG-EXD-150C converts the DP signal into a standard HDBaseT signal, transmitting it via a LAN cable. Users can easily control the signal source device or the display device using a remote, thanks to the bi-directional IR signal pass-through feature. The extender supports video resolutions of up to 4K2K@60Hz YUV 4:4:4 and also provides a bi-directional POC function.

Furthermore, with support for DisplayPort 1.2, this extender facilitates the transmission of visually lossless 4K Ultra HD resolutions, making it ideal for striking digital signage or detailed content in medical settings. The extender is also compatible with lossless audio formats, including Dolby TrueHD and DTS-HD, enhancing video content with powerful multi-channel sound, thus elevating the viewer's experience. The USB KVM connectivity ensures full control of a DisplayPort PC from a local console, which can be kept in a secure or temperature-controlled environment, all while seamlessly delivering consistent video content to the display.

Features

Compliant

DisplayPort 1.2a and HDCP 2.2 compliant
4K UHD

Video resolution up to 4K2K@60Hz YUV 4:4:4
Long Range

Signal transmission distance up to 328ft/100m for 4K60 signals or 492ft/150m for 1080P signals via a single CAT6 cable
Audio Formats

LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
Intuitive Control

Control a remote DisplayPort PC via keyboard and mouse with the KVM function
Compact Design

For easy and flexible installation

21.6Gbps video bandwidth
Bi-directional Power Over Cable (POC), IR, RS-232, and USB KVM signal pass-through
Advanced EDID management
Smart compression: For visually lossless transmissions

Videos

Extend AND Control Your 4K DisplayPort Signals With the BG-EXD-150C

Tech Specifications

Technical Specifications
DP Compliance	DP 1.2a
HDCP Compliance	HDCP 2.2
Video Bandwidth	Up to 21.6Gbps
Video Resolution	Up to 4K@60Hz YUV 4:4:4
USB Compliance	USB 1.1
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
Audio Formats	LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
IR Level	5Vp-p/12Vp-p
IR Bandwidth	20K - 60KHz
Transmission Distance	1080P@60Hz - 492ft /150m, 4K@60Hz - 328ft /100m
ESD Protection	Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connections
Transmitter	Input: 1 x DP IN [20-pin female] Output:1 x HDBT OUT [RJ45, 8-pin female] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x PC [USB-A] 1 x Service [Micro USB]
Receiver	Input: 1 x HDBT IN [RJ45, 8-pin female] Output: 1 x DP OUT [20-pin female] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 2 x USB 1.1 [USB-A] 1 x Service [Micro-USB]
Mechanical
Housing	Enclosure - Metal Composite
Color	Black
Dimensions (L x W x H)	5.5in x 2.6in x 0.71in [140mm x 65mm x 18mm]
Weight	0.5 lbs (8oz) [0.45kg]
Power Supply	DC 24V/1A (US/EU standard, CE/FCC/UL certified), Bi-directional POC
Power Consumption	Total power consumption: 13.2w
Operating Temperature	32° - 104°F / 0° - 40°C
Storage Temperature	-4° - 140°F / -20° - 60°C
Relative Humidity	20 - 90% RH (no condensation)
Resolution	8K30	4K60	4K24	1080P60
Cable Length	9.8ft / 3m	16ft / 5m	32ft / 10m	66ft / 20m
NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended.

Resources

Documents

Download Manual

Download Brochure

PACKAGE CONTENTS

1x BG-EXD-150C Transmitter
1x BG-EXD-150C Receiver
1x 24V / 1A Locking Power Supply
1x IR Blaster Cable (1.5m)
1x IR Receiver Cable (1.5m)
2x 3-pin 3.81mm phoenix connectors
4x Mounting ears
8x KM3*4 Machine Screws
1x 1.5m USB 2.0 Cable (A to B)
1x User Manual

Interfaces

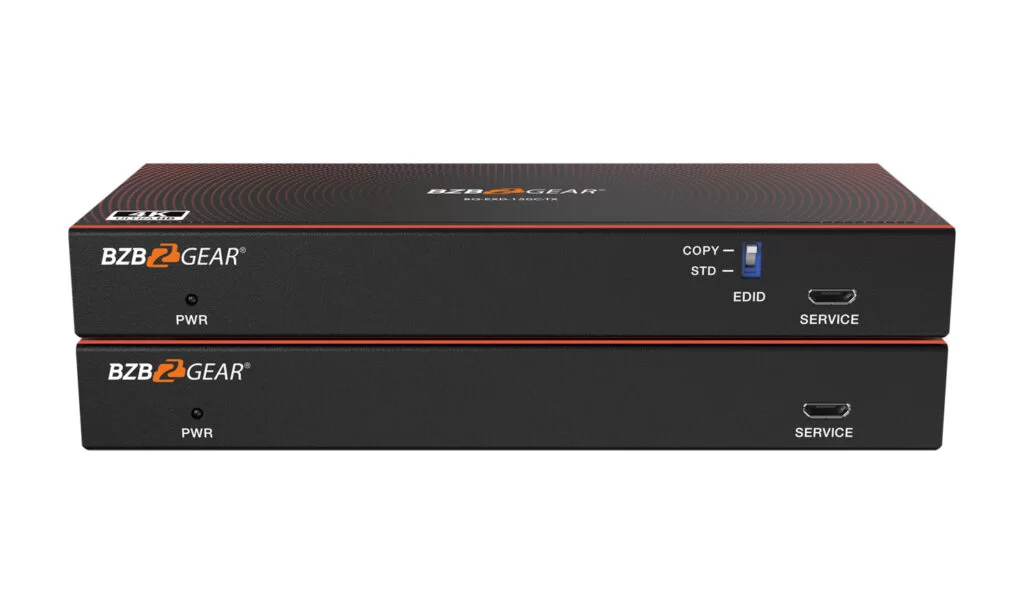

PWR LED: The red LED is on when the Transmitter is powered on.
EDID DIP switch: Used for EDID setting (COPY by default).
COPY: Copy the EDID of the DP OUT port of Receiver.
STD: Default 1080P 2CH.
SERVICE: Micro USB port, used to update MCU firmware.
DC 24V: DC 24V/1A power input port.
Note: The extender supports POC functionality which means
that either Transmitter or Receiver is connected to 24V/1A
power supply, the other does not need a power supply.

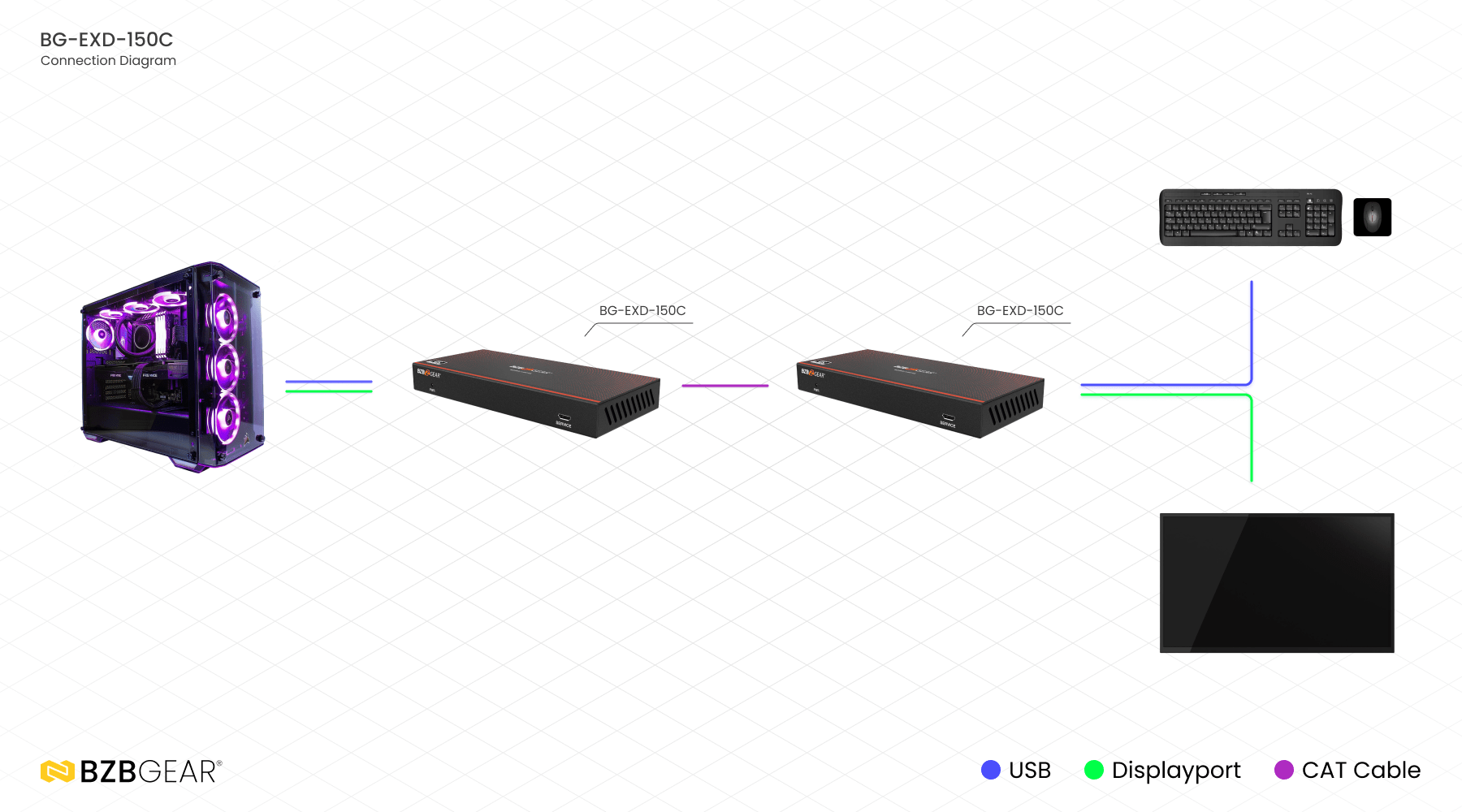

HDBT OUT: HDBT output port, connected to the HDBT IN port of the Receiver with CAT6 cable.
Link Signal Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
Data Signal Indicator (Yellow): Solid: DP signal with HDCP.
Flashing: DP signal without HDCP.
Dark: No DP signal.
DP IN: DP signal input port, connected to DP source device such as computer host.
IR IN: Connected to IR receiver cable. The IR receive signal will emit to the IR OUT port of the Receiver.
IR OUT: Connected to IR blaster cable. The IR emit signal is from the IR IN port of the Receiver.
RS-232: 3-pin phoenix connector, connected to a PC or control system for RS-232 command transmission.
PC: USB-B port, connected to PC.
PWR LED: The power LED is on when the Receiver is powered on.
SERVICE: Micro USB port, used to update MCU firmware.
DC 24V: DC 24V/1A power input port.
Note: The extender supports POC functionality which means
that either Transmitter or Receiver is connected to 24V/1A
power supply, the other does not need a power supply.
HDBT IN: HDBT input port, connected to the HDBT OUT port of the Transmitter with CAT6 cable.
Link Signal Indicator (Green): Solid: Transmitter and Receiver are in good connection status.
Flashing: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
Data Signal Indicator (Yellow): Solid: DP signal with HDCP.
Flashing: DP signal without HDCP.
Dark: No DP signal.
DP OUT: DP signal output port, connected to DP display device such as TV or monitor.
IR IN: Connected to the IR receiver cable. The IR receive signal will emit to the IR OUT port of the Transmitter.
IR OUT: Connected to the IR blaster cable. The IR emit signal is from the IR IN port of the Transmitter.
RS-232: 3-pin phoenix connector, connected to a PC or control system for RS-232 command transmission.
USB-A: Two USB-A ports, connected to a keyboard or mouse.
