All-in-One 4K IP Production Switcher and PTZ Joystick Controller (4-Channel/ Touchscreen/PoE/IP/RS-232)

EssentialGear
NEW
Shipping Q1 2026
BG-Commander-UltraLE-1 BG-Commander-UltraLE-2 BG-Commander-UltraLE-3 BG-Commander-UltraLE-4 BG-Commander-UltraLE-5 BG-Commander-UltraLE-6 BG-Commander-UltraLE-7
BG-Commander-UltraLE-1
BG-Commander-UltraLE-2
BG-Commander-UltraLE-3
BG-Commander-UltraLE-4
BG-Commander-UltraLE-5
BG-Commander-UltraLE-6
BG-Commander-UltraLE-7
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
3 year warranty
3 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

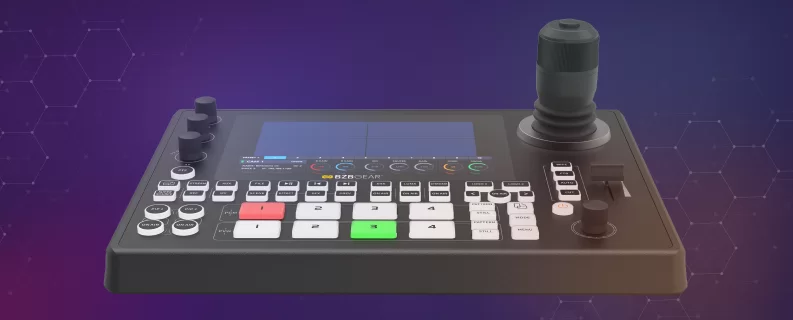

The BG-Commander-UltraX is a professional portable 4-channel HDMI production switcher and joystick controller designed for multi-camera productions. Supporting up to 4K signal input with 1080p@60Hz output, it integrates advanced features such as picture-in-picture, chroma key, logo overlay, and multiple transition effects. With dual HDMI outputs, USB-C virtual camera capability, direct recording to USB/SD, PTZ camera control, and tally light support, this device delivers a complete live production solution for live streaming, online courses, corporate press conferences, events, or church services.

Features In Depth

The BG-Commander-UltraX combines multi-camera switching, professional effects, and intuitive control in a single compact device. Its 7-inch LCD touchscreen provides real-time monitoring and menu navigation, while the integrated 4D joystick, sliding T-bar, and precision knobs allow for smooth operation during live production.

With four HDMI inputs supporting 4K@30Hz and flexible output options (HDMI, USB-C, and direct recording), the UltraX ensures uncompromised video quality. The Type-C virtual camera output makes it plug-and-play with popular live streaming and conferencing platforms, removing the need for external capture cards.

Advanced features like chroma key, PIP overlays, and transition effects bring broadcast-level polish to productions, while PTZ camera control and tally integration expand flexibility for multi-camera environments. Whether for mobile production teams or fixed installations, the BG-Commander-UltraX empowers operators to achieve professional-grade results with minimal setup.

Features

  • One-Push Source Switching
    4-in-2-out Switching
    Four 4K HDMI inputs with two HDMI outputs for program and monitoring
  • fluent_tv-usb-48-regular
    Type-C Virtual Camera
    Direct USB-C output for seamless use with live streaming and video conferencing software
  • bi_images
    Professional Effects
    Built-in chroma key, picture-in-picture, logo overlay, and multiple transitions
  • bi_sd-card
    Dual Recording Support
    Record directly to USB drives or SD cards without a PC
  • LED Indicator light
    PTZ & Tally Integration
    Control PTZ cameras and synchronize live/on-air status
  • LCD Display
    7-Inch LCD Display
    High-resolution screen for monitoring, menu navigation, and settings control
  • Supports output resolutions up to 1080p@60Hz
  • Compatible with ONVIF 2.8 and VISCA Over IP protocols
  • Integrated audio mixer with multiple input options
  • Smooth T-bar transitions and intuitive 4D joystick control
  • Low power consumption (
  • Compact, portable design for on-site and mobile production setups
  • Operating temperature range: -10°C to 50°C

Tech Specifications

Operating System Linux
LCD Display Size 7 inch LCD screen
Display Resolution 1024x600
Decoding Ability Input: 4K@30Hz (3840x2160) / 1080p@60Hz (1920x1080)
Output:1080p@60Hz (1920x1080),
compatible with 1080p@30Hz / 720p@60Hz / 480p / 576p
Control Protocol ONVIF 2.8, VISCA Over IP
Interface 4x Video input (HDMI IN)
2x Video output (HDMI OUT (PGM/MON))
1x Video Output (USB-C (Webcam))
3x Audio Input (AUDIO IN)
1x Headphone Jack (3.5mm)
2x Control Ports (Tally & LAN)
2x Data Storage (USB-A 2.0 & SD Card)
1x Power Port (DC12VIN)
System Setting Supports video settings, audio settings, recording settings,
device control, system maintenance
Operating Components 4D control joystick, step-less knob, sliding T-bar
Power Supply Standard 5.5/2.1 power connector, DC 12V 2A ±10%
Power Consumption < 15W
Working Temperature 14°F - 122°F / -10°C - 50°C
Working Humidity 20%~80% Non-condensing
Storage Temperature  -40°F - 140°F / -40°C - 60°C
Storage Humidity 0%~90% Non-condensing

PACKAGE CONTENTS

  • 1x BG-Commander-UltraX
  • 1x DC 12V Power Adapter
  • 1x Manual

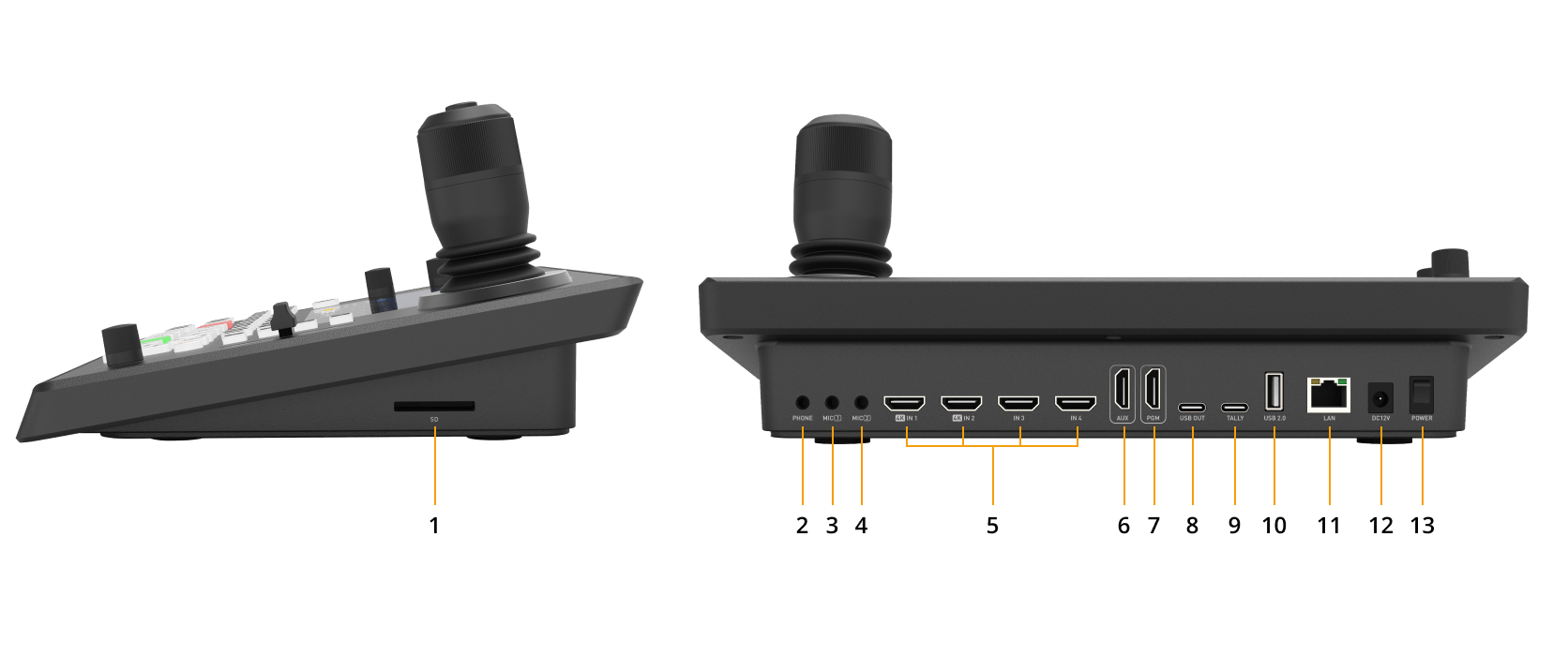

Interfaces

Interfaces image
  1. SD Card Slot: For direct recording to SD media.
  2. Headphone Jack (3.5mm): For real-time audio monitoring.
  3. MIC Input 1 (3.5mm): Microphone/line input channel 1.
  4. MIC Input 2 (3.5mm): Microphone/line input channel 2.
  5. HDMI IN 1-4 (4K): HDMI video input, supports up to 4K@30Hz.
  6. HDMI AUX OUT: Assignable auxiliary HDMI output for monitoring.
  7. HDMI PGM OUT: Program HDMI output at up to 1080p60.
  8. USB OUT (USB-C): Virtual webcam output for direct streaming to a PC.
  9. TALLY Port: For connecting tally lights during live productions.
  10. USB 2.0 Port (Type-A): For external USB storage devices.
  11. LAN Port (RJ45): Network connection for PTZ/IP camera control and ONVIF/VISCA over IP.
  12. DC 12V Power Input: Power supply connection.
  13. Power On/Off Switch: Manually power on/off.
