Professional Serial and IP PTZ Joystick Controller with Touchscreen and POE (IP/RS-232/422/485)
and engineering support
Demand perfection. Command with precision.

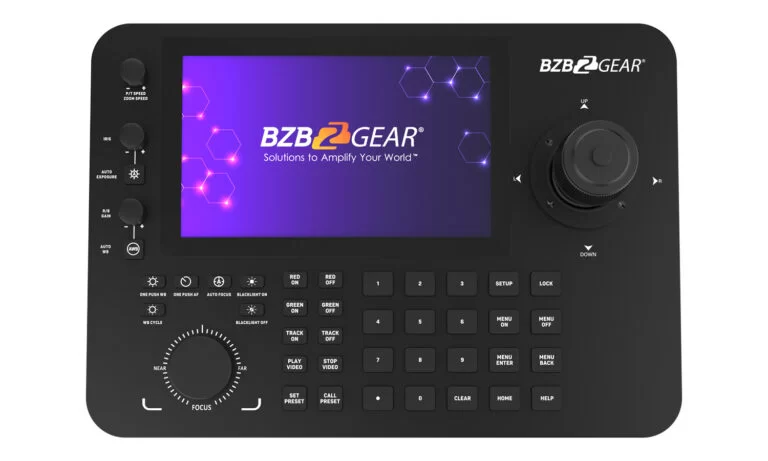

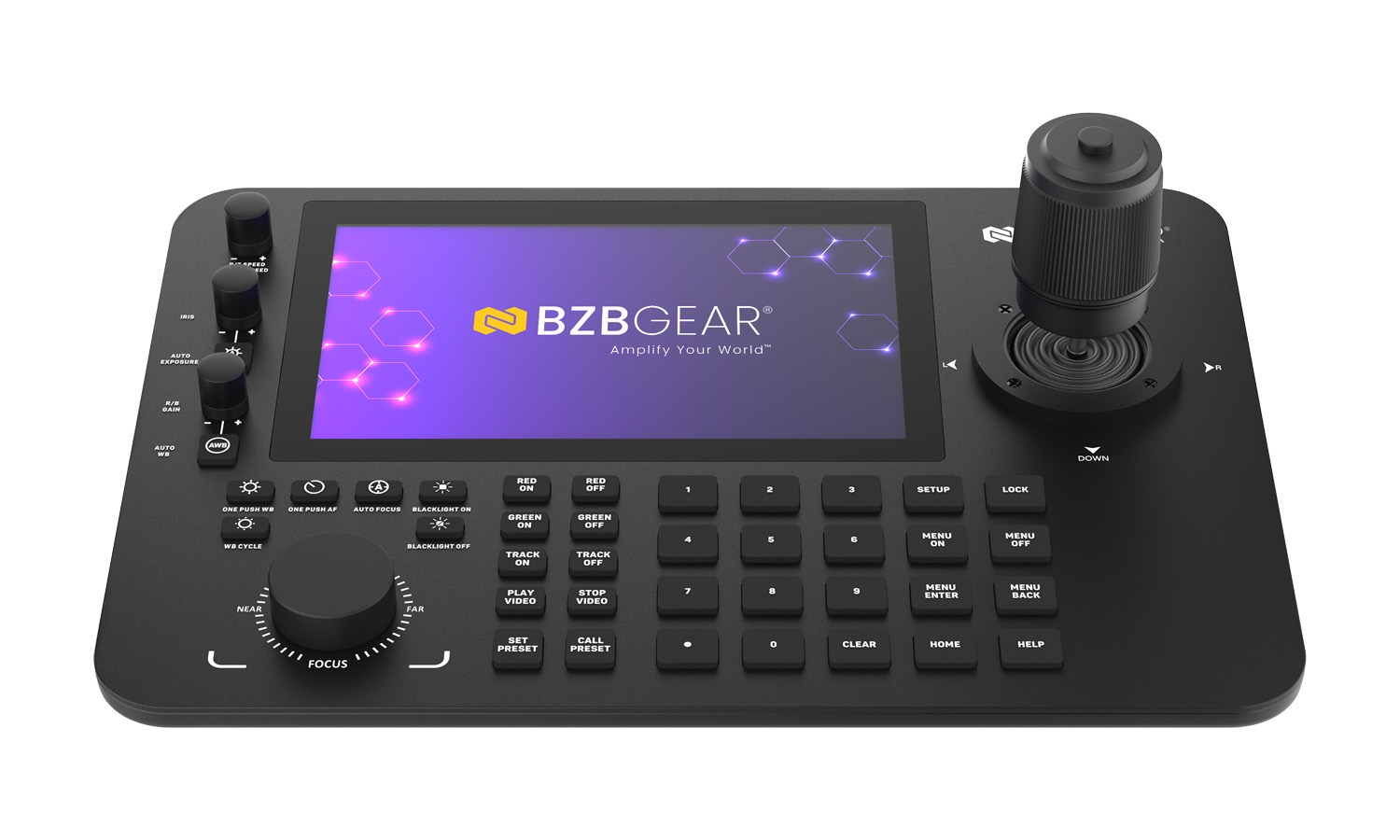

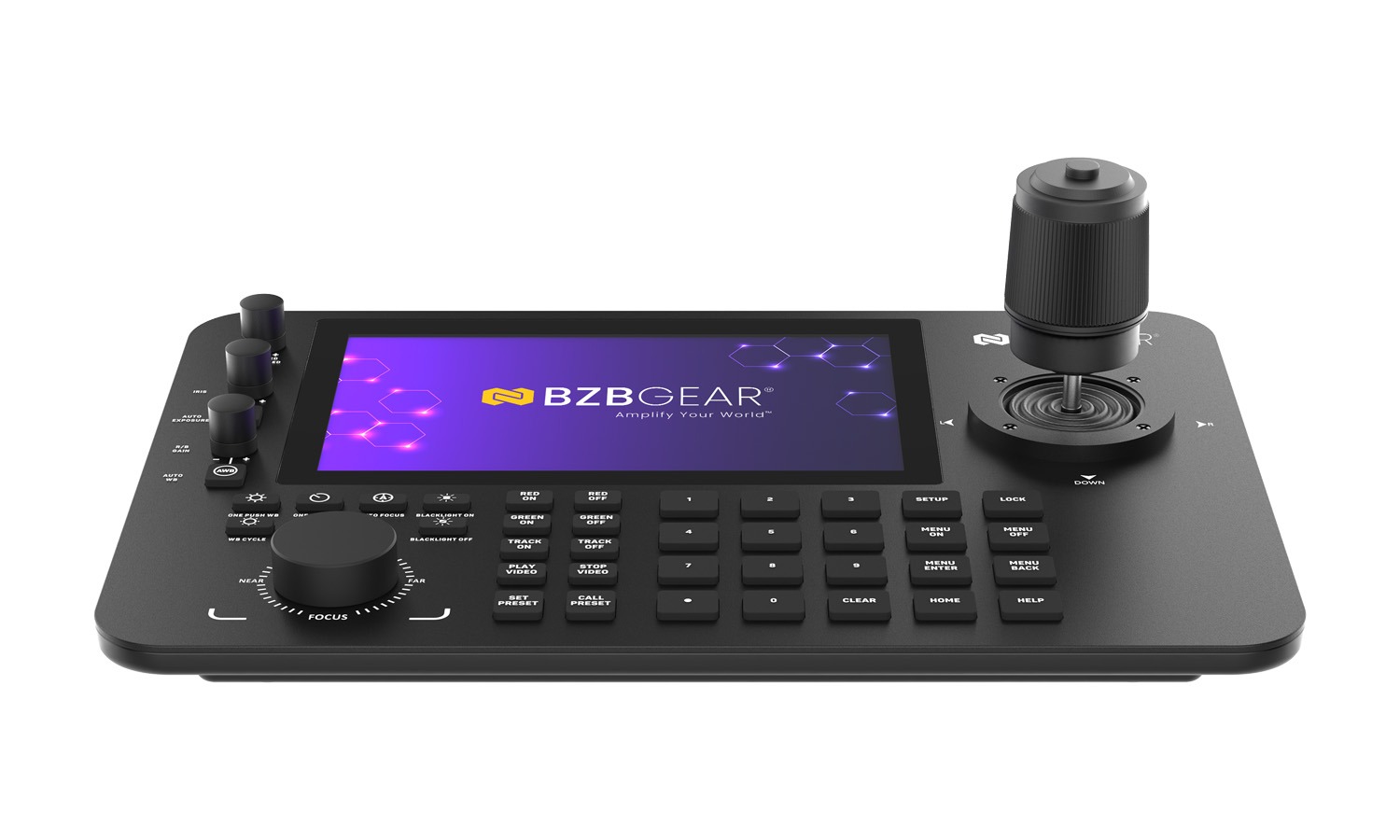

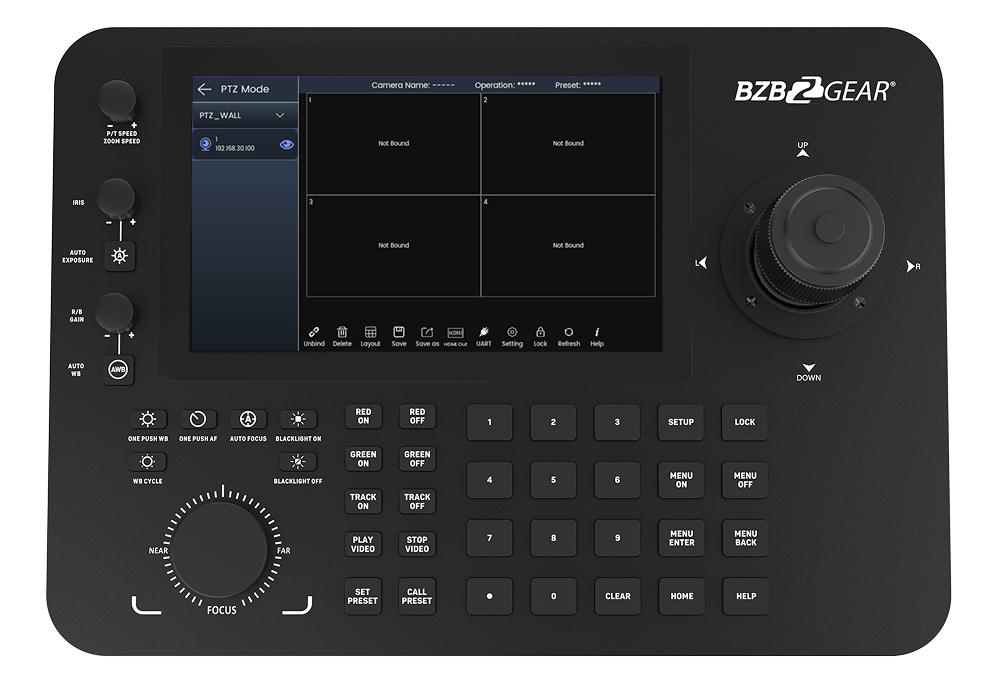

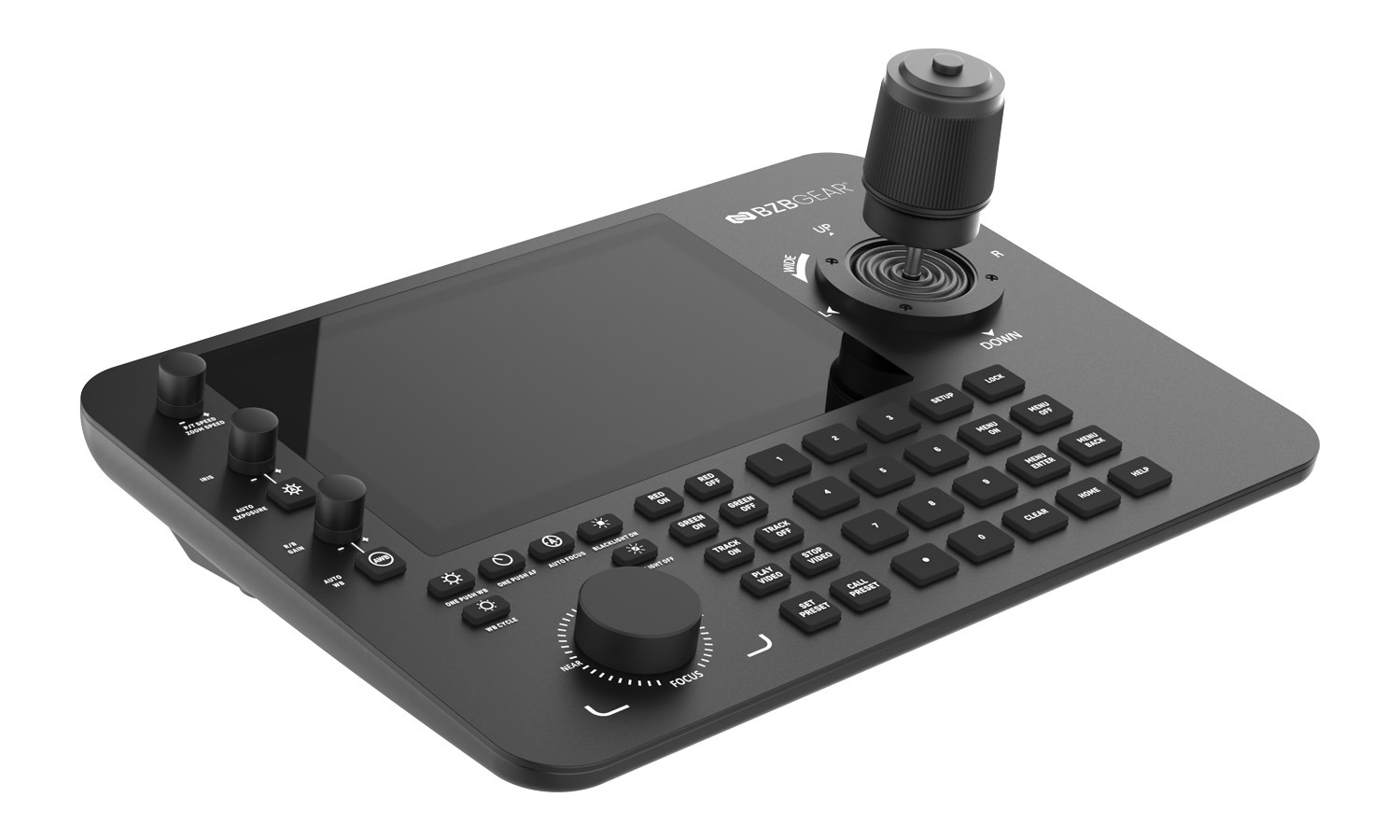

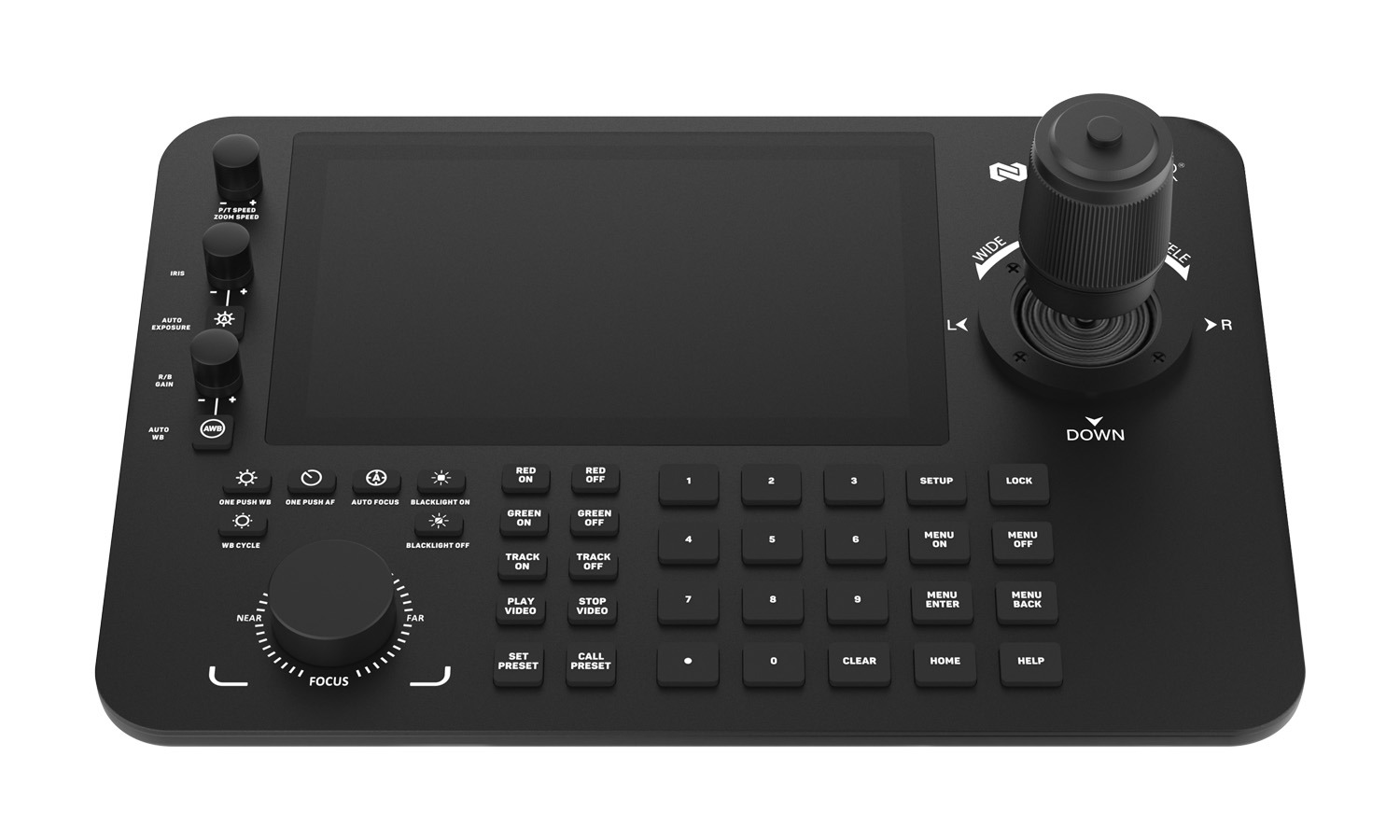

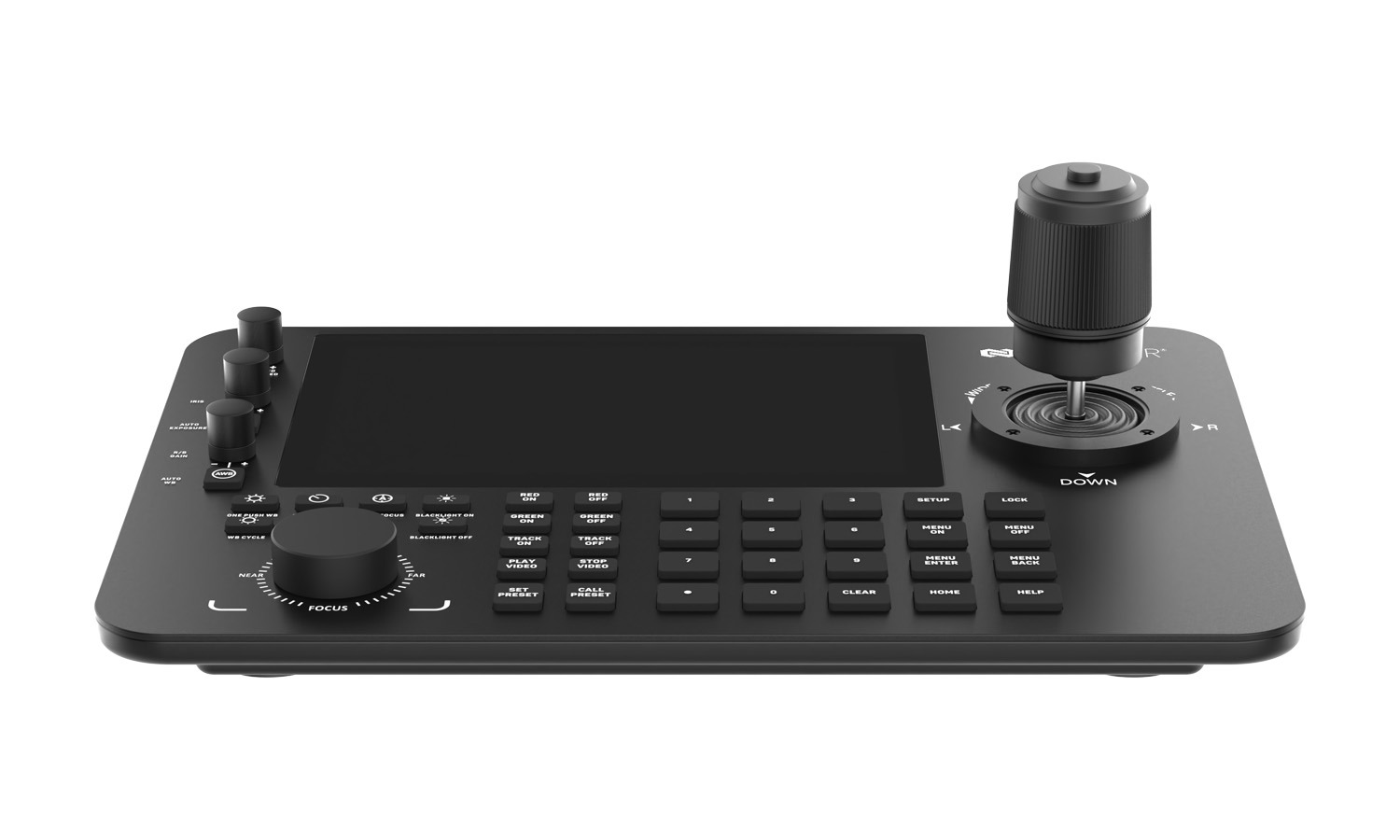

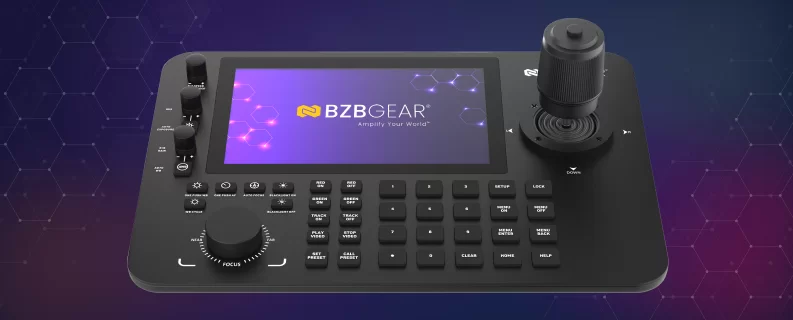

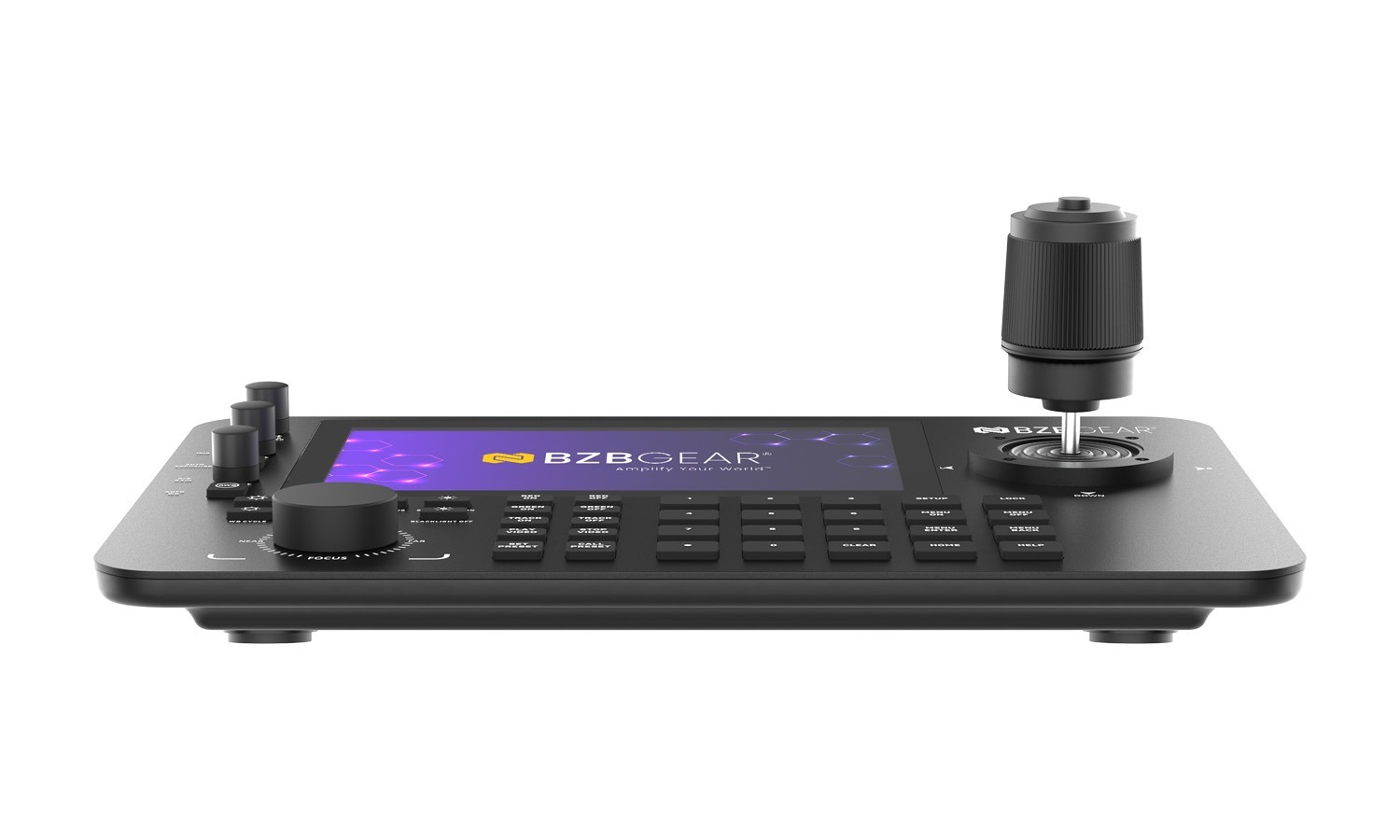

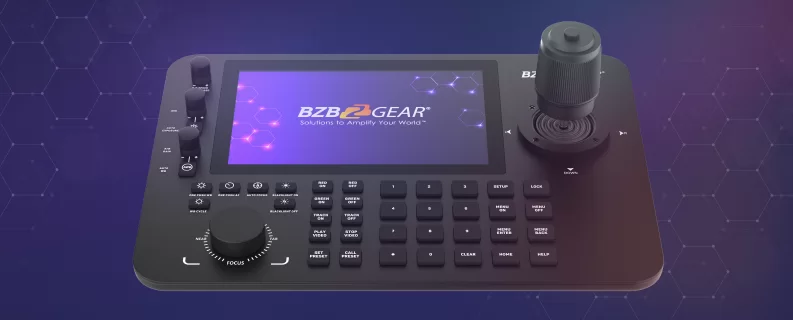

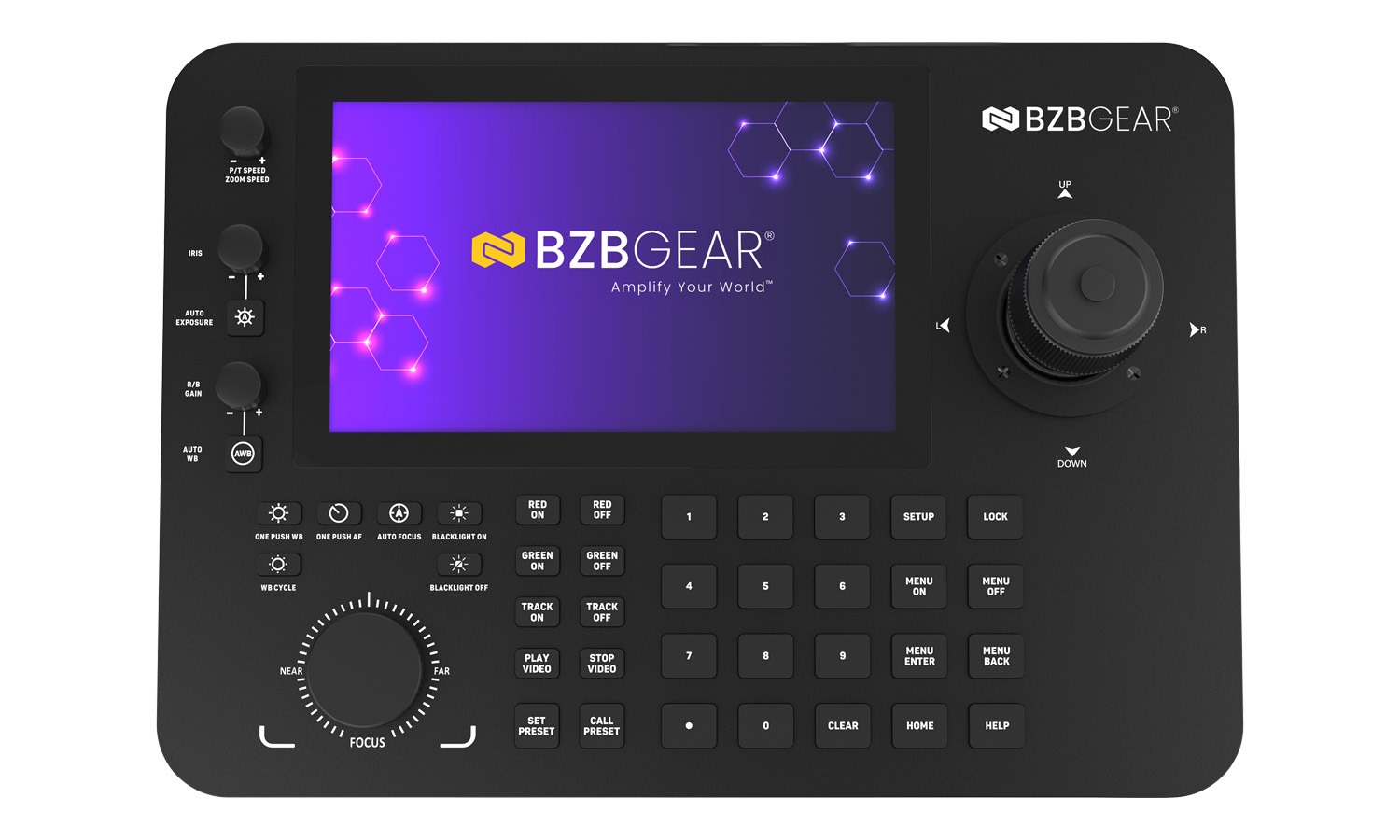

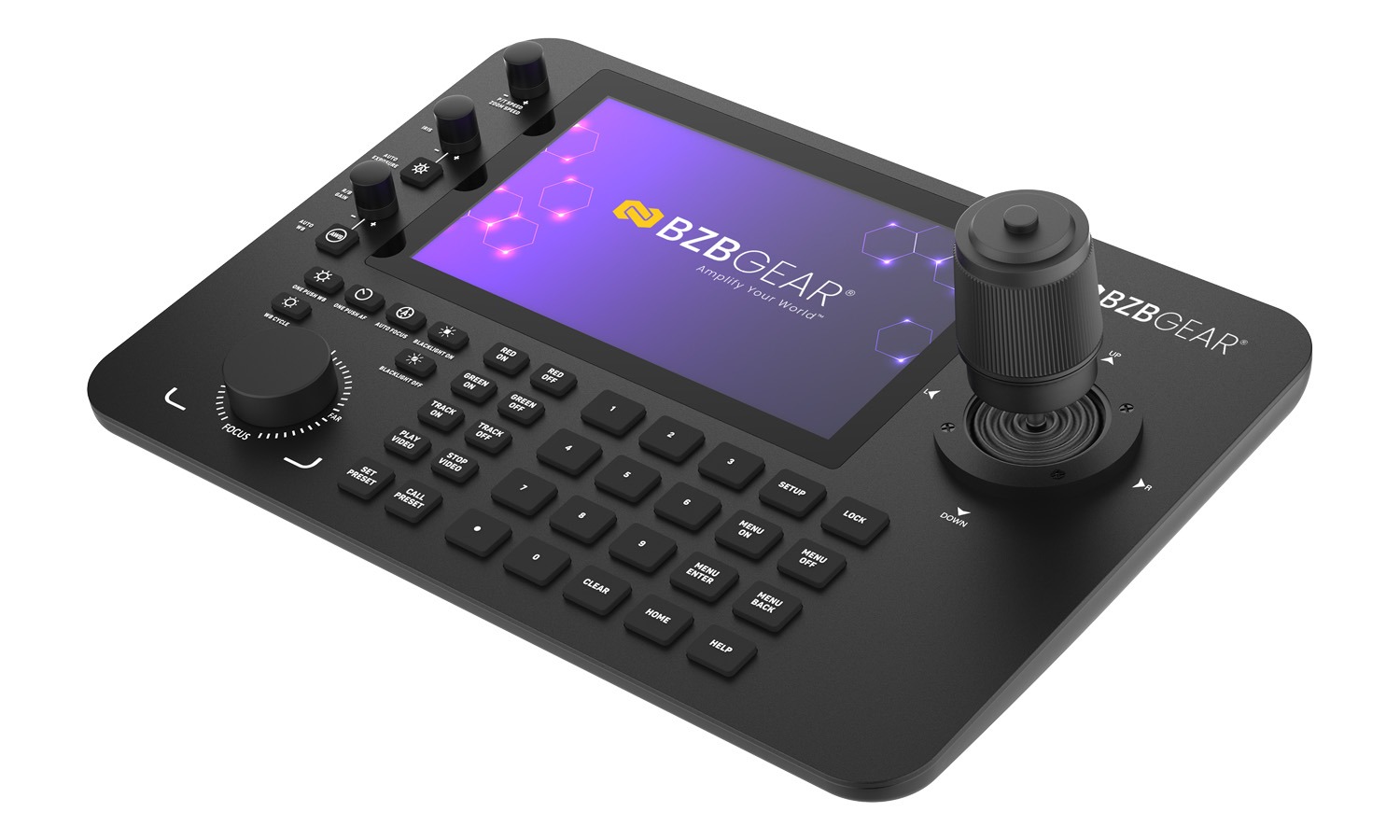

The BG-COMMANDER-PRO is a versatile PTZ camera joystick controller featuring a 7" touch screen, real-time video previews, and Android OS. It supports simultaneous viewing of 4 RTSP streams or a single full-screen image. With H.265/H.264 decoding, it offers efficient video processing.
The BG-COMMANDER-PRO also facilitates HDMI projection and can output 4 additional RTSP streams to an external display for simplified monitoring. It provides seamless PTZ control for preset positions, focus, zoom, and exposure settings, and can even access a camera's web interface. Designed for BG-ADAMO cameras, the unit offers quick access to red/green tally lights control and auto tracking activation.
Highly Customizable and Easy to Manage
With HDMI projection and total PTZ control including presets, focus, zoom, and exposure, easily control your PTZ cameras for better broadcasting production. The Commander Pro is also customizable with single IP multi-channel acquisition and ONVIF protocol support, meaning you can add up to 2048 devices.
User-Friendly and Future Proof
The Commander Pro was designed to be user-friendly. It can be upgraded through a standard USB flash drive, utilize an external mouse/keyboard for easier interface control, and even record RTSP streams or take screenshots in the moment using the available Micro-SD expansion storage slot. It also features four RS422/RS485 and one RS-232 control port, making it ideal for large-scale video projects.
The Commander Pro’s unique capabilities such as support for a 2x2 video wall with up to 4 camera inputs, can be controlled via mouse and keyboard, all with Power over Ethernet (PoE) make for a clean, easy setup.
This device is versatile and ideal for installing multi-network PTZ camera systems in various settings such as medium-to-large-scale events, schools, hospitals, hotels, residential areas, factories, and workshops. Its capabilities can quickly achieve unified LAN ONVIF control for seamless monitoring and management of the entire camera network. The Commander Pro provides a simple UI for users to access professional-grade controls, management, and editing tools.
BZBGEAR AWARDS
Features
-
![cloud-arrow-down-light 2]()
IP-ControlEasily control any compatible IP camera -
![Plug-and-Play Setup]()
PoE EnabledSingle cable installation -
![iconoir_pc-check]()
Simple to UseLogical layout allows anyone to take control with minimal training -
![Monitor]()
7” TouchscreenThe large touchscreen makes video viewing and management simple -
![Four Control Modes]()
Multiple Control ModesRS232, RS422/485, ONVIF, IP VISCA, PELCO-P, PELCO-D, and NDI -
![bi_display]()
HDMI ProjectionTransmit audio and video signals from the controller to a larger display device, such as a projector or a TV
- Support for H.265/H.264/decoding
- Support for Onvif 2.8 protocol
- Support for video recording and screen capture
- Support for up to 2048 devices to add
- Mouse and keyboard Controllable
- Upgradable via U disk, external mouse, TF expansion storage
- Support for PTZ control, setting and calling of preset points, focus, zoom, exposure, etc.
- Auto-scans network for IP cameras

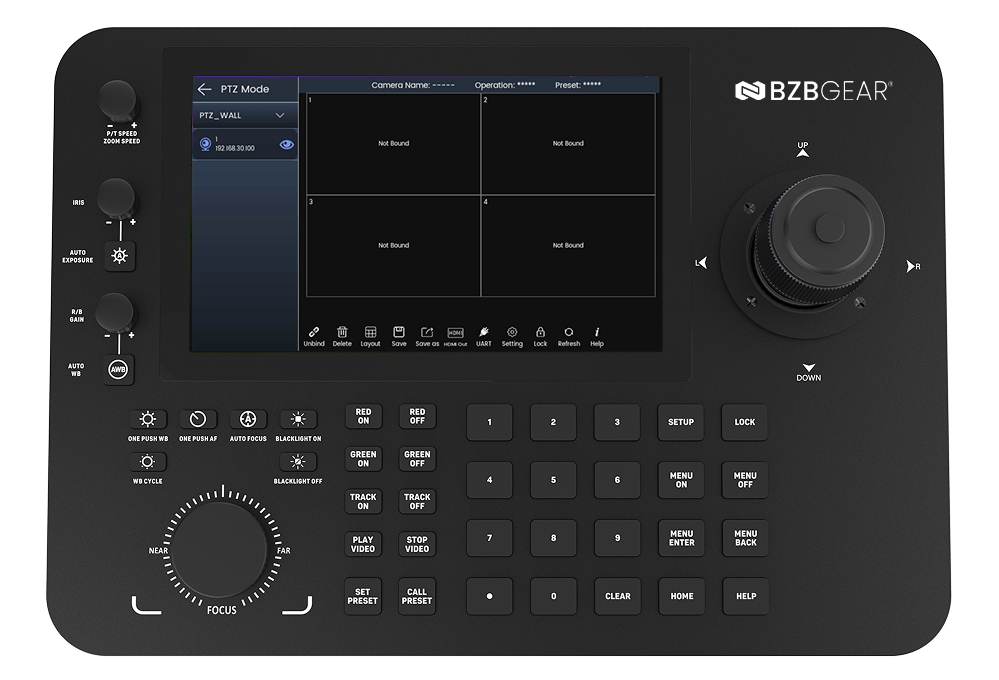

Discover the Cutting-Edge Touchscreen Interface of the BG-COMMANDER-PRO

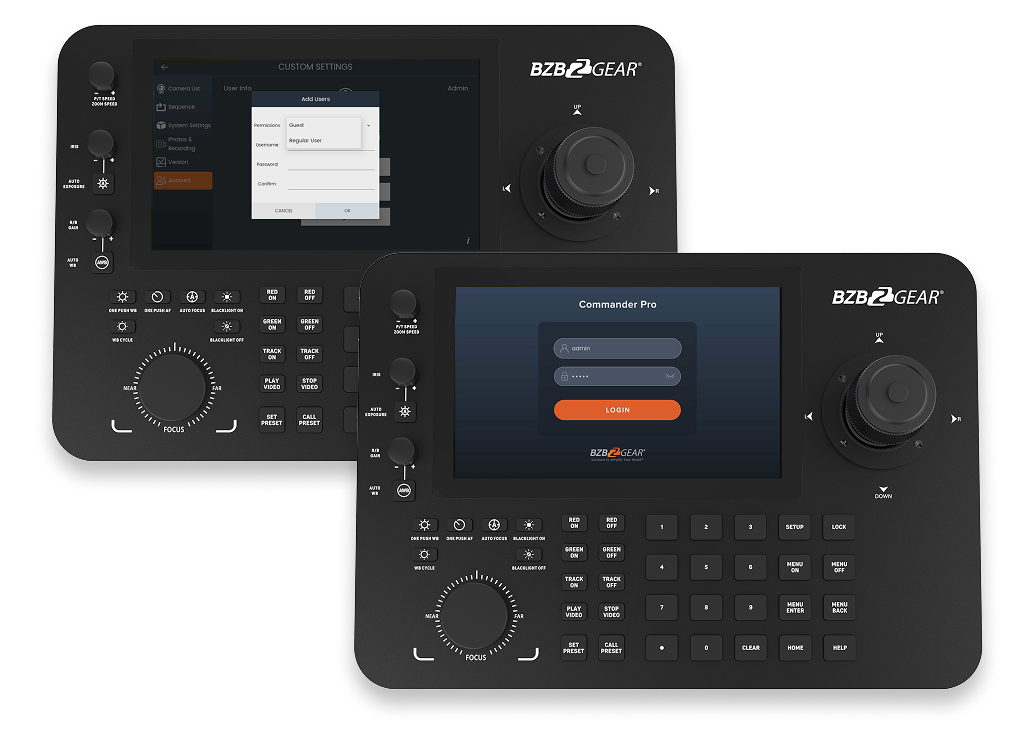

The BG-COMMANDER-PRO offers robust security and flexible user management with three distinct account types, each providing varying levels of access and control:
- Admin Account: Grants full access to all system settings, camera controls, and sensitive information. Admins can also manage user accounts and configure network and administrative settings.
- Regular User: Allows access to camera controls and basic system information but restricts access to network configurations and administrative settings.
- Guest Account: Provides view-only access to the user interface and live camera feeds, with no permissions to modify settings or view sensitive data.

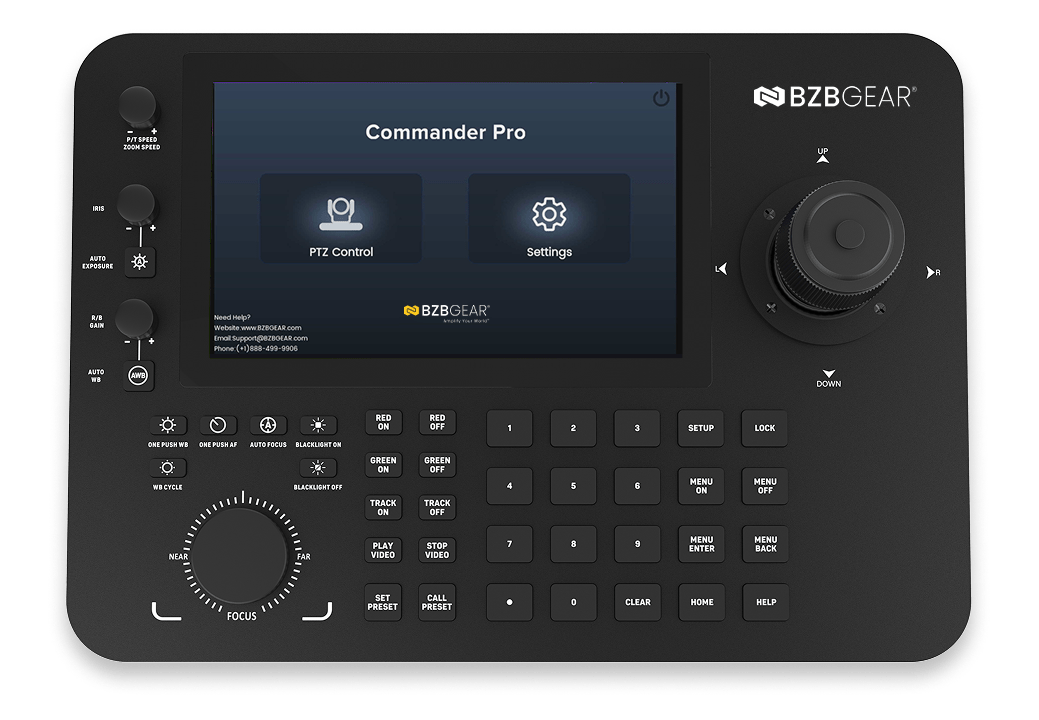

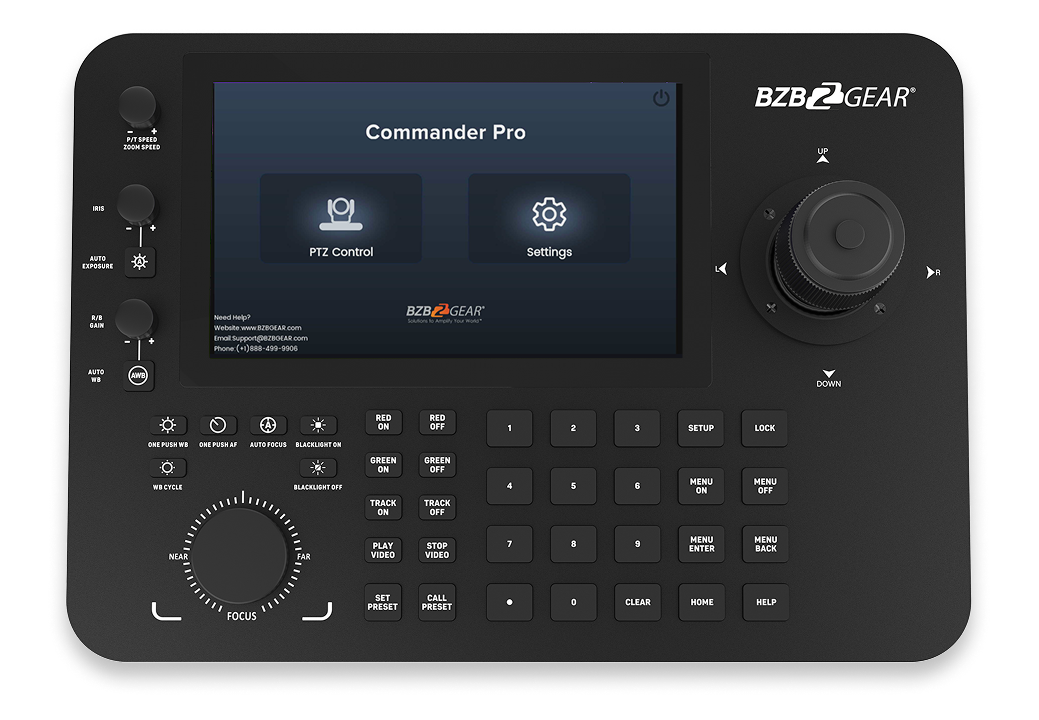

The BG-COMMANDER-PRO offers a quick, hassle-free setup with an intuitive interface. Effortlessly manage network settings, system settings, media, accounts, and camera search and configuration - all at your fingertips or with the convenience of your keyboard and mouse.
The BG-COMMANDER-PRO offers versatile viewing options, allowing users to monitor camera feeds in 1x1 mode for single-camera focus or 2x2 mode to view up to four camera feeds simultaneously.
Easily make real-time adjustments while monitoring, including PTZ control, image settings, recording functions, and more—all with seamless efficiency.
Videos
Tech Specifications
| Technical Specifications | |
| Operating System | Android |
| Screen Size | 7” capacitive touchscreen / resolution 1024x600 |
| Video Output | HDMI 4K@30Hz |
| Video Output Connectors | 1x HDMI Type A, 19-pin, female |
| Decoding | 1. Supports H264/H265 2. Max supported H264 4x1080p@30fps 3. Max supported H264 16x720p@30fps 4. Max supported H265 1x4K@60fps |
| Protocols | IP VISCA, ONVIF, NDI, VISCA, Pelco-P, Pelco-D |
| Power | Standard 5.5/2.1 power interface, DC 12V2A±10% |
| Interface Ports | 1x RJ45 (Network) 1x RS232 (RJ45) 1x RS422/485 (RJ45) 1x HDMI output 1x USB 3.0 1x Micro-SD card slot |
| Mechanical Specifications | |
| Power consumption | <1.5W |
| Working Humidity | 10%-90%RH(no frost) |
| Working Temperature | 14°F ~ 122°F / -10°C ~ 50°C |
| Storage Temperature | -40°F ~ 140°F / -40°C ~ 60°C |
| Package dimension | 14 x 9.6 x 6.1in [365 x 245 x 155mm] |
| Weight | 3.75 Lbs [1.7kg] |
Resources
PACKAGE CONTENTS
- 1x BG-Commander-Pro
- 1x Power Adapter (12V DC 2A)
- 1x User Manual

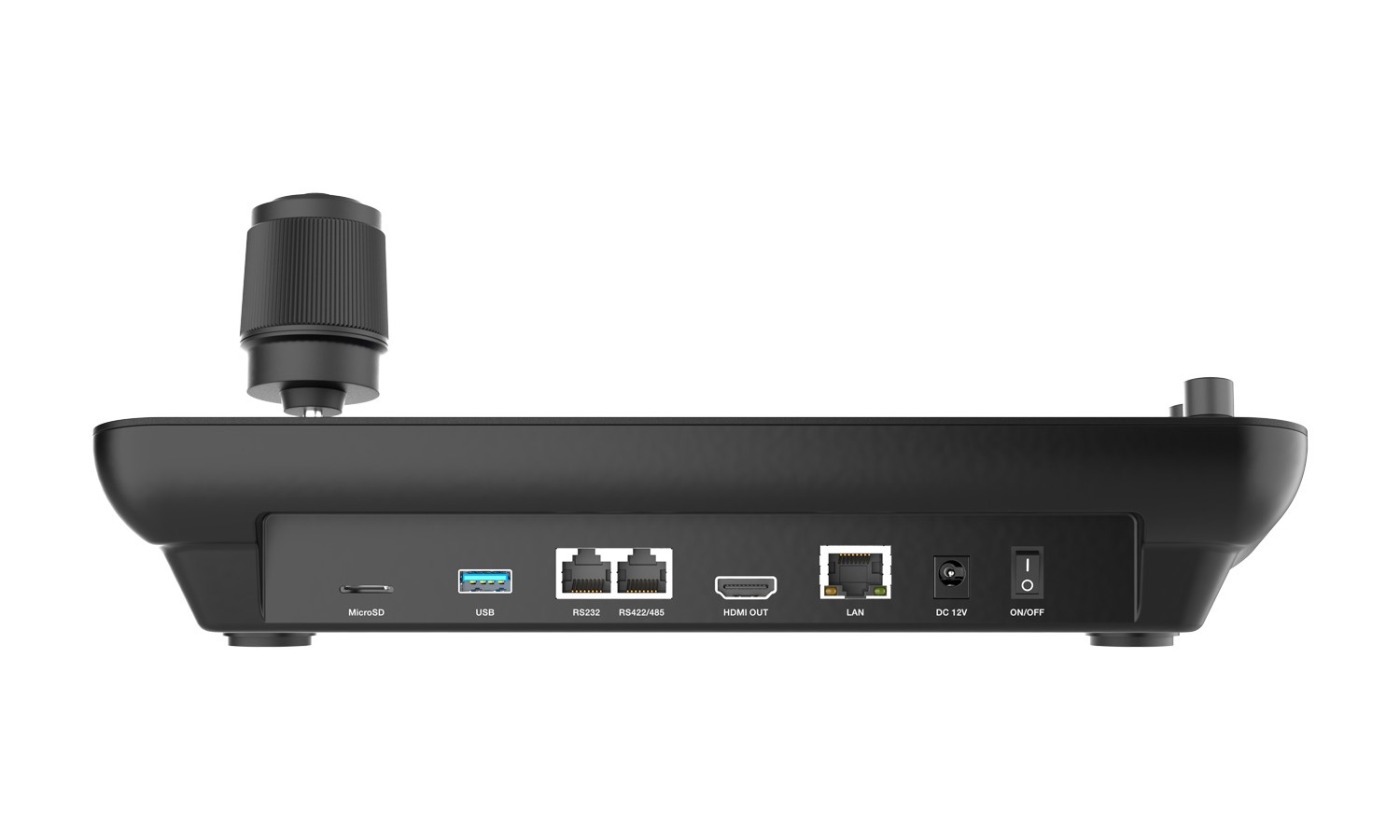

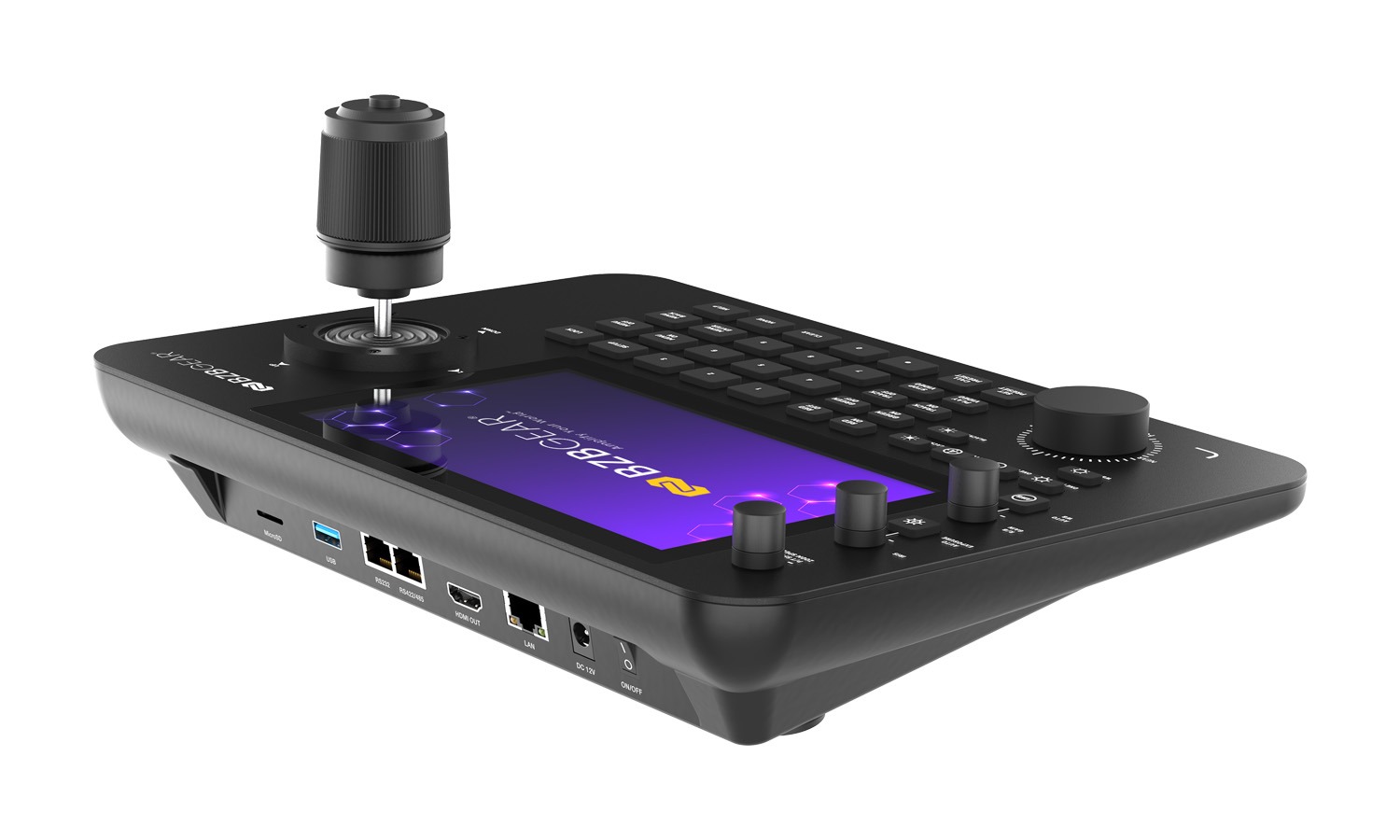

Interfaces
- MicroSD: Micro-SD card slot
- USB 3.0: USB Type-A female
- RS232: RJ45
- RS422/485: RJ45
- HDMI OUT: HDMI Type A, 19-pin, female
- ETHERNET: RJ45 TCP/IP connection
- DC 12V: 12V 2A power supply port
- POWER: Power toggle switch
