Model: BG-CAM-USB20X

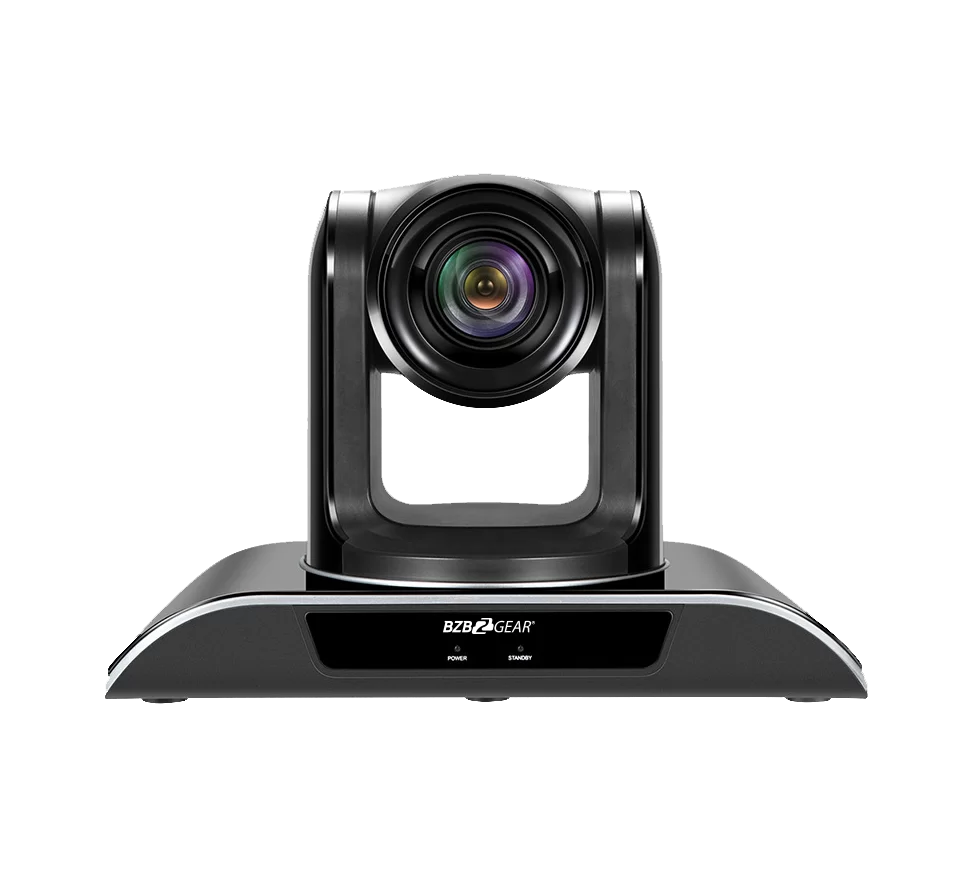

PTZ USB 20X Zoom Full HD 1080P Camera

MSRP: $599.00

MSRP $599

Out of stock


HD 1080P
20X Zoom
USB2.0 HD Interface
2.1 mega pixels
Pan: 0~360° Tilt:+/-60°
RS-232, RS-422, RS-485, IR remote control

  • 20x optical zoom
  • Sleek and intelligent design
  • Plug & Play USB2.0 Connectivity
  • Crystal clear HD1080P image quality
  • Preset: 9 via IR remote setting (256 via RS232)
  • Wide field of view with no video distortion
  • 1/3 inch high quality 2.1MP (16:9) CMOS sensor
  • Superior quality with Full Glass Lens Material
  • Support ceiling mount wall mount and tripod mount (Reverse mountable)
  • 2D and 3D NR for best video quality in different lighting conditions
  • Support Visca Pelco-P and Pelco-D protocol RS232/RS485 Camera Control
  • Compatible with most leading video conferencing software and platform
  • Utilizing belt drive technology the PTZ is ultra-quiet and fast while being very smooth

Image Sensor 1/3 inch Exmor CMOS
Effective pixel 2.1 mega pixel(16:9)
Horizontal Resolution 1080p30/25 720p30/25
Signal standard NTSC/PAL
Zoom 20x optical zoom
Focal length F=4.7mm(wide)-94.0(tele)
Horizontal Angle Near-end 55.5°~Far-end 3.0°
Gain control Auto/manual
Focus Auto/manual
SNR ratio ≥50dB
Wide dynamic D-WDR
Shutter speed 8to1/ 10000s(auto)
Preset position IR remote control supports 9 presets
PELCO Protocol supports 256 presets
Pan/Tilt movement range Pan: 340°(max speed 80°/S) Tilt: 120°(max speed 60°/S)
Control terminal RS-232 RS485
Control Protocol VISCA PELCO-D PELCO-P(RS-232 RS485)
Video output USB
Noise Reduction   2D/3D
Work temperature -10°C-~50°C
Storage temperature -20°C~60°C
Baud rate 2400/4800/9600/19200bps
Decoder Built-in
Address set 1~256
Installation Support desktop Tripod Wall mount and Ceiling mount
Power supply DC12 V/ 2A
Power consumption 12 W
Net weight/Gross weight 1.7kg/3.5kg
Dimension(LXWXH) 260*175*180 mm /296*255*218mm (before / after packing)

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.

Package Contents
① Camera
② DC 12V Power adaptor
③ IR remote control
④ User manual, RS232 cable
⑤ USB 3.0 cable
