PTZ Universal 20X HDMI/DVI & USB Full HD 1080P Camera
MSRP: $999.00

MSRP $999.00

3

Description

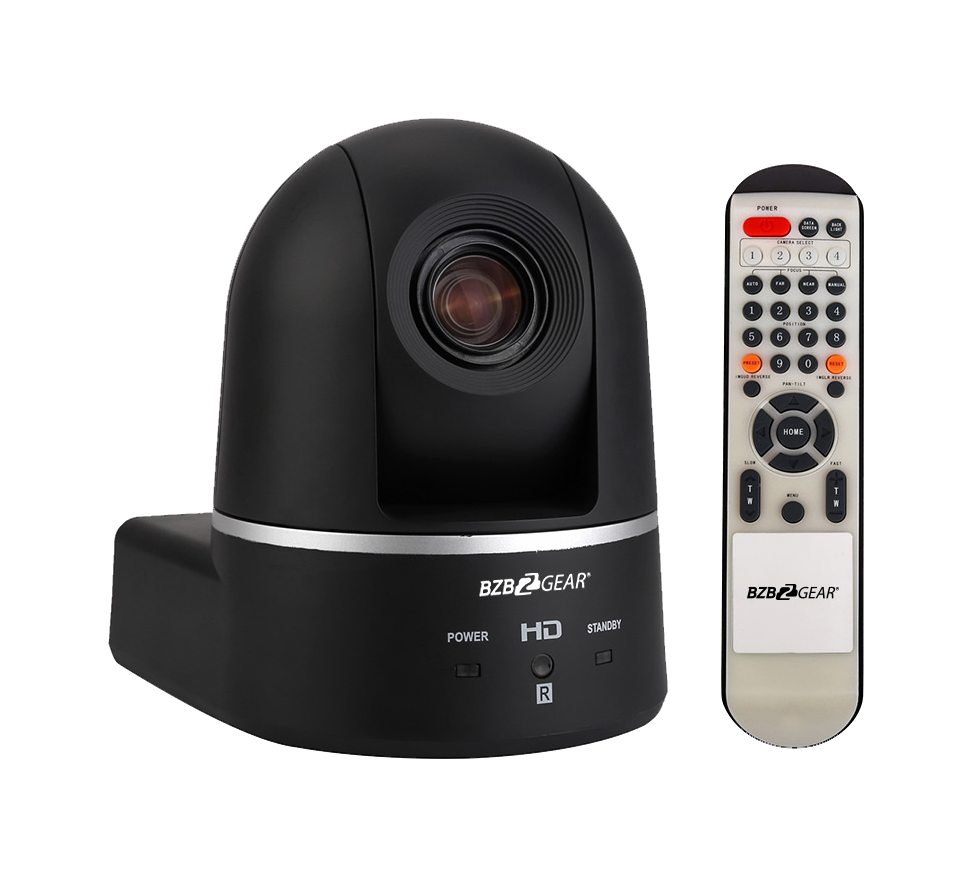

BG-CAM-SDU20X is effective mega pixel 20X optical zoom high quality HD CMOS sensor, you can achieve 1920x1080 ultra-high resolution's high quality images. It's can rotate from top to bottom customize the rotating speed of the PTZ, and call preset bit when starting. It's can set and call 255 preset points, the precision of positioning can reach + 0.1 °, and the remote controller can set 10 preset positions. Support HDMI/HD-SDI,  2 video output at the same time. The RS-232/RS-422 interface can be used for high-speed control operation of the PTZ, the camera supports (VISCA PALCOP/D) protocol. The IR control adapts the speed matching changes the moving speed according to the lens magnification. OSD menu you can adjust the camera movement speed, set the preset, choose the communication protocol, set the address code baud rate, and so on. Suitable for  medium and big conference room personal desktop video capture can seamless connect "Polycom PVX, Cisco WebEx series" and other video conferencing software, and QQ, Ding talk, SKYPE, and other video calls. The HD video conferencing camera is widely used in Videoconferencing, Tele-Education, Tele-medicine, Court Trial System, Video Recording, Distance Interview, and so on.

<div class="dslide"> </div>

Additional information

Weight 2 lbs
Dimensions 9 × 6 × 2 in
Overview

BG-CAM-SDU20X is effective mega pixel 20X optical zoom high quality HD CMOS sensor, you can achieve 1920x1080 ultra-high resolution's high quality images. It's can rotate from top to bottom customize the rotating speed of the PTZ, and call preset bit when starting. It's can set and call 255 preset points, the precision of positioning can reach + 0.1 °, and the remote controller can set 10 preset positions. Support HDMI/HD-SDI,  2 video output at the same time. The RS-232/RS-422 interface can be used for high-speed control operation of the PTZ, the camera supports (VISCA PALCOP/D) protocol. The IR control adapts the speed matching changes the moving speed according to the lens magnification. OSD menu you can adjust the camera movement speed, set the preset, choose the communication protocol, set the address code baud rate, and so on. Suitable for  medium and big conference room personal desktop video capture can seamless connect "Polycom PVX, Cisco WebEx series" and other video conferencing software, and QQ, Ding talk, SKYPE, and other video calls. The HD video conferencing camera is widely used in Videoconferencing, Tele-Education, Tele-medicine, Court Trial System, Video Recording, Distance Interview, and so on.

<div class="dslide"> </div>


Features
  • 20X optical zoom
  • 2.1 mega pixel
  • HD1080P
  • Pan: 0-355° Tilt :+/-60°
  • USB3.0, HD-SDI, DVI-D
  • RS-232,RS-422,RS-485,IR remote control


Specifications
Sensor 1/2.8" Progressive CMOS
Effective pixel 2.1 mega pixels(16 : 9)
Horizontal Resolution 1920x1080p 30/25fps, 1280x720p 60/50/30/25fps
Signal system NTSC/PAL
Zoom 20X optical zoom
Lens F=4.7-94.0mm
Horizontal Angle H:55.5°(W)~3.0°(T)   V:43°(W)~2.2°(T)
Sync Inter Sync
Gain control Auto/manual
Focus Auto/manual
SN ratio ≥50dB
Wide dynamic D-WDR
Shutter speed 8 to 1/ 10000s,Auto
Character generator Built-in OSD
Preset position IR remote control supports 9 presets, PELCO Protocol supports 256 presets
Pan/Tilt movement range  Pan: 350°(max speed 80°/S) Tilt: 0°~120°(max speed 60°/S)
Vertical rotation 120°
Pan/Tilt movement speed 80°/s, 60°/s
Control terminal RS-232C, RS422/485
Control Protocol VISCA, PELCO-D, PELCO-P(RS-232,RS485)
Video output USB3.0, HD-SDI, DVI-D
Work temperature -10°C-~50°C
Storage temperature -20°C~60°C
Baud rate 2400/4800/9600bps
Decoder Built-in
Address set 0~256
Installation Applicable desktop installation/ceiling mounting
Power supply DC12 V/ 2A
Power consumption 12 W
Net weight 1.42kg
Dimension(LXWXH) 160(L)*168(W)*185(H) mm
MORE / LESS SPECS

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Package Contents
① Camera
② DC 12V Power adaptor
③ IR remote control
④ RS232 Cable
⑤ Ceiling brackets & screws
⑥ User manual
