BG-BPTZ-20XDSR

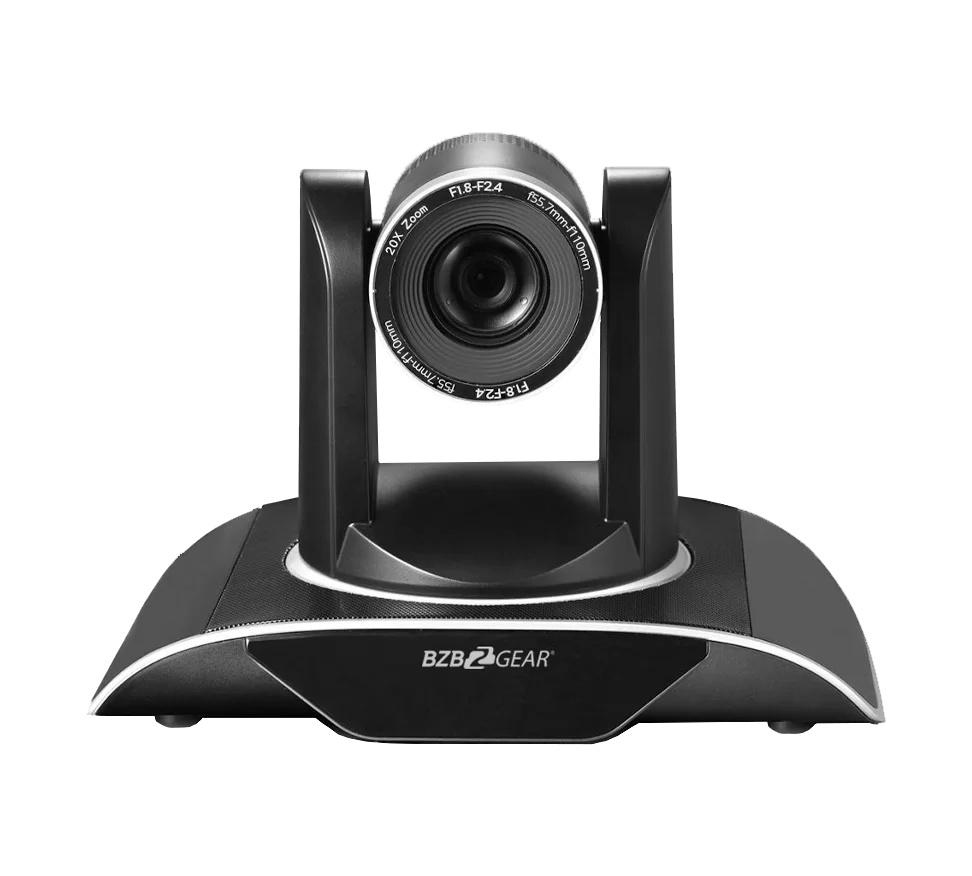

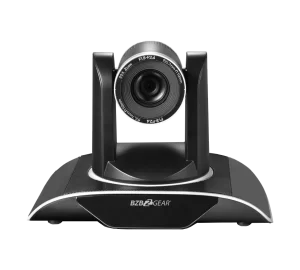

PTZ 20X Zoom Full HD DVI/SDI/RS232/485 Live Streaming Camera
PTZ 20X Zoom Full HD DVI/SDI/RS232/485 Live Streaming Camera
Out of stock
PTZ 20X Zoom Full HD DVI/SDI/RS232/485 Live Streaming Camera
SKU: BG-BPTZ-20XDSR


This camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

MSRP $1299.00*
*Pricing is for US only. International pricing will vary.Features
- Superb High-definition Image. The camera employs 1/2.8 inch 2.07 megapixel high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
- Various Optical Zoom Lens. The camera has 20X optical zoom lens for options.
- Leading Auto Focus Technology. Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR. Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Audio Input Interface (for future development). Support 8000, 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
- Wide-range, Quiet and Quick Pan/Tilt Mechanism. By adopting step driving motor mechanism, this camera works extremely quiet and moves smoothly.
- Multiple Audio/Video compression. Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Multiple Network Protocol Support. NDI (additional option), ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
- Wide Application. Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
- Low-power sleep function. Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
Specifications
Model/Zoom | x12 | x20 | x30 | |
Camera Parameter | ||||
Optical Zoom | 12X f=3.9~46.1mm | 20X f=55.7~110mm | 30X f=4.3~129mm | |
Sensor | 1/2.8 inch high quality HD CMOS sensor | |||
Effective Pixels | 16: 9 2.07 megapixel | |||
Video Format | 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97 | |||
View Angle | 6.3°(tele) – 72.5°(wide) | 3.3°(tele) – 54.7°(wide) | 4.3°(tele) – 54.7°(wide) | |
AV | F1.8 ~ F2.4 | |||
Digital Zoom | 10X | |||
Minimum Illumination | 0.5 Lux (F1.8, AGC ON) | |||
DNR | 2D & 3D DNR | |||
White Balance | Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K | |||
Focus | Auto/Manual | |||
Aperture | Auto/Manual | |||
Electronic Shutter | Auto/Manual | |||
BLC | ON/OFF | |||
WDR | OFF/ Dynamic level adjustment | |||
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |||
SNR | >55dB | |||
Input/Output Interface | ||||
Video Interfaces | 3G-SDI, DVI (HDMI), LAN, RS232 (IN/OUT), RS485, A-IN | |||
Image Code Stream | Dual stream output | |||
Video Compression Format | H.264, H.265 | |||
Control Signal Interface | RS-232 Ring through RS232 output | |||
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps | |||
Audio Input Interface | Double track 3.5mm linear input; | |||
Audio Compression Format | AAC/MP3/PCM Audio compression | |||
HD IP Interface | 100M IP port(100BASE-TX); 5G WiFi (optional), Support Visca protocol control through IP port. | |||
Network Protocol | RTSP/RTMP, ONVIF, GB/T28181 | |||
Power Interface | HEC3800 outlet (DC12V) | |||
PTZ Parameter | ||||
Pan Rotation | ±170° | |||
Tilt Rotation | -30°~+90° | |||
Pan Control Speed | 0.1 -100°/sec | |||
Tilt Control Speed | 0.1-45°/sec | |||
Preset Speed | Pan: 100°/sec, Tilt: 45°/sec | |||
Preset Number | 255 presets (10 presets by remote controller) | |||
Other Parameter | ||||
Supply Adapter | AC110V - AC220V to DC12V/1.5A | |||
Input Voltage | DC12V±10% | |||
Input Current | 1A (Max) | |||
Consumption | 12W (Max) | |||
Store Temperature | -10℃~+50℃ | |||
Store Humidity | 20% – 95% | |||
Working Temperature | -10℃~+50℃ | |||
Working Humidity | 20%–80% | |||
Dimension | 258mmX172mmX168mm | |||
Weight | 1.54KG | |||
Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
Package Contents
① Camera
② Power supply
③ RS232 control cable
④ Remote Control
⑤ Bracket (optional)
⑥ Operation manual
② Power supply
③ RS232 control cable
④ Remote Control
⑤ Bracket (optional)
⑥ Operation manual
Warranty: 3 years
