Model: BG-BPTZ-12XHUDR
OVERVIEW FEATURESSPECSPACKAGE CONTENTS

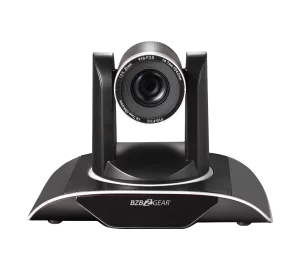

PTZ 12X Zoom Full HD USB3.0 RS232 Live Streaming Camera

MSRP: $1,099.00

MSRP $1099.00

Out of stock

2
Overview

This camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.



Features
  • Superb High-definition Image. The camera employs 1/2.8 inch 2.07 megapixel high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
  • Various Optical Zoom Lens. The camera has 12X optical zoom lens for options.
  • Leading Auto Focus Technology. Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
  • Low Noise and High SNR. Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
  • Audio Input Interface (for future development). Support 8000, 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
  • Wide-range, Quiet and Quick Pan/Tilt Mechanism. By adopting step driving motor mechanism, this camera works extremely quiet and moves smoothly.
  • Multiple Audio/Video compression. Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
  • Multiple Network Protocol Support. NDI (additional option), ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
  • Wide Application. Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
  • Low-power sleep function. Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.


Specifications
Model/Zoom  x12 x20 x30
Camera Parameter
Optical Zoom 12X

f＝3.9～46.1mm

 20X

f＝55.7～110mm

 30X

f＝4.3～129mm
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9  2.07 megapixel
Video Format

Interface video format

1) USB3.0: 1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30

2) USB3.0 compatible with USB2.0: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30.
View Angle 6.3°(tele) – 72.5°(wide) 3.3°(tele) – 54.7°(wide) 4.3°(tele) – 54.7°(wide)
AV F1.8 ～ F2.4
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/Output Interface
Video Interfaces

BG-BPTZ-12XDSR, BG-BPTZ-20XDSR, BG-BPTZ-30XDSR: 3G-SDI, DVI (HDMI), LAN, RS232 (IN/OUT), RS485, A-IN

BG-ND-20XDSR, BG-ND-30XDSR: 3G-SDI, DVI (HDMI), LAN, RS232 (IN/OUT), RS485, A-IN

BG-BPTZ-12XHUDR, BG-BPTZ-20XHUDR, BG-BPTZ-30XHUDR: USB3.0, DVI (HDMI), LAN, RS232 (IN)

BG-BPTZ-20XHUHR, BG-BPTZ-20XHUHR, BG-BPTZ-20XHUHR: USB3.0, USB2.0, HDMI, LAN, RS232 (IN), A-IN
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Signal Interface RS-232 Ring through RS232 output
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface Double track 3.5mm linear input;
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP Interface 100M IP port (100BASE-TX); 5G WiFi (optional),

Support Visca protocol control through IP port.
Network Protocol RTSP/RTMP, ONVIF, GB/T28181, NDI (Additional option)
Power Interface HEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation ±170°
Tilt Rotation -30°～+90°
Pan Control Speed 0.1 -100°/sec
Tilt Control Speed 0.1-45°/sec
Preset Speed Pan: 100°/sec, Tilt: 45°/sec
Preset Number 255 presets (10 presets by remote controller)
Other Parameter
Supply Adapter AC110V - AC220V to DC12V/1.5A
Input Voltage DC12V±10%
Input Current 1A (Max)
Consumption 12W (Max)
Store Temperature -10℃～+50℃
Store Humidity 20% – 95%
Working Temperature -10℃～+50℃
Working Humidity 20%–80%
Dimension 258mmX172mmX168mm
Weight 1.54KG
Remote Operation (IP) Remote Upgrade, Reboot and Reset
MORE / LESS SPECS


Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Package Contents
① Camera
② Power supply
③ RS232 control cable
④ Remote Control
⑤ Bracket (optional)
⑥ Operation manual
