Full HD Integrated HDMI/SDI 20X Zoom Camera
MSRP: $749.00

MSRP $749.00

Out of stock

3

Description

The BG-B20HS combines high performance with a convenient form factor to deliver great value. This Compact but robust camera provides bright and crisp images with a strong sense of depth, high resolution, and fantastic color rendition. The H.264/H.265 encoding makes motion video fluent and clear even under less than ideal bandwidth conditions. Equipped with a powerful 20X zoom lens ensures a distant shot up to 50ft with a beautiful 1080P/60 image.

Additional information

Weight 2 lbs
Dimensions 6 × 3 × 3 in
Overview

The BG-B20HS combines high performance with a convenient form factor to deliver great value. This Compact but robust camera provides bright and crisp images with a strong sense of depth, high resolution, and fantastic color rendition. The H.264/H.265 encoding makes motion video fluent and clear even under less than ideal bandwidth conditions. Equipped with a powerful 20X zoom lens ensures a distant shot up to 50ft with a beautiful 1080P/60 image.



Features
Zoom
Powerful 20X Zoom Lens.
Compact Form Factor
Perfect for ceiling mount.
Multiple Outputs
Use SDI, HDMI, or IP Stream.
1080p60 Output
High framerate ensures fluid motion capture.
Auto-Focus
Always delivers a crisp image.
Reliable
Designed for years of trouble-free use.
  • Superb High-definition Image
    1/2.8 inch high quality CMOS sensor delivers resolutions up to 1920×1080 with frame rates up to 60fps.
  • Leading Auto Focus Technology
    Our proprietary technology makes auto-focusing fast, accurate, and stable.
  • Low Noise and High SNR
    A low noise CMOS sensor delivers a high SNR. Advanced 2D/3D noise reduction technology further reduces the noise creating a clear, sharp image.
  • Multi-Format Video Outputs
    Multiple interfaces include: HDMI, 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
  • Multiple Video Compression
    Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.
  • Multiple Network Protocol
    Supports ONVIF, RTSP, RTMP protocols. RTMP push mode makes it easy to link streaming media servers (Wowza, FMS).
  • Support Multiple Control Protocol
    Support VISCA, PELCO-D, PELCO-P protocols. Supports Visca protocol control through IP port.
  • Wide Application
    Remote learning, Lectures, Webcasting, Video Conferencing, Remote training, Remote medicine, Interrogation and Emergency command systems.


Specifications
Camera Parameter
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9, 2.07 megapixel
Video Format 1080P60/50/30/25/59.94/29.97
1080I60/50/59.94
720P60/50/30/25 /59.94/29.97
Optical Zoom 20X optical zoom, f=5.2~98mm
View Angle 5.5°(tele)–54.7°(wide)
 Aperture F1.6 ~ F3.5
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K / 4000K / 5000K / 6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/output Interface
Video Interfaces HDMI, 3G-SDI
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Protocol Protocol: VISCA / Pelco-D / Pelco-P Baud Rate: 115200/9600/4800/2400bps
HD IP Interface 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port.
Network Protocol RTSP/RTMP, ONVIF
Power Interface 5.0 Card line socket (DC12V)
Other Parameter
Power Adaptor AC110V-AC220V to DC12V/1A
Input Voltage DC12V±10%
Input Current 400mA(Max)
Consumption 4.8W (Max)
Store Temperature -10°C ~ +60°C
Store Humidity 20% – 95%
Working Temperature -10°C ~ +50°C
Working Humidity 20%–80%
Dimension 155.7mmX70mmX70mm
Weight 0.7KG
Application Indoor
Remote Operation (IP) Remote Upgrade, Reboot and Reset
MORE / LESS SPECS
Ideal fit for:
- Situations requiring discreet installation
- Monitoring lobbies, corridors, and entryways
- Surveillance


Who is buying it?
- Schools
- Hospitals
- Security personnel

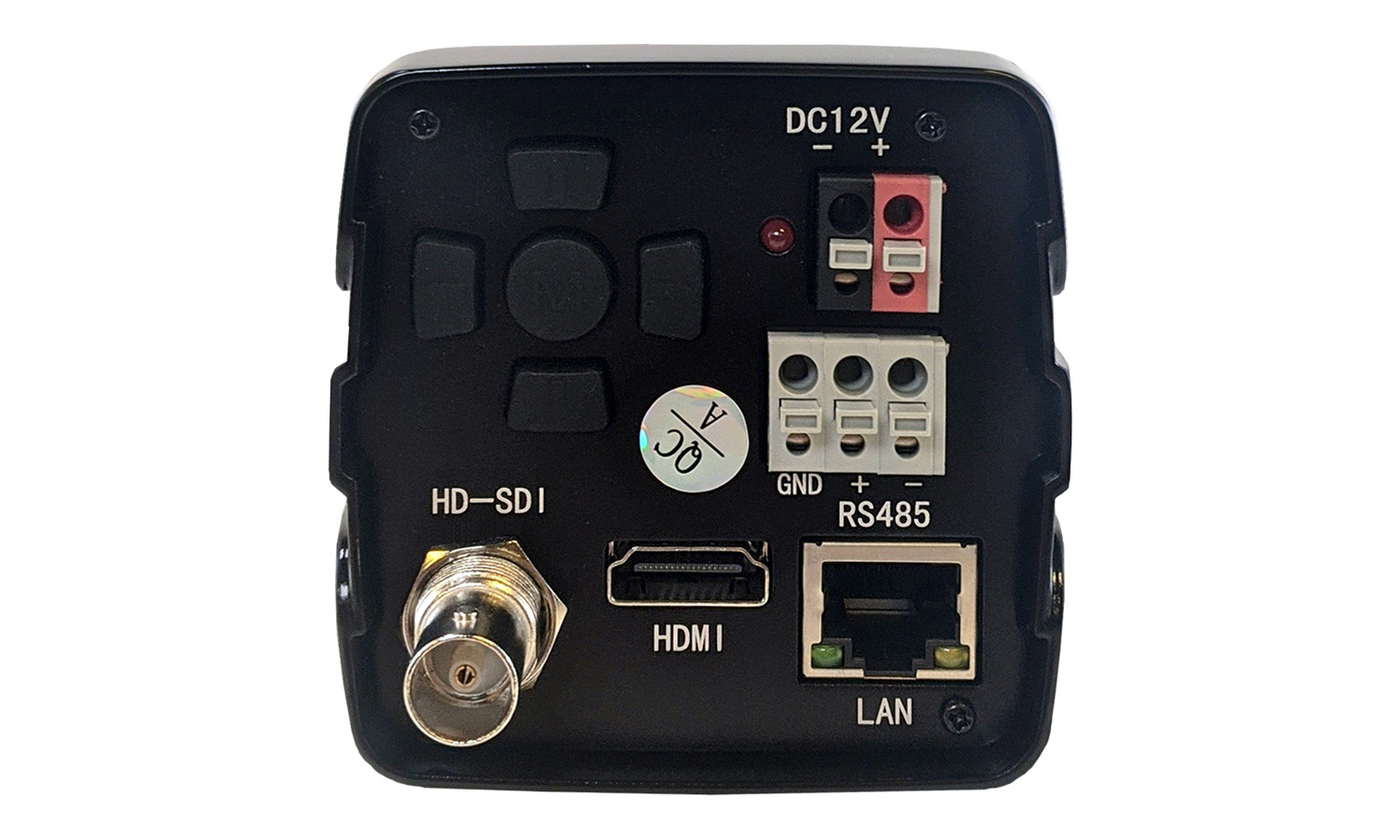

Interface


HDMI

Crystal clear image with resolutions up to 1080p @ 60 fps.

SDI

1080p @ 60 fps for distances up to 300 ft.

LAN

IP Control, and streaming interface.

Control I/O

8 pin Mini-DIN input for RS-232 control and output for cascadable connections. RS-422/485 interface

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources



Package Contents
① 1x BG-B20HS Camera
② 1x 12V/1A Power Supply
③ 1x User’s Manual
