BG-AVTPG-A

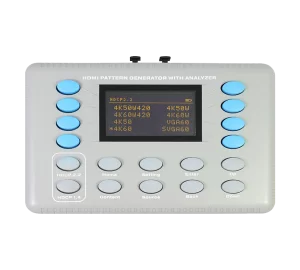

4K/HDR 18Gbps Test Generator-Analyzer with HDMI 2.0 and LPCM Audio support

4K/HDR 18Gbps Test Generator-Analyzer with HDMI 2.0 and LPCM Audio support

SKU: BG-AVTPG-A
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
S/PDIF CHANNELS

Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.

The HDMI 2.0 Test Generator-Analyzer is designed for the AV integration market to confirm HDMI 2.0 and HDCP 2.2 system at 18Gbps Level. It can generate and analyze HDMI signal for any HDMI systems to make it easy for system integration, project installation and debugging, cable manufactories, even for engineering and test laboratory.

MSRP $1699.00*

*Pricing is for US only. International pricing will vary.
Features
  • HDMI 2.0b support, Maximum resolution 4K2K@50/60Hz(4:4:4) 18Gbps
  • Up to 55 video resolutions and 31 patterns
  • Color space supports RGB/YCbCr444/YCbCr422/YCbCr420
  • Color depth supports 24, 30 and 36 bit per pixel
  • Built-in HDMI 2.0b HDR (High-Dynamic Range) testing
  • HDMI audio source can from internal, external S/PDIF or HDMI input audio
  • Internal audio LPCM/2CH, sample rate 48kHz, bit width 16bits
  • HDCP 2.2/1.4 Pass or Fail indicator
  • EDID Read/Write functionality
  • HDMI input Timing/Format/Info frame/HDCP analyzing
  • CEC supports
  • Control via on panel button or RS-232(3.5mm Mini-jack)
  • Portable/Battery Operated 3000mAh
Specifications


3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
S/PDIF CHANNELS

Another new development in the new generation of HDBaseT is the ability to handle separate audio feeds from end-to-end. Not only can the embedded audio within the TMDS signal be up to 192KHz, but a further 2 sources of 48KHz can be sent bi-directionally via S/PDIF meaning separate audio baluns are no longer required. S/PDIF is based on the AES3 interconnect Standard. S/PDIF can carry two channels of uncompressed PCM Audio or compresses 5.1/7.1 surround sound like DTS; it will not support lossless surround formats that require greater bandwidth.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)

The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
Video Bandwidth18 Gbps
Video Resolutionsup to 4K2K@50/60Hz(YUV4:4:4)
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth8-bit, 10-bit, 12-bit
HDMI Audio FormatsInternal: LPCM 2CH, 48kHz, 16bits. External SPDIF: LPCM 2/5.1CH, Dolby Digital, DTS 5.1. HDMI Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs1x HDMI Type A [19-pin female] 1x SPDIF In [Optical] 1x RS-232 [3.5mm Mini-jack]
Outputs1x HDMI Type A [19-pin female] 1x SPDIF Out [Optical]
Mechanical
Housing Plastic Enclosure
ColorBlack
Dimensions165mm [W] x 103mm [D] x 37.4mm [H]
Weight363g
Power SupplyInput: AC100 - 240V 50/60Hz Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
Power Consumption 2.5W
Operation Temperature32 - 104°F / 0 - 40°C
Storage temperature-4 - 140°F / -20 - 60°C
Relative Humidity20 - 90% RH (no condensation)





Package Contents
① 1xHDMI 2.0 Test Generator and Analyzer
② 1x3.5mm to DB9 (Female) serial cable adapter (1 meter length)
③ 1x5V/2A Power Adaptor
④ 1xUser Manual


Device Interface

See full description of the connections here


Diagram





Warranty: 2 years

Buy this 4K/HDR 18Gbps Test Generator-Analyzer with HDMI 2.0 and LPCM Audio support


MSRP $1699.00*

*Pricing is for US only. International pricing will vary.
