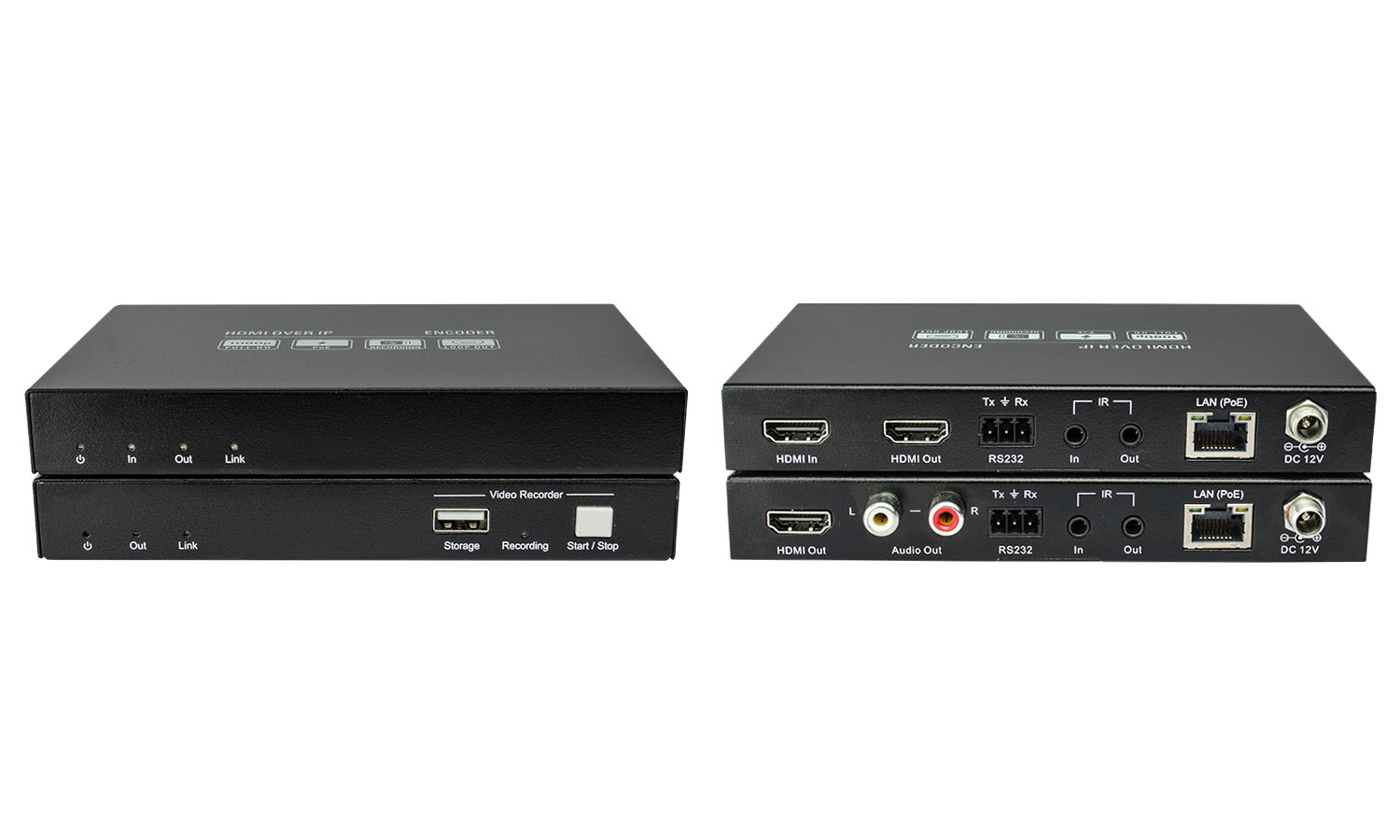

HD Video Over IP System with Live Preview, Recording, Matrix and Audio De-Embedding
MSRP: $499.00

MSRP $499.00

Out of stock

2

Description

The BG-AVIP-HD400 is an IP Streaming Encoder/Decoder which use H.264 standard to extend HDMI video, IR and RS232 control signals over IP network. Designate a single control PC (Wake on LAN) and one 100Mbps Network Switch for distribution of signals.

The BG-AVIP-HD400 features 1080p HDMI video switching, video matrix, audio de-embedding, audio switching, IR and RS232 transmissions as well as video recording and PoE power. The control software “IP Streaming Management” merge all functions for user control the IP streaming system.

Additional information

Weight 2 lbs
Dimensions 6 × 4 × 1 in
Number of Sources:

1, 2, 3

Number of Displays:

1, 2, 3

Specifications

Video Input (1) HDMI In
Video Input Connector (1) Type-A female HDMI
HDMI Input Resolution Up to [email protected] 444 10/12bit
Video Output (1) HDMI Out
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to [email protected] 444 10/12bit
Control (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45
IPH400D
Video Output (1) HDMI Out
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to [email protected] 444 10/12bit
Audio Output (1) Audio Out (L+R)
Audio Output Connector (1) RCA jack
Control (1) Storage, (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector (1) Type-A USB, (1) 3-pin terminal block,
(2) 3.5mm jack, (1) RJ45
General
Video Encoding Standard H.264
External Power Supply Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A; PoE supported.
Power Consumption Encoder:4W (Max); Decoder:3.5W (Max)
Operation Temperature -5℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humility 10%-90%
Dimension (W*H*D) 152.0mm x 21.0mm x 100.0mm
Net Weight Encoder: 340; Decoder: 345g

Package Contents

① 1x BG-AVIP-HD400 Encoder (TX)

② 2x Mounting Ears with 2 Screws

③ 1x 3-pin Terminal Block

④ 1x User Manual

Overview

The BG-AVIP-HD400 is an IP Streaming Encoder/Decoder which use H.264 standard to extend HDMI video, IR and RS232 control signals over IP network. Designate a single control PC (Wake on LAN) and one 100Mbps Network Switch for distribution of signals.

The BG-AVIP-HD400 features 1080p HDMI video switching, video matrix, audio de-embedding, audio switching, IR and RS232 transmissions as well as video recording and PoE power. The control software “IP Streaming Management” merge all functions for user control the IP streaming system.



Features
  • Supports H.264 encoding and decoding
  • 1080p video over IP network
  • Support video extension, video distribution and video matrix
  • Support output video scaling to 720p or 1080p
  • Supports PoE , Encoder/Decoder can be powered by PoE Switch
  • Support Video Live Preview on the GUI
  • Support Video Broadcasting over network
  • Supports video recording
  • The encoder features HDMI loop out
  • Supports audio breakout
  • Supports RTSP, RTP, HTTPFLV, UDP, TCP Protocol
  • Supports Unicast and Multicast


Specifications
Encoder
Video Input (1) HDMI In
Video Input Connector (1) Type-A female HDMI
HDMI Input Resolution Up to [email protected] 4:4:4 10/12bit
Video Output (1) HDMI Out
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to [email protected] 4:4:4 10/12bit
Control (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45
Decoder
Video Output (1) HDMI Out
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to [email protected] 4:4:4 10/12bit
Audio Output (1) Audio Out (L+R)
Audio Output Connector (1) RCA jack
Control (1) Storage, (1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector (1) Type-A USB, (1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45
General
Video Encoding Standard H.264
External Power Supply Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A; PoE supported.
Power Consumption Encoder: 4W (Max); Decoder: 3.5W (Max)
Operation Temperature -5°C ~ +55°C
Storage Temperature -25°C ~ +70°C
Relative Humility 10%-90%
Dimension (W*H*D) 152.0mm x 21.0mm x 100.0mm
Net Weight Encoder: 340g; Decoder: 345g
MORE / LESS SPECS



See also: 8mp PTZ camera

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① 1xBG-AVIP-HD400
② 2xMounting Ears with 2 Screws
③ 1x3-pin Terminal Block
④ 1xUser Manual
