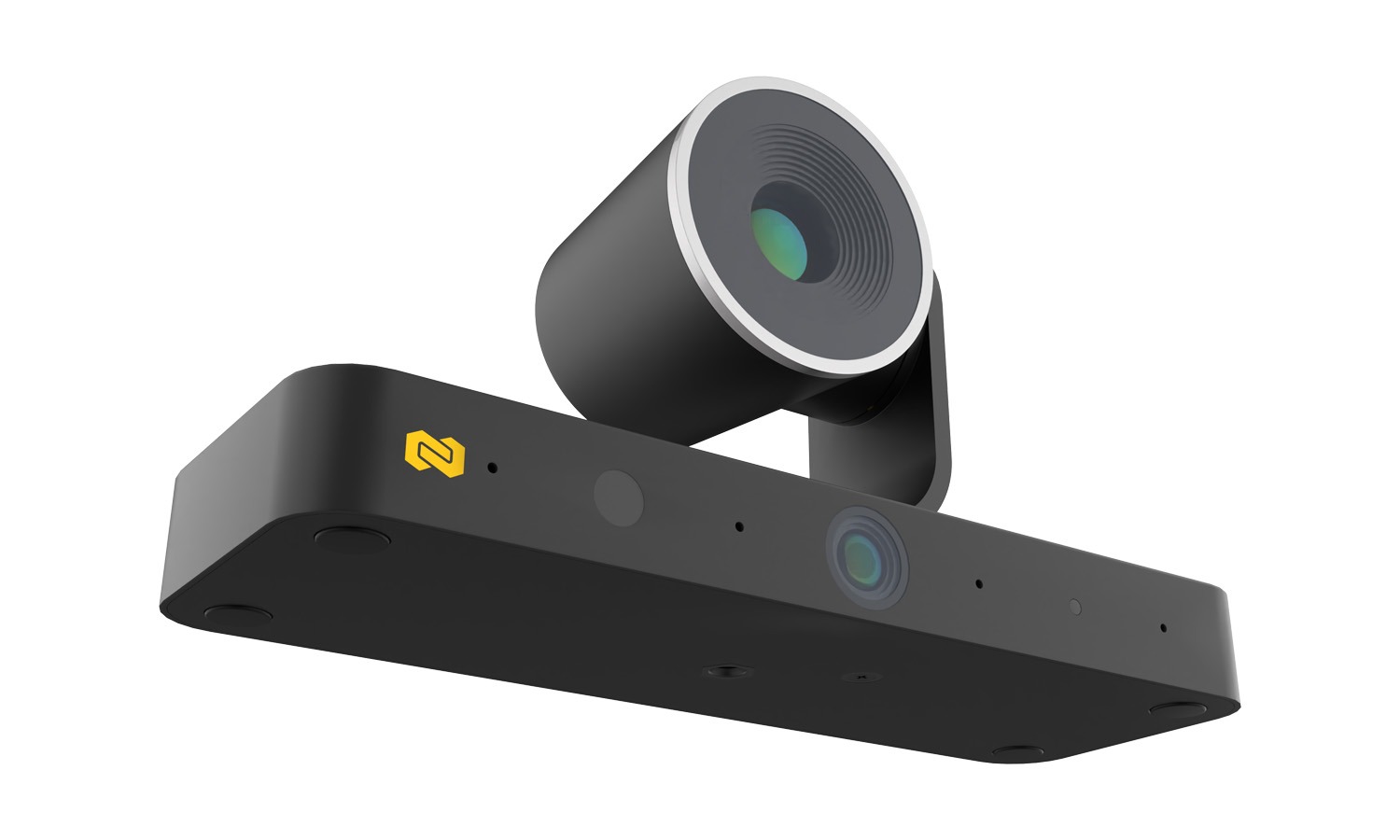

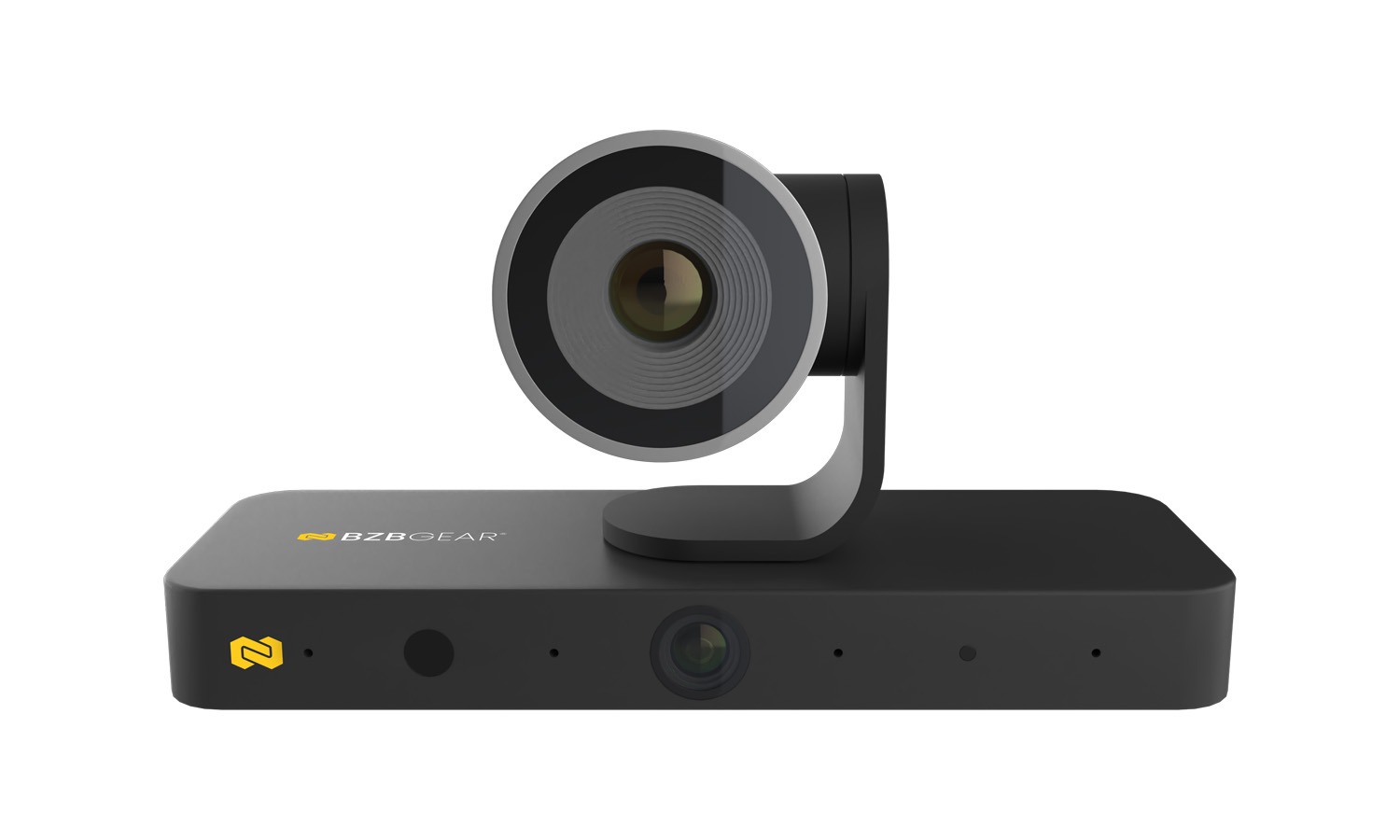

The BG-AVENTO-4K is an advanced dual-lens AI-powered 4K camera built to transform collaboration in conference rooms, classrooms, and training environments. Featuring both a powerful 4K PTZ lens and a panoramic wide-angle lens, it simultaneously delivers detailed close-up visuals and full-room coverage, ensuring every participant is clearly visible and naturally framed on screen.
Designed for intelligent interaction, the BG-AVENTO-4K integrates four linear array microphones and sophisticated AI algorithms for precise sound localization and automatic speaker tracking. Combined with plug-and-play USB connectivity, 4K@30fps video performance, and compatibility with major conferencing platforms, it delivers a professional, seamless, and highly engaging communication experience for modern hybrid environments.
Features-in-Depth
The BG-AVENTO-4K utilizes a dual-lens architecture to optimize visual clarity and coverage. Its 8MP PTZ camera provides 3x optical zoom with a 110° DFOV, capturing detailed participant views, while the 2MP panoramic lens offers a fixed 120° DFOV for full-room visibility. Leveraging CMOS imaging and advanced ISP processing, the camera ensures vibrant color accuracy, low noise performance with 2D/3D DNR, and smooth HDR-supported image quality across varying lighting conditions.
Powered by robust AI-driven functionality, the camera automatically detects participants, frames groups, and tracks active speakers or presenters to maintain a dynamic and lifelike meeting experience. Multiple intelligent modes - including Auto Framing, Speaker Tracking, Presenter Tracking, and Individual Gallery View - allow users to adapt the camera to different conferencing and presentation scenarios.
Engineered for versatility, the BG-AVENTO-4K features USB-C 3.0 connectivity, HDMI output, LAN control, and compatibility with both Windows and macOS environments. It supports multiple compression formats including MJPEG, NV12, H.265, and H.264 for seamless integration with conferencing software such as Zoom, Microsoft Teams, Cisco Webex™, and more. With a lightweight design, low power consumption, and simple mounting options, it delivers professional performance in a compact, easy-to-deploy form factor.
Features
-
![fluent_dual-screen-span-20-regular]()
Dual-Lens CaptureCombines a 4K PTZ lens with a 1080p panoramic lens for simultaneous close-up and full-room viewing -
![bi_badge-4k]()
True 4K PerformanceSupports up to 4K@30fps via USB 3.0 for ultra-clear, professional-grade video quality -
![ri_camera-lens-fill]()
AI Intelligent TrackingAuto framing, speaker tracking, presenter tracking, and individual framing ensure every participant is always in view -
![Zoom]()
Wide Coverage & Optical Zoom3x optical zoom and wide-angle fields of view (110° PTZ / 120° panoramic) provide exceptional flexibility in small to medium spaces -
![Mic]()
AI Voice Detection4-mic linear array delivers accurate voice localization and tracking for enhanced AI responsiveness -
![fluent_plug-connected-add-20-regular]()
Plug-and-PlayUSB connectivity, HDMI output, and easy mounting options make installation fast and effortless
- Supports MJPEG, H.265, H.264, and NV12 encoding
- USB 3.0 / USB 2.0 compatible
- HDR imaging support
- Auto white balance and backlight compensation
- 2D & 3D digital noise reduction
- PTZ range: Horizontal ±75°, Vertical ±35°
- IR remote control plus LAN control via Telnet & Web UI
- Supports connection to external USB speakerphones and audio peripherals
- Cross-platform support for Windows 10/11 and macOS
- Compatible with Zoom, Teams, Skype, Webex™, and more
Smarter Meetings with AI:
Enjoy lifelike, engaging video with auto framing, speaker and presenter tracking, plus individual participant views powered by AI intelligence.

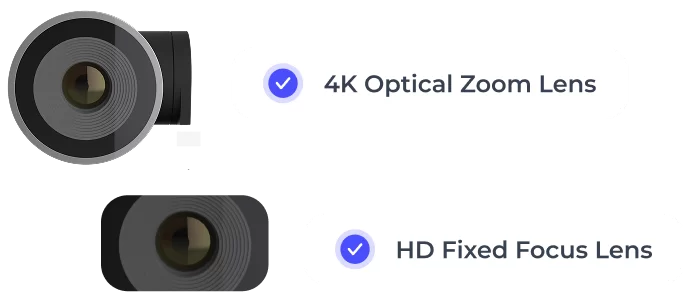

Two Lenses. One Seamless Experience:
A panoramic lens monitors the room while a powerful PTZ lens zooms, frames, and follows the action - automatically.
Crystal-Clear PTZ Imaging:
An 8MP sensor, 3x optical zoom, and expansive 110° DFOV deliver exceptional clarity and coverage in every meeting space.

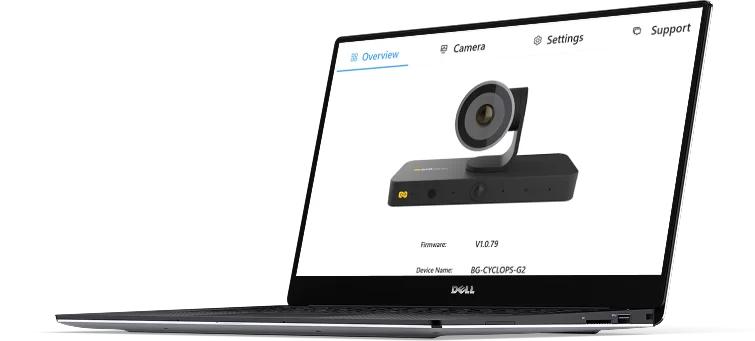

Control Everything from Your Browser
The powerful Web UI puts complete control of your camera at your fingertips - no apps, no hassle.
Live Preview & Instant Control
See your camera feed in real time and instantly adjust zoom, pan, tilt, and framing.
Fine-Tuned Image Performance
Optimize brightness, clarity, flicker reduction, image orientation, and HD quality with simple on-screen controls.
Effortless Device Management
Rename rooms, configure IP settings, change login credentials, reboot, reset, or export logs - all in one place.
Tech Specifications
| Video & Audio | |
| Input & Output Port | 1 x USB-C, 1 x HDMI OUT, 1 x USB-A, 1 x DC 12V IN |
| USB 3.0/2.0 Resolution Supported | MJPEG/H.265/H.264: 320x240@30fps, 640x340@30fps, 1280x720@30fps (default), 1920x1080@30fps, 3840x2160@30fps NV12: 320x240@30fps, 640x340@30fps, 1280x720@30fps (default), 1920x1080@30fps* Note: Resolutions above apply only to the main lens. The panoramic lens resolution is fixed at 1080p@30fps (MJPEG). |
| Output Video Encoding | MJPEG / H.264 / H.265 / NV12 |
| USB Protocol | UVC 1.1 |
| Camera | |
| Lens | Main Lens – 8MP, 3x optical zoom, DFOV 110° Panoramic Lens – 2MP, fixed focus, DFOV 120° |
| Sensor | Main Lens – 8MP Panoramic Lens – 2MP |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Digital Noise Reduction | 2D, 3D DNR supported |
| PTZ Range | Horizontal ±75°, Vertical ±35° |
| HDR | Supported |
| Tracking Modes | Auto Framing / Speaker Tracking / Presenter Tracking / Individuals Gallery |
| Speakerphone | |
| Microphone | 4 x linear microphone arrays for human voice detection and audio tracking (not usable as video conference audio source) |
| Peripherals | Supports connection with USB peripherals such as speakerphones or third-party audio devices |
| Communication & Control / General | |
| Compatible OS | Windows 10/11, macOS 10.10 or above |
| HDMI OUT | HDMI 1.4b with 4K@30Hz (no-HDCP). Outputs continuously unless powered off or in standby. |
| USB Ports | USB-C 3.0 female; USB-A 2.0 female |
| Control Methods | IR Remote, LAN (Telnet & Web UI) |
| Operating Temperature | 32°F–104°F / 0°C–40°C, 10%–90% non-condensing |
| Storage Temperature | -4°F–140°F / -20°C–60°C, 10%–90% non-condensing |
| Power Supply | DC 12V, 3A |
| Power Consumption | 10.8W (Max) |
| Dimensions (W x H x D) | 7.87” x 3.95” x 2.72” / 200 x 100.44 x 69 mm |
| Net Weight | 0.97 lb / 0.44 kg |
Resources
PACKAGE CONTENTS
- 1 x BG-AVENTO-4K
- 1 x DC 12V 3A Power Adapter with US Pins
- 1 x 1.8m USB-A to USB-C Cable
- 1 x IR Remote
- 1 x Private Lens Cap (for Panoramic lens)
- 1 x Mounting Bracket (with screws)

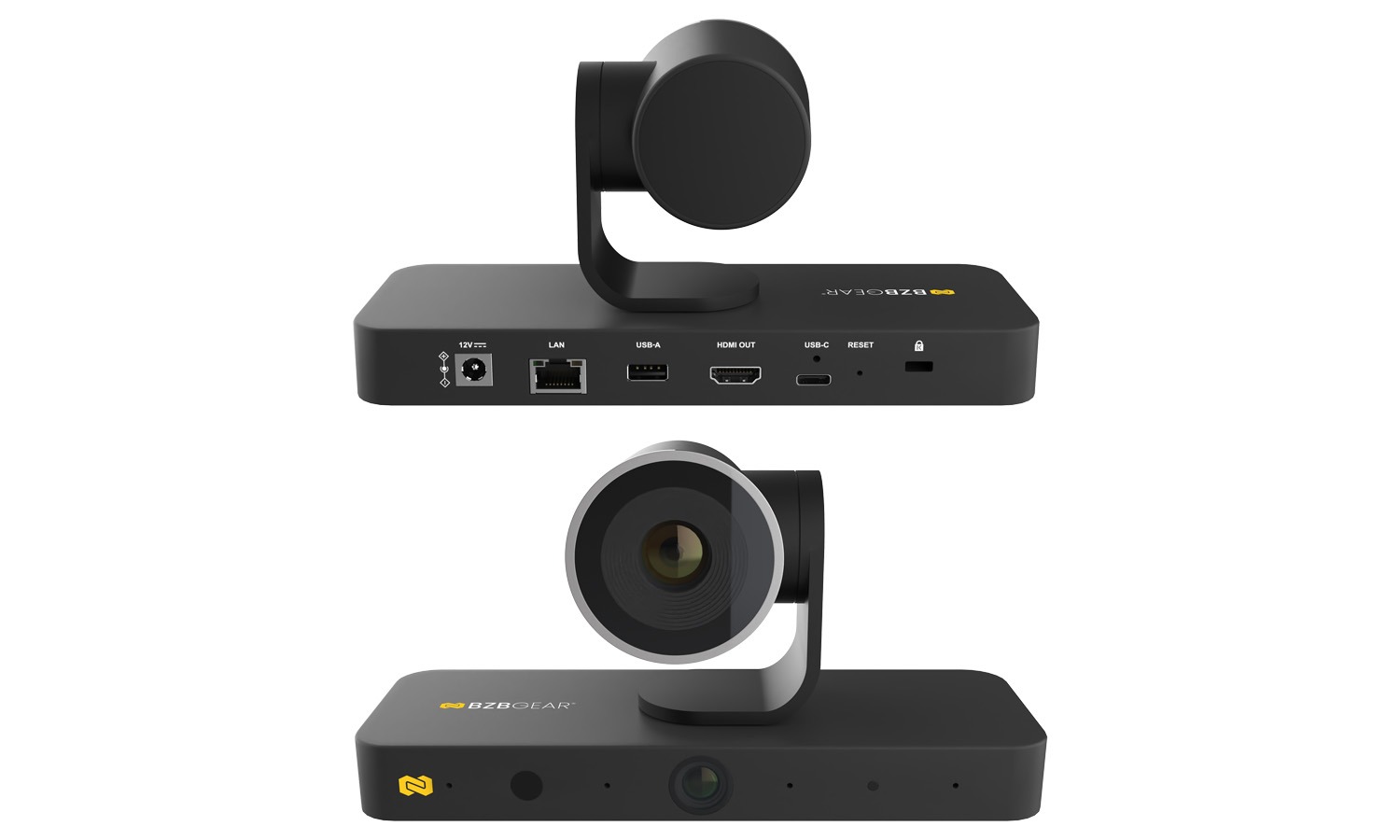

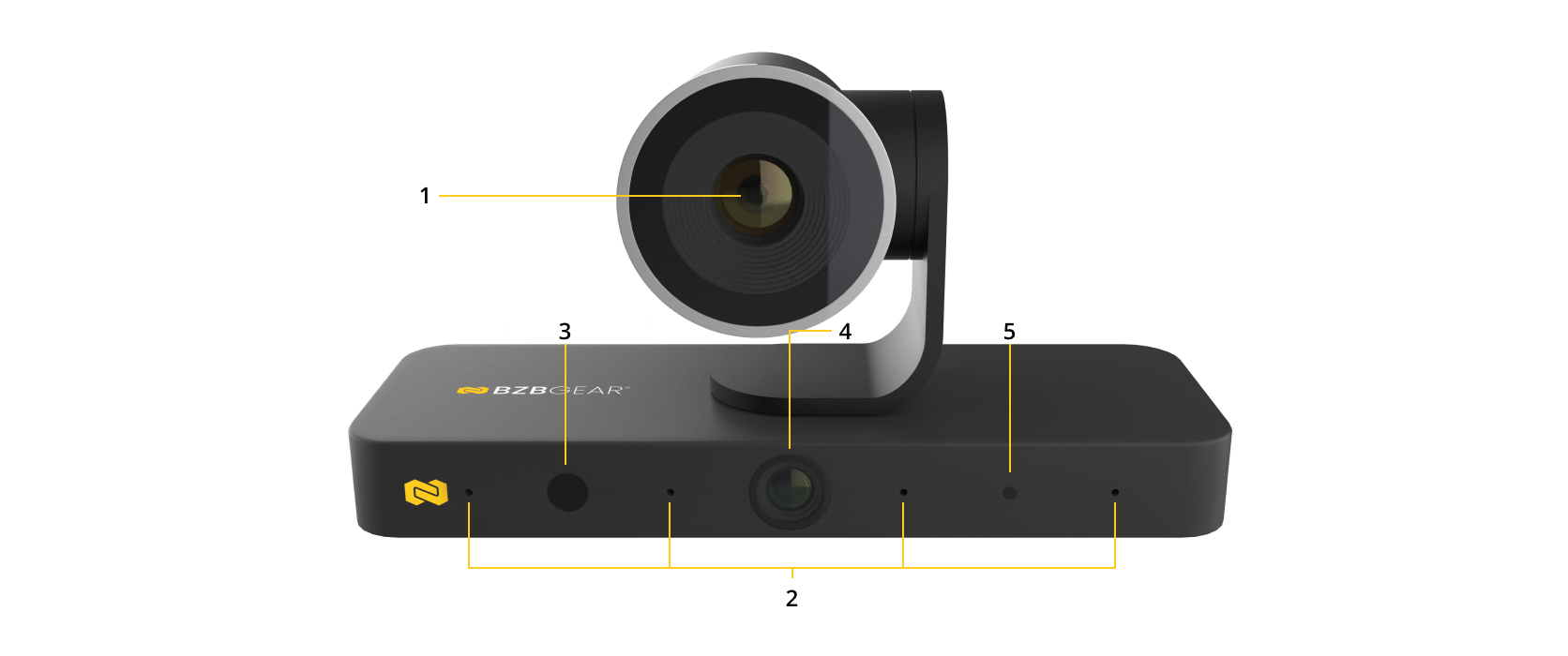

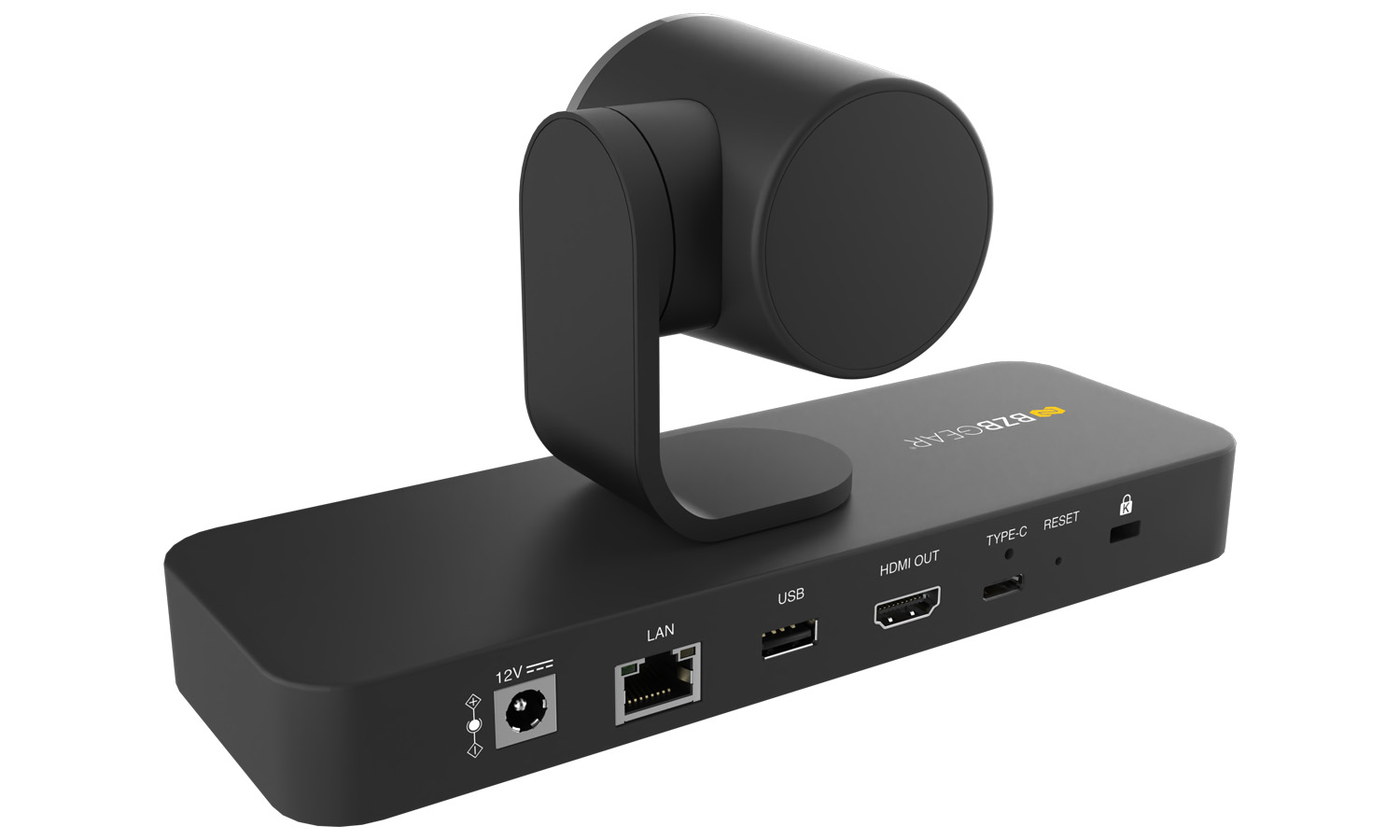

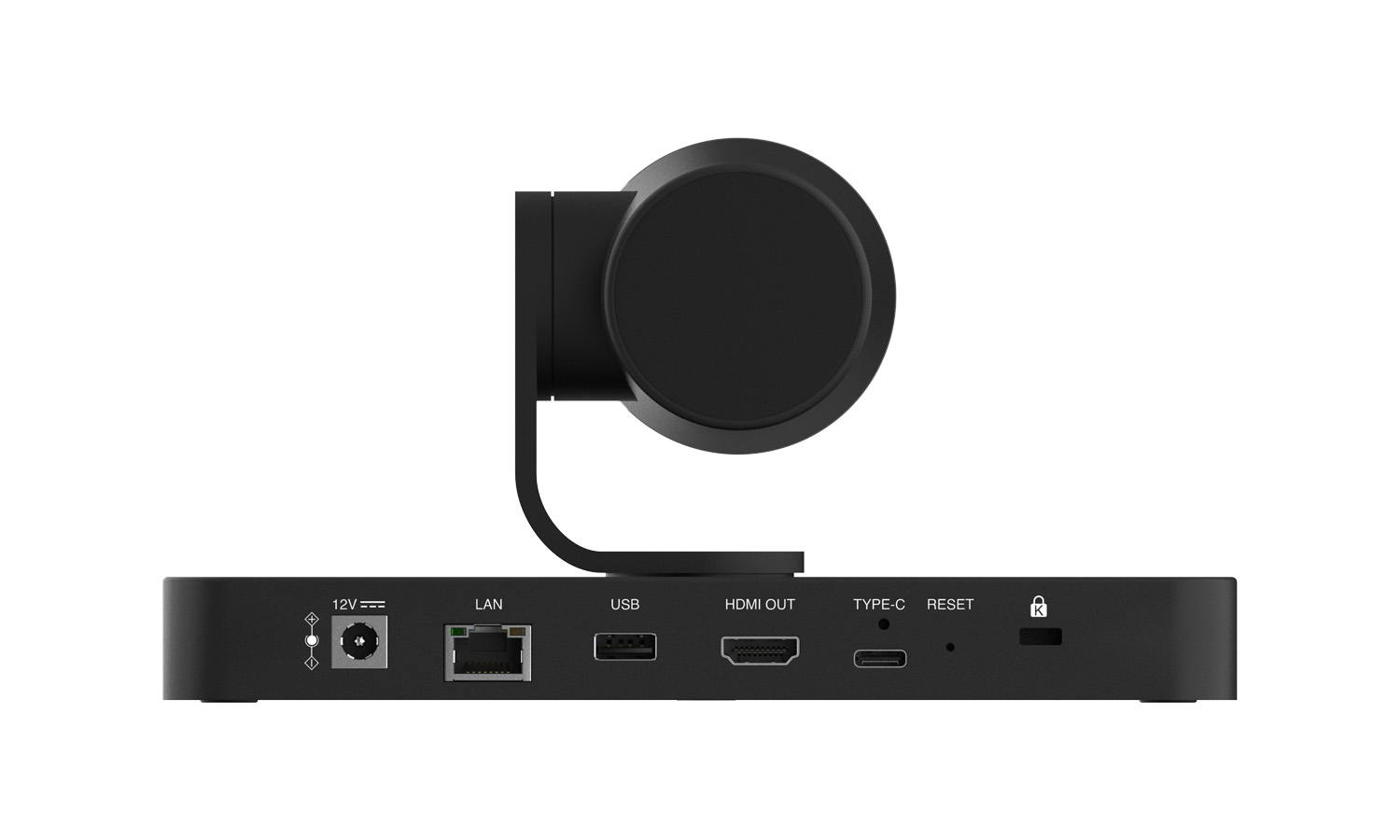

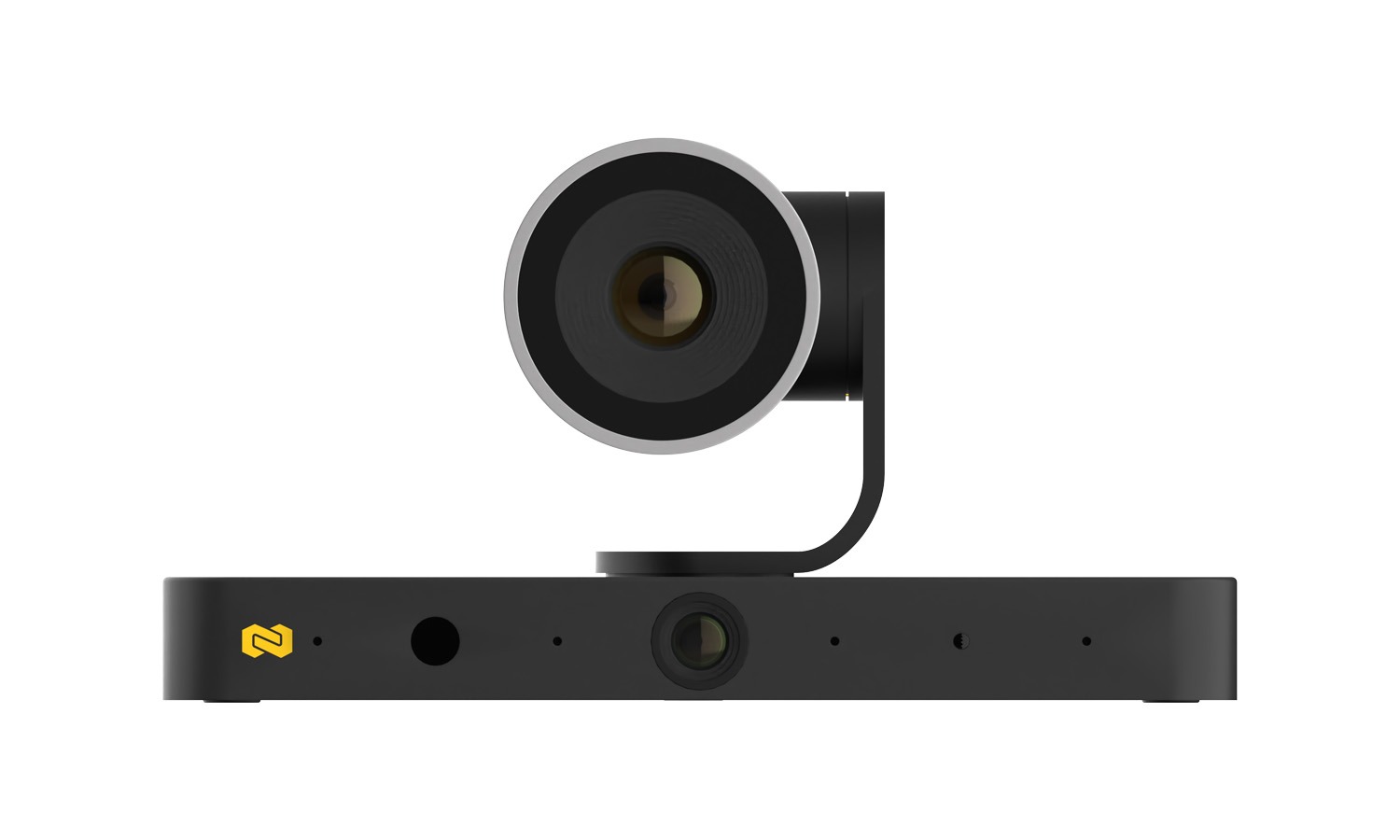

Interfaces
- Lens: 4K optical zoom lens.
- MIC: 4 x Linear mic arrays for sound source localization.
- IR Window: Receives IR signals from the provided IR remote.
- Lens: 1080p fixed-focus lens.
- Status LED: Lighting white for about 2s, then off: The device is starting up.
Blinking dark white (breathing): The device is in idle mode. The color can be set to red or off through the web UI.
Lighting white: The device is active.
Blinking quickly: The device is being upgraded.

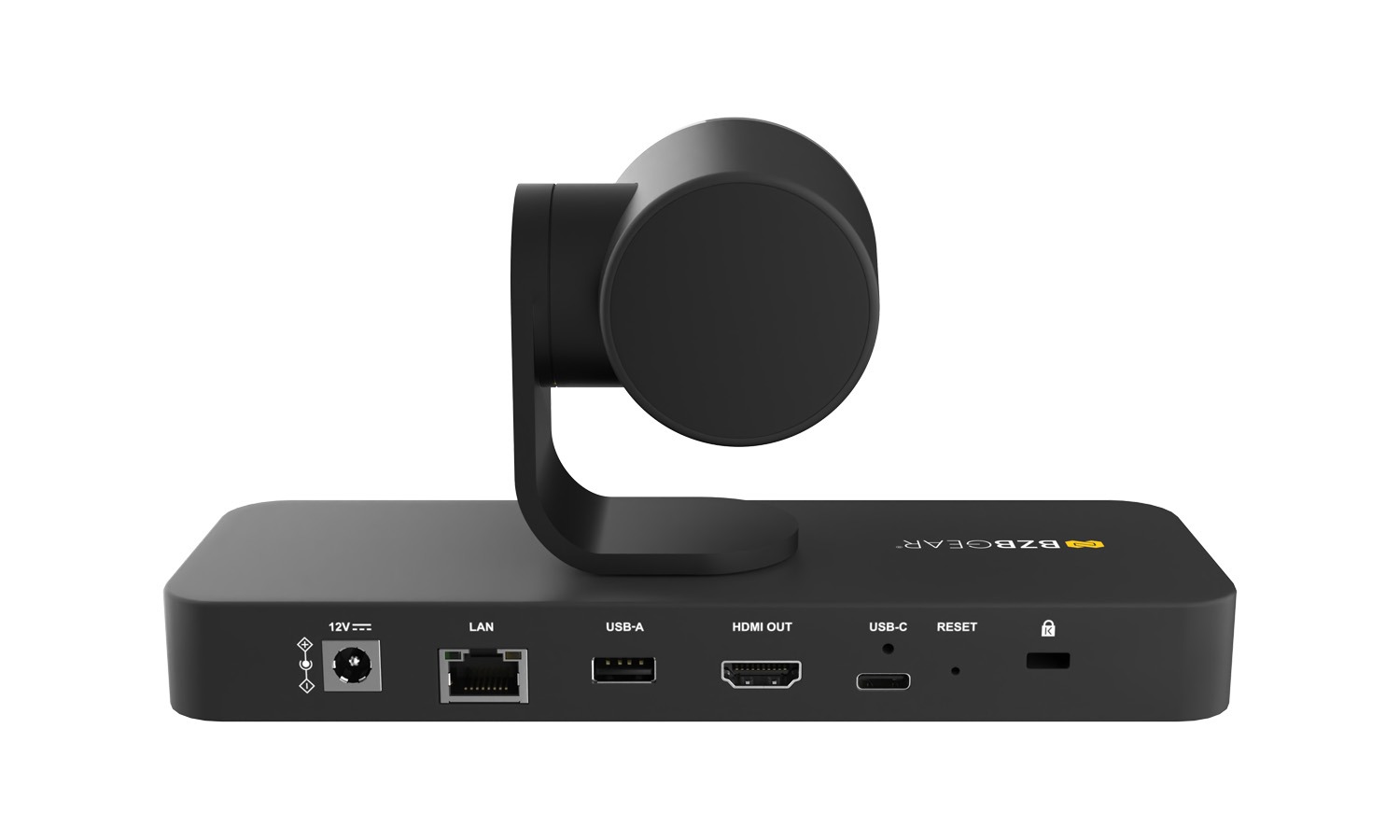

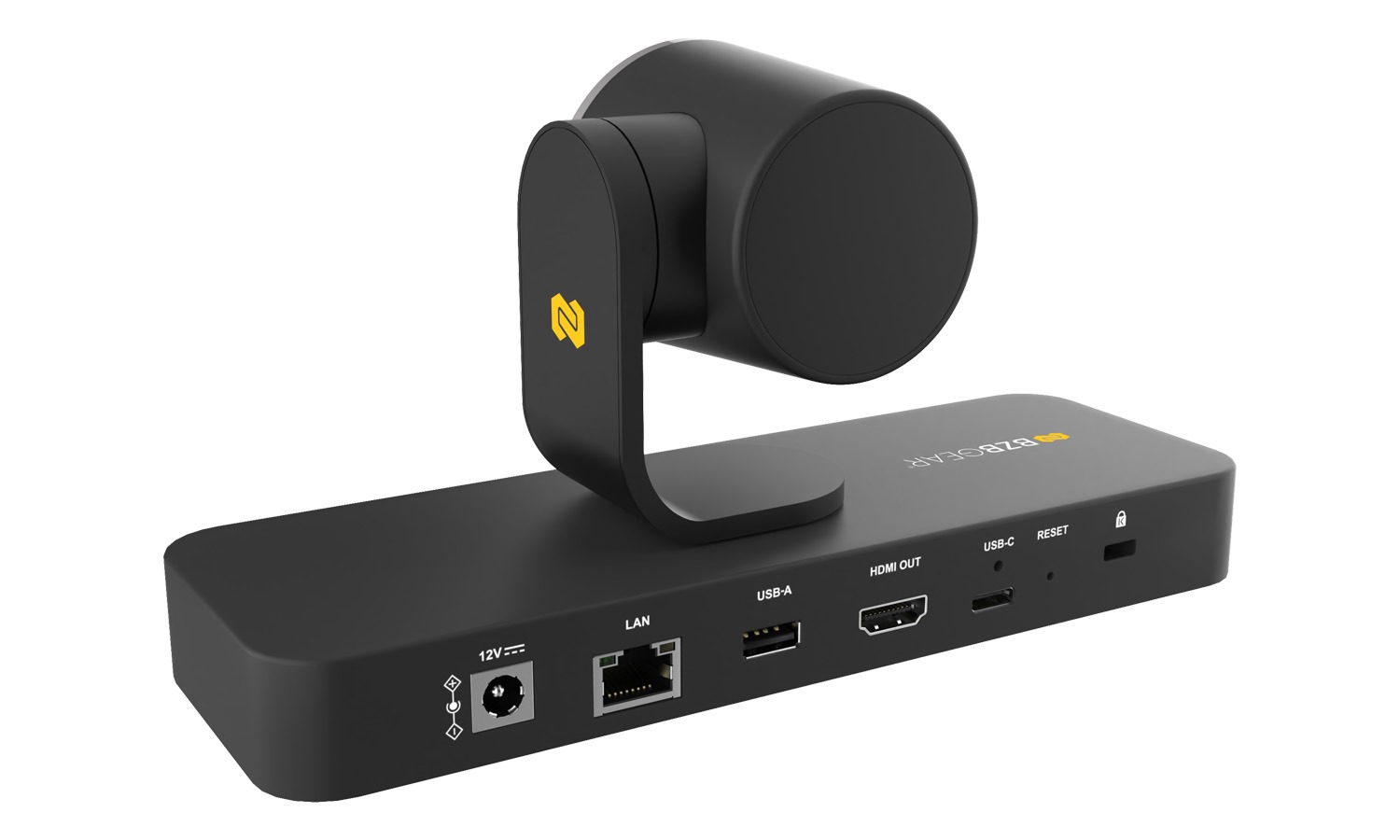

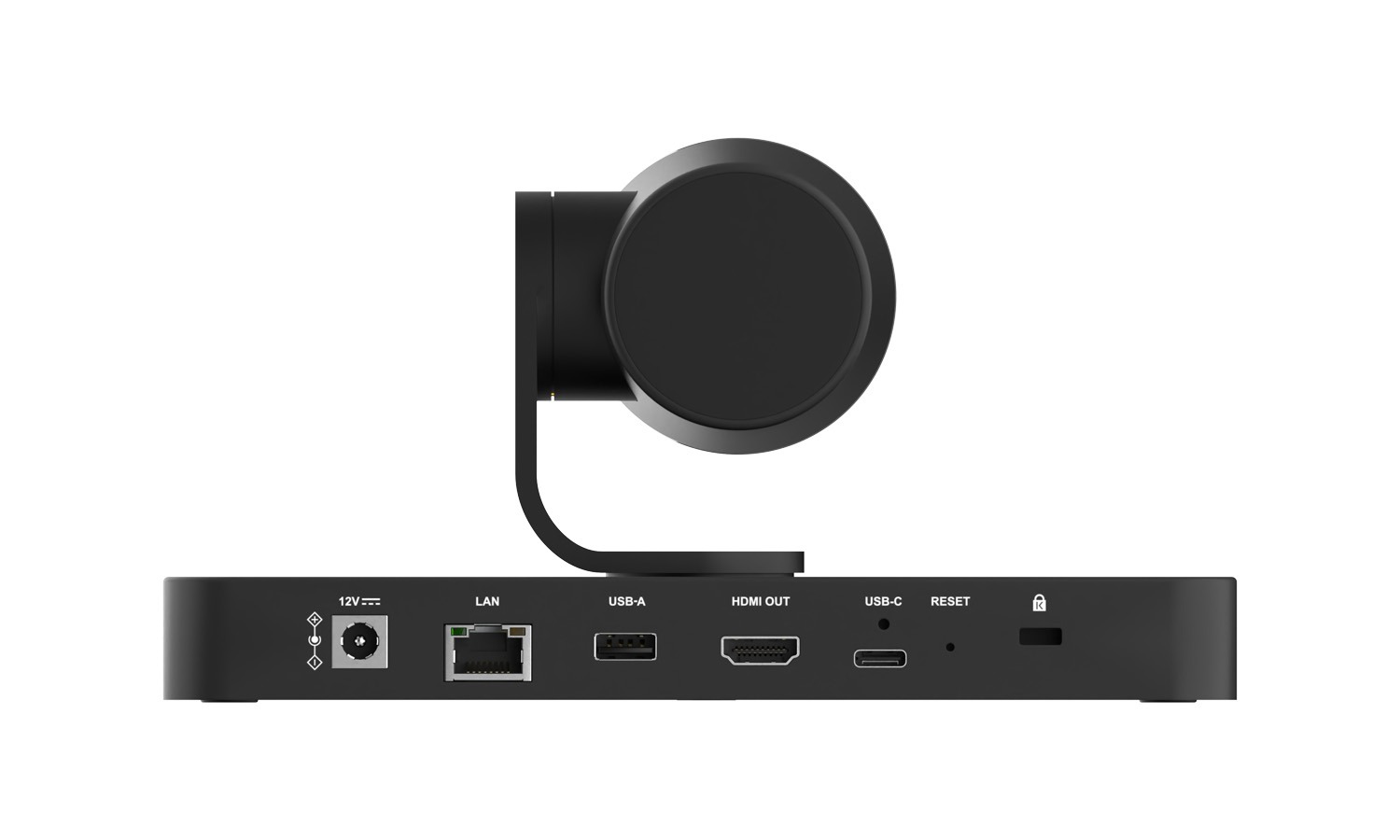

- DC 12V: Connect to the provided power adapter.
- LAN: Connect to the network for web UI or Telnet control.
- USB-A: USB 2.0 Type-A port. Connect to USB peripherals, such as a speakerphone.
- HDMI OUT: Connect to an HDMI display, video conference system, projector, or video capture device.
- USB-C: USB 3.0 Type-C port. Connect to a laptop, room PC, or all-in-one conference device for transmitting audio and camera video signals using the provided USB-A to USB-C cable.
- RESET: Press once to display the IP address and tracking mode on the connected display. Hold for at least 5 seconds to restore factory defaults.
- Kensington Lock Slot: Kensington security slot.
