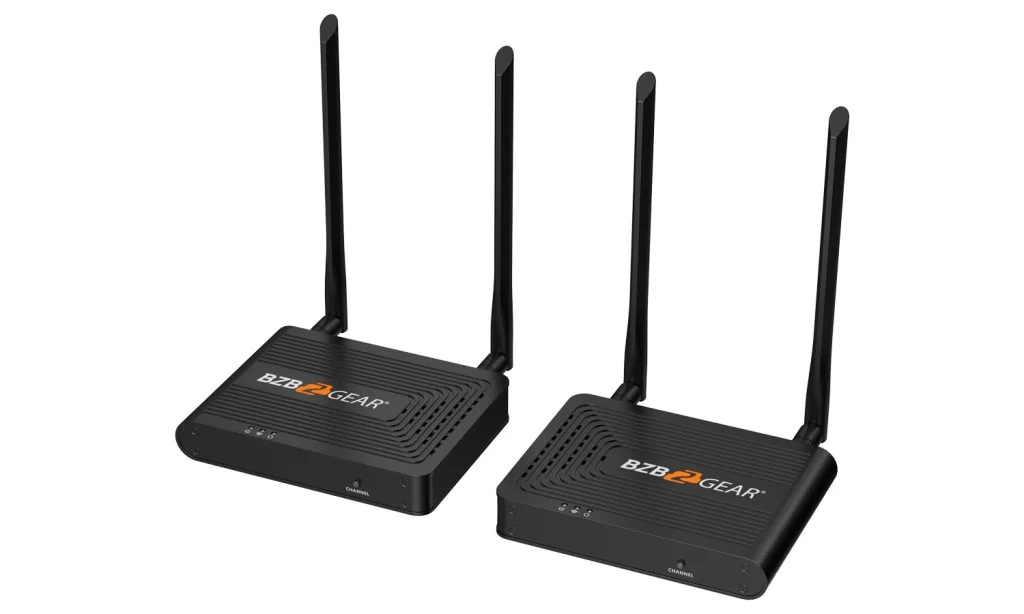

4K 60Hz UHD HDMI 2.0 Wireless Extender Kit with IR up to 164ft
Click here to learn more about BZBGEAR Fundamentals
NEW
Configure the Perfect Solution
Get Started
Tech Specifications
HDMI Performance and Interface |
HDMI version | HDMI 2.0 |
HDCP version | HDCP 1.4 / HDCP 2.2 | |
Maximum transfer rate | 18Gbps | |
Resolution supported | 3840x2160@24/30/50/60Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440, 2560x1600 |
|
Input and output TMDS signal | 0.7~1.2Vp-p (TMDS) | |
Input and output DDC signal | 5Vp-p (TTL) | |
Transmission | Wi-Fi Frequency bands | 5.18~5.24 GHz |
Transmission distance | ≤ 50m | |
Latency | 130~180ms | |
Connection types | One-to-one | |
SSID pairing | Supported | |
Protection Level | ESD protection | 1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2 |
IR Performance | Infrared frequency | 20~60kHz |
Receiving range | ≤ 5m | |
Operating Environment |
Working temperature | -4~140°F / -20~60°C |
Storage temperature | -22~158°F / -30~70°C | |
Humidity (no condensation) | 0~90% RH | |
Power Supply | Voltage/Current | DC 5V/2A |
Power consumption | TX ≤ 6W, RX ≤ 4W | |
Physical Properties | Dimension (W x L x H) | TX: 4.5 x 4.9 x 0.81in [115 x 125 x 20.6mm] RX: 4.5 x 4.9 x 0.81in [115 x 125 x 20.6mm] |
Color | Black | |
Material | Iron | |
Net weight | TX: 0.78lbs [353g]; RX: 0.76lbs [346g] |
Resources
Documents
PACKAGE CONTENTS
- 1x BG-Air4Kast TX
- 1x BG-Air4Kast RX
- 2x 5V2A Power Adapters
- 1x IR Receiver Extension Cable
- 1x IR Blaster Extension Cable
- 4x Antenna

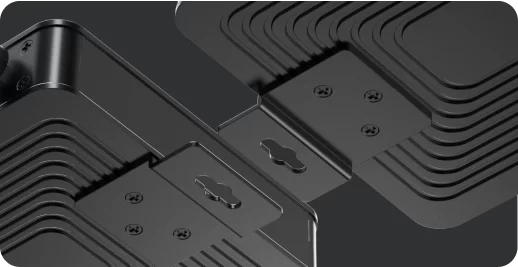

- 4x Mounting Ears
- 12x Screws
- 1x User Manual

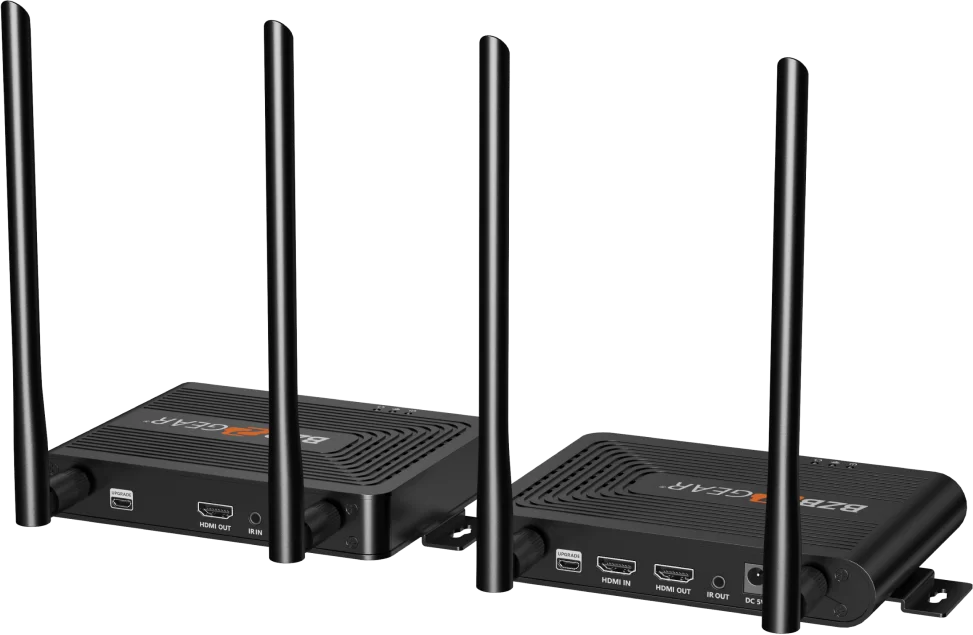

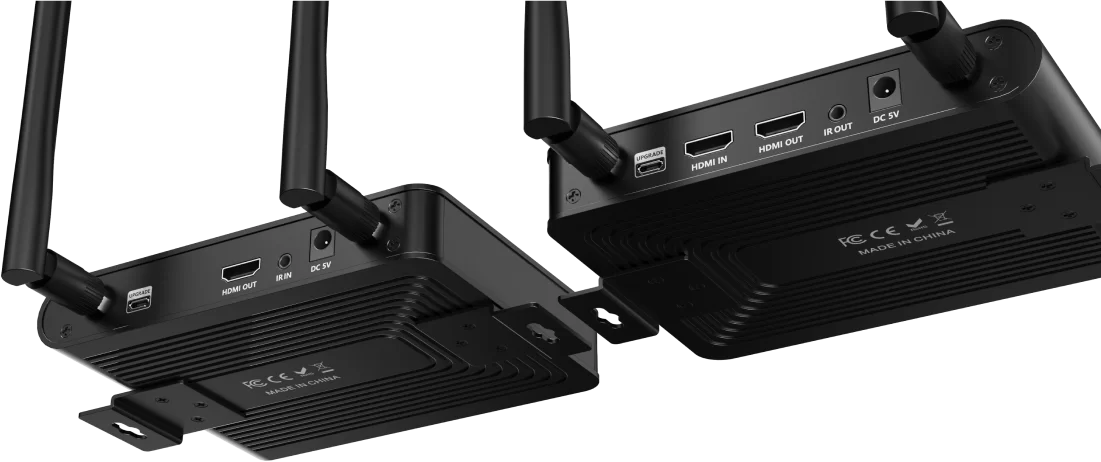

Interfaces
![Interfaces image](https://bzbgear.com/wp-content/uploads/BG-Air4Kast-2.png)
Receiver (RX)
- Power Indicator: The LED will illuminate blue when the device is powered on.
- WiFi Indicator:
Slow Flash: Waiting for connection
Solid: Connection established
Rapid Flash: SSID Pairing mode. - Signal Indicator:
Light Off: No HDMI signal detected
Solid: HDMI signal is transmitting
Rapid Flash: Restore Factory Settings in progress. - Channel Switch Button:
Press to switch broadcasting channels
Press and hold for 5s for SSID Pairing mode
Press and hold for 10s to restore factory settings. - Antenna Connectors: Connect the included antennas.
- Micro USB Port: Used for firmware upgrades.
- HDMI Out: Connect to a display using an HDMI cable.
- IR In: Connect the included IR Receiver extension cable.
- Power Input: Connect the included 5V/2A power supply.
Transmitter (TX)
- Power Indicator: The LED will illuminate blue when the device is powered on.
- WiFi Indicator:
Slow Flash: Waiting for connection
Solid: Connection established
Rapid Flash: SSID Pairing mode. - Signal Indicator:
Light Off: No HDMI signal detected
Solid: HDMI signal is transmitting
Rapid Flash: Restore Factory Settings in progress. - Channel Switch Button:
Press to switch broadcasting channels
Press and hold for 5s for SSID Pairing mode
Press and hold for 10s to restore factory settings. - Antenna Connectors: Connect the included antennas.
- Micro USB Port: Used for firmware upgrades.
- HDMI Input: Connect to a source device using an HDMI cable.
- HDMI Output: Connect to a display using an HDMI cable.
- IR Out: Connect the included IR Blaster extension cable.
- Power Input: Connect the included 5V/2A power supply.
